SPECIFICATIONS

Brand Name: XIAOMI

Choice: yes

Connectivity: WIFI(2.4GHz)

High Definition: 3.0 Megapixels

High-concerned chemical: None

Lens (mm): 2MM

Lens Quantity: Single Lens

Megapixels: 3 MP

Origin: Mainland China

Power Supply: Normal

Style: Bullet Camera

Supported Operating Systems: No

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: 2X

Zoom type: Digital zoom

Note

This device is a Chinese version, but it is universally available. Before adding your device, you need to switch the country and region of your MiHome APP to Chinese mainland and set the language to your native language. Devices from other countries and regions cannot be recognized. Thank you!

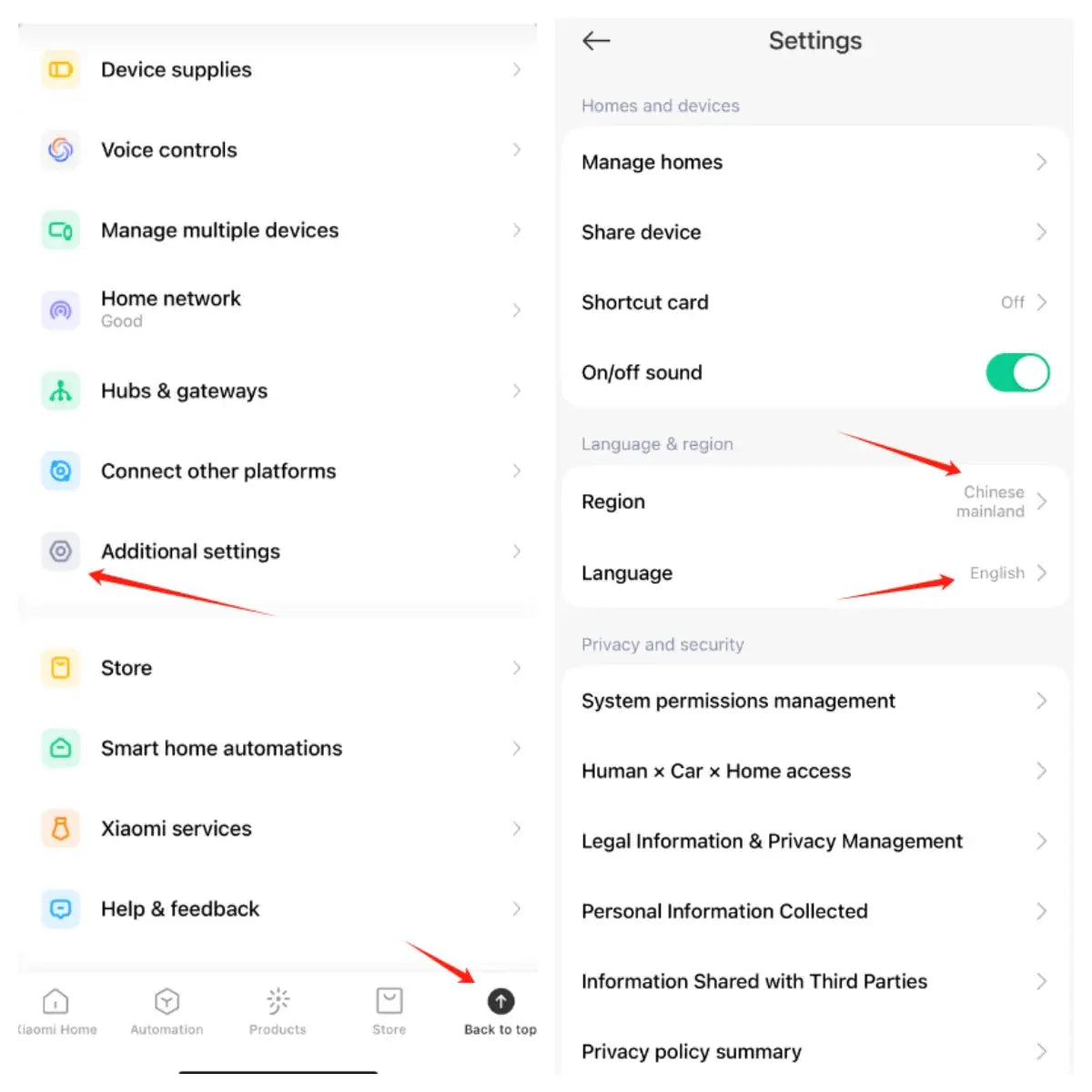

1. Please download the Mi Home application first. And make sure it is the newest version of the app. After downloading, click “Profile” - “Additional Settings”.

2. In “Language and Region”, set “Region” to “Chinese Mainland”.

3. Connect the power supply.

(1) Plug the power adapter cable into the camera's power connector, and the camera will automatically turn on the power.

(2) The indicator light will turn yellow and a voice prompt will be heard to indicate successful power-on.

(3) Click the “+” in the upper right corner and then click Scan.

4. Follow the on-screen instructions to reset the product. Click Device Reset.

5. Select 2.4G Wi-Fi, not 5G or higher, then click “Next”.

6.Continue until the connection is successful.

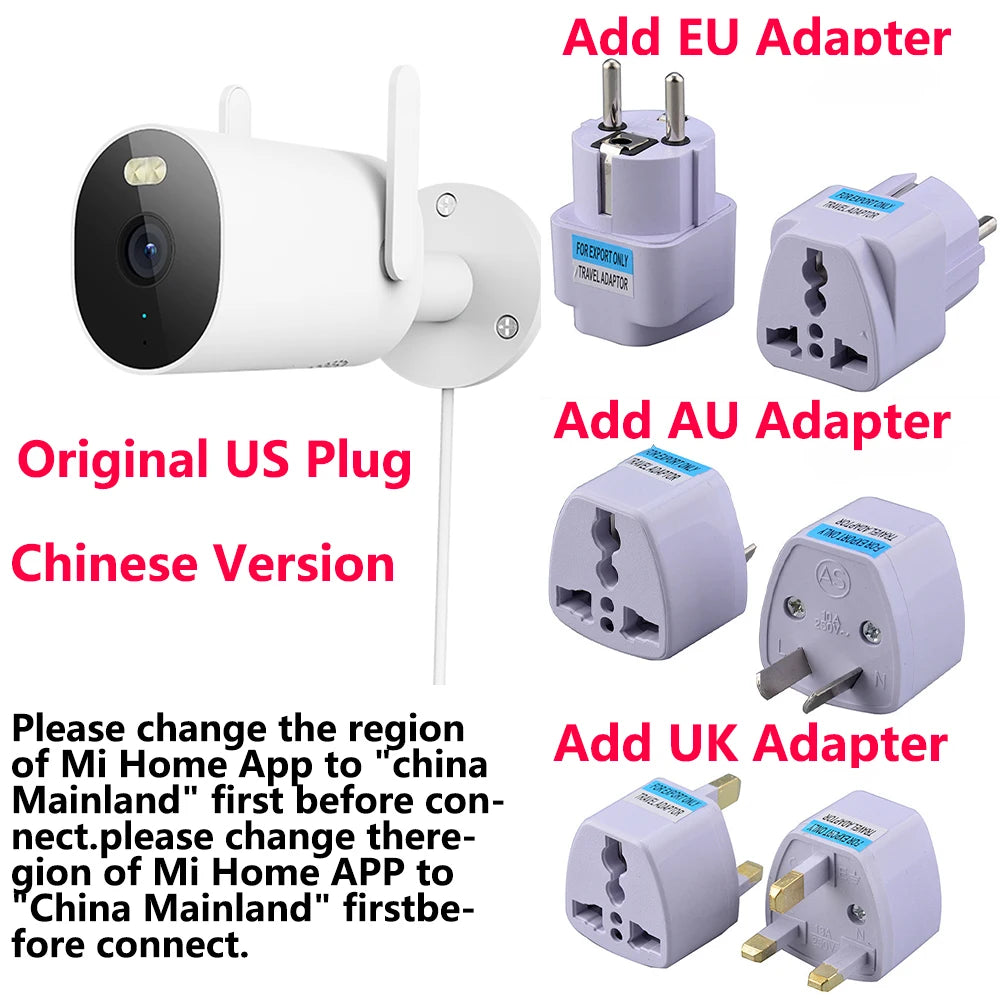

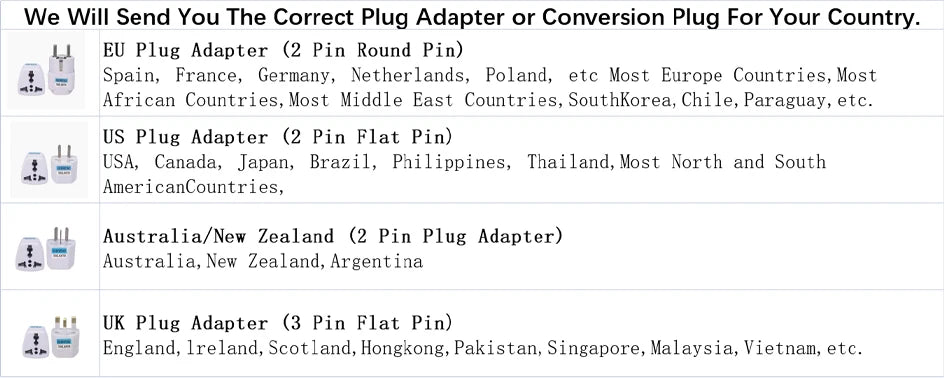

This product is the Chinese version, and the power plugs are all Chinese standard. Please choose the correct adapter. We will provide you with the required specifications for free.

EU plug = Chinese plug Add EU adapter

UK plug = Chinese plug Add UK adapter

AU plug = Chinese plug Add AU adapter

Original US plug = Chinese plug

Please select the plug in your region, and we will provide you with a free adapter based on the SKU you have chosen.

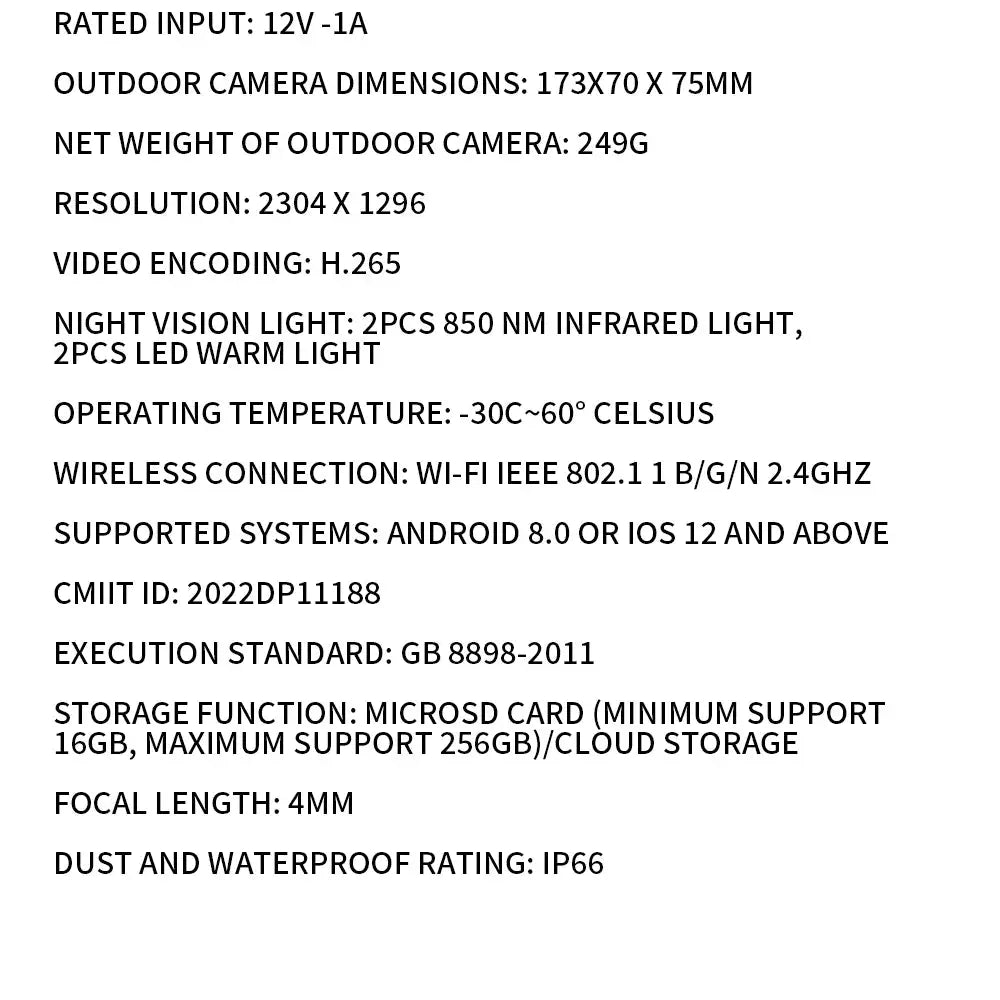

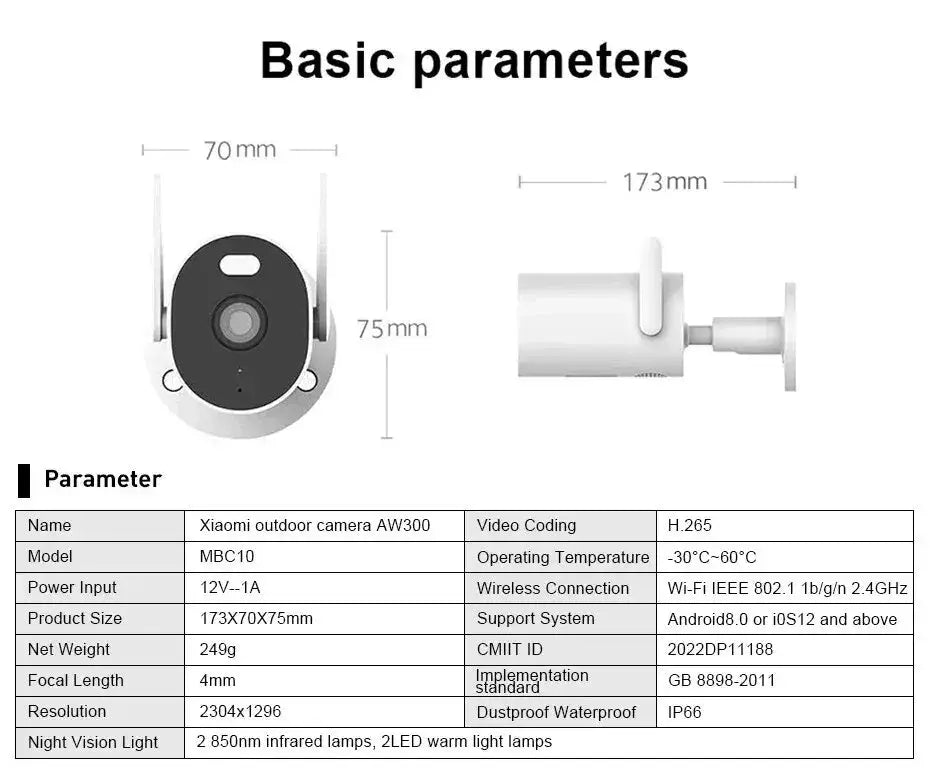

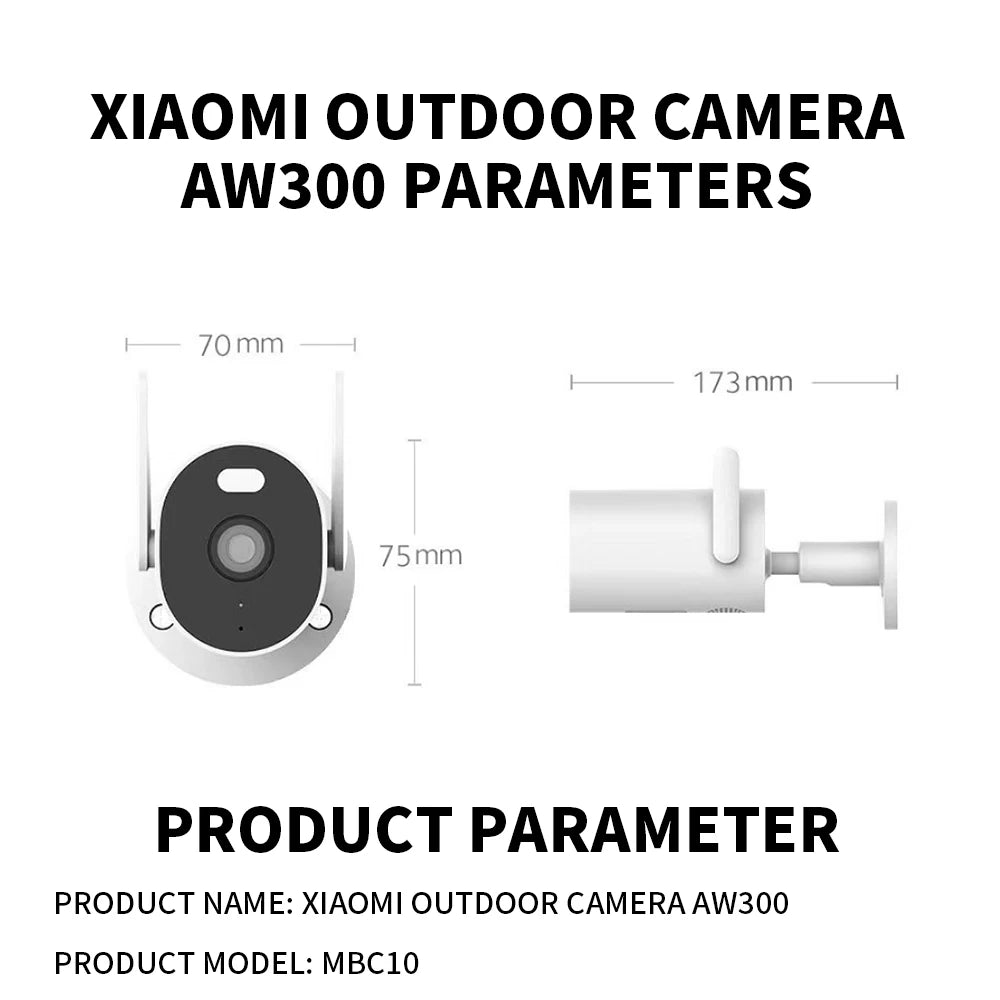

Product name:Xiaomi outdoor camera AW300

Dustproof and waterproof: IP66

Power input: 12V-II1A

Night vision lamp: two 850 nm infrared lamps, two LED warm lights

Product dimensions.: 173x 70 X 75mm

Operating temperature: - 30 ° C~60C

Net weight of product: 249g

Wireless connection: Wi Fi IEEE 802.1 1b/g/n 2.4GHz

Focal length: 4mm

Supported system: Android 8.0 or ios 12 or above

Resolution: 2304x1296

CMIT ID:2022DP11188

MicroSD card: (minimum 16GB storage function, maximum 256GB)/cloud storage

Executive standard: GB 8898-201 1

Q: Must the camera be equipped with a MicroSD card?

A: The camera may not have a MicroSD card installed. After connecting Mijia APP, if the MicroSD card is not installed, only the monitoring event video will be automatically saved in the cloud; If a MicroSD card is installed, 24 will be stored on the MicroSD card at the same time × 7.

Q: How do I view videos recorded by my camera?

A: In Mijia APP, click the video screen to view the real-time video, and click "Watcher" to view the event video recorded before the camera.

If you have installed a MicroSD card, you can view historical video files in "Review".

Q: Can this product be used without network?

A: The camera must be connected to Mijia APP through the network, and can only be used normally after the device is bound to the user.

Q: What should I do if the video picture is unclear or dirty?

A: Remove the lens protective film before use. Usually, the lens can be wiped with a soft cloth to keep it clean.

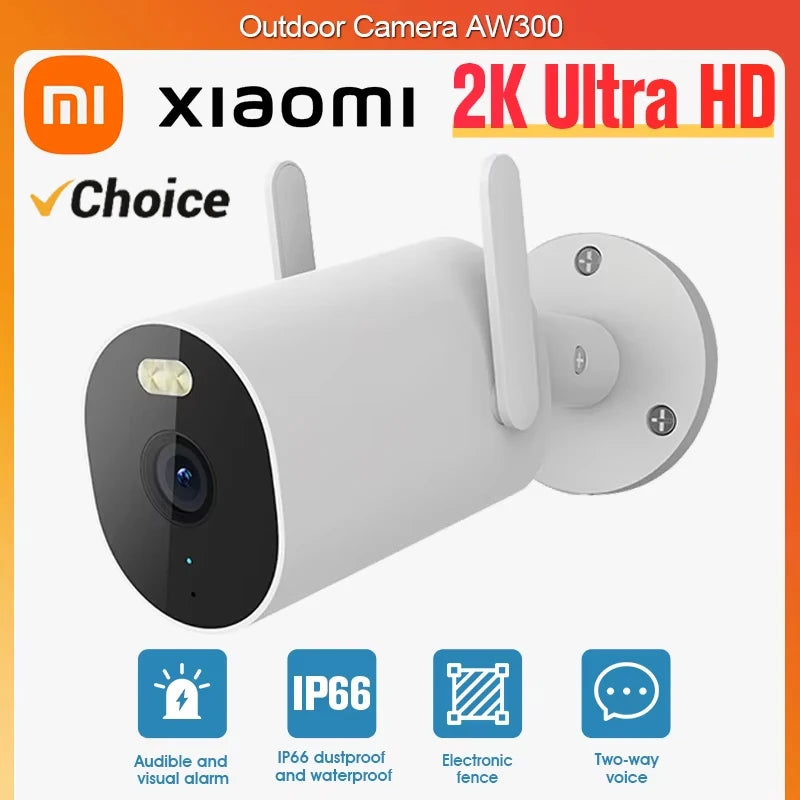

Main Features

* 2K ultra-clear picture quality, using 3 million pixel ultra-clear CMOS sensor, professional-grade optical lens, clear picture

* Full-color night vision, built-in two high-power white lights and two infrared lights, can still present color images in dark environments

* Intelligent electronic fence, focus on key areas of the screen

* Sound and light warnings deter uninvited guests and proactively warn away dangers

* Real-time voice intercom, built-in high-power speaker and high-fidelity microphone, clear sound

* IP66 dustproof and water-proof, still operating stably in bad weather

* High-gain external WiFi antenna, longer video transmission distance, good penetration and enhanced anti-interference ability

Detailed parameters

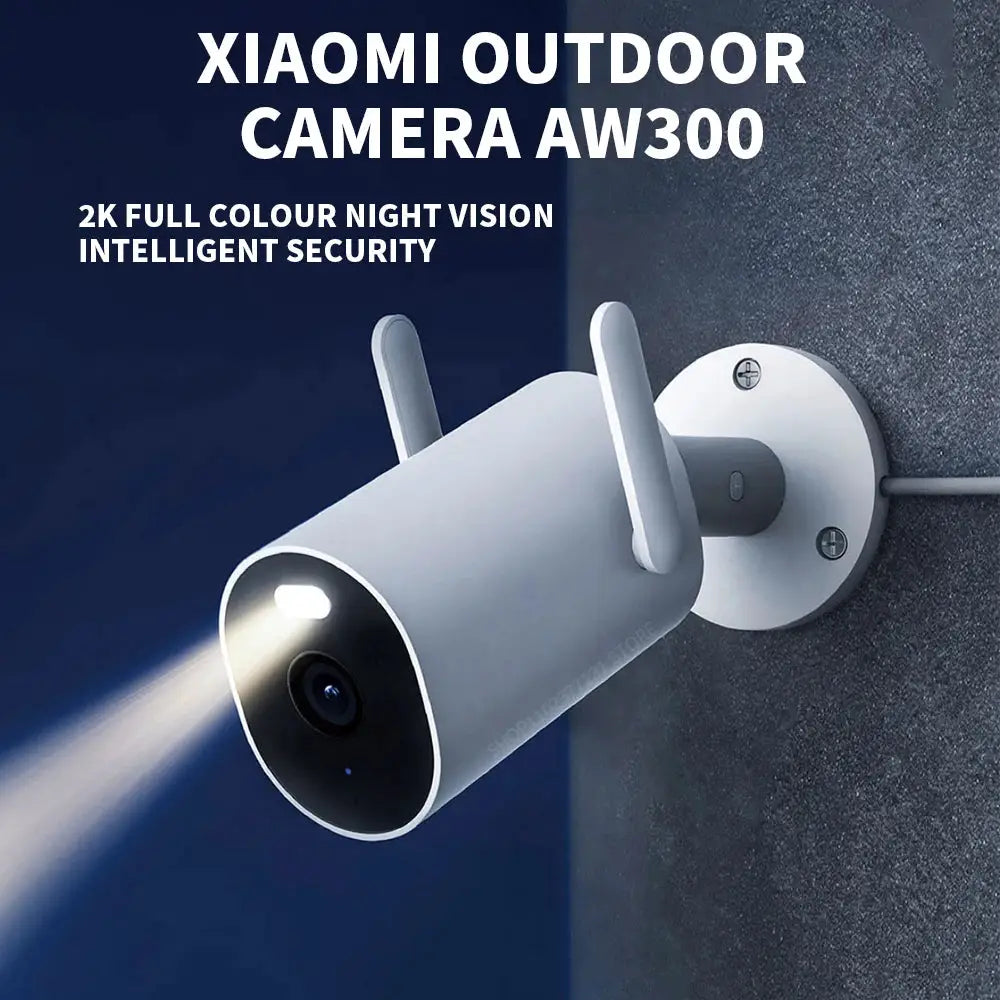

XIAOMI outdoor camera AW300

2K full-color night vision, no fear of wind and rain, intelligent security

High-position wide-angle overhead shooting, precise coverage of the care area

2K ultra-clear picture quality

Using a 3-megapixel ultra-clear CMOS sensor and professional-grade optical lens, it is on duty day and night 24 hours a day and records screen changes in high definition. Using WDR wide dynamic technology to cope with various complex outdoor environments.Four-light full-color night vision, you can see clearly at night

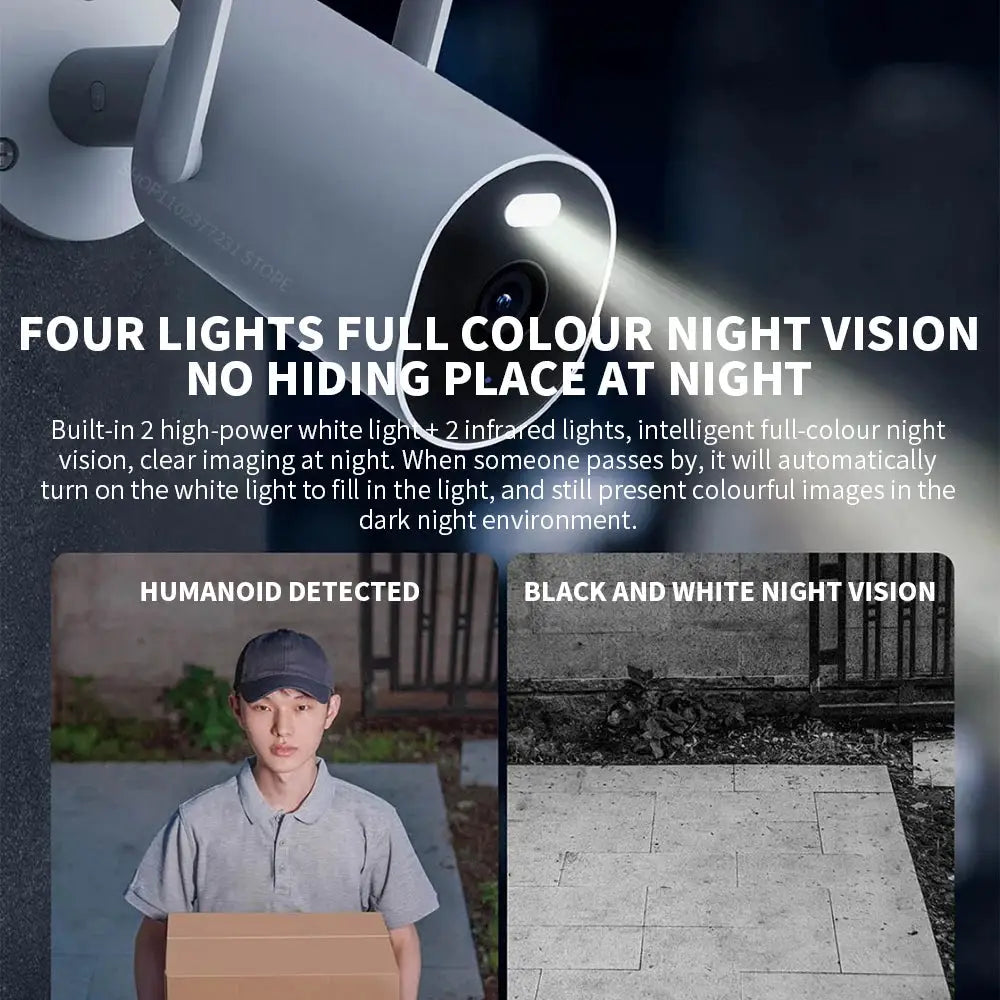

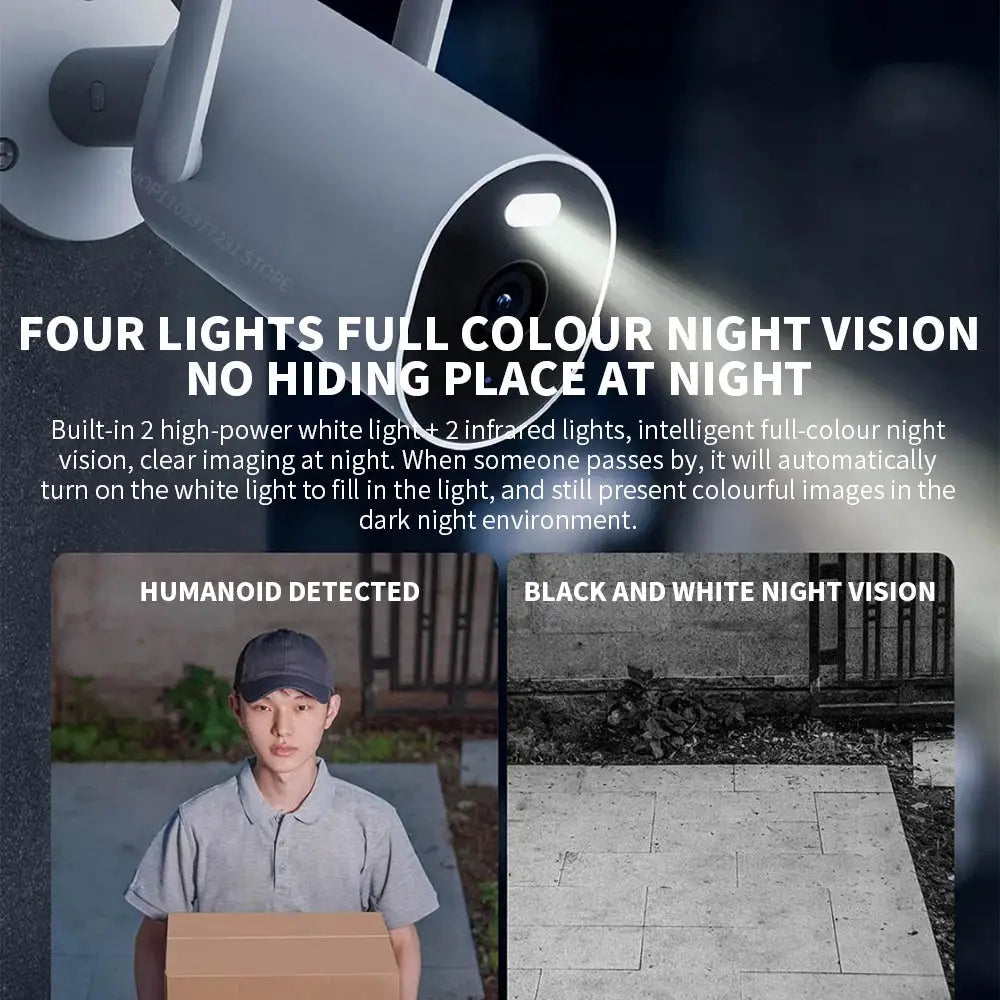

Built-in 2 high-power white lights + 2 infrared lights, intelligent full-color night vision, clear imaging in the dark. When someone passes by, the white light is automatically turned on to fill in the light.

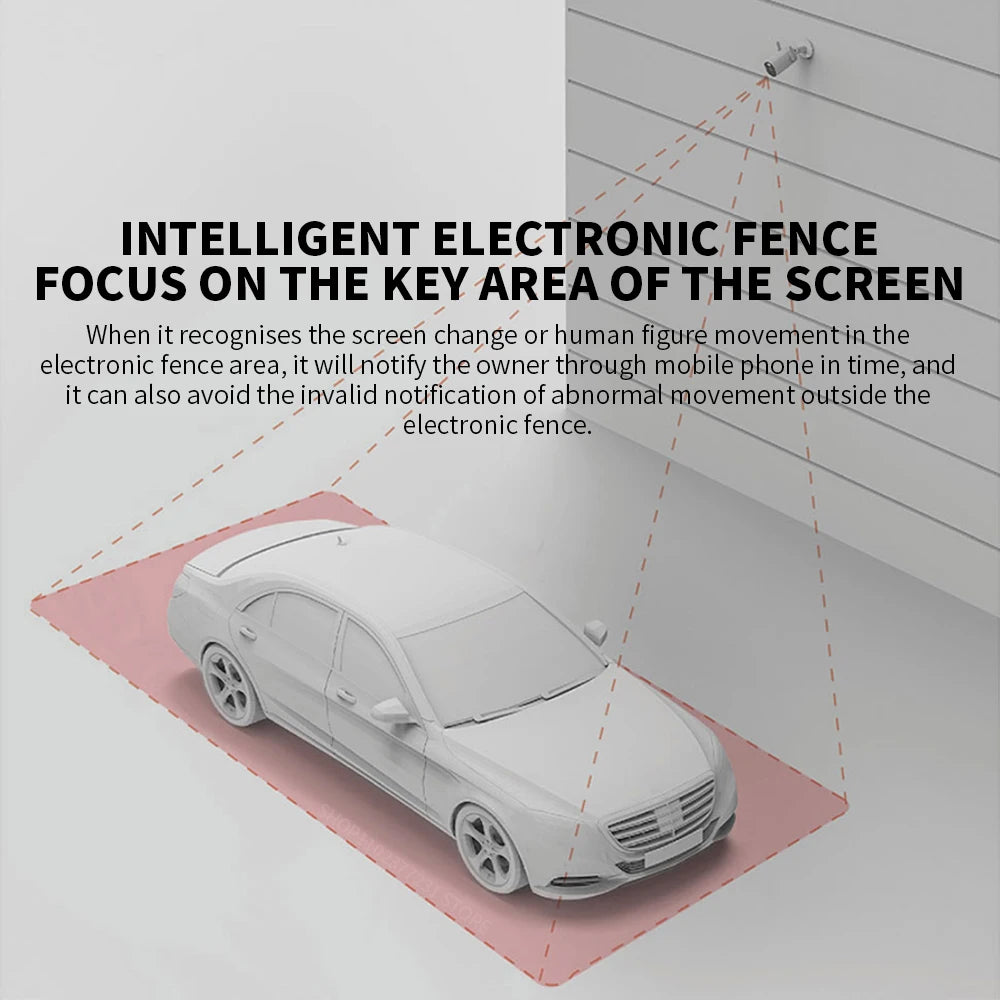

*The humanoid detection range is 7 meters away. The actual distance may vary due to objective environmental changes.Smart electronic fence, focus on key areas of the screen

When a change in the image or movement of a human figure is detected in the electronic fence area, the owner will be notified promptly through the mobile phone, while also avoiding invalid notifications of changes outside the electronic fence.

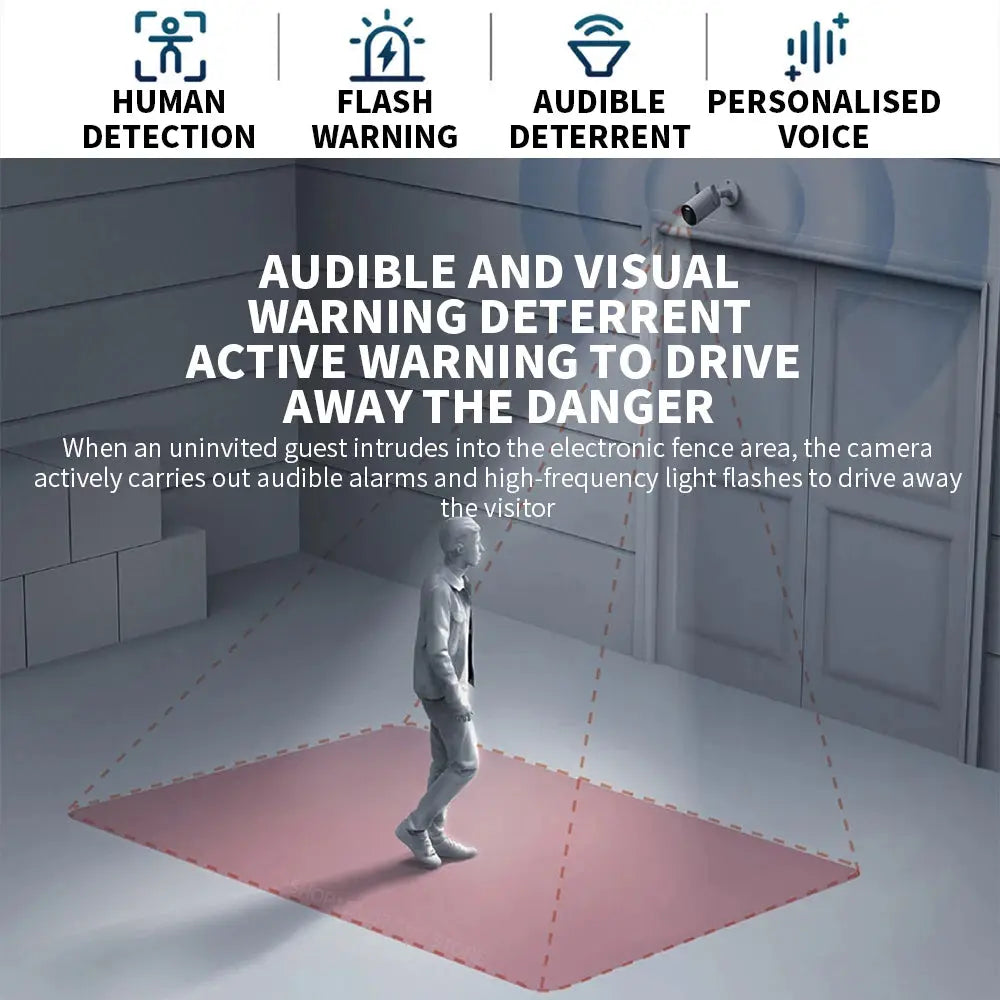

*The recognition of electric vehicles and car movement can support 25 meters in daytime environment. The actual situation may be different due to objective environment.Sound and light warning deterrence, active warning to drive away danger

If an uninvited guest breaks into the electronic fence area, the camera will automatically sound an alarm and flash high-frequency lights to drive the person away.

Humanoid detection | Flash warning | Loud sound to scare | Personalized voice

*After laboratory testing, it can detect and identify human figures within 7 meters. Sensitivity can be set in Mi Home APP.Real-time voice intercom

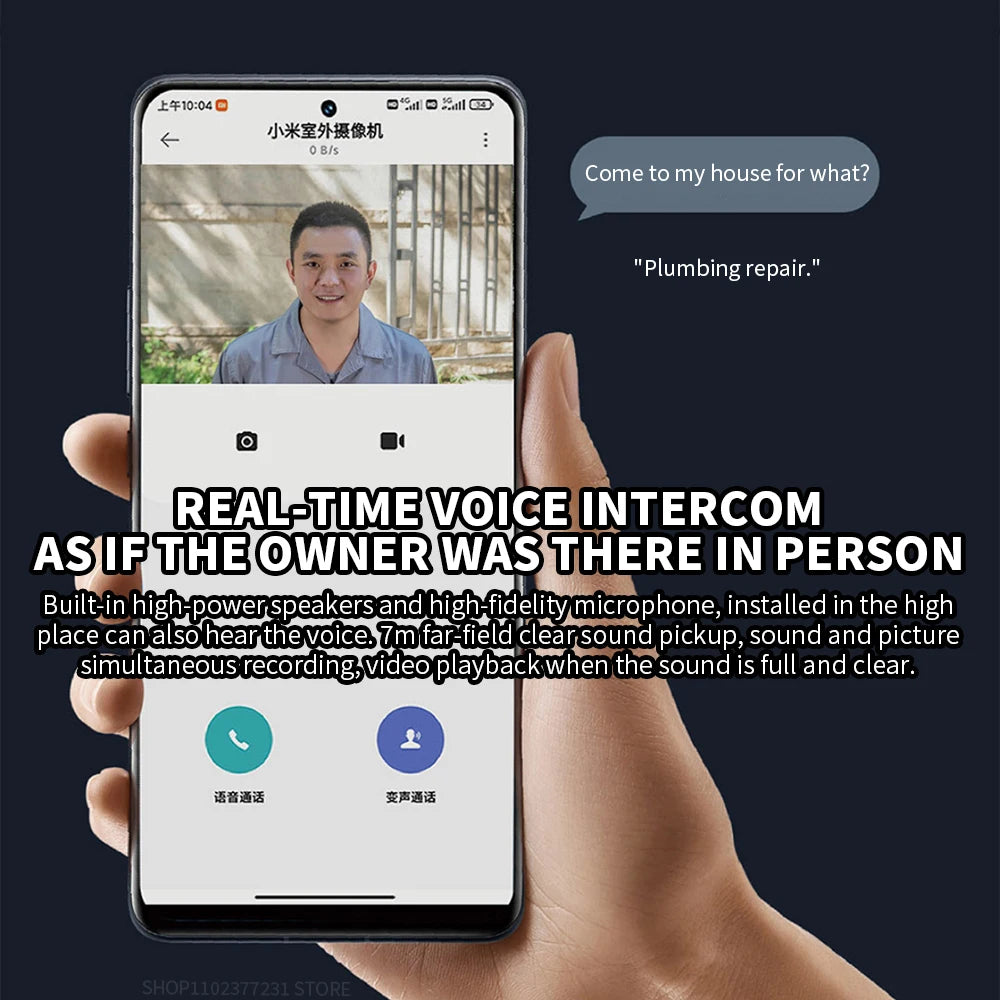

Built-in high-power speakers and high-fidelity microphones allow you to hear voices clearly even when installed at high places. 7m far-field clear sound pickup, sound and video are recorded at the same time, and the sound is full and clear when playing back the video.

*The 7-meter sound pickup distance is tested by the artificial intelligence laboratory. The actual distance may vary due to objective environmental changes.Supports multi-camera care and multi-screen real-time images

You can use the Mi Home APP to view real-time footage from multiple cameras on TVs, tablets, mobile phones and other devices, and supports simultaneous viewing of 4-channel images.tookfun

*Download Mi Home APP and use Mijia account to bind one by one to view multiple devices. Quad-split full-screen viewing is currently only supported on TVs, and will be updated to support more devices. Videos can be played back with 1/4/16x history.Mijia ecological intelligent linkage

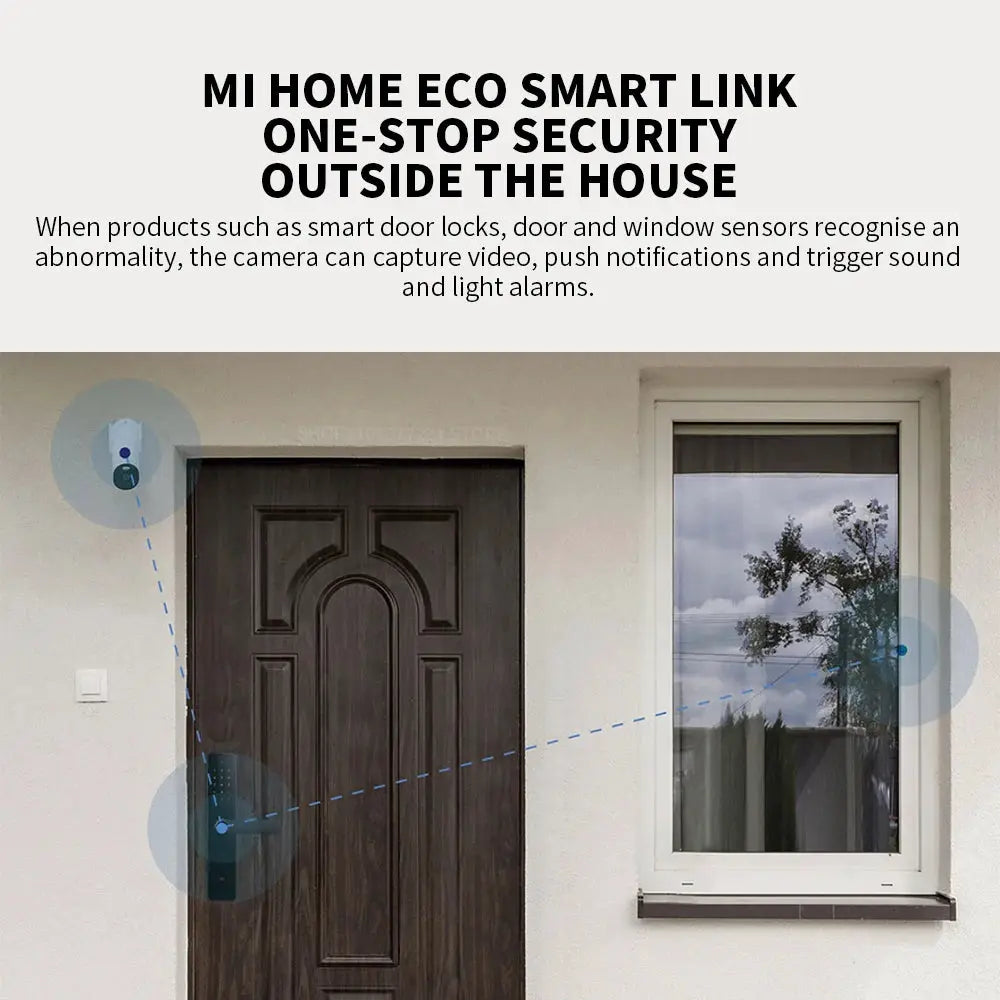

When products such as smart door locks and door and window sensors detect abnormalities, the camera can capture video, push notifications and trigger audible and visual alarms.

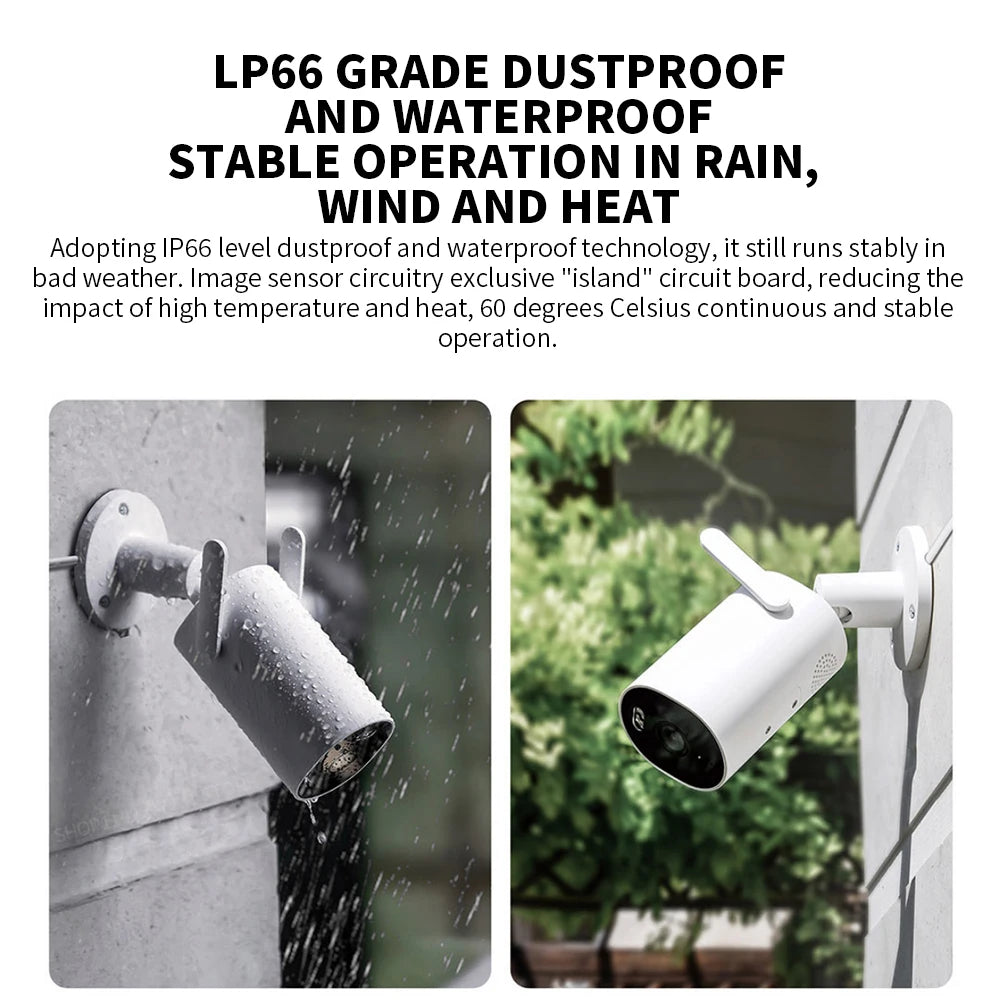

*Mijia linkage devices such as Xiaoai speakers or Xiaomi gateways, smart door locks, door and window sensors, etc. need to be purchased separately.IP66 dustproof and waterproof

Adopting IP66 dustproof and waterproof technology, it can still operate stably in bad weather. The image sensor circuit is exclusively equipped with a "Dokshima" circuit board, which reduces the thermal impact of high temperatures and enables continuous and stable operation at temperatures as high as 60 degrees.

*The operating temperature of the camera is -30°C -60°C. There may be errors due to objective environmental changes during use.Simple installation and networking, flexible care angle

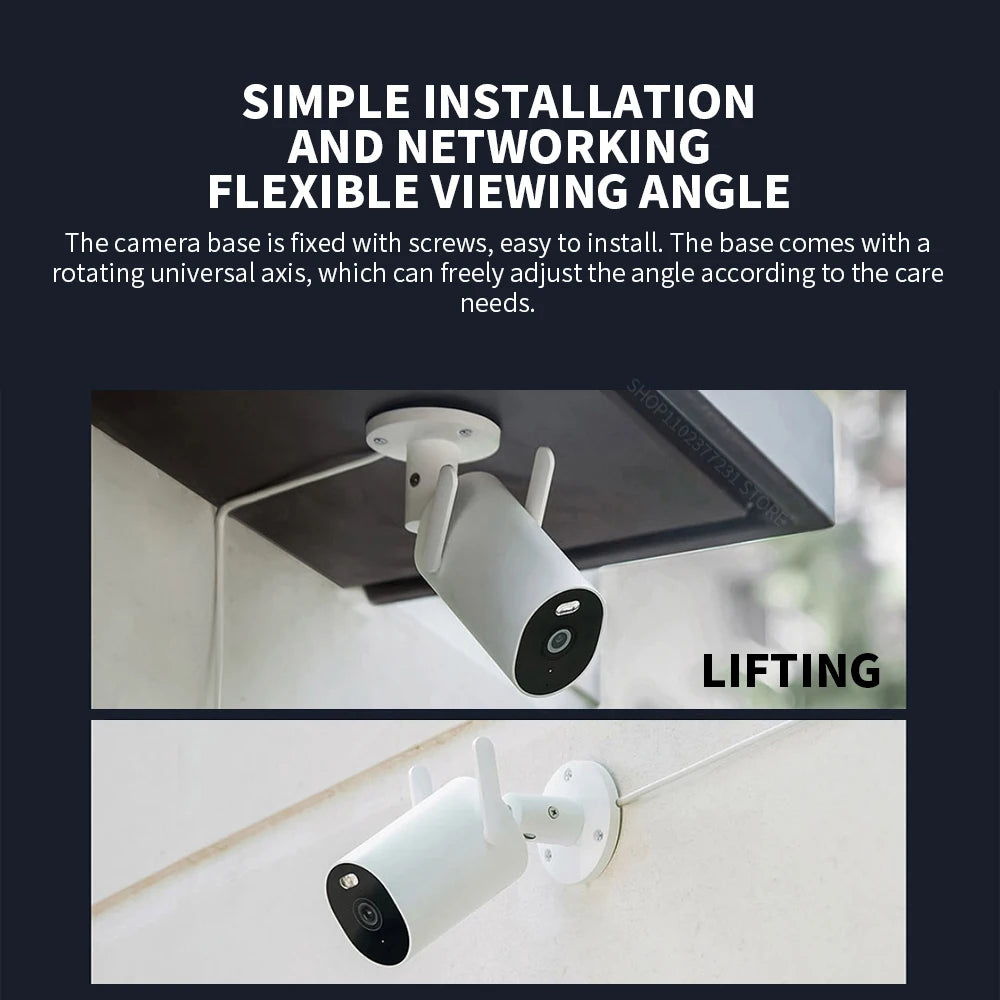

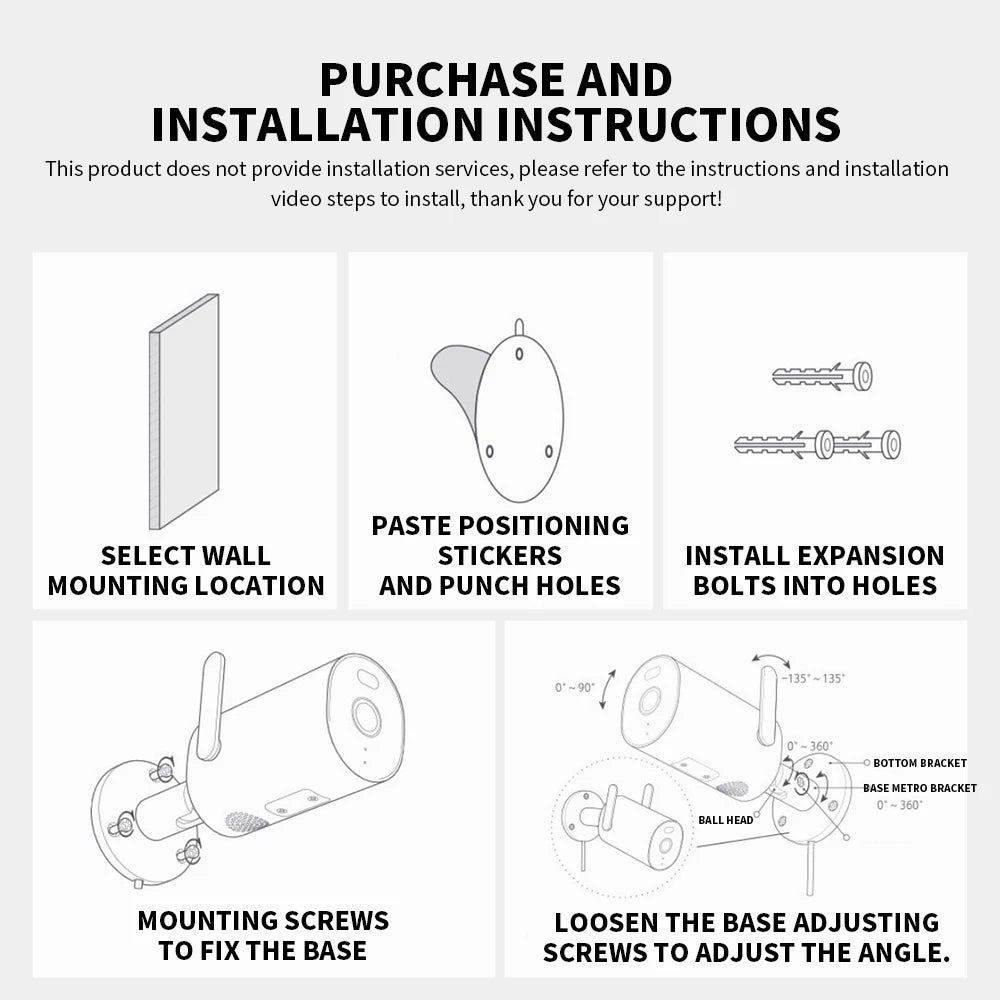

The camera base is fixed with screws, making installation easy. The base is equipped with a rotating universal shaft, which can freely adjust the angle according to nursing needs.

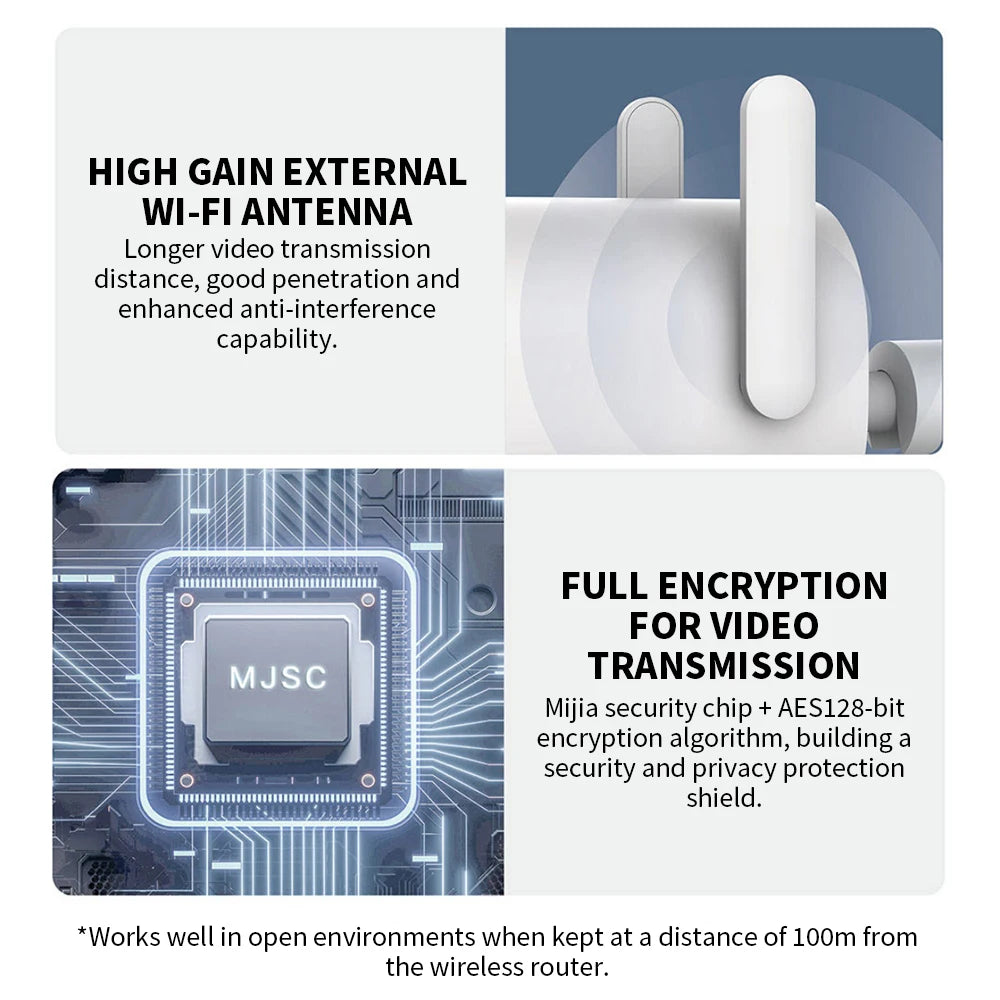

*When installing, be sure to place the speaker port facing down, do not turn it upside down.High-gain external Wi-Fi antenna: longer video transmission distance, good penetration, and enhanced anti-interference ability.

Video transmission is fully encrypted: Mijia security chip + AES 128-bit encryption algorithm to build a security and privacy protection shield.tookfun

*It can still be used normally when maintaining a distance of 100m from the wireless router in an open environment.H.265 code stream is efficiently transmitted, saying goodbye to lags

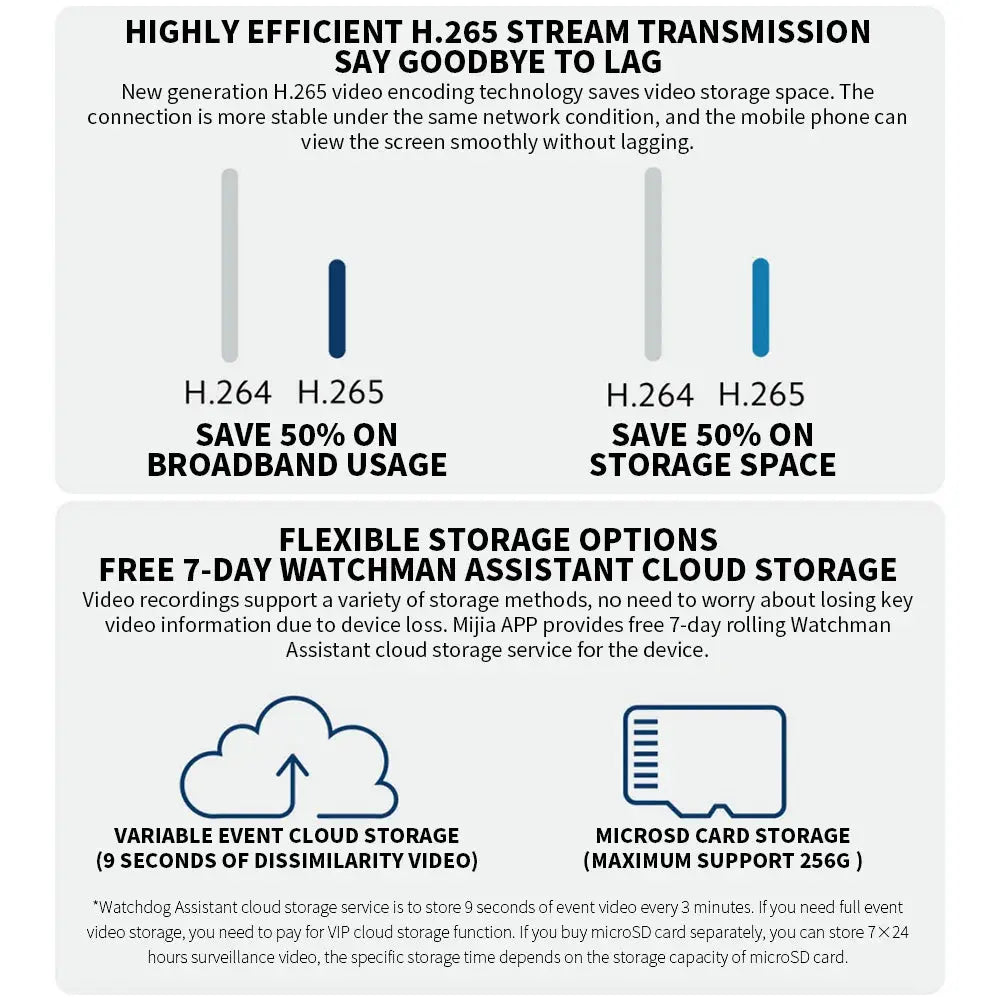

New generation H.265 video encoding technology saves video storage space. Under the same network conditions, the connection is more stable, and the screen viewing on the mobile phone is smooth and free of lags.

Save 50% on broadband usage and 50% on storage spaceFlexible storage methods, free 7-day housekeeping assistant cloud storage

Video recording supports a variety of storage methods, so you don’t have to worry about losing key video information due to device loss. Mi Home APP provides free 7-day rolling housekeeping assistant cloud storage service for the device.

Abnormal event cloud storage (nine-second abnormal video recording)

microSD card storage (maximum support 256G)

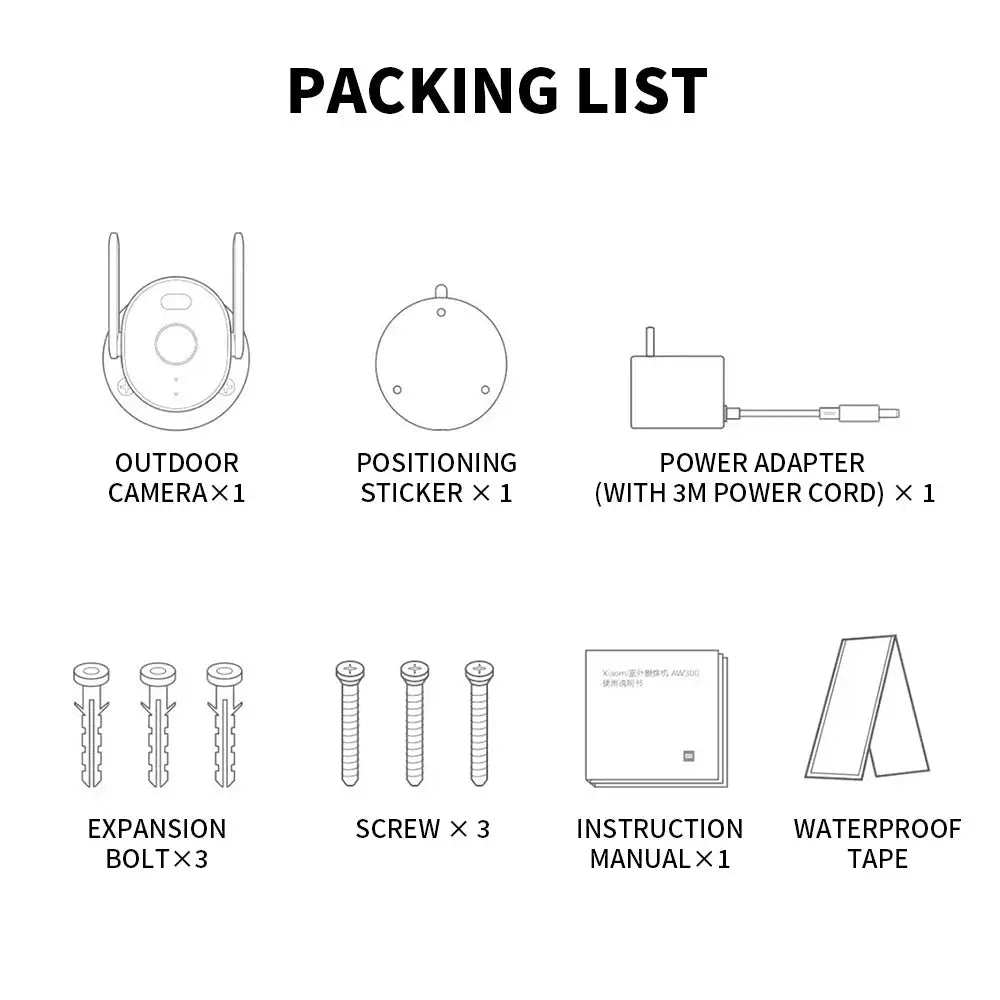

*Housekeeping Assistant cloud storage service stores 9 seconds of event video every 3 minutes. If you need complete event video storage, you need to pay an additional fee to activate the VIP cloud storage function. Purchasing a microSD card separately can store 7x24 hours of surveillance video on a rolling basis. The specific storage time depends on the storage capacity of the microSD card.Package List

Outdoor camera*1

Positioning sticker*1

Power adapter (including 3m power cord)*1

Expansion bolt*3

Screw*3

Instruction Manual*1

Waterproof tape
