SucceBuy Two Linear Guide Rails SBR 800 To 2200mm And 4 UU Blocks
Available in stock (40)
Product Overview
This comprehensive kit features two SBR series linear guide rails and four matching bearing blocks, engineered for exceptional precision and smooth motion in DIY CNC projects, mills, and lathes. Constructed from high-carbon steel and aluminum, these components offer durability and consistent performance for demanding automation and fabrication tasks.
Specifications
- Brand Name: SucceBuy
- Certification: CE
- Material: High Carbon Steel & Aluminum
- Shaft Options: SBR12, SBR16, SBR20, SBR25
- Length Options: 800mm to 2200mm
- Performance Feature: High Precision Smooth Motion
- Noise Level: Low Noise
- Origin: Mainland China
Features
- Complete linear motion system with two precision-ground rails and four self-aligning bearing blocks for robust linear movement.

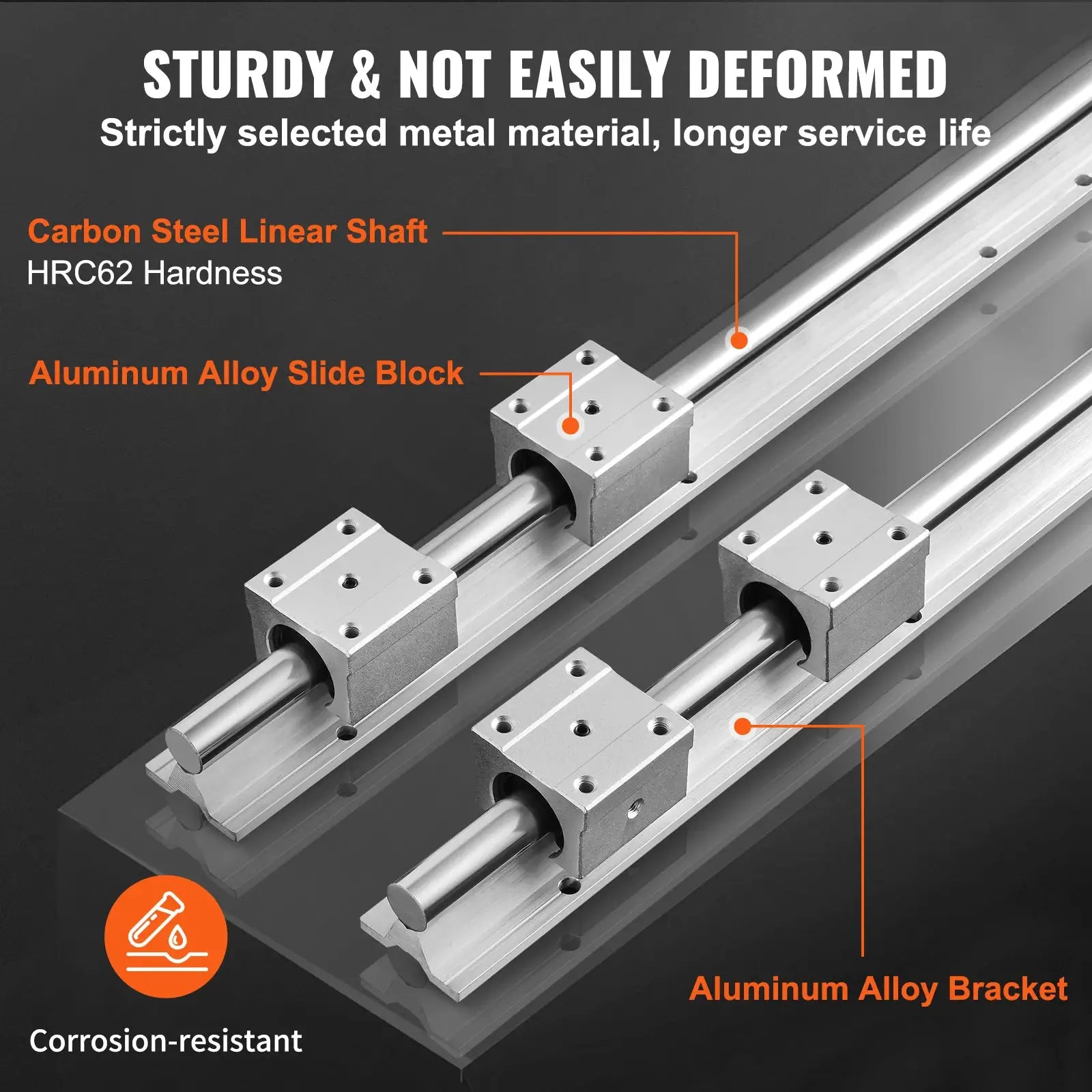

- Durable construction using high-carbon steel rails and aluminum bearings ensures excellent rigidity, corrosion resistance, and longevity.

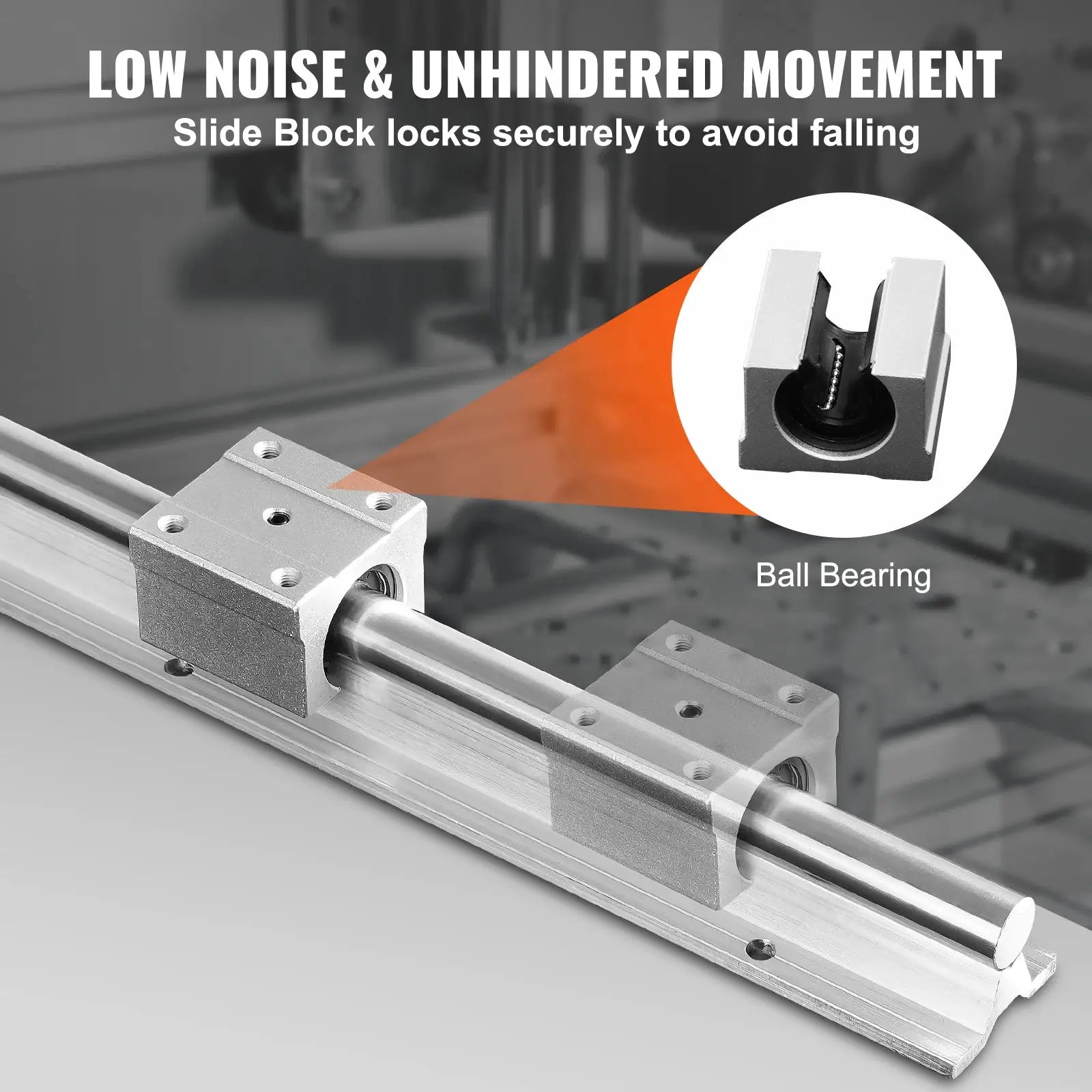

- Smooth sliding action is achieved through integrated ball bearings in the slide blocks, enabling effortless and stable motion along the rails with minimal friction.

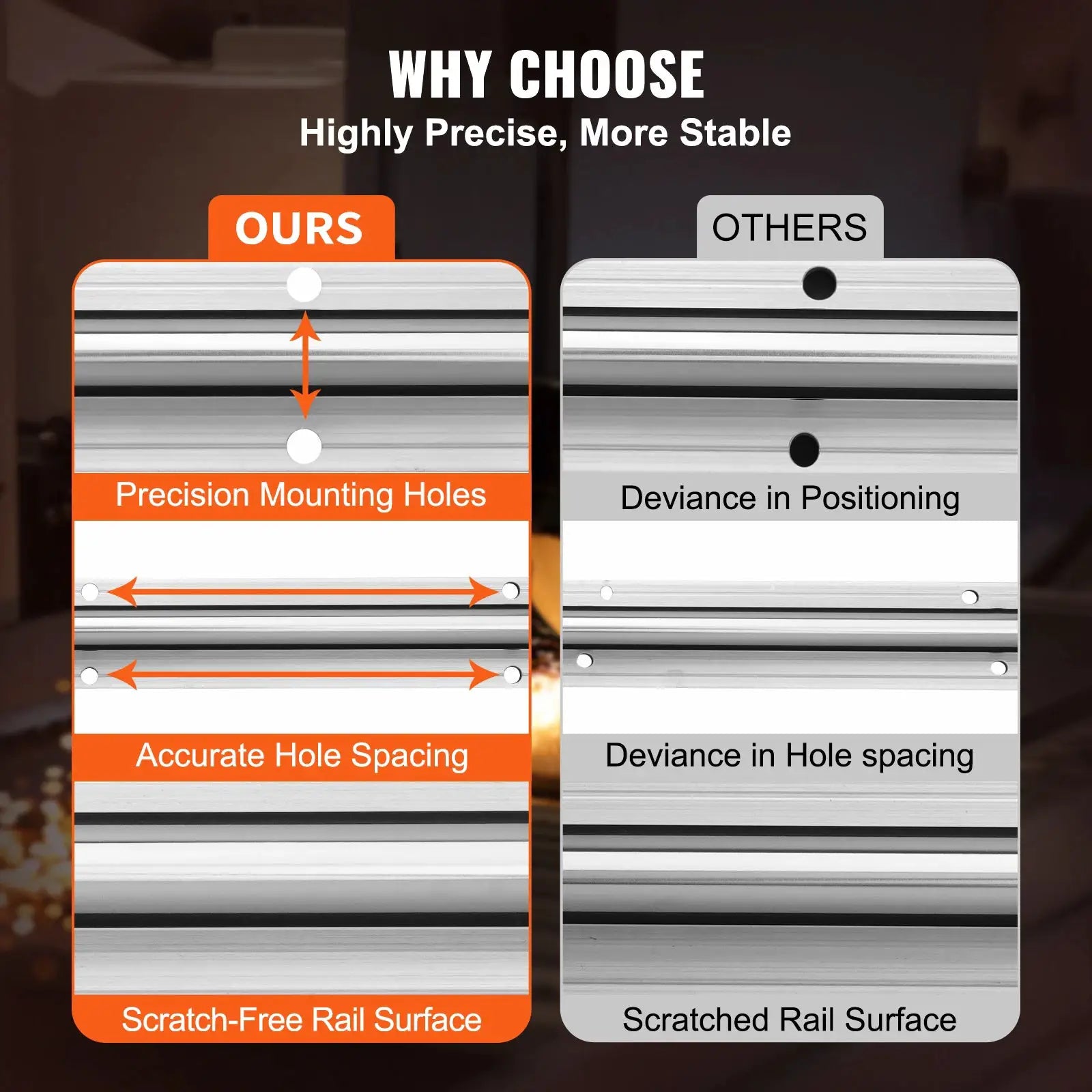

- High accuracy and repeatability are guaranteed by precision-machined components and tight tolerances, ideal for intricate tasks.
- Quiet operation results from the carefully engineered pairing of carbon steel shafts and aluminum slide blocks, which minimizes vibration and noise.
- Robust load capacity is designed to handle significant dynamic and static loads, suitable for heavy-duty automation and DIY machinery.

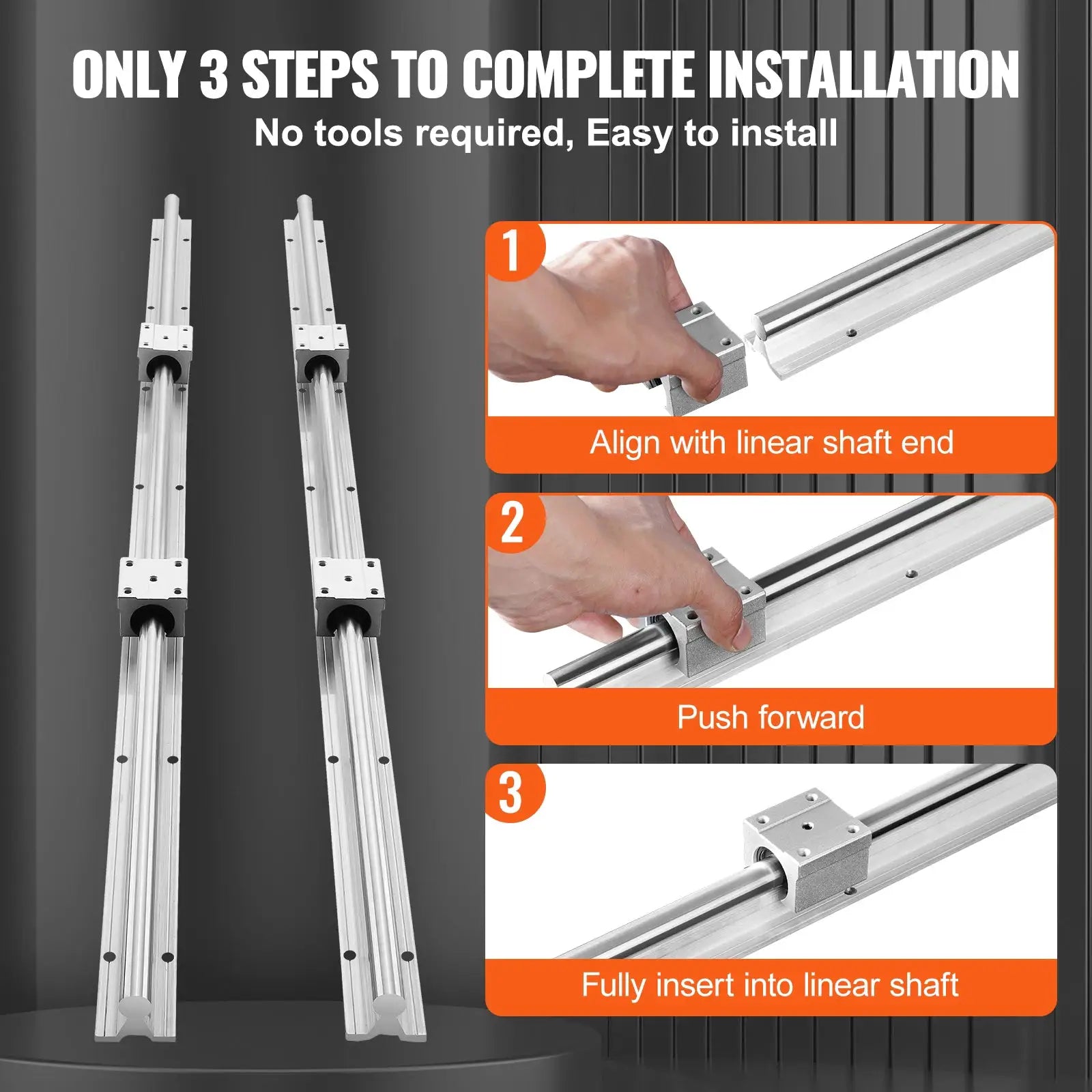

- Easy installation is facilitated by sturdy aluminum bases and precisely drilled mounting holes on the slide blocks for reliable integration.

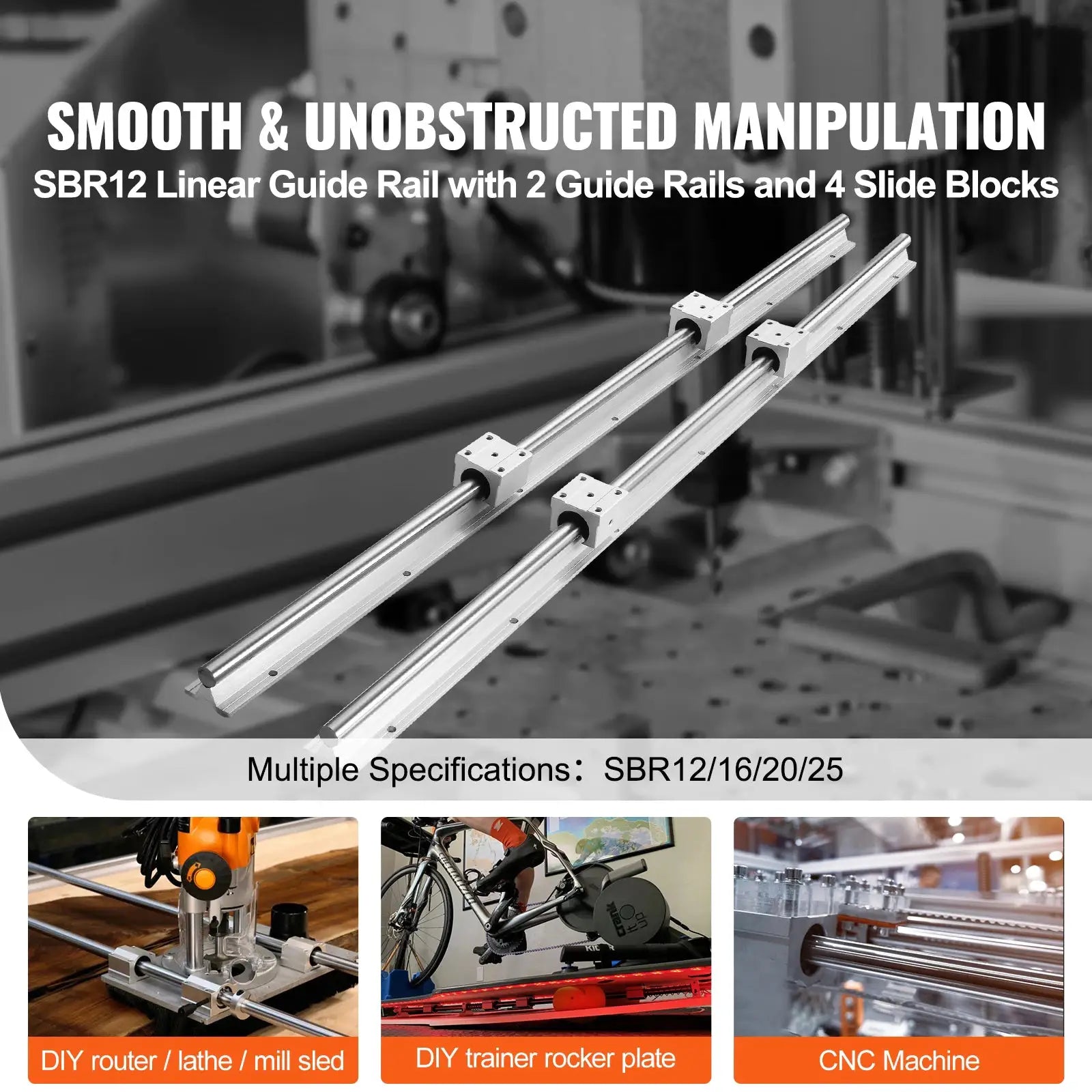

- Versatile applications include DIY CNC routers, mills, lathes, 3D printers, laser engravers, and other automated equipment.
Measurements
- Available Rail Shaft Diameters: SBR12 (approx. 0.47 inches), SBR16 (approx. 0.63 inches), SBR20 (approx. 0.79 inches), SBR25 (approx. 0.98 inches)
- Available Rail Lengths: 800 mm (approx. 31.5 inches), 1000 mm (approx. 39.4 inches), 1200 mm (approx. 47.2 inches), 1500 mm (approx. 59 inches), 1800 mm (approx. 70.9 inches), 2000 mm (approx. 78.7 inches), 2200 mm (approx. 86.6 inches)
- Example Dynamic Load Capacity Per Block (SBR25UU): 980 N (approx. 220.3 lbs)
- Example Static Load Capacity Per Block (SBR25UU): 1570 N (approx. 353.0 lbs)
Packing List

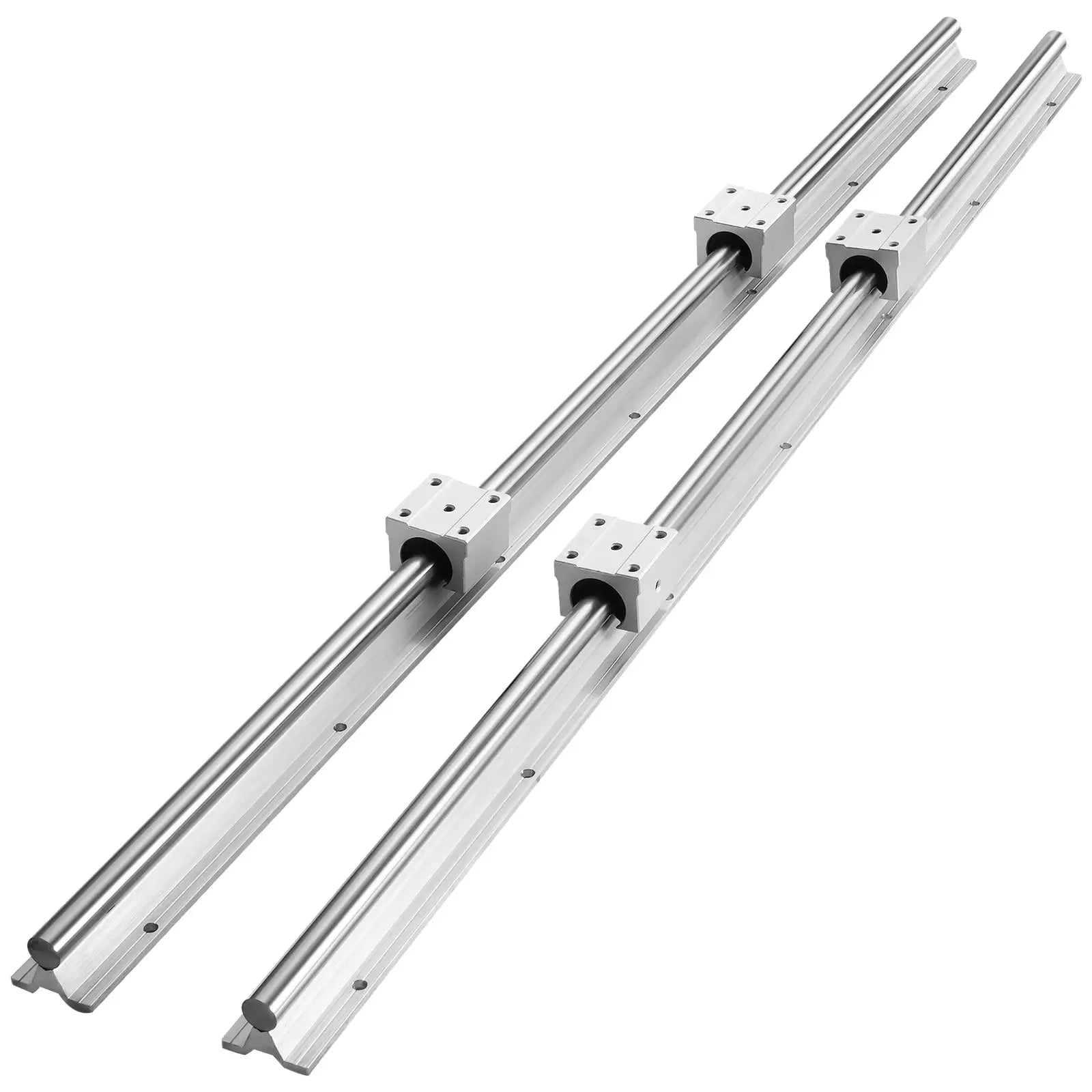

- 2 x SBR Series Linear Guide Rails (selected length)
- 4 x SBR Series UU Bearing Blocks (matching rail size)
Notes
- This product is sold as a set comprising two rails and four blocks.
- Select the appropriate rail diameter and length for your specific project requirements.
- Lubrication is recommended for optimal performance and extended lifespan.
Product Type
- Machine Parts
Disclaimer
- Design Specifics: The visible gap is a deliberate functional feature of engineering and does not indicate a defect or damage.
- Visual Variations: Actual product colors may vary slightly from online images due to differences in lighting conditions and monitor display settings.
- Measurement Tolerance: Please allow for minor dimensional deviations resulting from manual measurement and manufacturing processes.
- Policy Information: Consult our FAQ, Privacy Policy, and Terms & Conditions for comprehensive details regarding returns and exchanges.
