SucceBuy 2 Pieces Linear Guide Rails SBR12 SBR16 SBR20 SBR25 800 2200mm And 4 Pieces UU Bearing Blocks For DIY CNC Mills

Vendor: Retail

Type: Tools & Hardware

$52.79

~~$0.00~~

Shipping calculated at checkout.

Available in stock (40)

Ships From: United States

United States

Free shipping to the U.S. & Europe, plus 12-day returns on approved unused items.

Product Overview

This SucceBuy kit provides robust SBR linear guide rails and matching bearing blocks designed to deliver smooth, high-precision motion for your DIY machinery and automation projects. Featuring durable construction from high-carbon steel and aluminum, these components ensure reliable performance with minimal noise, making them ideal for CNC machines, 3D printers, and other precision equipment.

Specifications

Brand Name: SucceBuy
Material: High Carbon Steel & Aluminum

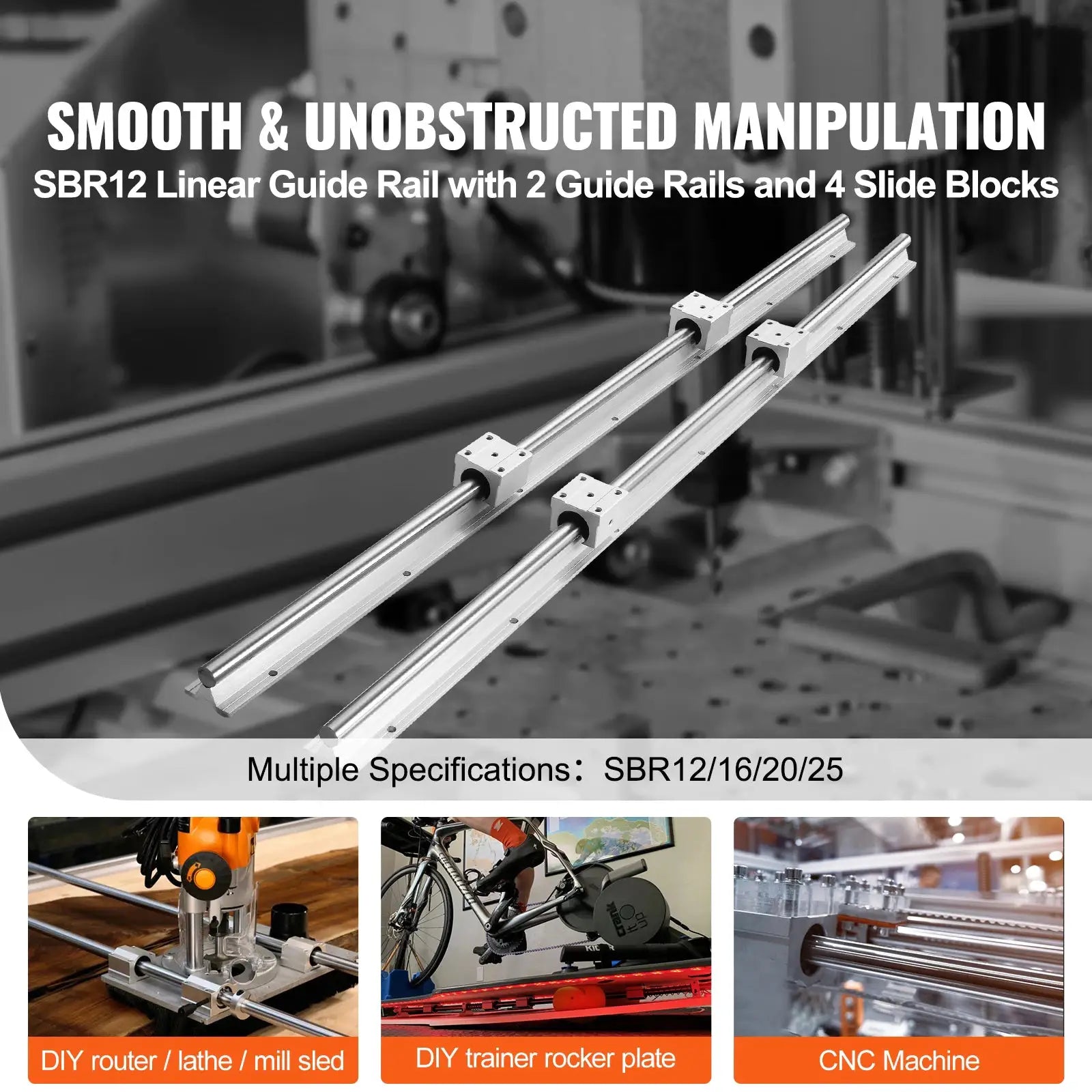

Shaft Sizes: SBR12, SBR16, SBR20, SBR25
Rail Lengths: 800mm to 2200mm
Certification: CE
Performance Feature: High Precision Smooth Motion
Operating Noise: Low Noise
Origin: Mainland China

Features

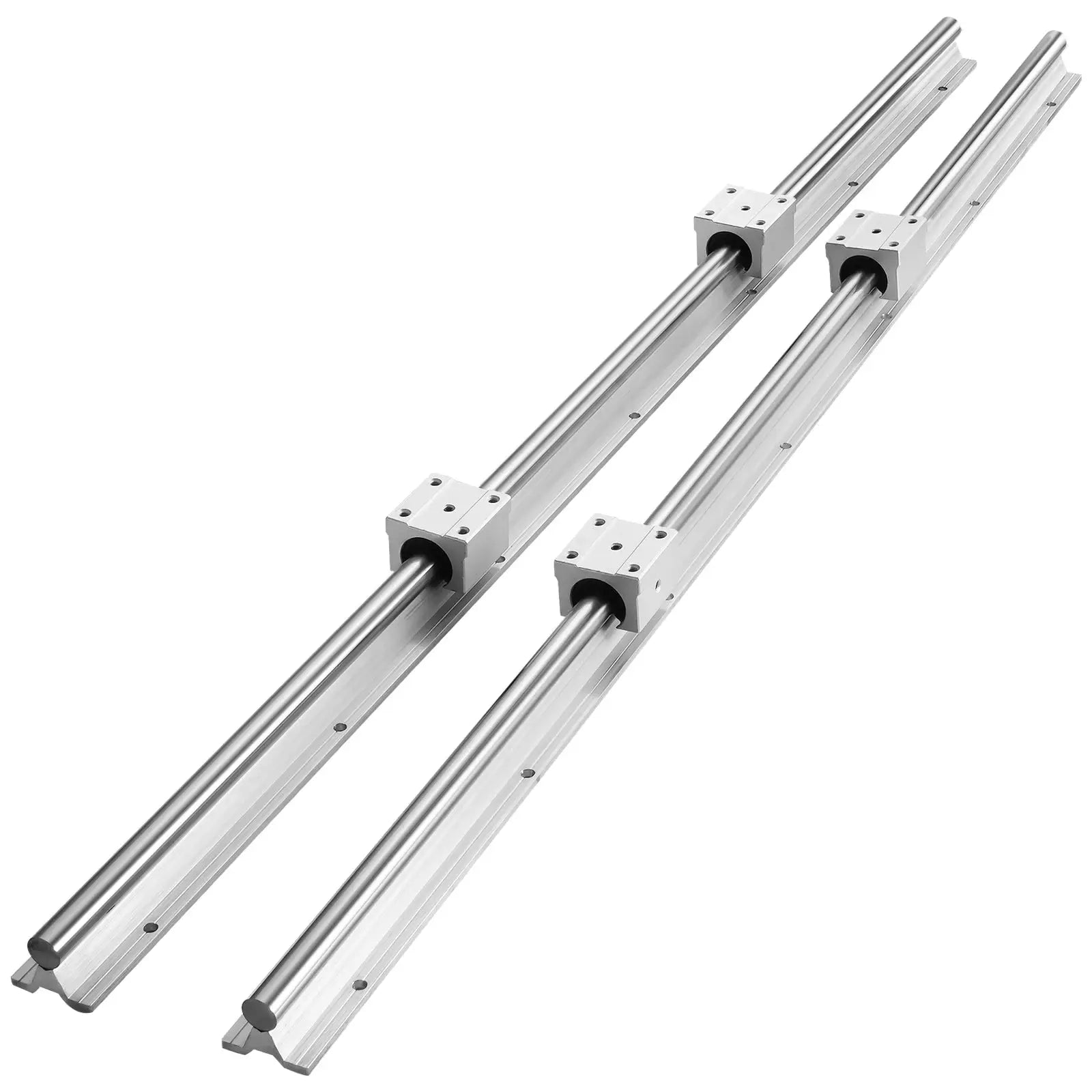

Comprehensive Kit: Each set includes 2 precision linear guide rails and 4 matching bearing blocks, offering a complete solution for motion control.

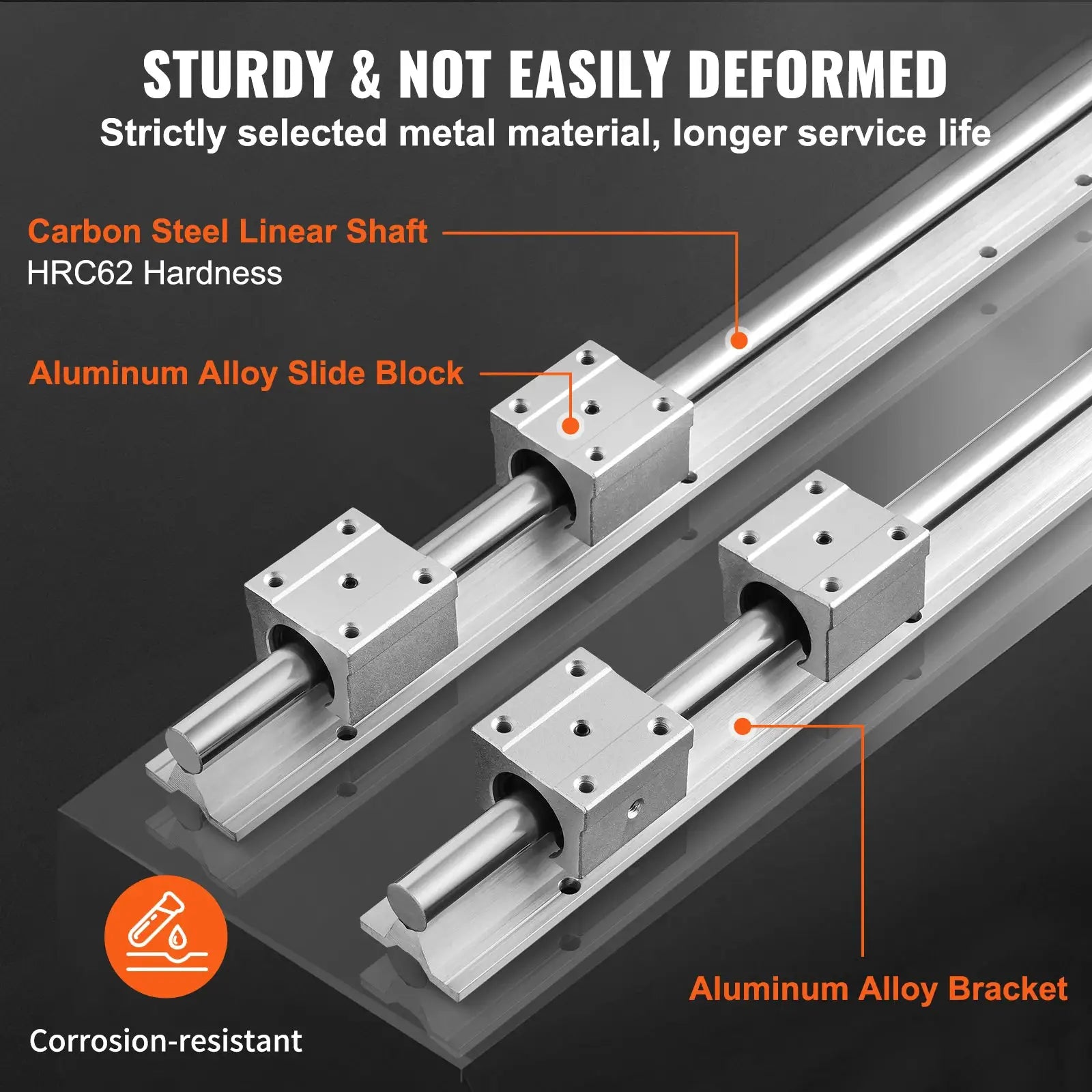

Durable Construction: Crafted from high-carbon steel for the shafts and aluminum for the blocks and rail mounts, these components are built for longevity and resistance to wear.

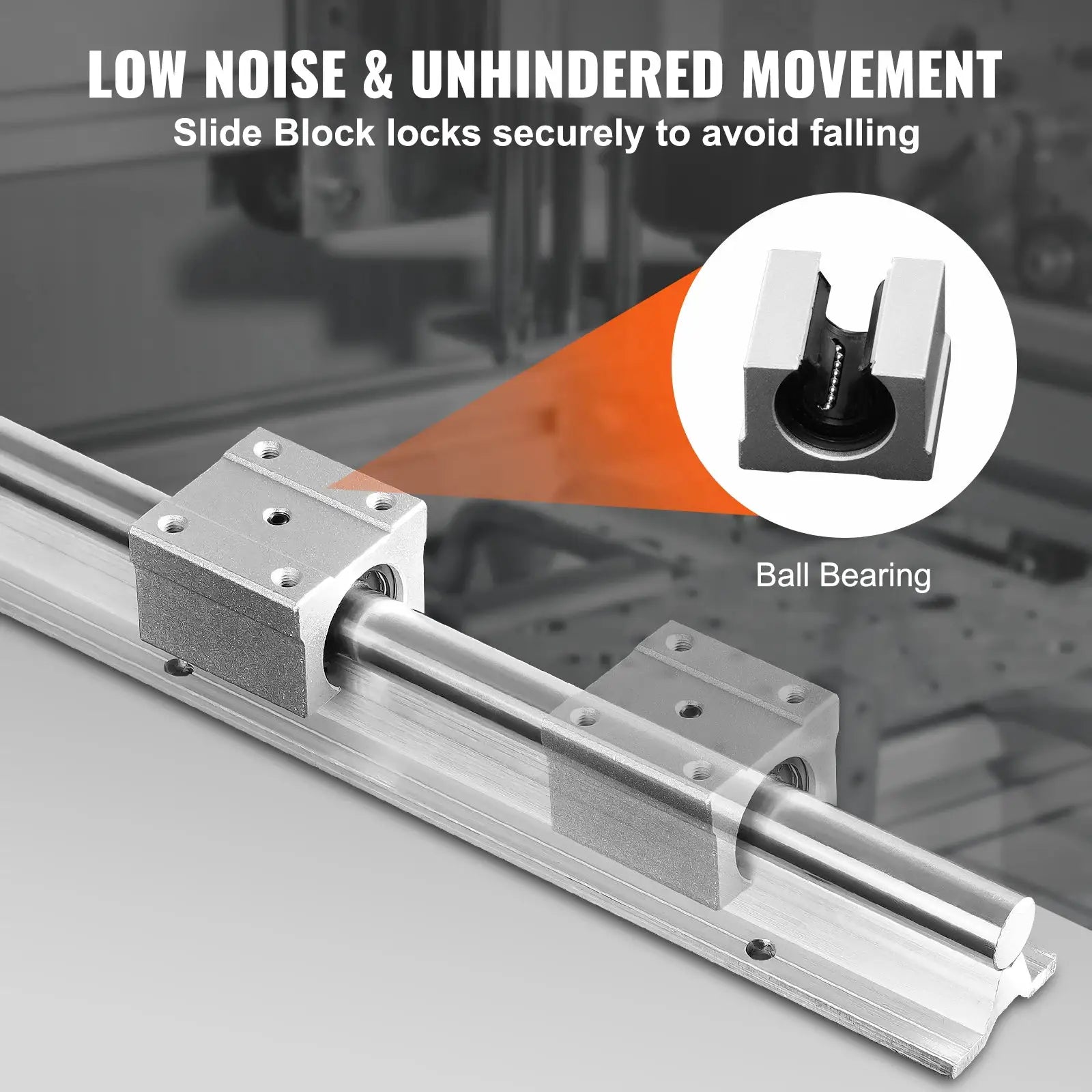

Smooth Operation: Integrated ball bearings within the slide blocks ensure exceptionally smooth, low-friction movement along the guide rails, minimizing resistance and enabling precise positioning.
High Load Capacity: Engineered to handle significant dynamic and static loads, ensuring stability and reliable operation even under demanding conditions.
Corrosion Resistance: Chrome-plated surfaces on the steel components enhance rust resistance, prolonging the lifespan of the rails.
Quiet Performance: The synergistic design of the carbon steel shaft and aluminum slide blocks results in minimal operational noise, contributing to a more pleasant working environment.

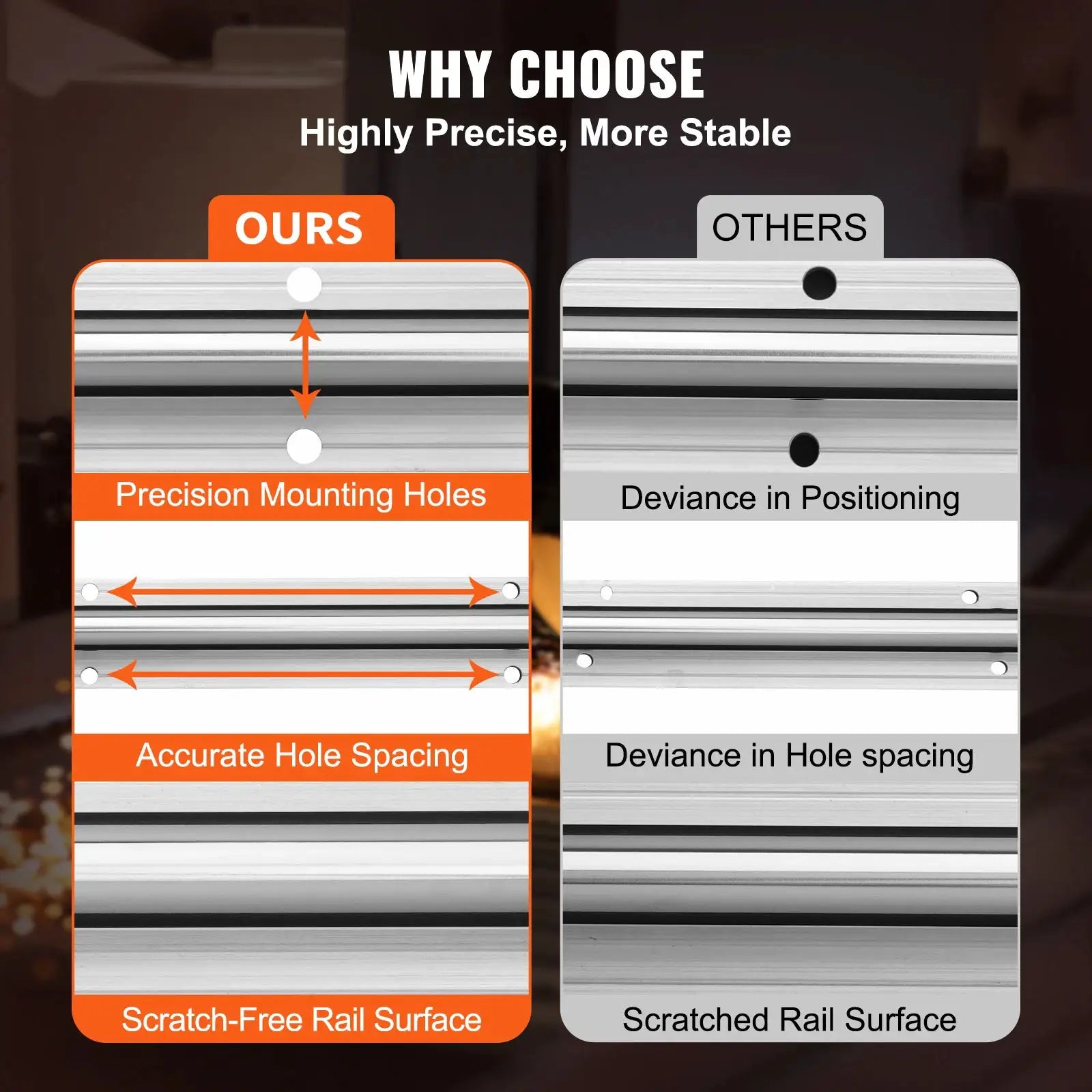

Precision Engineering: Features accurate shaft diameters, straightness, and precise hole spacing on aluminum bases and blocks for straightforward and reliable installation.

Measurements

SBR12-1000mm Set: 2 x 39.37-inch (1000mm) rails, 4 x SBR12UU blocks. Dynamic Load Per Block: 372 N (83.6 lbs), Static Load Per Block: 549 N (123.4 lbs).
SBR16-800mm Set: 2 x 31.5-inch (800mm) rails, 4 x SBR16UU blocks. Dynamic Load Per Block: 774 N (173.9 lbs), Static Load Per Block: 1180 N (265.3 lbs).
SBR16-1000mm Set: 2 x 39.37-inch (1000mm) rails, 4 x SBR16UU blocks. Dynamic Load Per Block: 774 N (173.9 lbs), Static Load Per Block: 1180 N (265.3 lbs).
SBR16-1500mm Set: 2 x 59.06-inch (1500mm) rails, 4 x SBR16UU blocks. Dynamic Load Per Block: 774 N (173.9 lbs), Static Load Per Block: 1180 N (265.3 lbs).
SBR16-2000mm Set: 2 x 78.74-inch (2000mm) rails, 4 x SBR16UU blocks. Dynamic Load Per Block: 774 N (173.9 lbs), Static Load Per Block: 1180 N (265.3 lbs).
SBR20-800mm Set: 2 x 31.5-inch (800mm) rails, 4 x SBR20UU blocks. Dynamic Load Per Block: 882 N (198.3 lbs), Static Load Per Block: 1370 N (308.0 lbs).
SBR20-1000mm Set: 2 x 39.37-inch (1000mm) rails, 4 x SBR20UU blocks. Dynamic Load Per Block: 882 N (198.3 lbs), Static Load Per Block: 1370 N (308.0 lbs).
SBR20-1200mm Set: 2 x 47.24-inch (1200mm) rails, 4 x SBR20UU blocks. Dynamic Load Per Block: 882 N (198.3 lbs), Static Load Per Block: 1370 N (308.0 lbs).
SBR20-1500mm Set: 2 x 59.06-inch (1500mm) rails, 4 x SBR20UU blocks. Dynamic Load Per Block: 882 N (198.3 lbs), Static Load Per Block: 1370 N (308.0 lbs).
SBR20-1800mm Set: 2 x 70.87-inch (1800mm) rails, 4 x SBR20UU blocks. Dynamic Load Per Block: 882 N (198.3 lbs), Static Load Per Block: 1370 N (308.0 lbs).
SBR20-2200mm Set: 2 x 86.61-inch (2200mm) rails, 4 x SBR20UU blocks. Dynamic Load Per Block: 882 N (198.3 lbs), Static Load Per Block: 1370 N (308.0 lbs).
SBR25-1200mm Set: 2 x 47.24-inch (1200mm) rails, 4 x SBR25UU blocks. Dynamic Load Per Block: 980 N (220.3 lbs), Static Load Per Block: 1570 N (353.0 lbs).

Packing List

2 x SBR Linear Guide Rails (selected length)
4 x SBR UU Bearing Blocks (matching rail size)

Notes

Available rail lengths range from 800mm to 2200mm, catering to various project sizes.
Multiple SBR series (SBR12, SBR16, SBR20, SBR25) are offered to match different load and precision requirements.
Each set includes the specified number of guide rails and bearing blocks.

Product Type

CNC Machine Parts

Disclaimer

Design Specifics: The visible gap is a deliberate functional feature of engineering and does not indicate a defect or damage.
Visual Variations: Actual product colors may vary slightly from online images due to differences in lighting conditions and monitor display settings.
Measurement Tolerance: Please allow for minor dimensional deviations resulting from manual measurement and manufacturing processes.
Policy Information: Consult our FAQ, Privacy Policy, and Terms & Conditions for comprehensive details regarding returns and exchanges.
