Dual Band GSM Gate Opener Relay Switch For Wireless Remote Access
Hurry up, only 3 items left in stock.
SPECIFICATIONS
Brand Name: FD
Certification: CE
Choice: yes
Direction: None
High-concerned chemical: None
Model Number: FD5024
Origin: Mainland China
Security Mode: Fail Safe
Smart home platform: NONE
Item Description

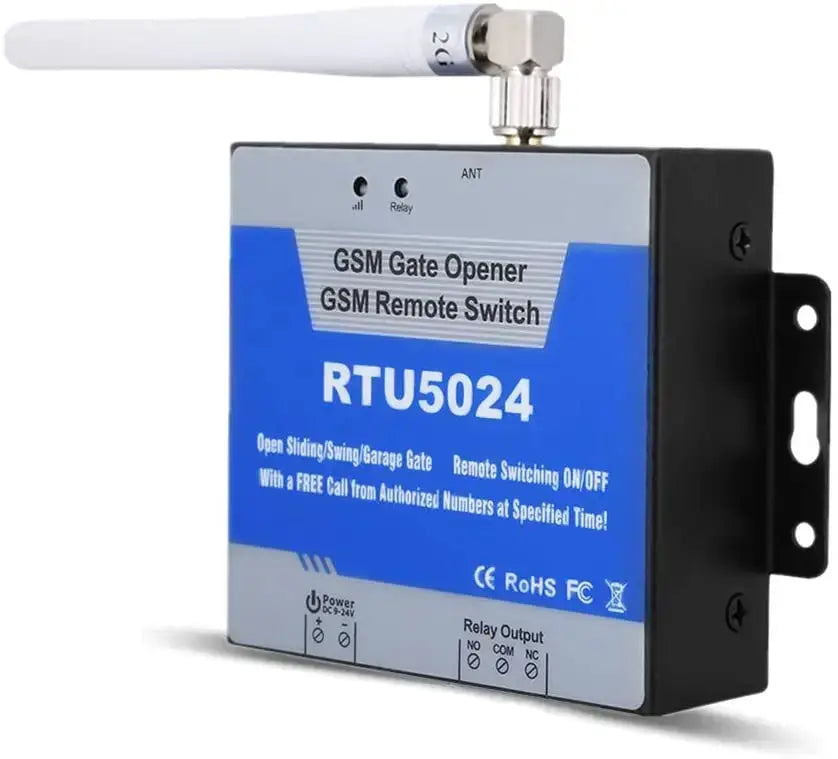

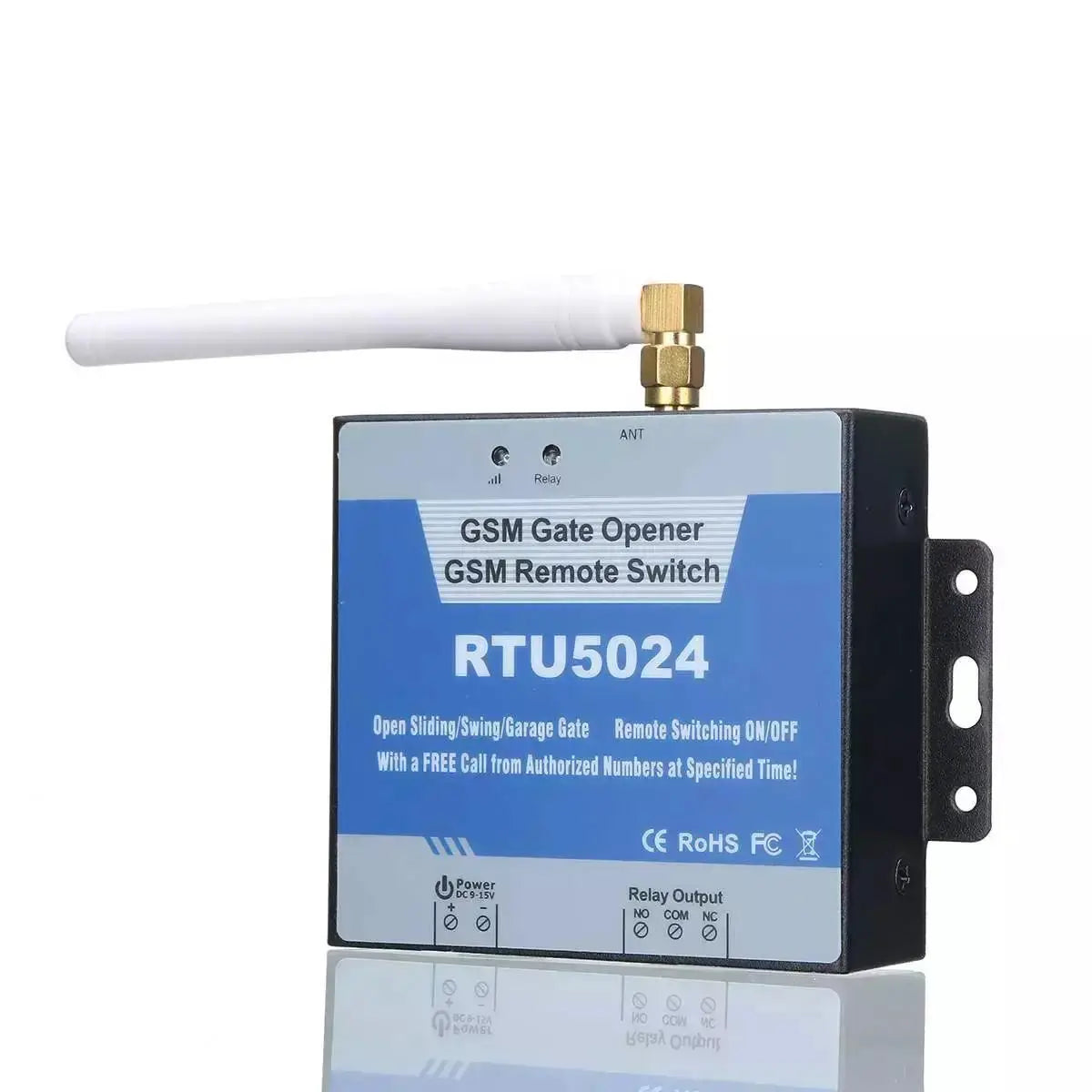

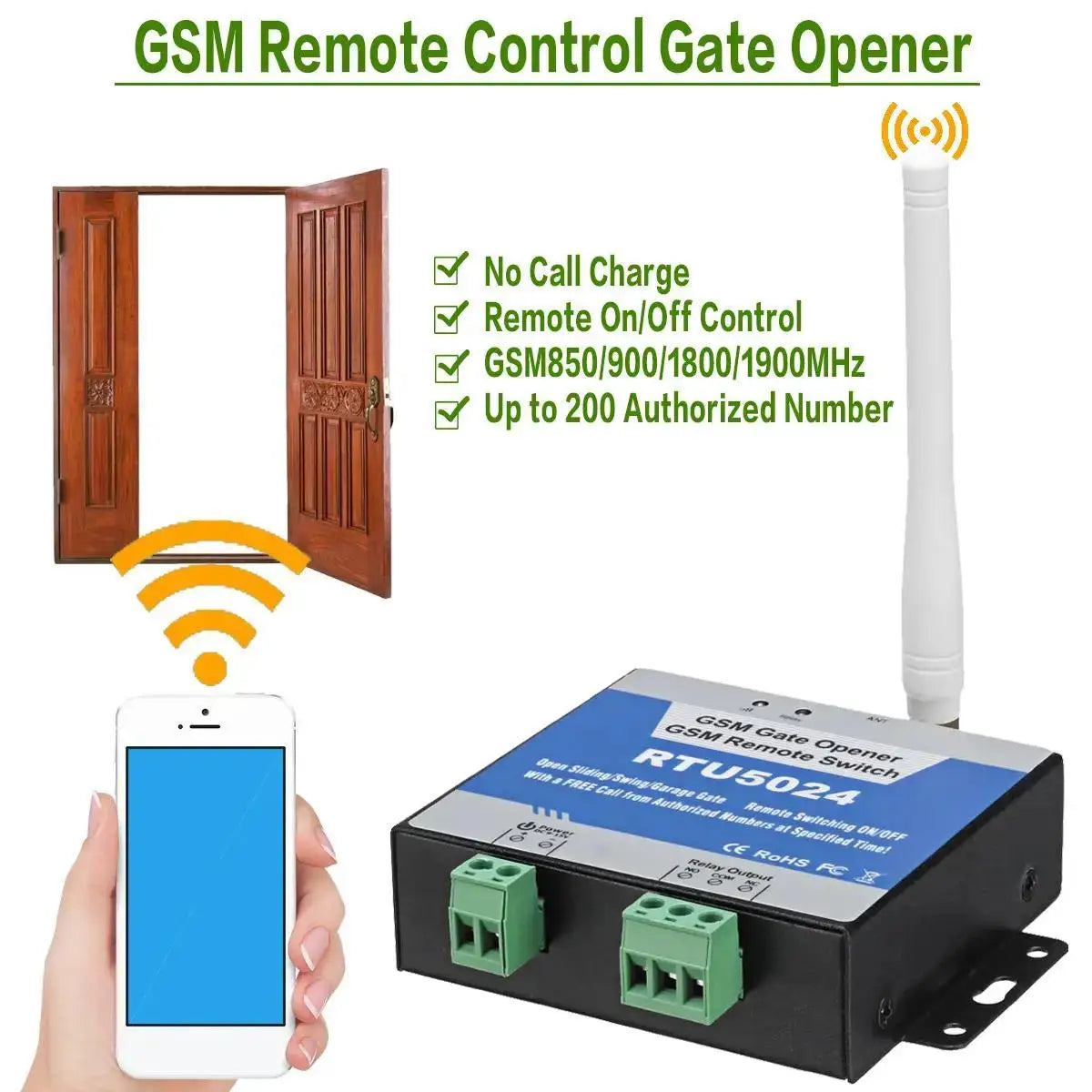

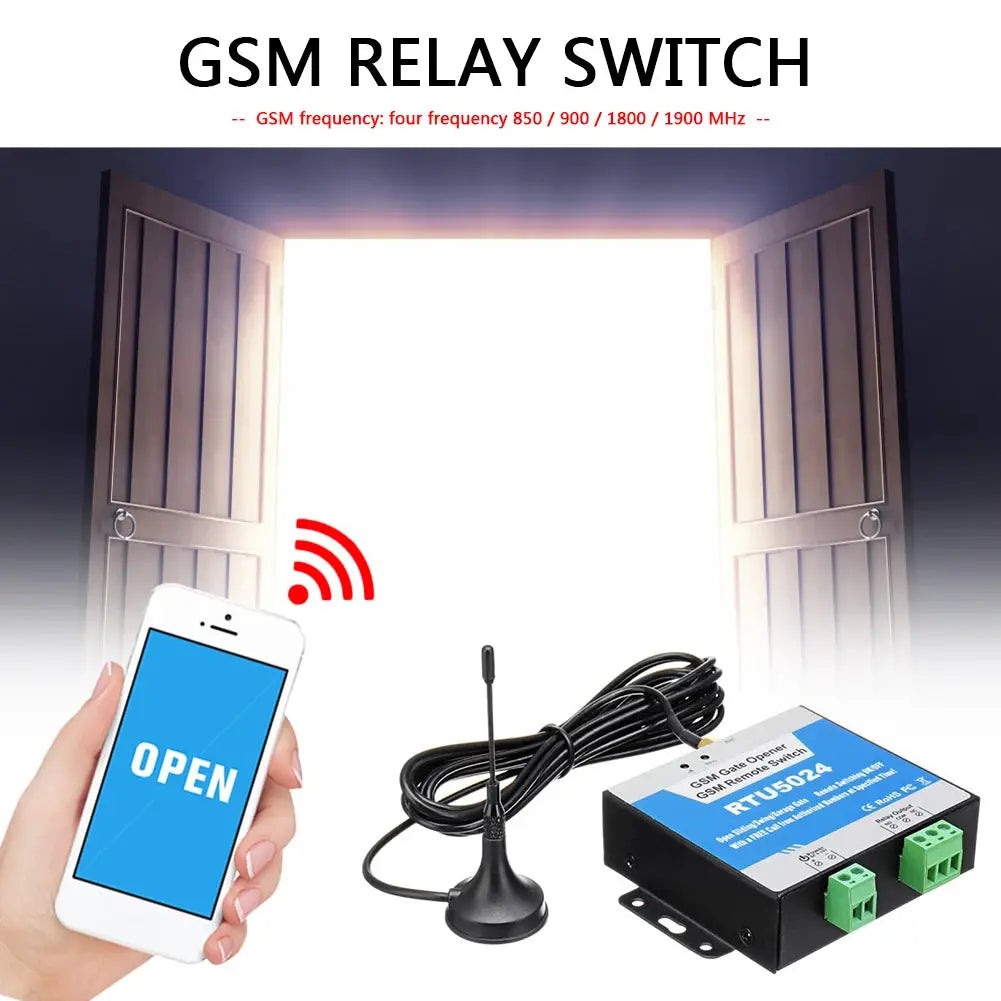

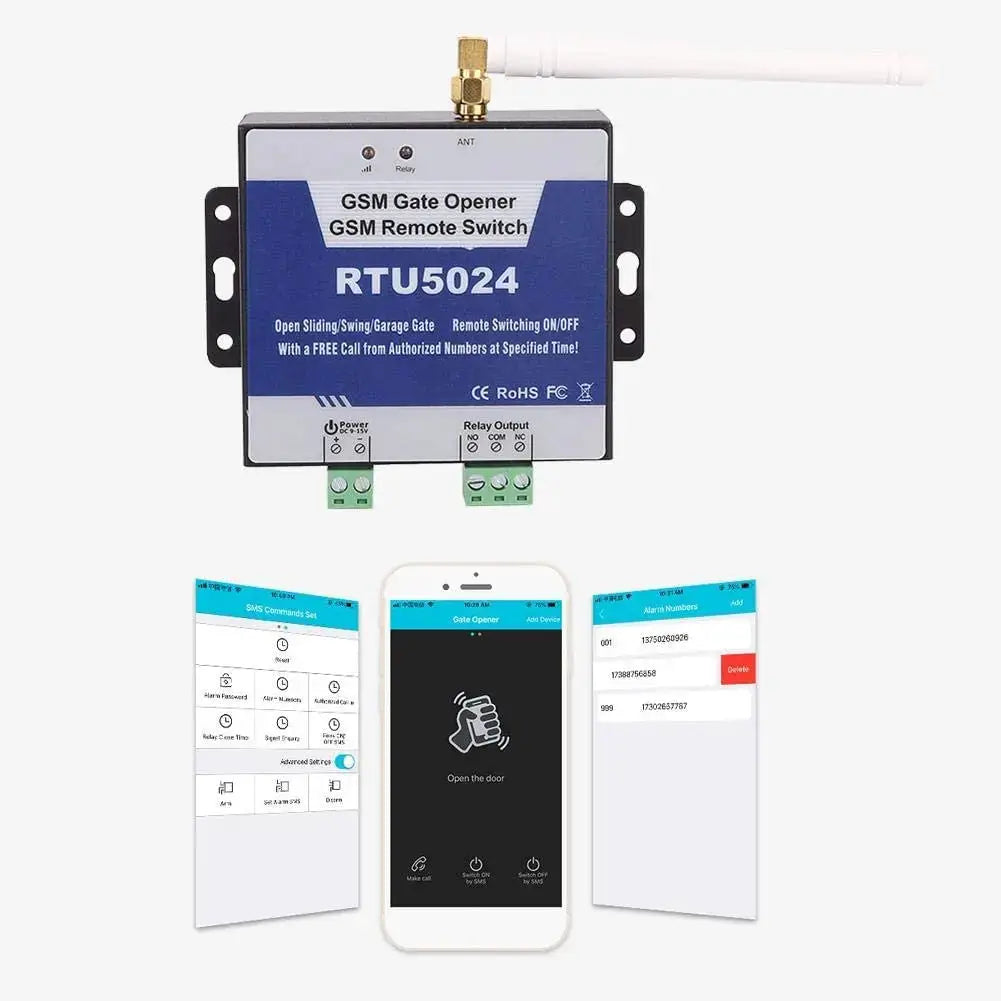

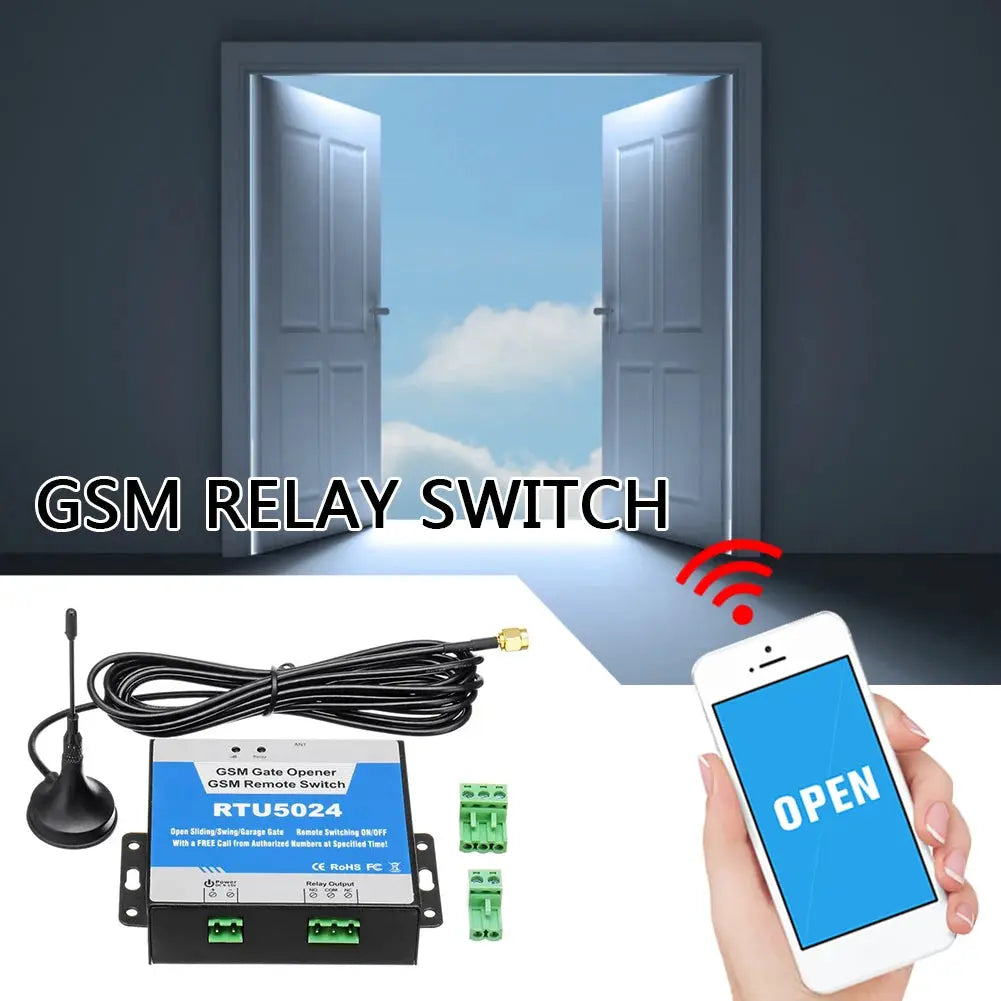

RTU5024 GSM Gate Opener Relay Wireless Remote Control Door Access Switch Free Call 850/900/1800/1900MHz
Description:

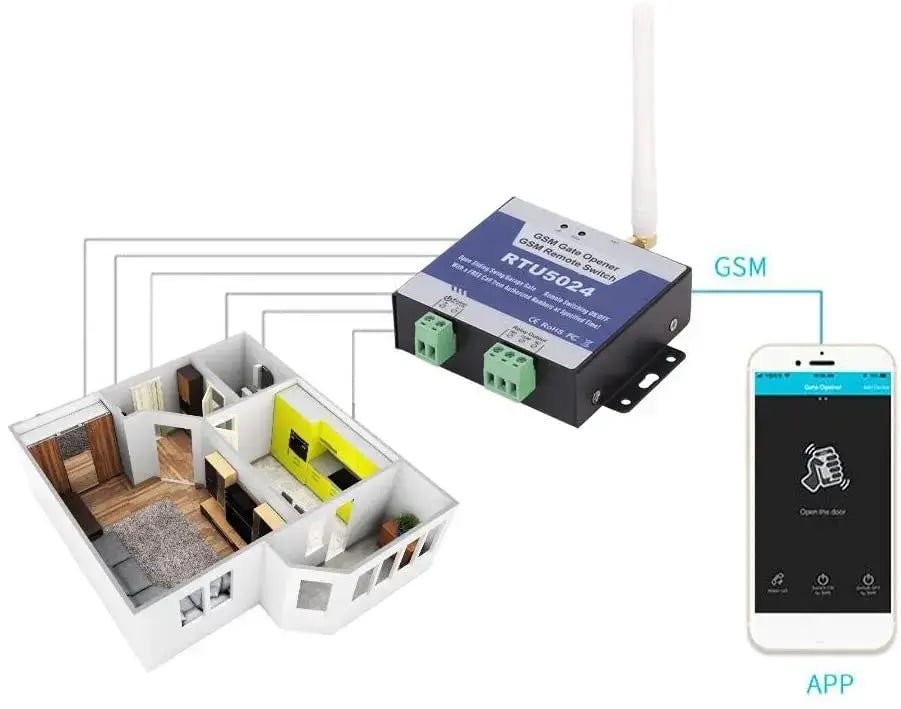

The GSM Gate Opener RTU5024 is a powerful GSM relay that can be used for authorized door access, controlling gates, switching of remote equipment, and car parking systems. Additionally, it can also be used in places which require you to turn on/off your system, machines, or equipment remotely with a free call from your mobile phone.

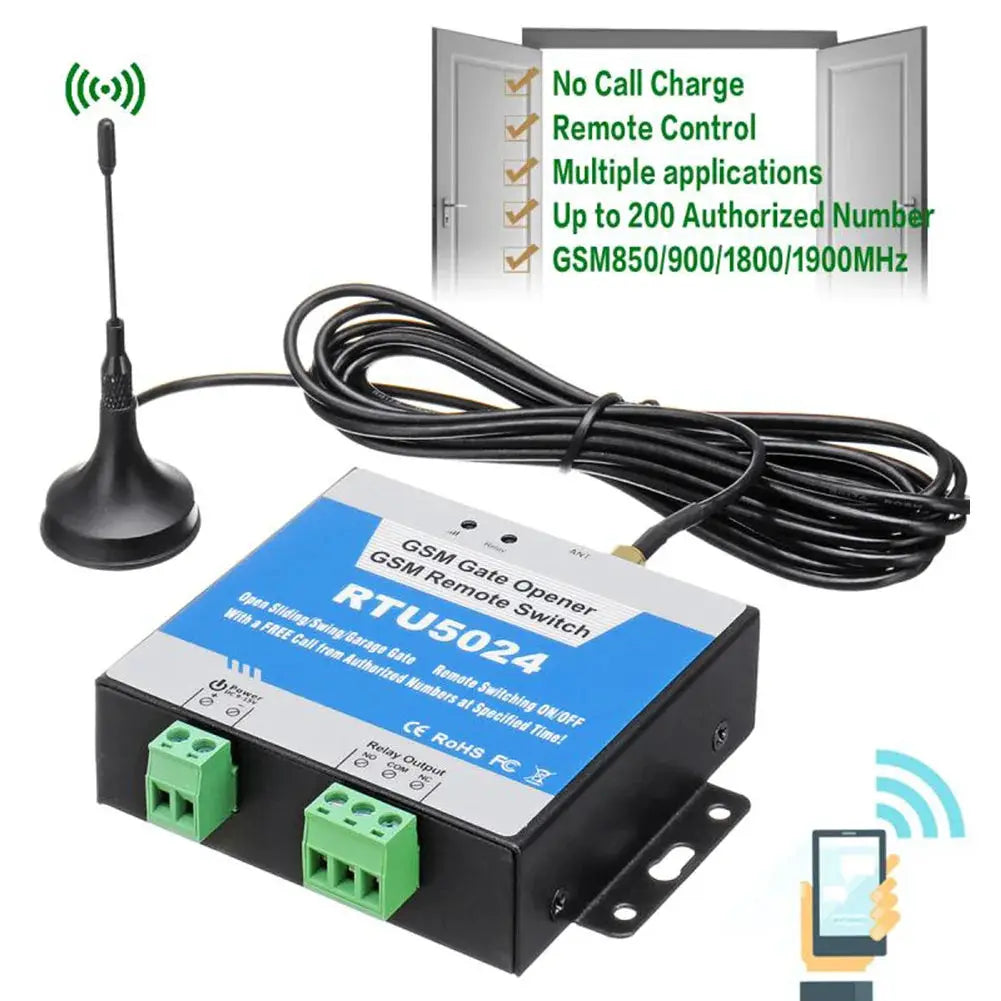

Feature:
- Add or remove users by SMS Text com mand.
- The relay close or open time is programmable.
- Can be operated from anywhere, no distance limit.
- Quad-band, can work in the worldwide GSM Networks.
- No need to provide a remote control or keys for different users.

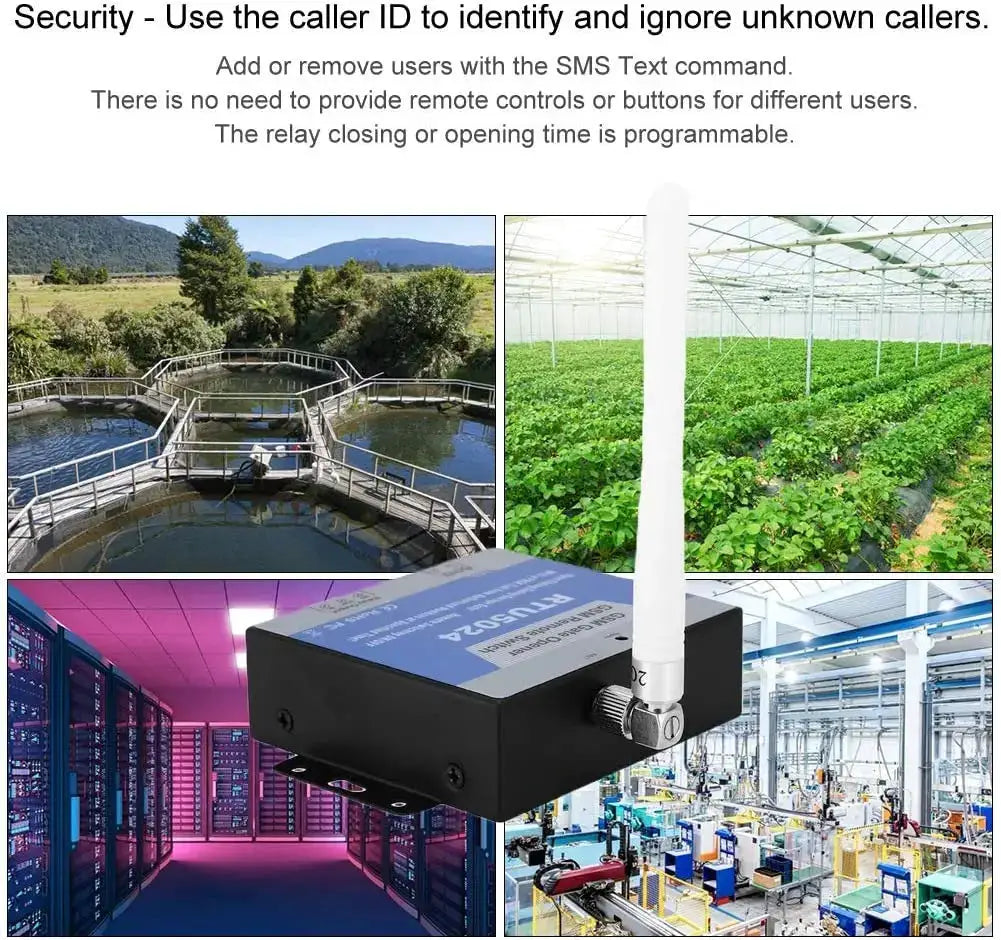

- Secure - Using caller-ID for identification, unknown callers are ignored.

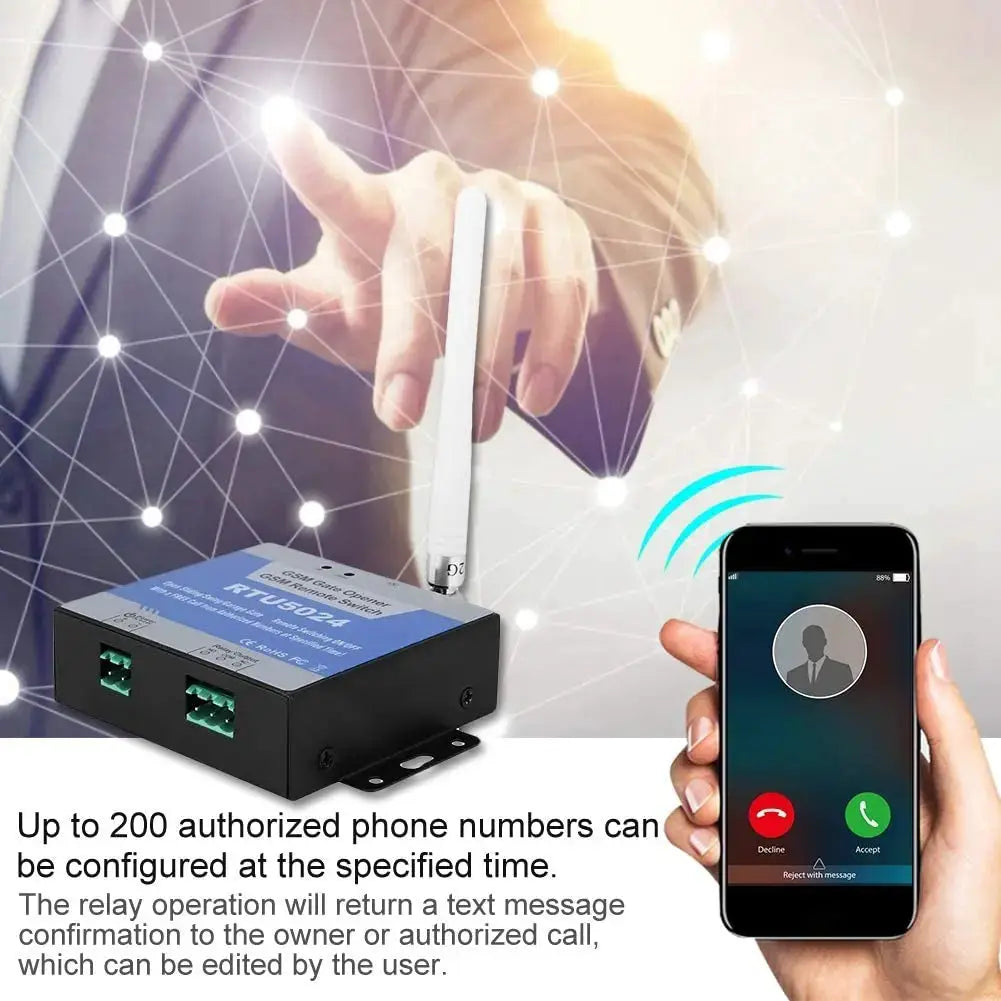

- Up to 200 authorized phone numbers can be configured at the specified time.
- One output with relay rating 3A/240VAC for connecting the switch of the door or machines.
- Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines).
- The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user.

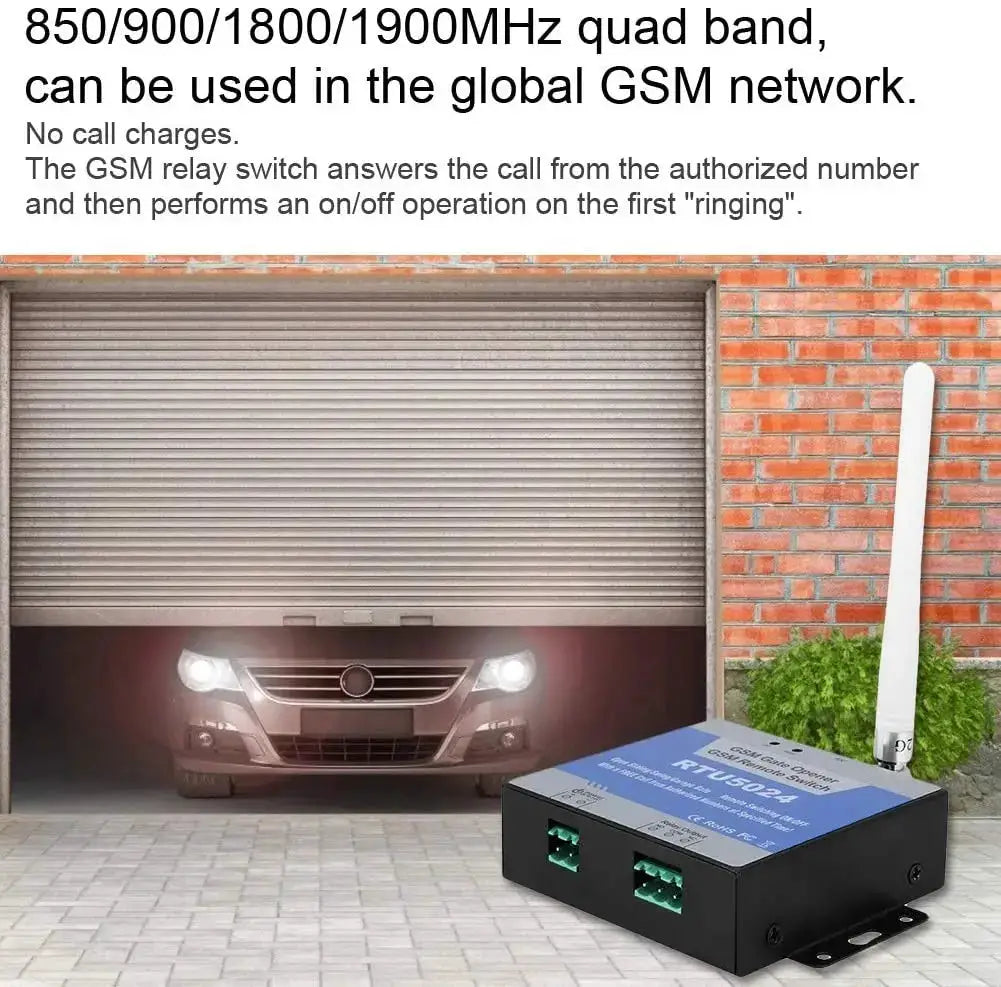

- No call charges. the GSM GPRS Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first 'ring'.
Specification:
GSM Frequency: Quad-band 850/900/1800/1900MHz

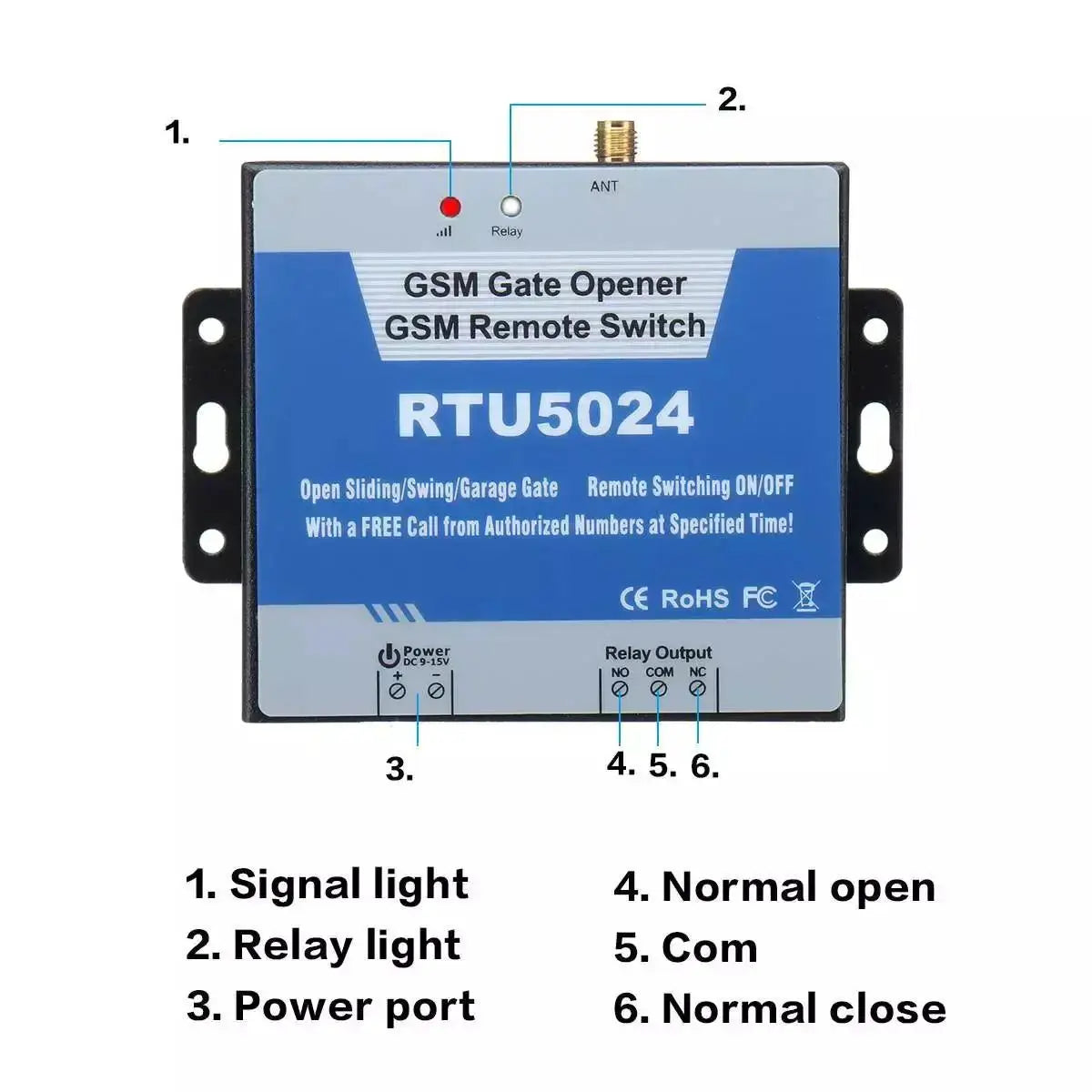

Gigital Output: NC/NO dry contact, 3A/240V AC
DC Power Supply: 9-24V DC/2A
Power Consumption: 12V Input Max. 50mA/ Average 25mA

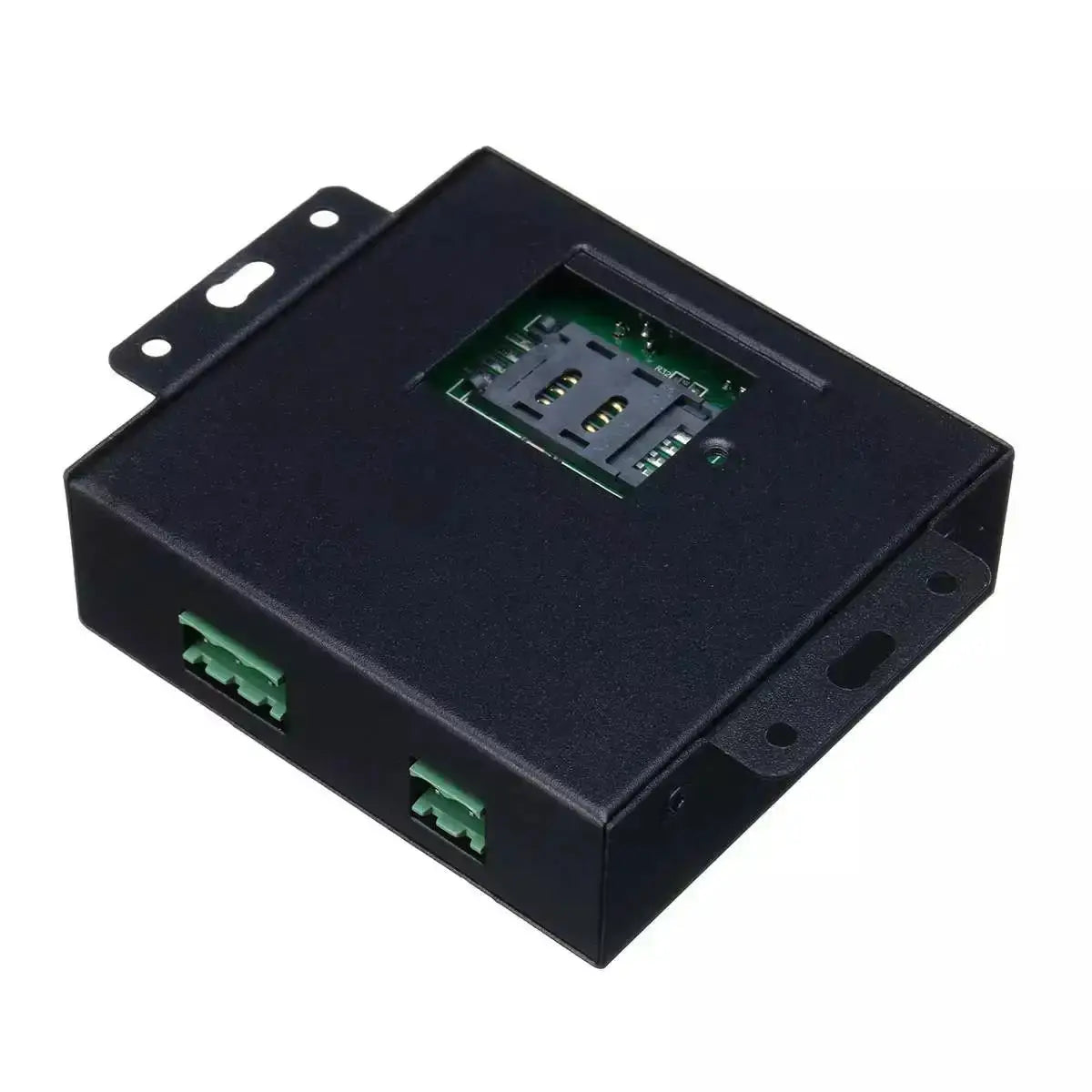

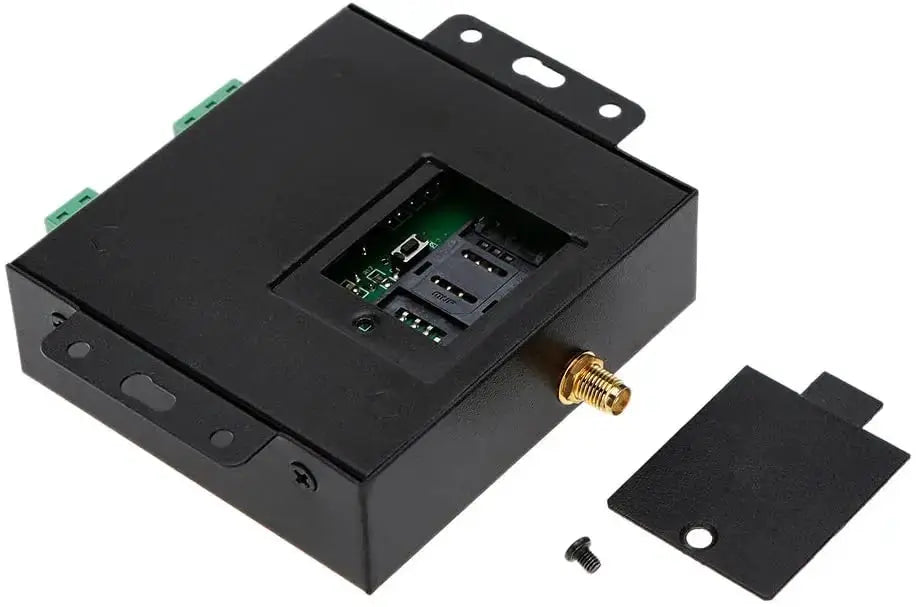

SIM Card: Support 3V SIM Card

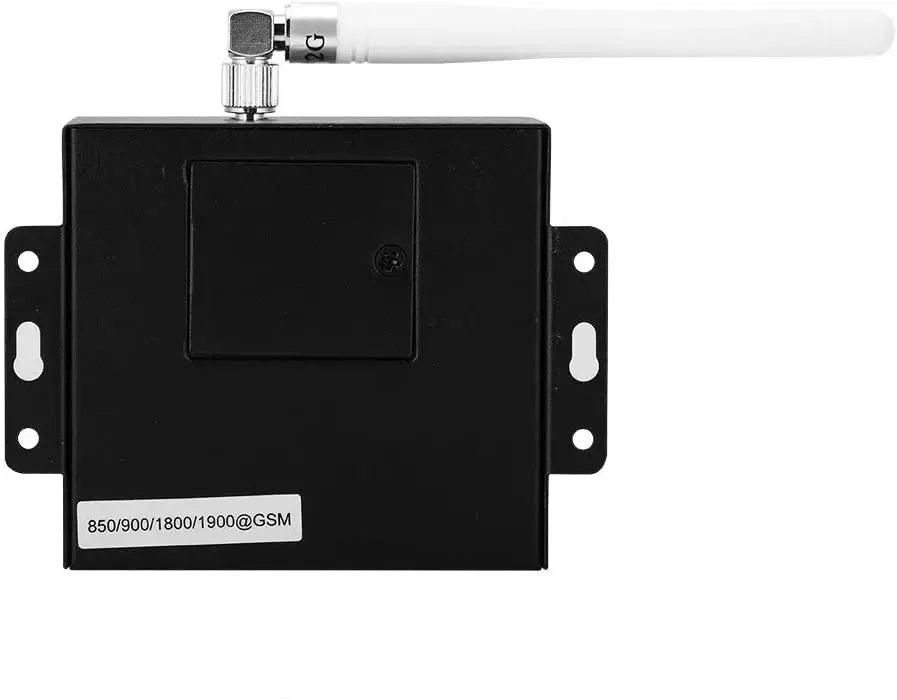

Antenna: 50Ω SMA Antenna Interface
Temperature Range: -20~+60℃
Humidity Range: Ralative Humidity 90%
Size: 82mm*76mm*27mm/3.23*2.99*1.06"
Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
Please note that when using mobile phone remote control, the mobile phone network must be in the 2G network.
