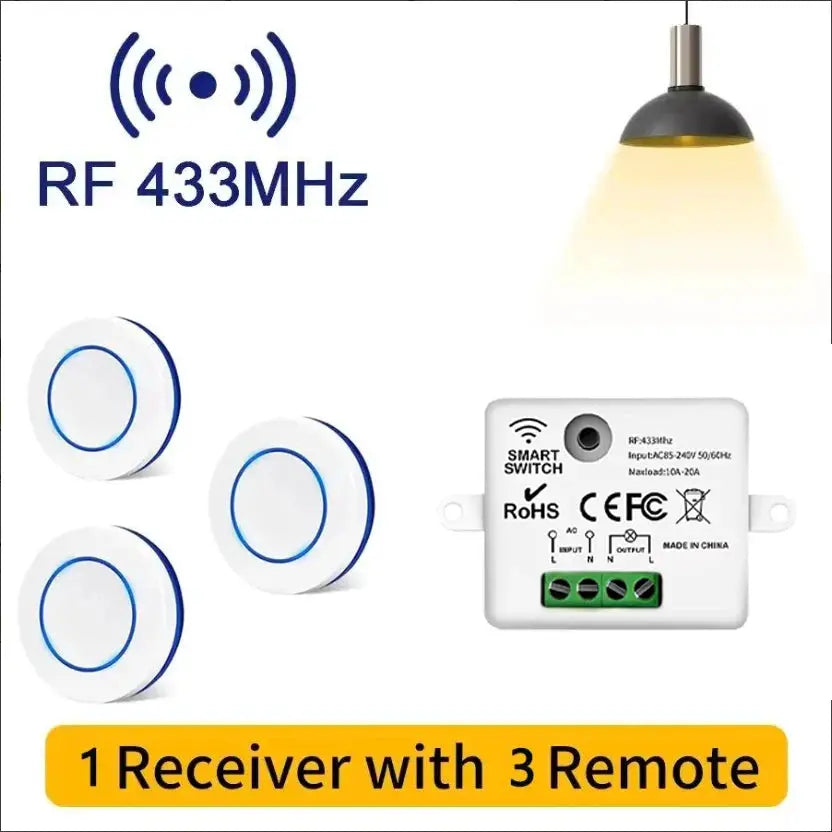

RF 433MHz Wireless 10A Relay Light Switch 220V 110V Mini Round Button Wall Panel Switch For LED Lamp
Hurry up, only 9 items left in stock.
Product Overview

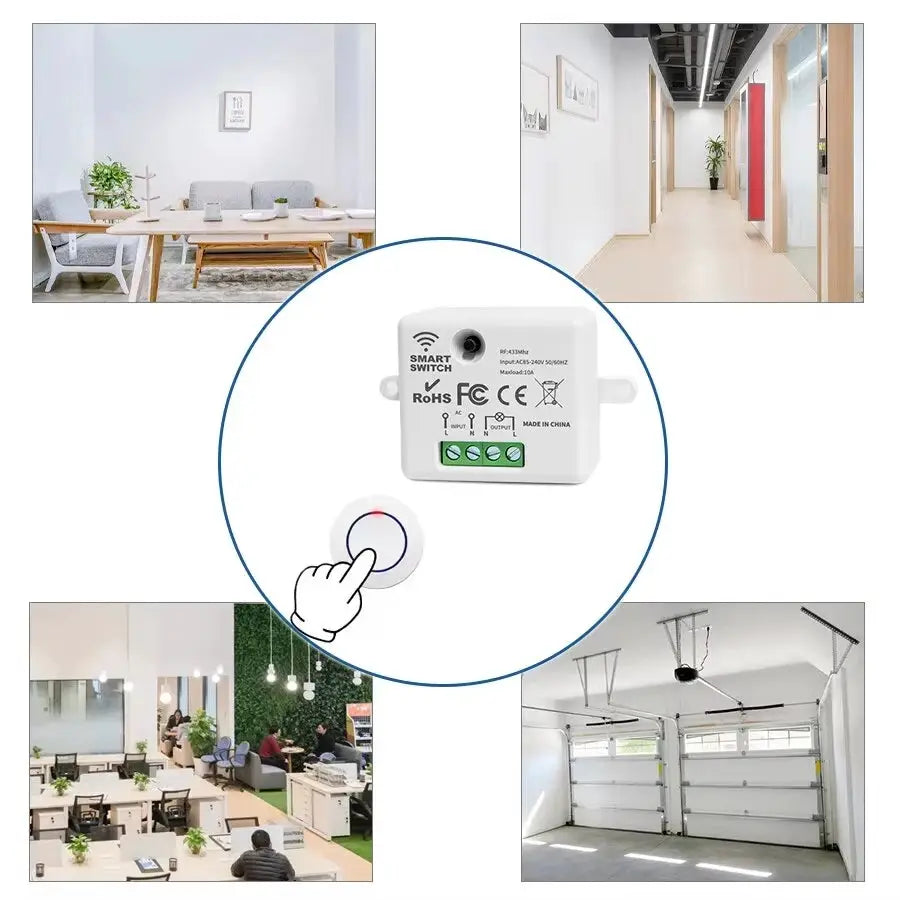

This RF 433MHz Wireless 10A Relay Light Switch provides a versatile and convenient solution for controlling your lighting and other electrical devices. Featuring a compact, mini round button wall panel design, it integrates easily into your home or office, offering wireless control for LED lamps and more from a significant distance.
Specifications

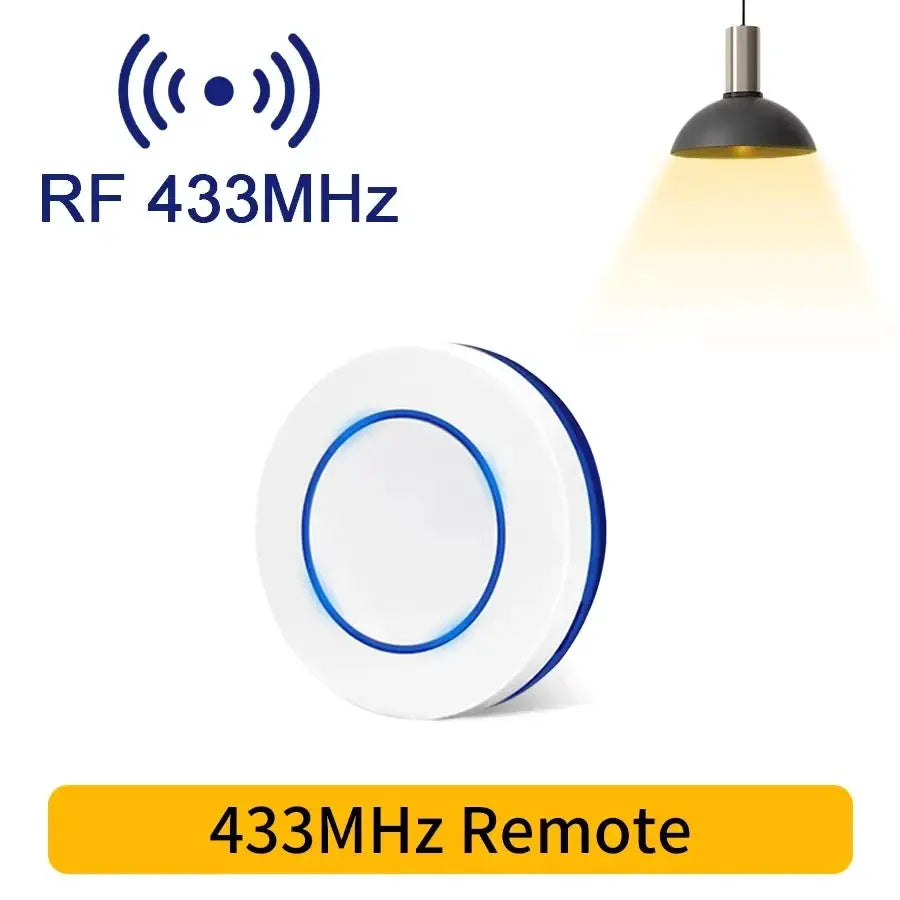

- Transmitter (Remote):
- Operating Frequency: 433MHz
- Power Source: 2 x 3V CR2016 Batteries (included)
- Material: PVC
- Buttons: 2
- Dimensions: 60mm x 30mm
- Operating Voltage: 3V
- Operating Current: 12mA
- Transmitting Power: 10mW
- Modulation Mode: ASK (AM)
- Encoding Type: Learning Code
- Transfer Distance: 20-50 meters

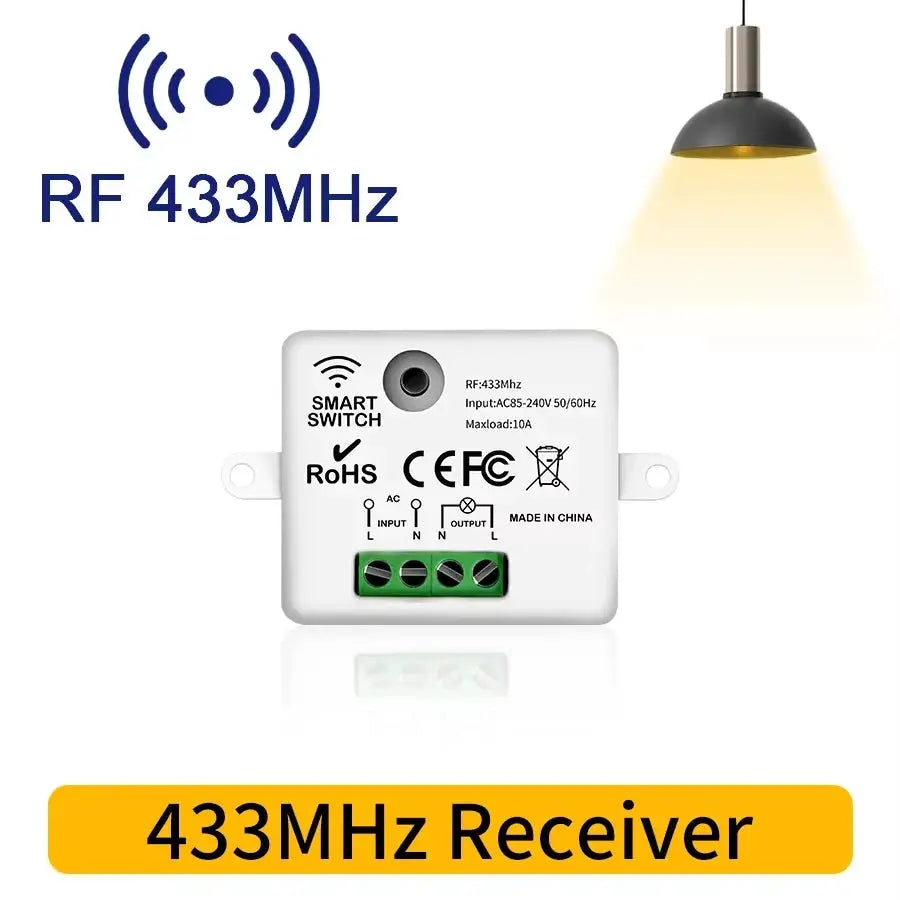

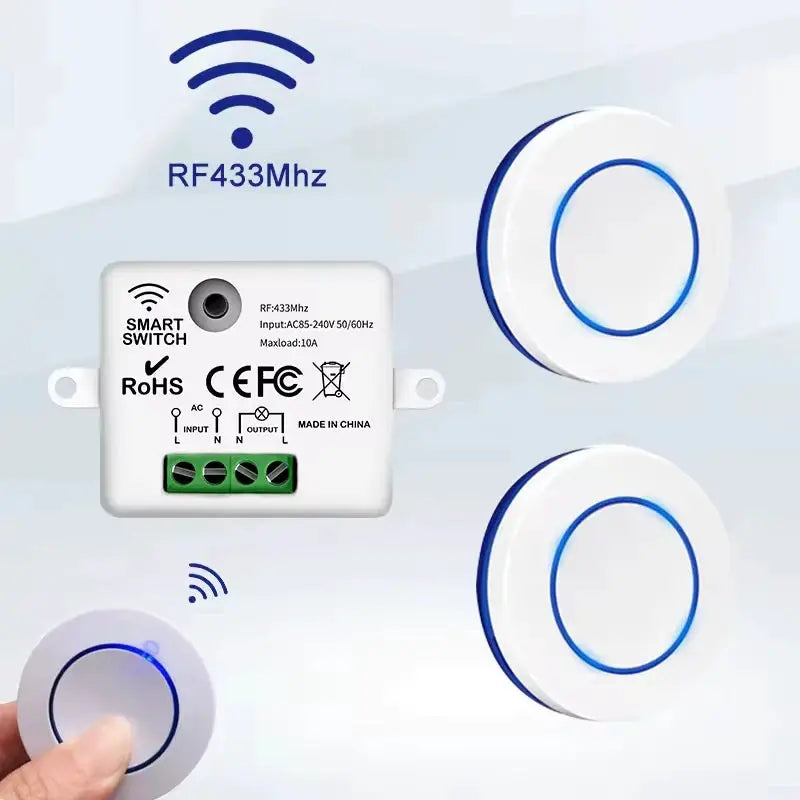

- Controller (Receiver):
- Input Power: AC 85-240V, 60Hz/50Hz
- Maximum Current: 10A
- RF Frequency: 433MHz
- Working Temperature: -30°C to +80°C (-22°F to 176°F)
- RF Working Mode: Superheterodyne
- Receive Sensitivity: >97dBm
- Transmitting Distance: More than 50 meters (in open space)
- Remote Storage Capacity: 10 remotes
- Supported Remote Type: Learning Code 1527 Code
- Dimensions: 47.4mm x 42mm x 22.8mm
Features

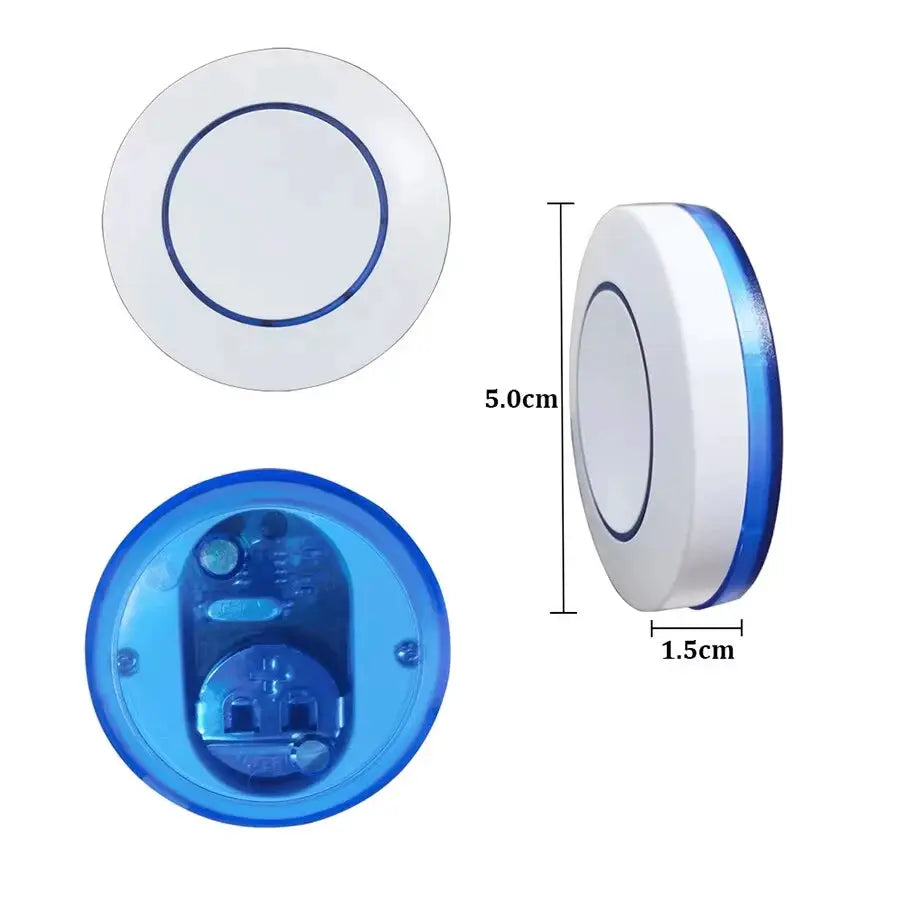

- New mini round wireless panel switch with dimensions of 50mm x 50mm x 15mm.
- 10A power capacity, suitable for most standard equipment and ensuring safer operation.
- Compact mini body design allows for direct installation into standard switch bottom boxes, simplifying maintenance and installation.
- Offers a remote range of up to 50 meters in open spaces; signal strength and distance may decrease with obstacles.
- Device status defaults to 'off' after power is turned off and then back on.
- CE and RoHS certified for safety and quality assurance.
Measurements
- Transmitter Dimensions: 60mm x 30mm (approx. 2.36 inches x 1.18 inches)
- Receiver Dimensions: 47.4mm x 42mm x 22.8mm (approx. 1.87 inches x 1.65 inches x 0.90 inches)
- Panel Switch Dimensions: 50mm x 50mm x 15mm (approx. 1.97 inches x 1.97 inches x 0.59 inches)
- Receiver Input Voltage: AC 85-240V (50/60Hz)
- Transmitter Operating Voltage: 3V
- Receiver Working Temperature: -30°C to +80°C (approx. -22°F to 176°F)
- Receiver Max Current: 10A
- Transmitter Power: 10mW
- Receiver Sensitivity: >97dBm
- Open Space Transmission Distance: >50 meters (approx. >164 feet)

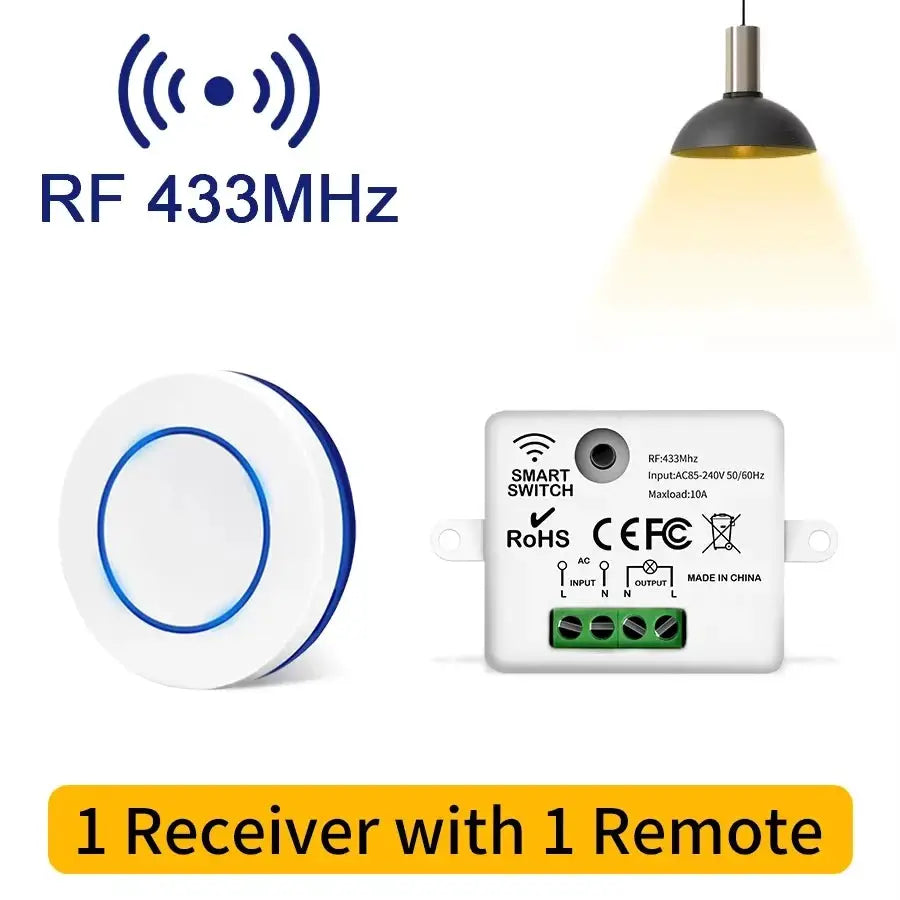

Packing List
- 1 x RF Wireless Receiver Controller
- 1 x RF Wireless Wall Panel Switch (Transmitter)
- 2 x 3V CR2016 Batteries (for transmitter)
- 1 x User Manual
Notes
- The relay controller functions as an RF Receiver, and the wall switch operates as an RF Transmitter only.
- The wall switch itself cannot directly control lights; it requires the RF receiver to function together.

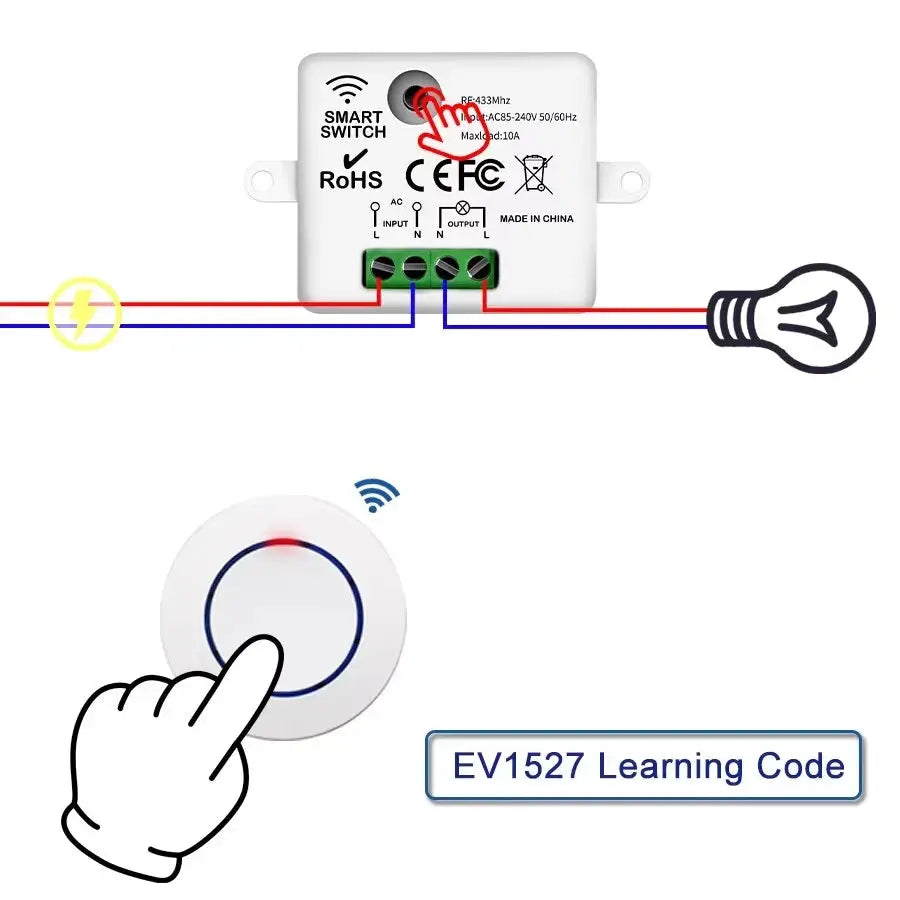

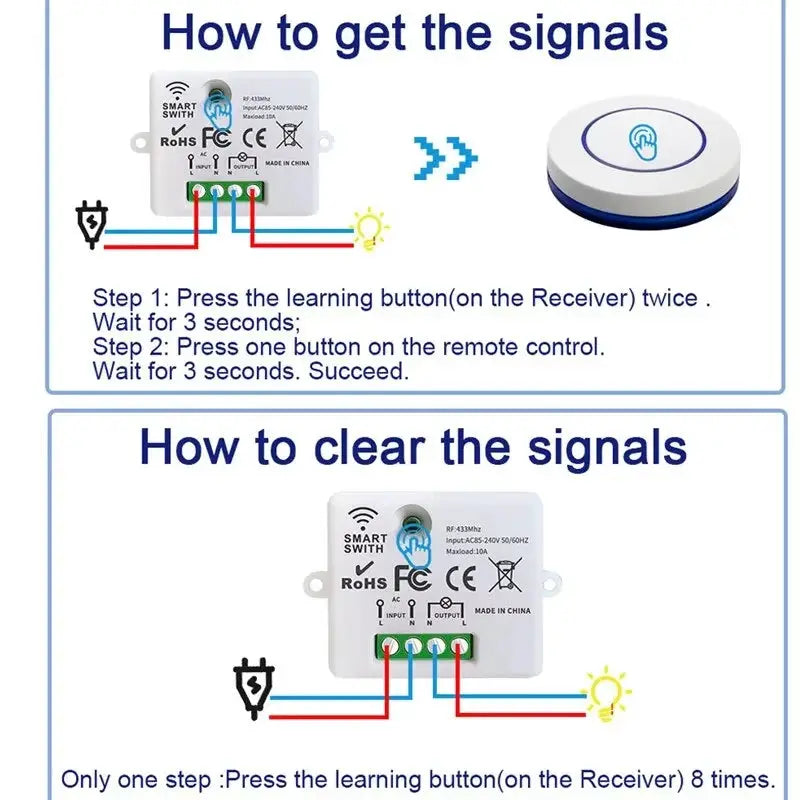

- To pair signals: Press the learning button on the receiver twice, wait 3 seconds, then press a button on the remote.
- To clear all paired signals: Press the learning button on the receiver 8 times.
