Outdoor Waterproof Access Control Kit Rfid Keypad 180kg Electric Lock
Hurry up, only 3 items left in stock.
SPECIFICATIONS
Brand Name: OBO HANDS
Choice: yes
Direction: None
Model Number: Kit S1022
Origin: Mainland China
Security Mode: Fail Safe
Unlock Mode: RFID Card, Password, RFID Card+Password, NFC
User Capacity: 10000 users
WG interface: WG26/34 input/output
Working Frequency: 125KHz, 13.56MHz
Working Voltage: DC12V

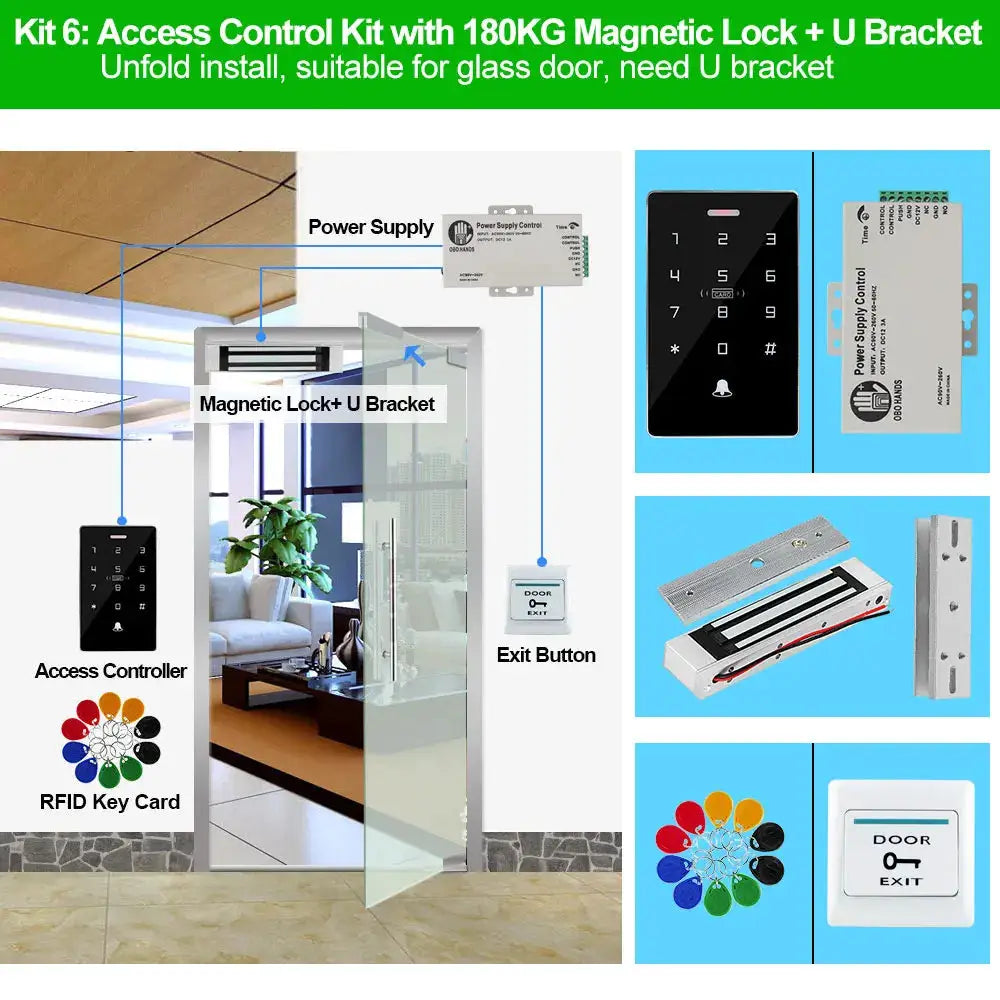

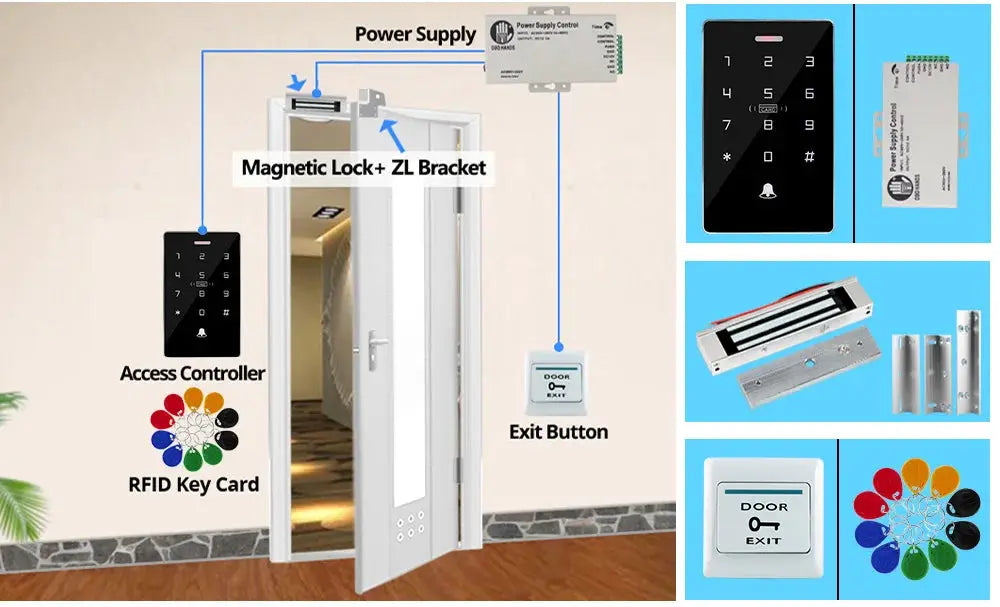

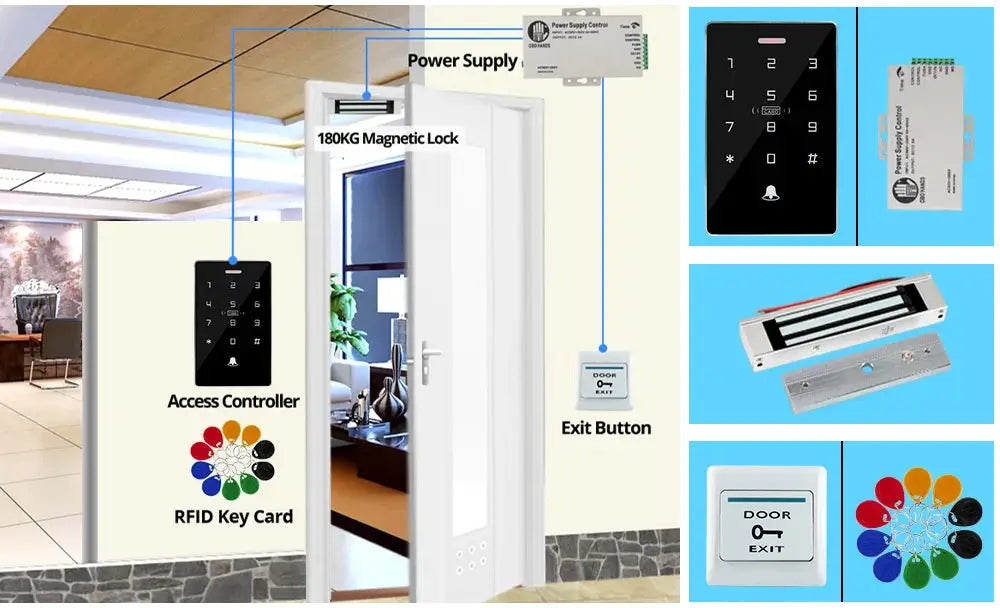

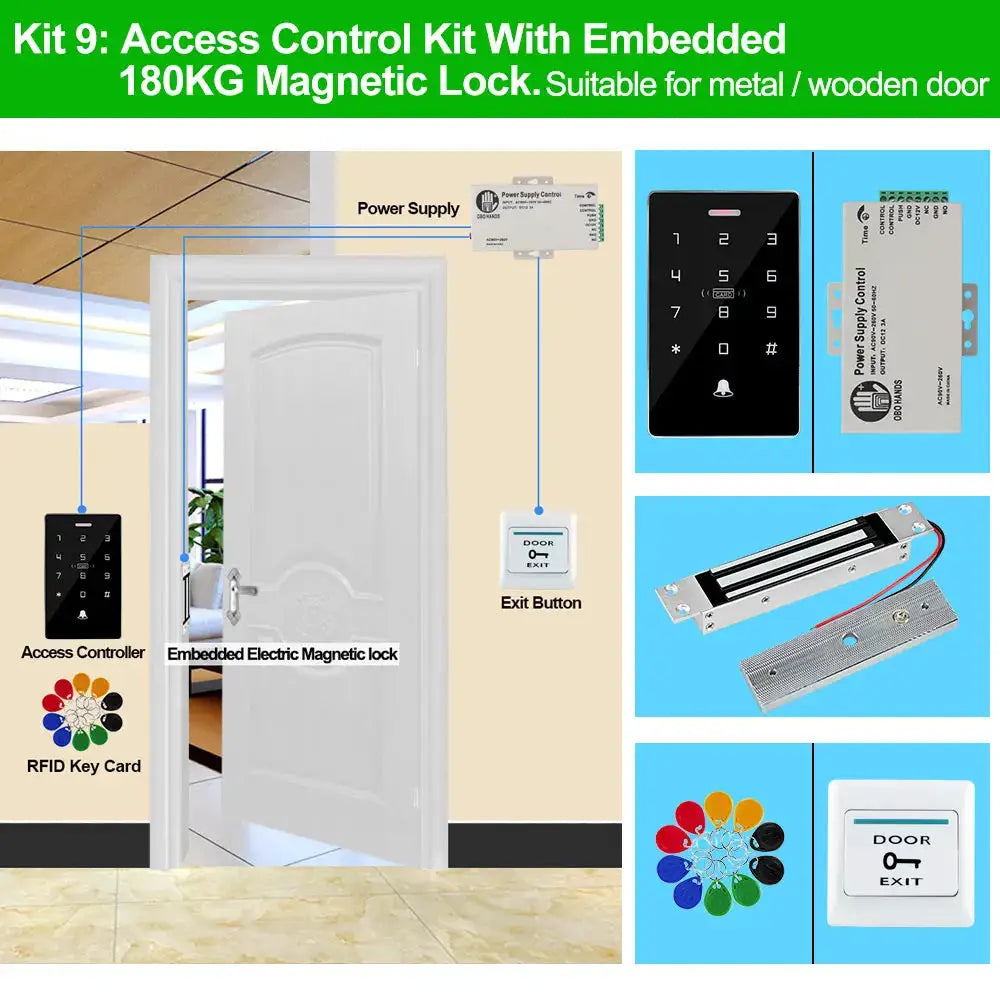

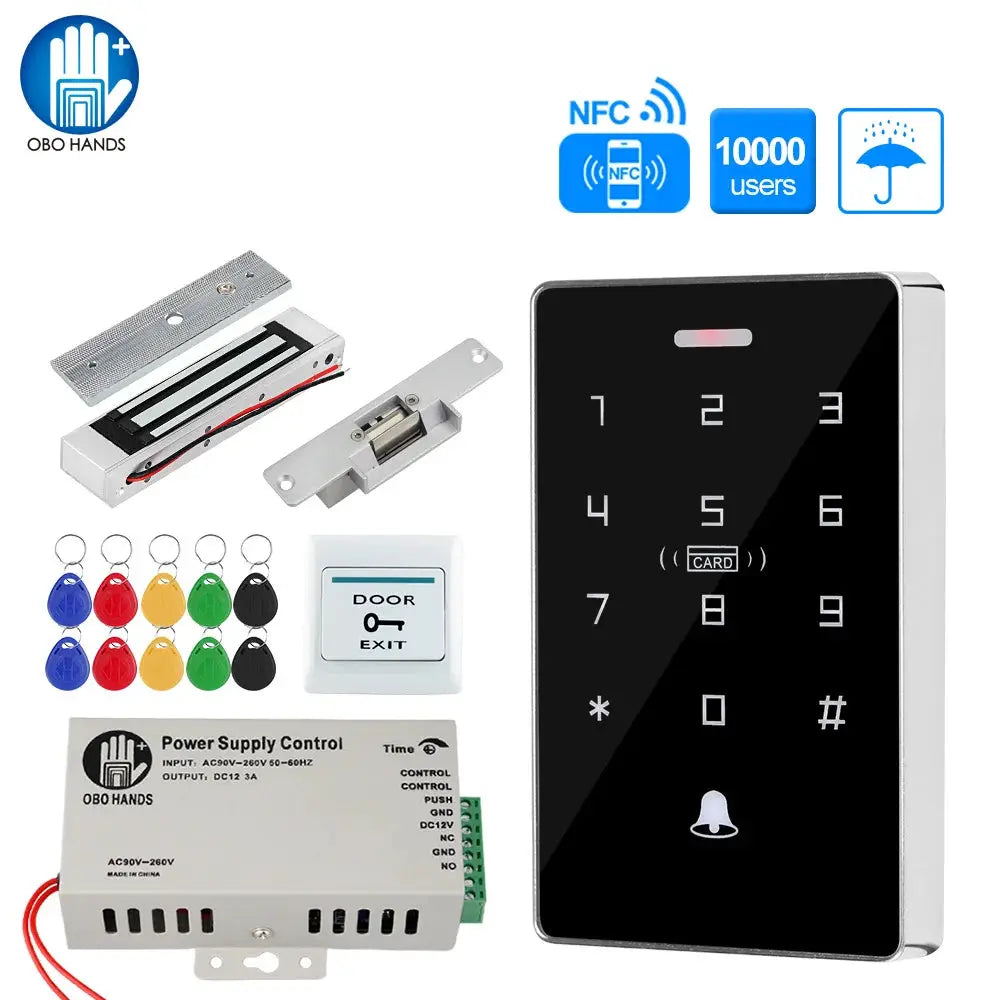

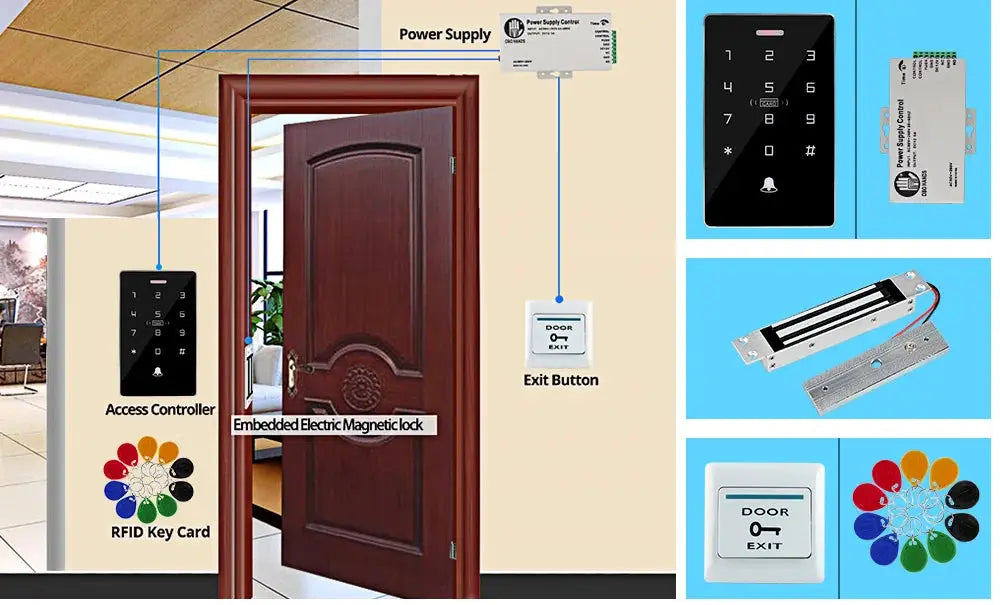

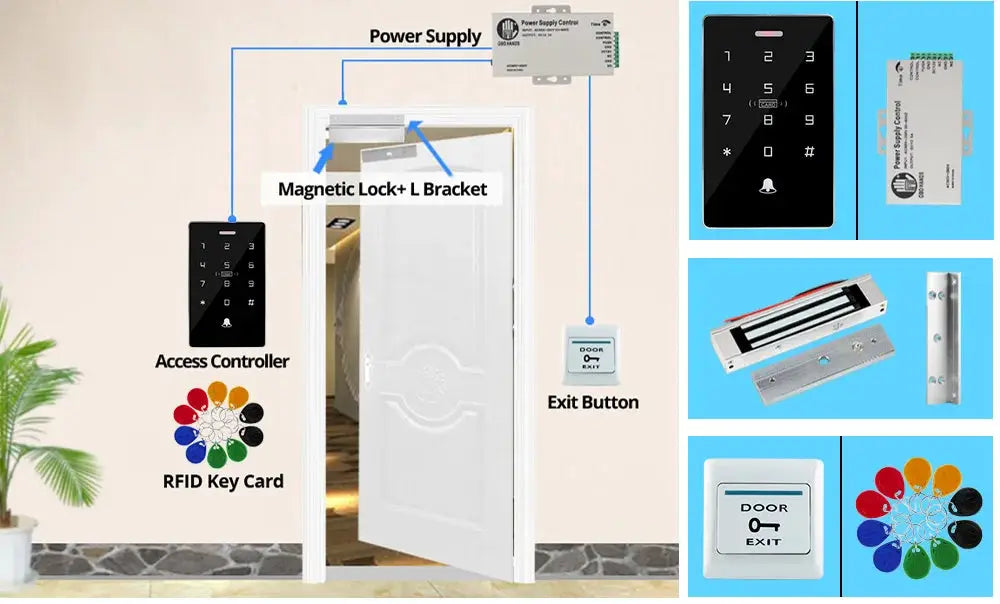

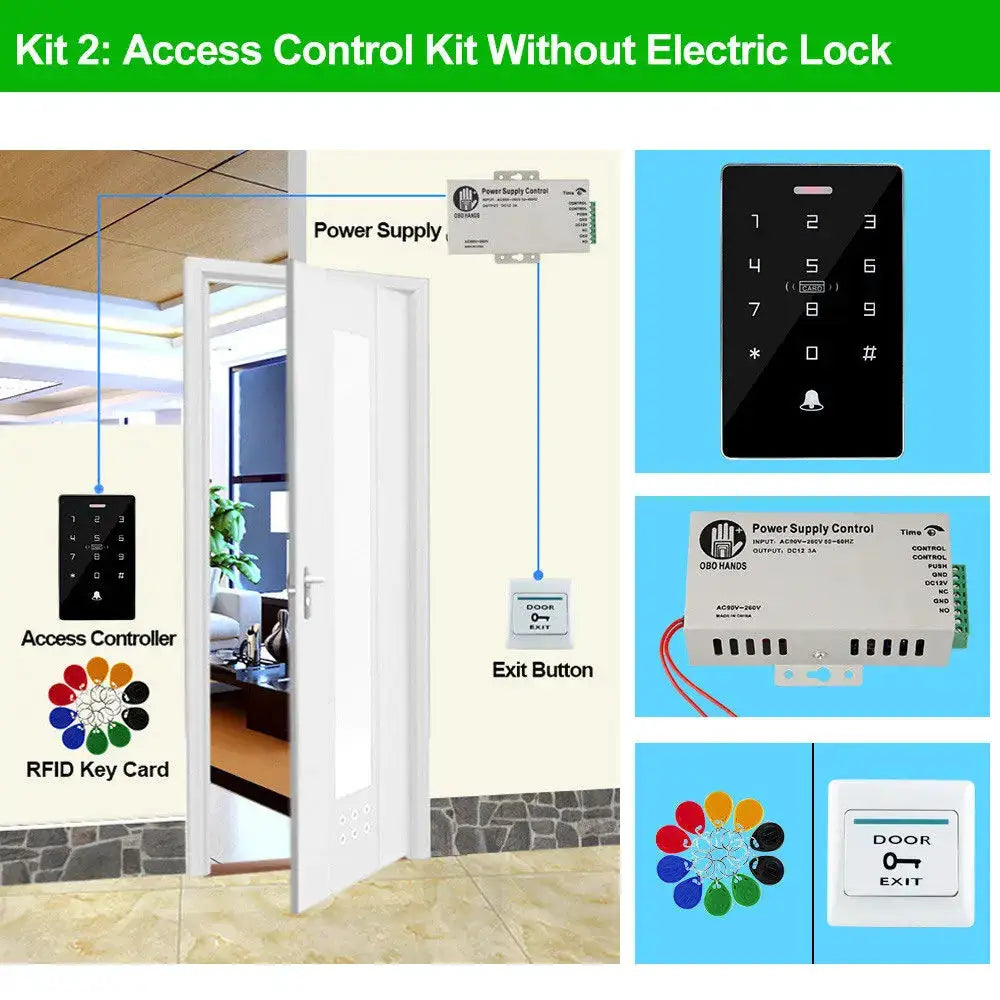

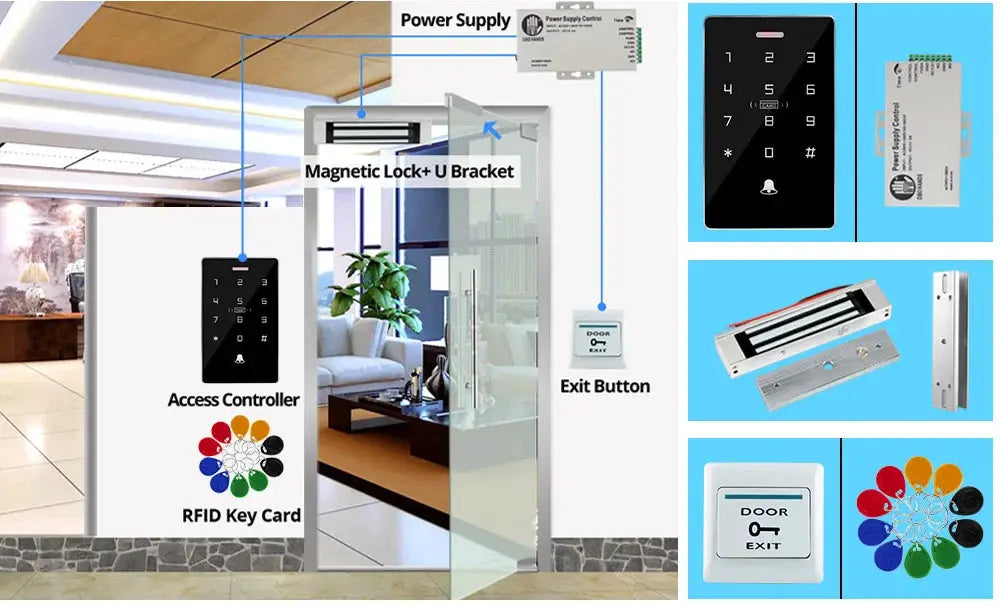

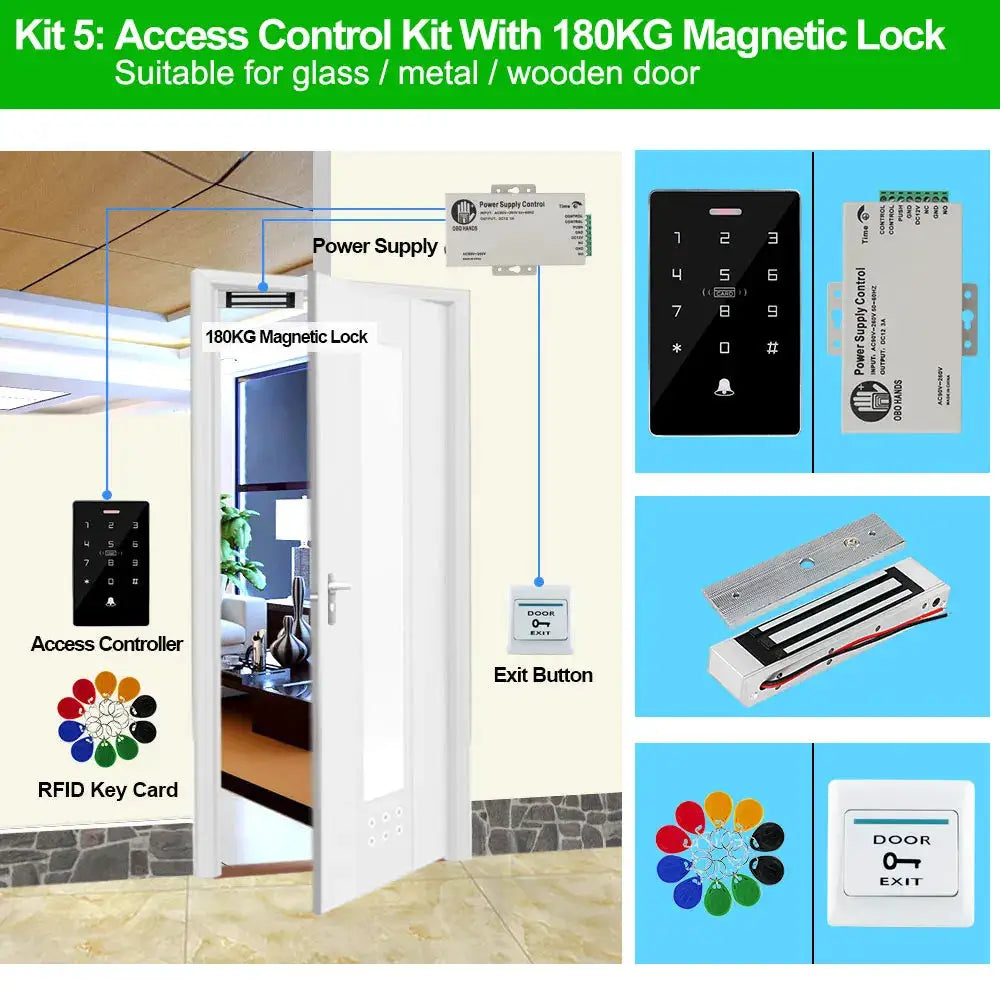

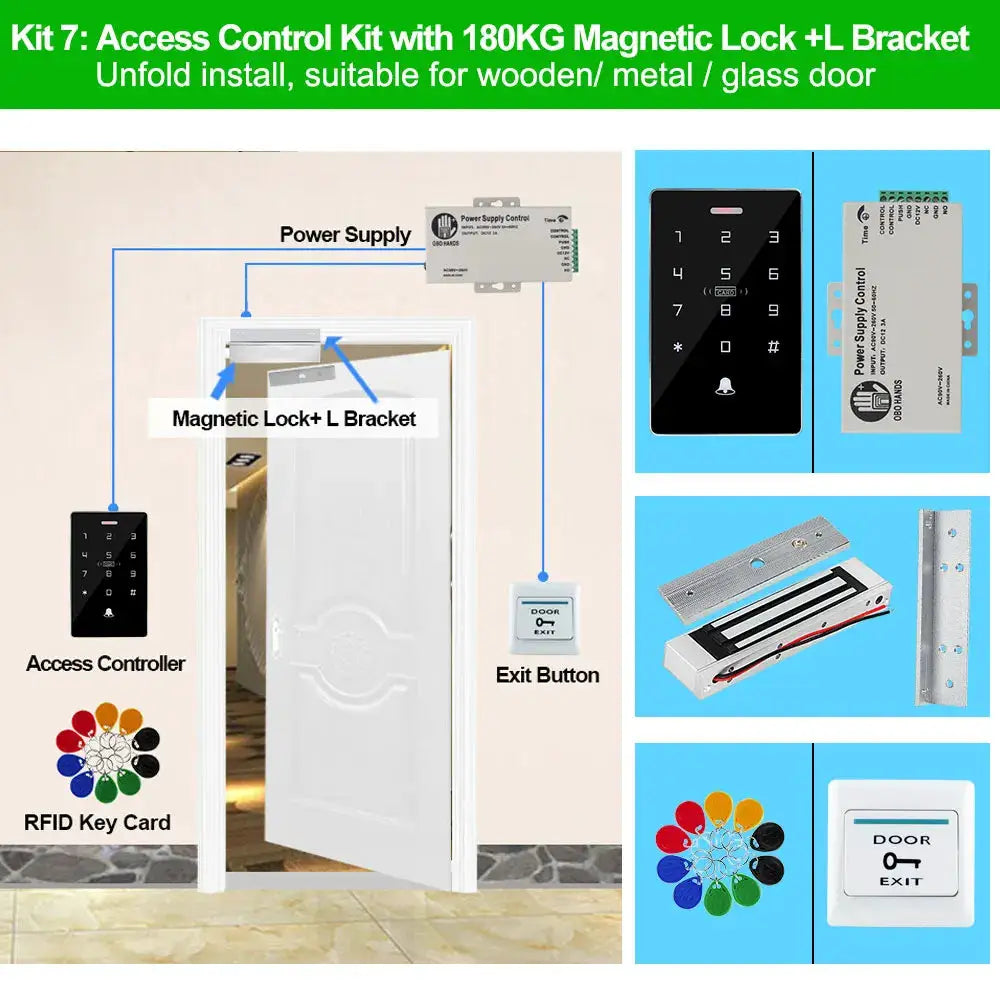

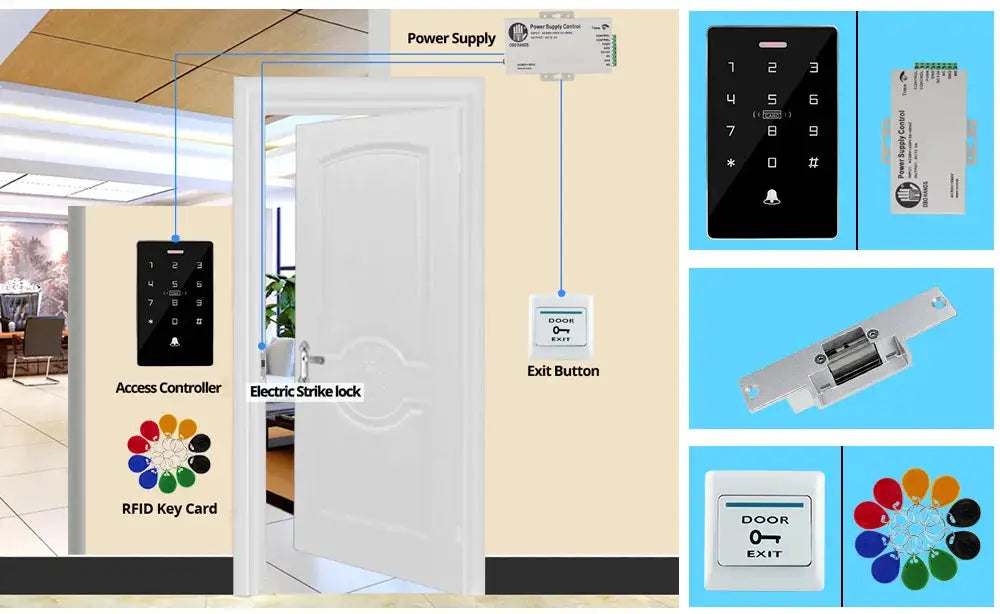

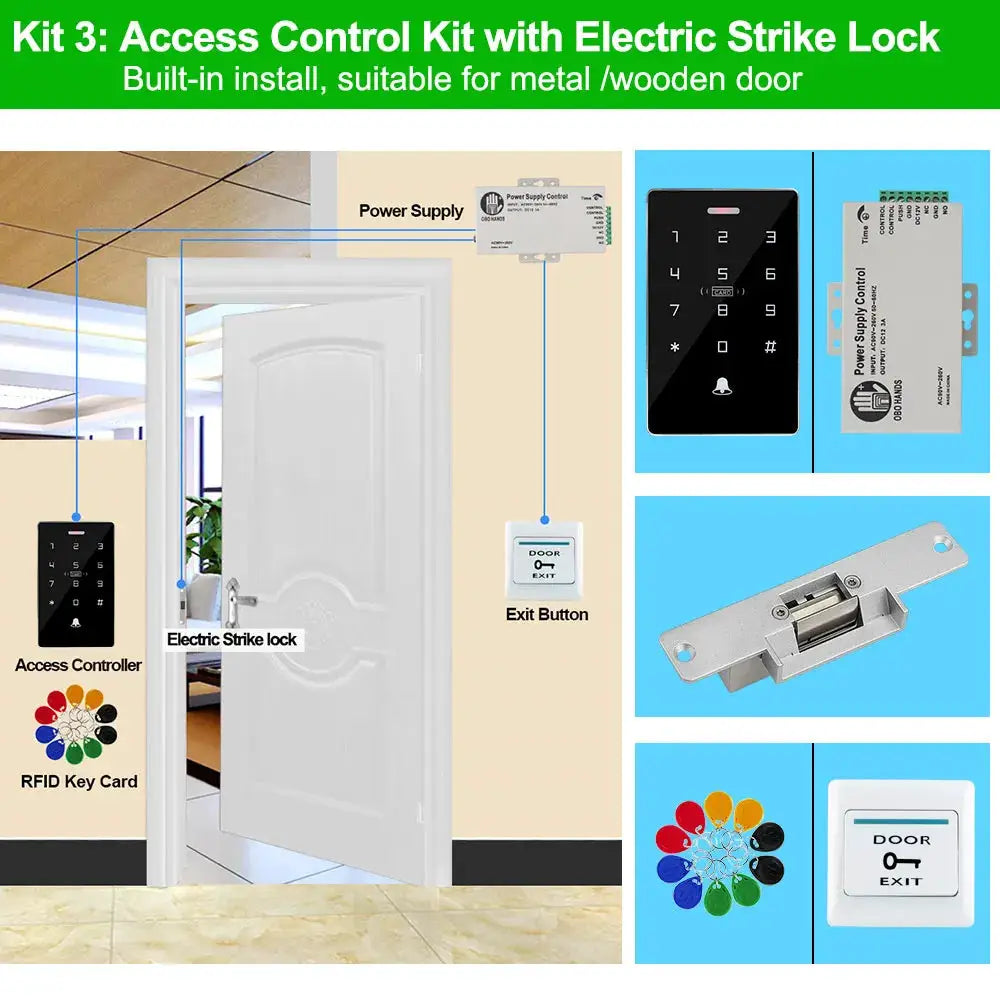

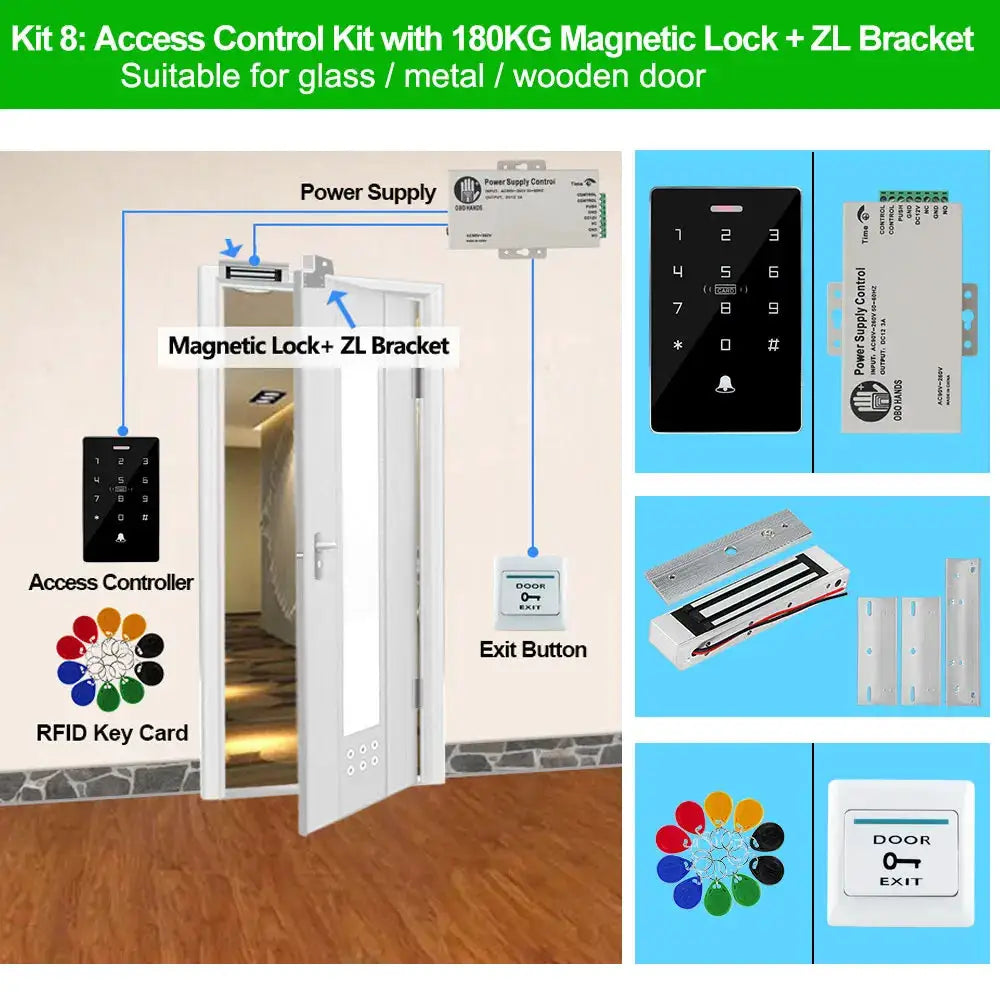

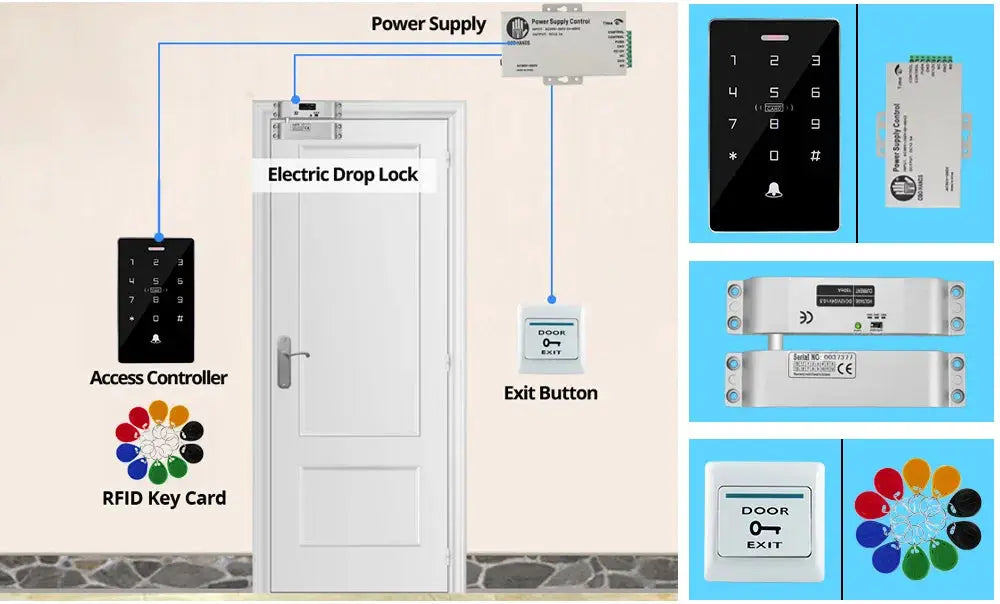

Door Access Control System Kit Outdoor IP68 Waterproof RFID Keypad + Power Supply + 180KG Electric Magnetic Lock Strike Locks
Programming Video

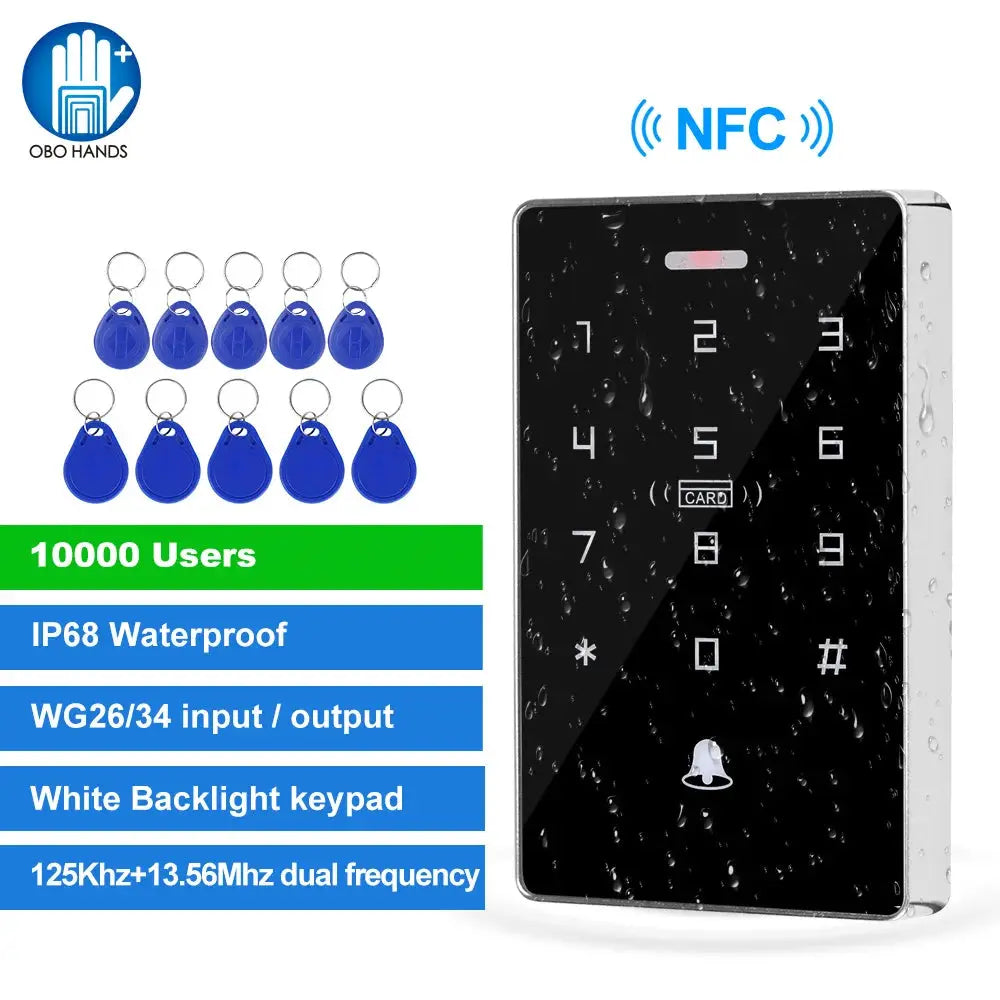

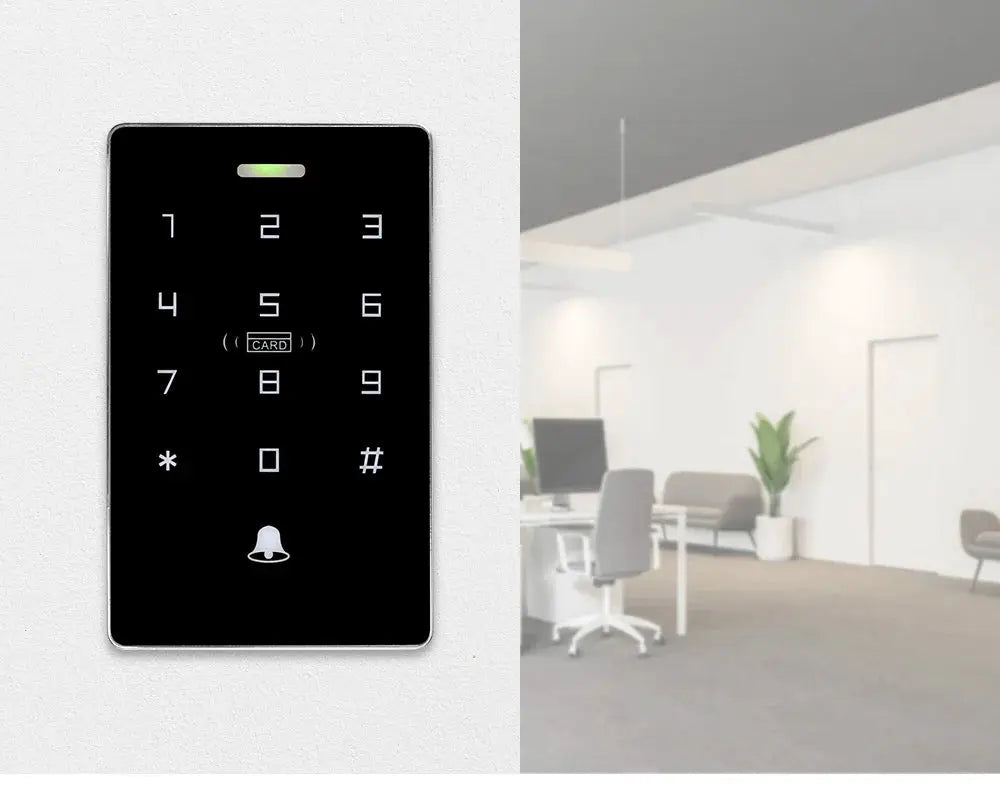

User capacity: 10000
Material: ABS high quality material
Panel: touch screen panel
Working frequency: 125KHz + 13.56MHz dual frequency
Card reading type: support EM ID and MF 1K compatible cards
Card reading distance: 0-5CM

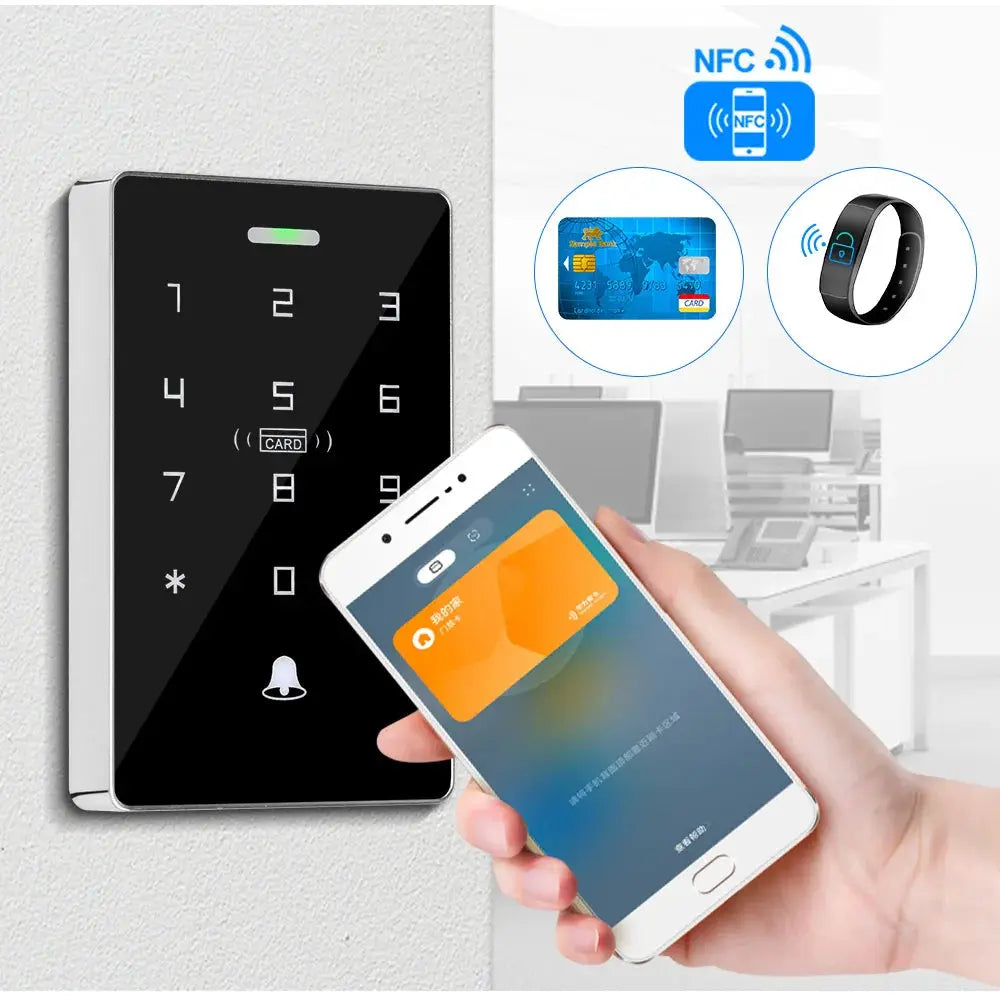

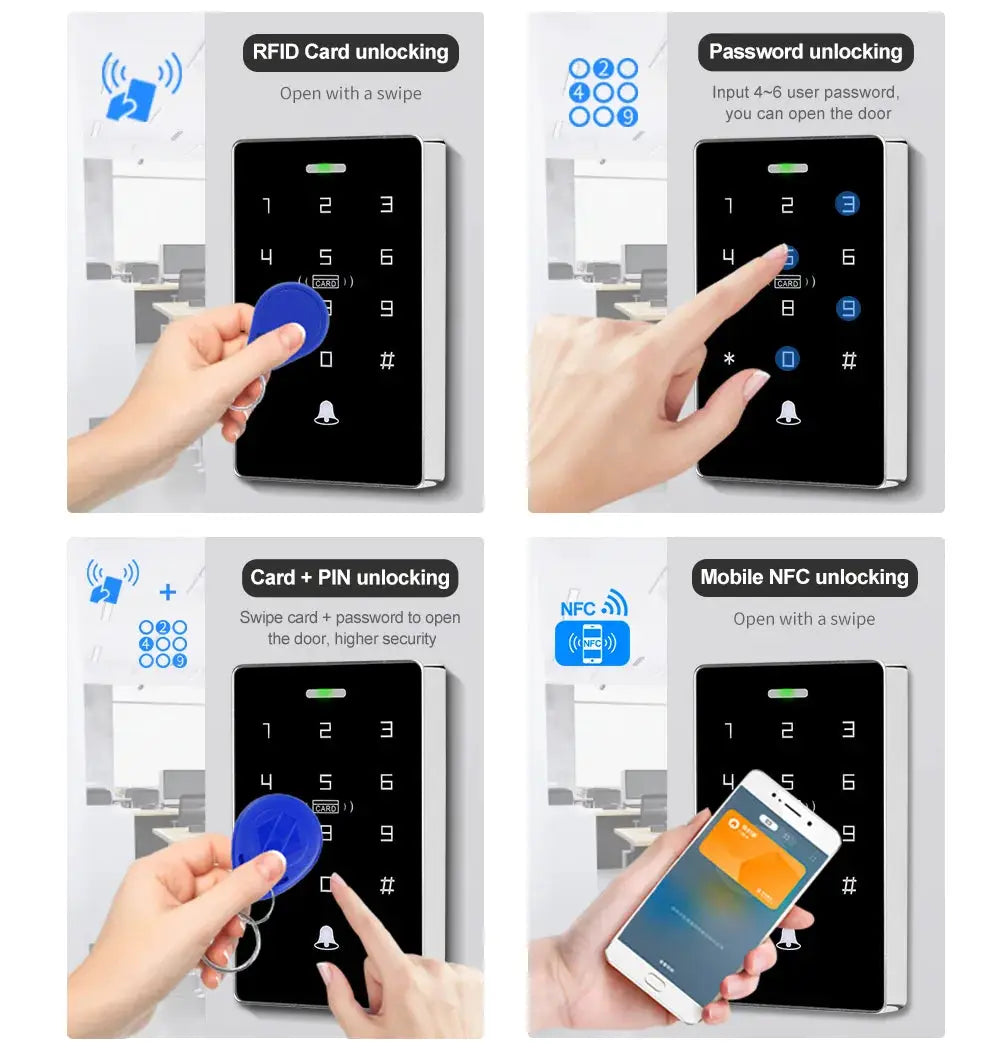

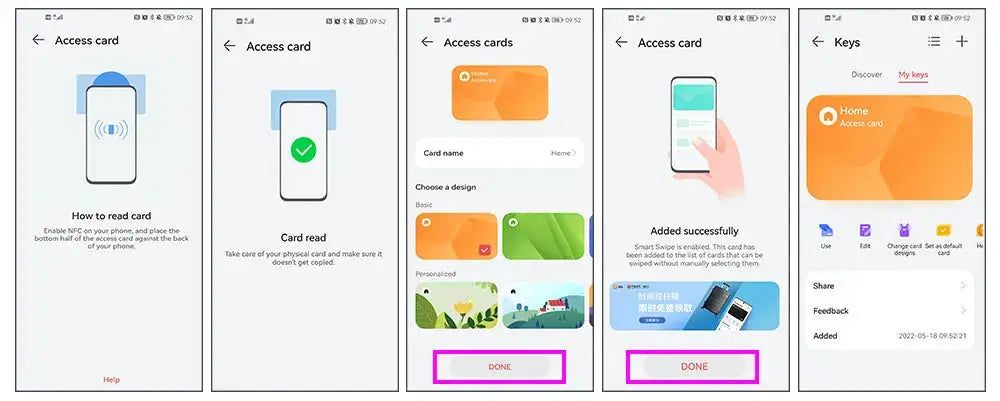

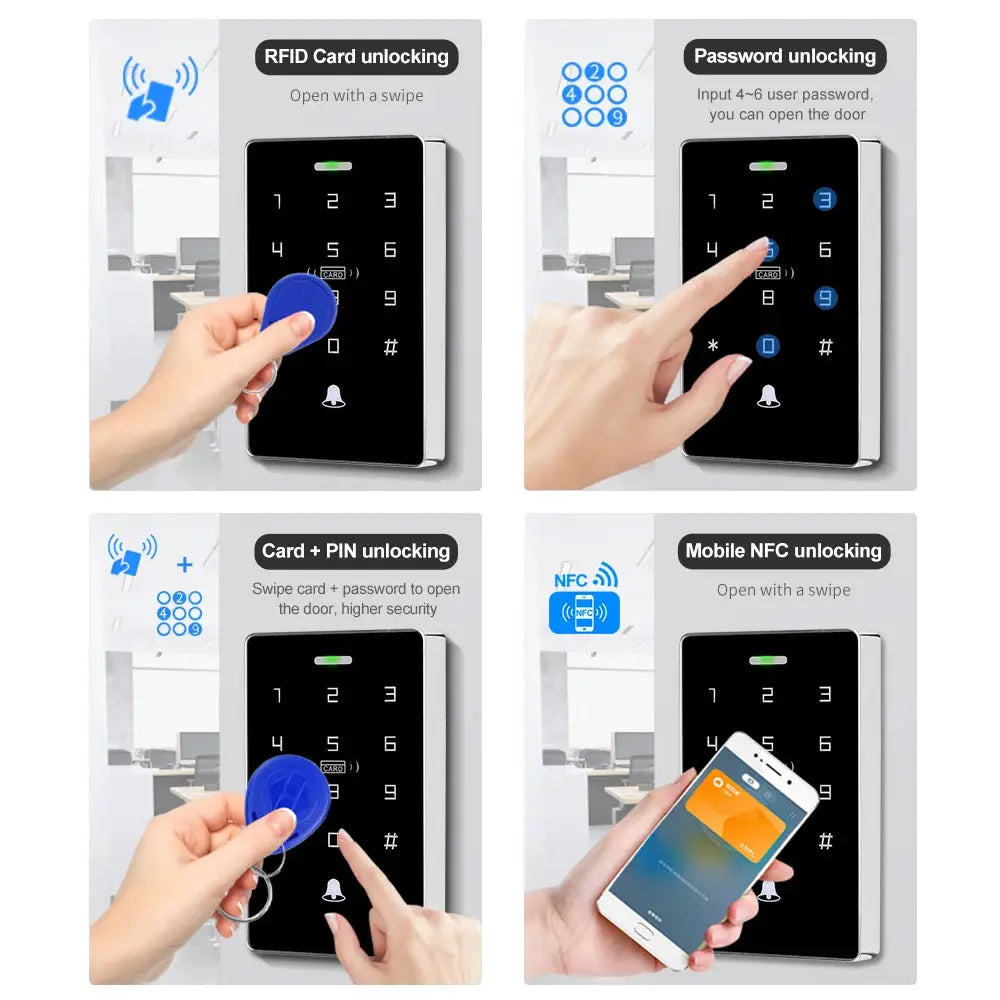

Identification method: RFID card, password, RFID card + password, NFC
Backlight: has white backlight
Waterproof function: IP68 waterproof, can be installed outdoor
Doorbell button: support wired doorbell
Wiegand signal: WG26 / WG34 input/output

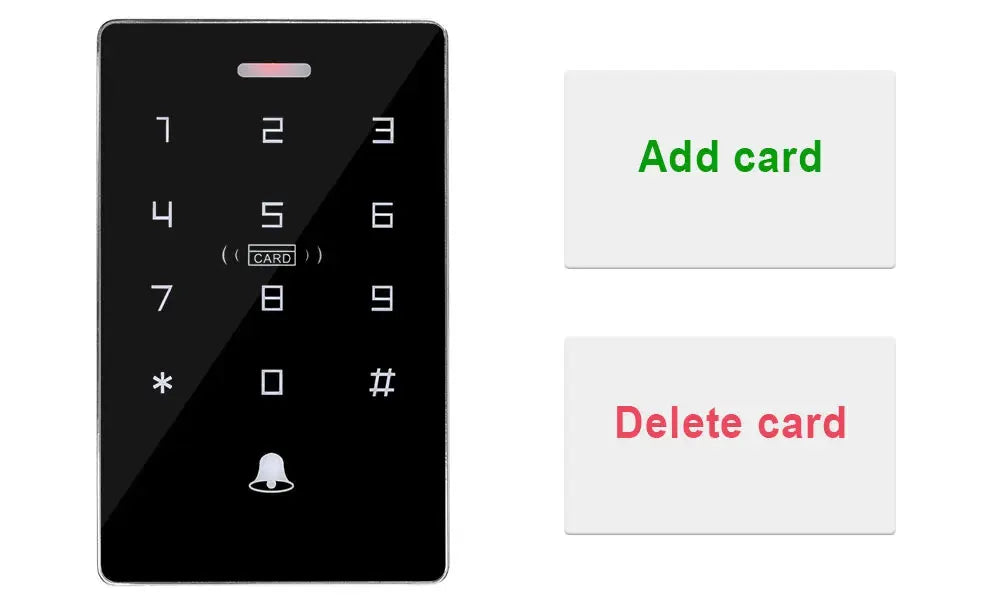

Can set management card: yes
Working voltage: DC 12V
Door opening time: 0-99 seconds
Working temperature: -20 ° C ~ 70 ° C
Working Humidity: 20% ~ 90%

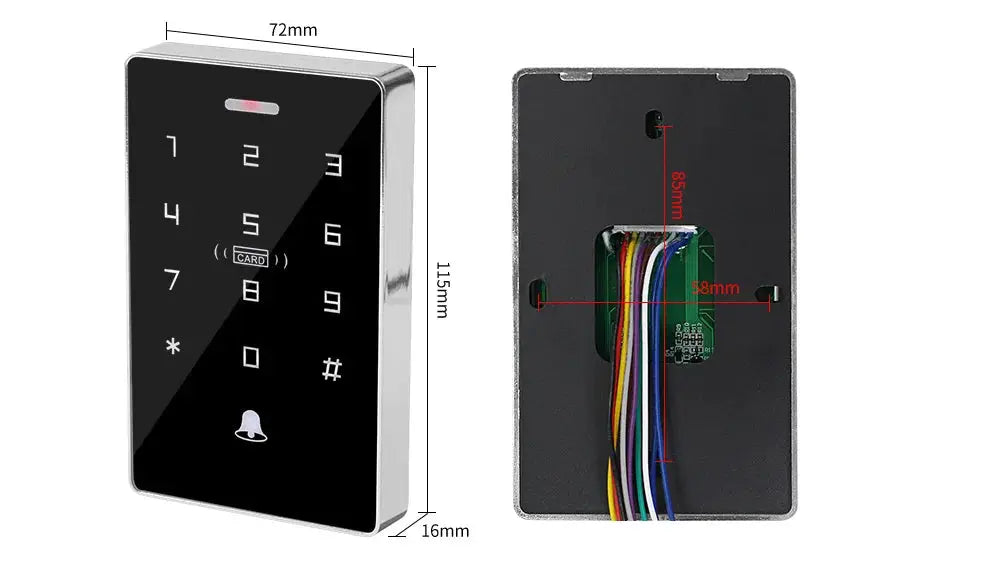

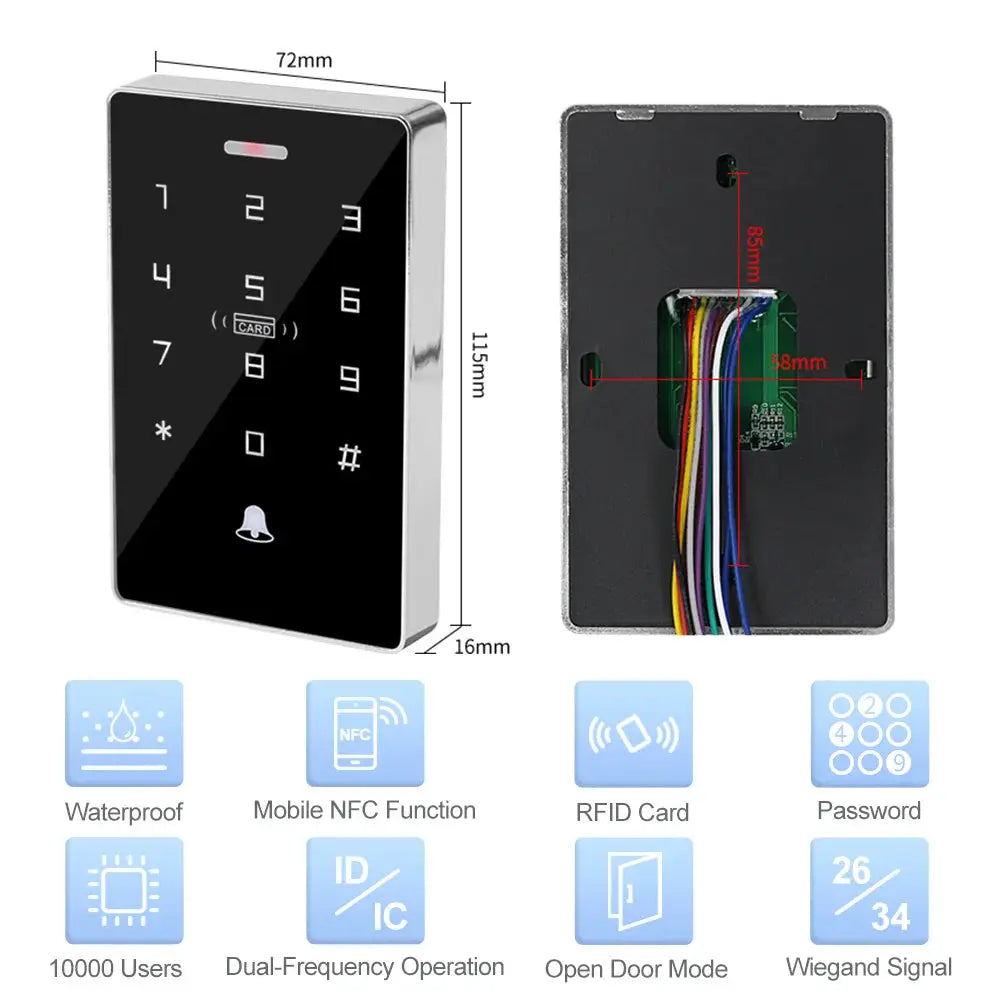

Product size: 115*72*16mm
Support machine data copy function, register one machine, share data of multiple machines, reduce workload. (Not all devices support this function. If you want this function, please contact us.)
Support 10000 cards, 10000 password user capacity, more secure!

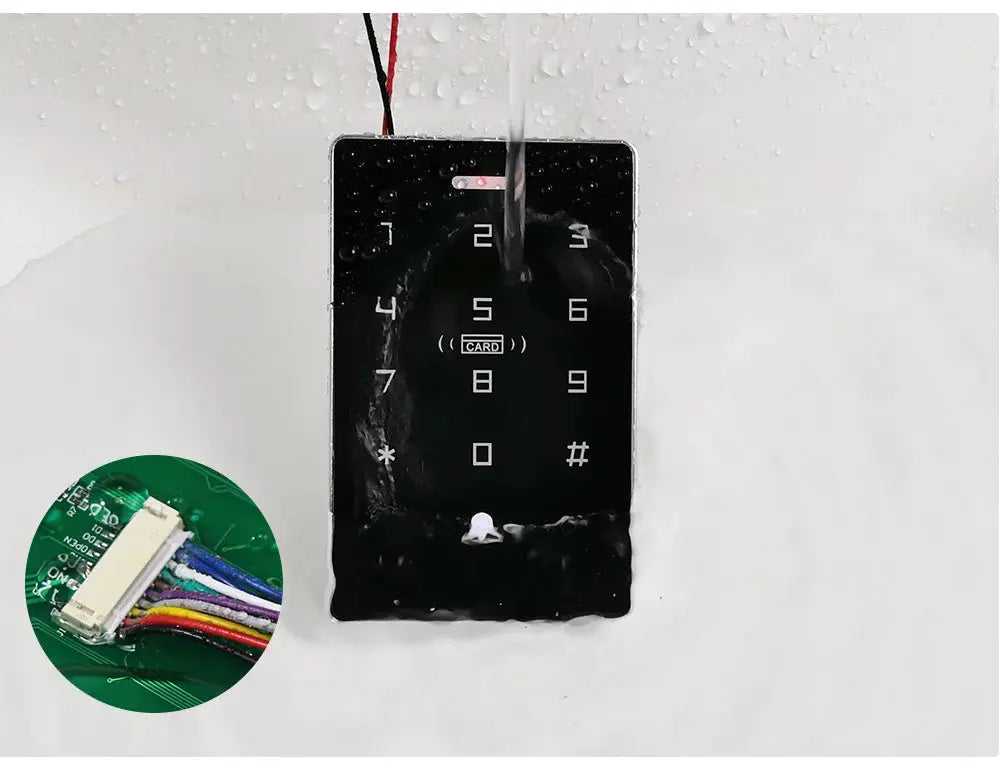

IP68 Waterproof. Can be installed outdoor

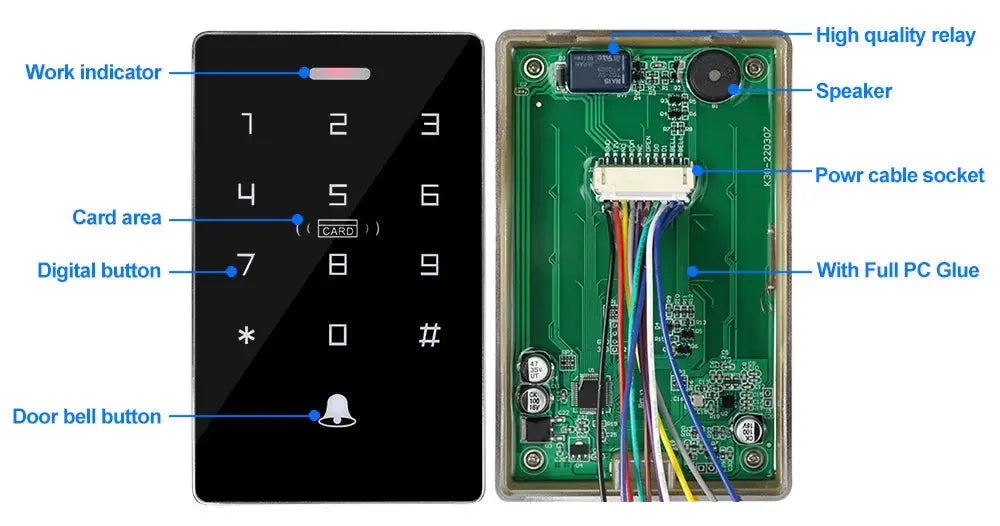

With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

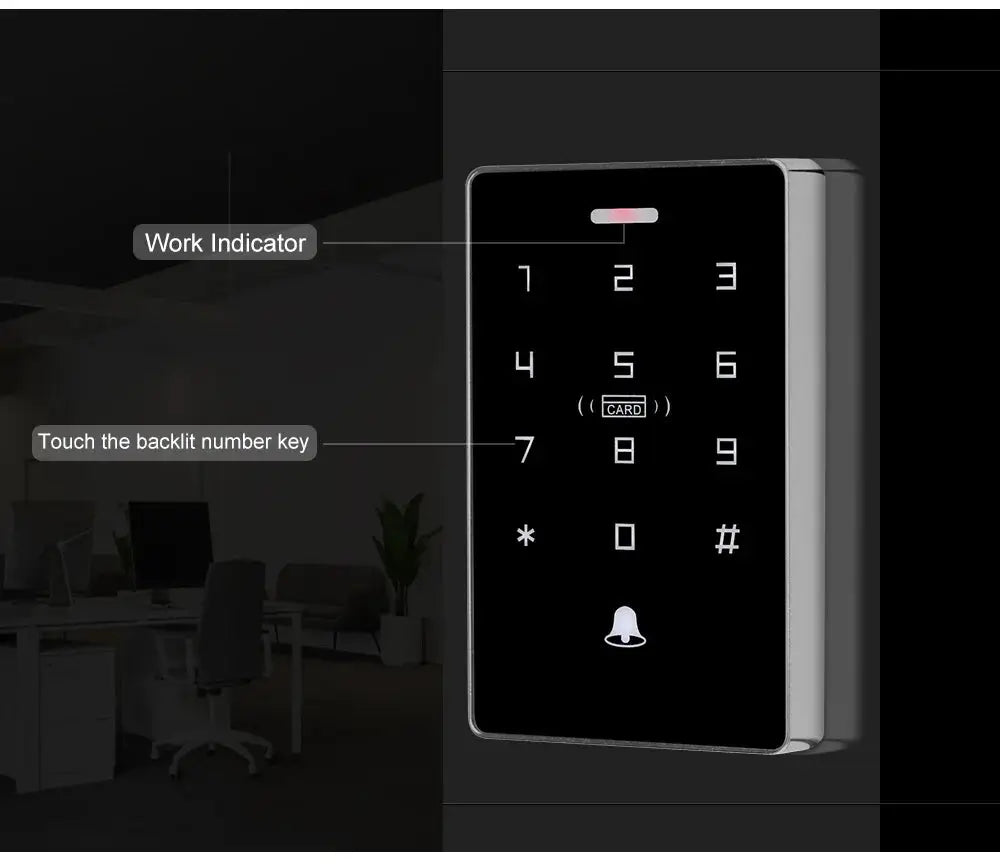

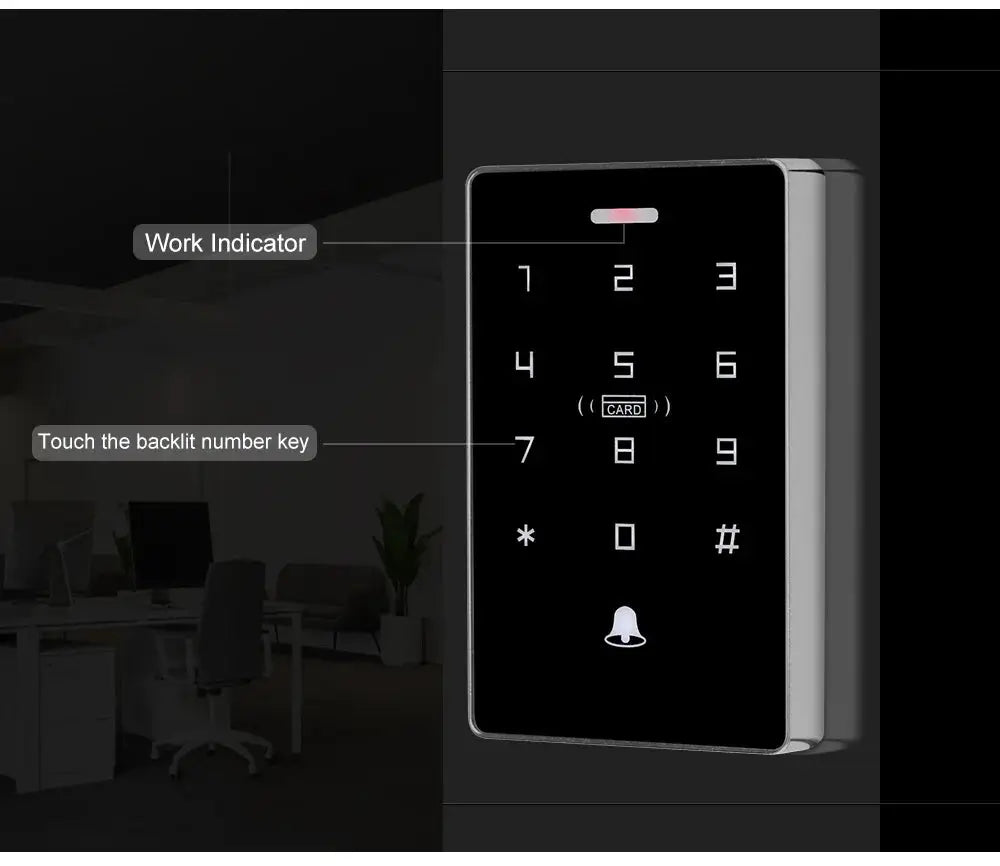

White Backlight keypad
The digits number can be seen clearly even at dark
Can set Normally Open model
Frequent entry and exit can be set to normally open model
Easy installation and operation
Based on advanced technology, fast recognition speed, high sensitivity.
Suitable for most major access control solution.

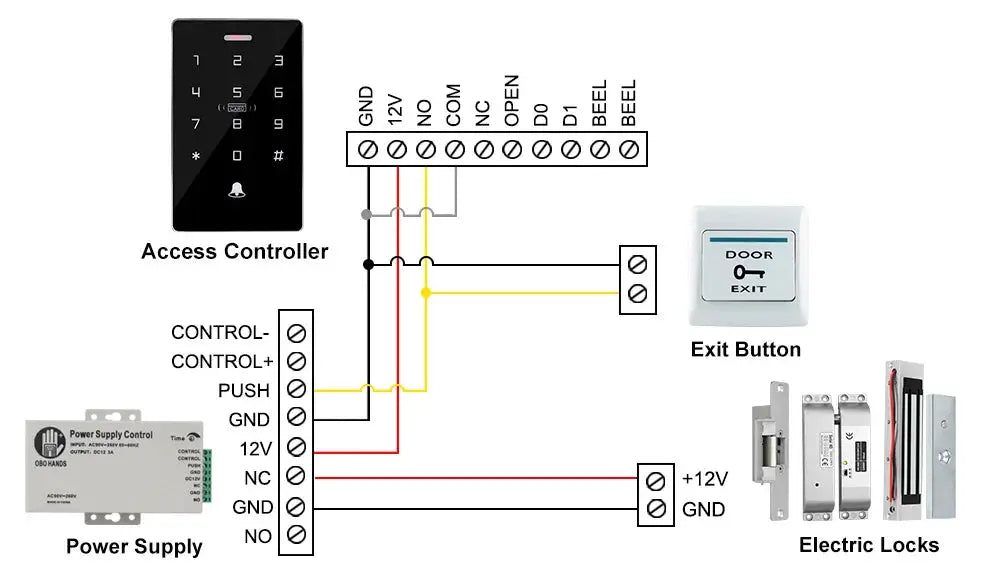

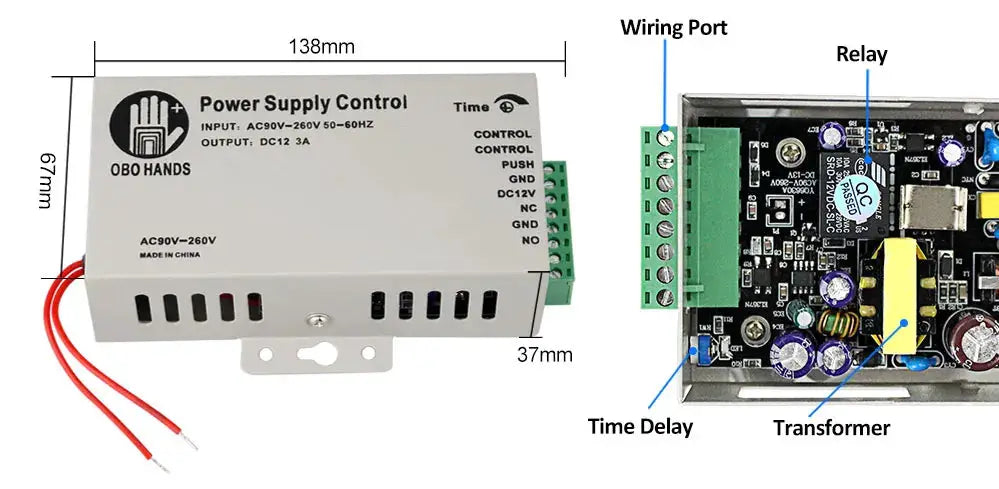

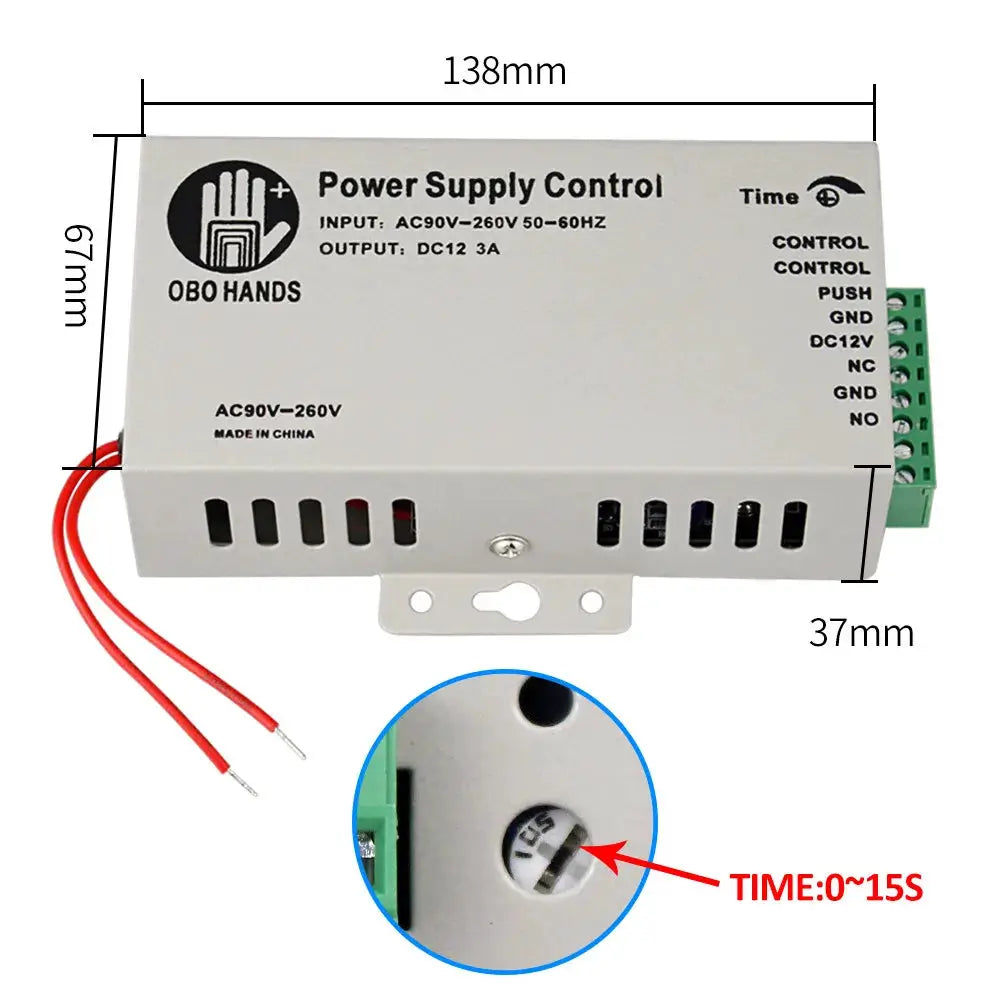

This is AC110-260V, DC12V/3A power supply switch for access control system. Can connect to all kinds of access controoler, electric lock, exit button, remote control, etc. Help to reduct the overload of the access controller. NC/NO output mode cam be selected for different types of electric lock.
Model Name: K803A
Material: Steel
Input Voltage: AC110-260V
Input Frequency: 50-60Hz
Output Voltage: DC12V/3A
Output Power: 36w
Dimension: 105*91*34mm
Time Delay: 0-15 seconds
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Current: 200mA - 450mA

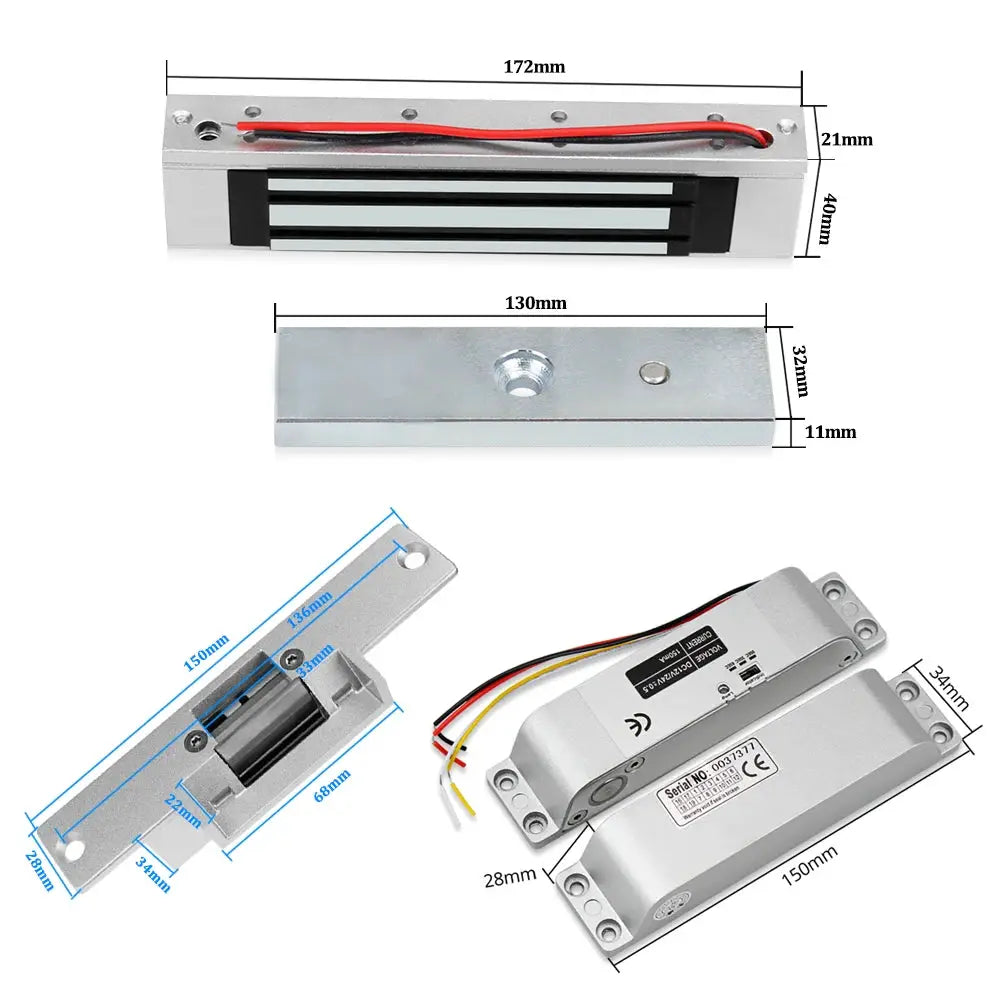

Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm（L / W / H）
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside
Size of Armature Plate: 139Lx32x11H(mm)
Holding Force: 180kg(350Lbs)
Input Voltage: 12VDC
Current: 12V/120mA
