SPECIFICATIONS

Brand Name: NONE

Choice: yes

Encoding method: Rolling code

High-concerned chemical: None

Model Number: 250-868 Mhz multi frequency remote control

Origin: Mainland China

NOTE: Please confirm whether the frequency and chip of your remote control are compatible with the product before buying.

product information

Duplication and regeneration of wireless remote controls for barriers, garage doors, etc.

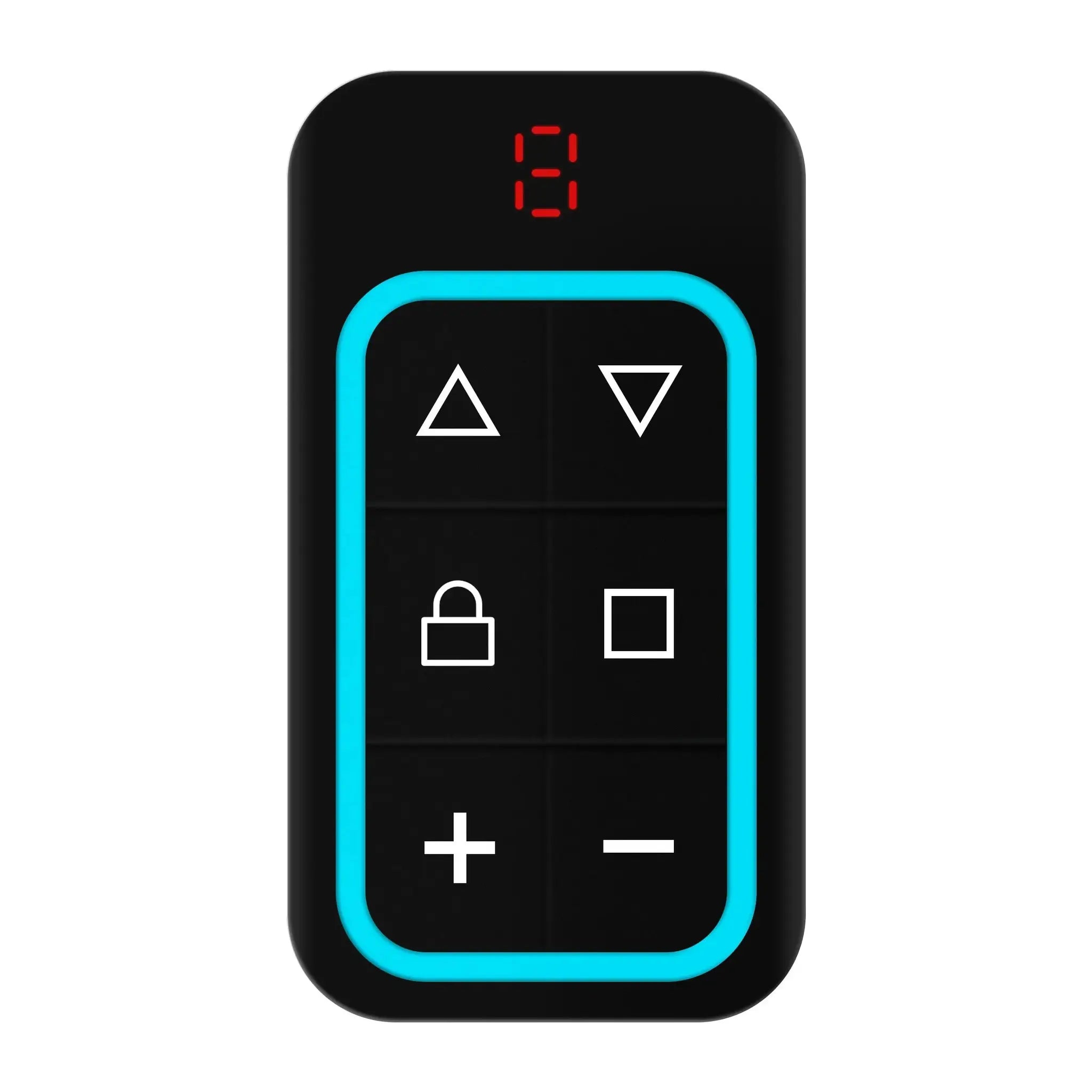

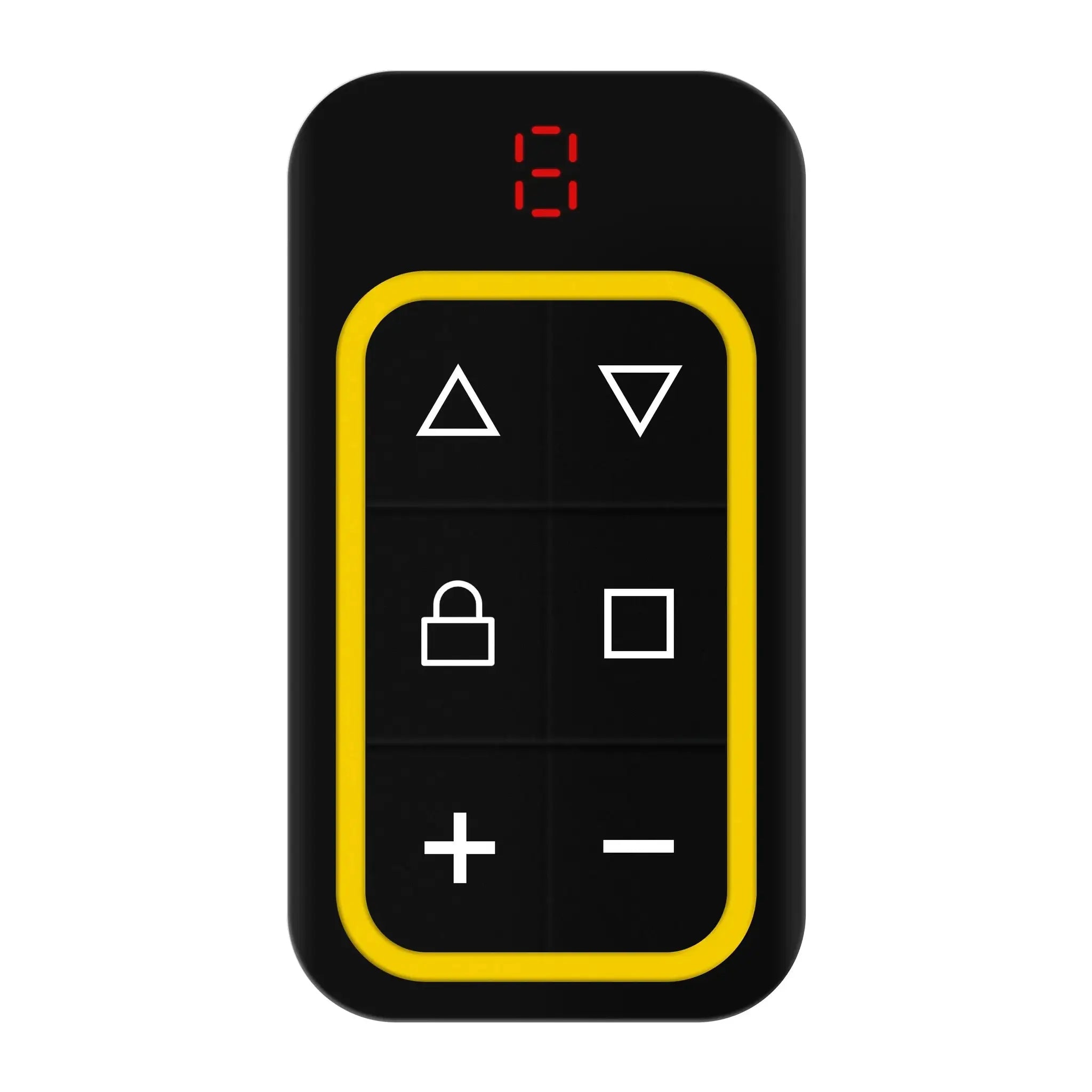

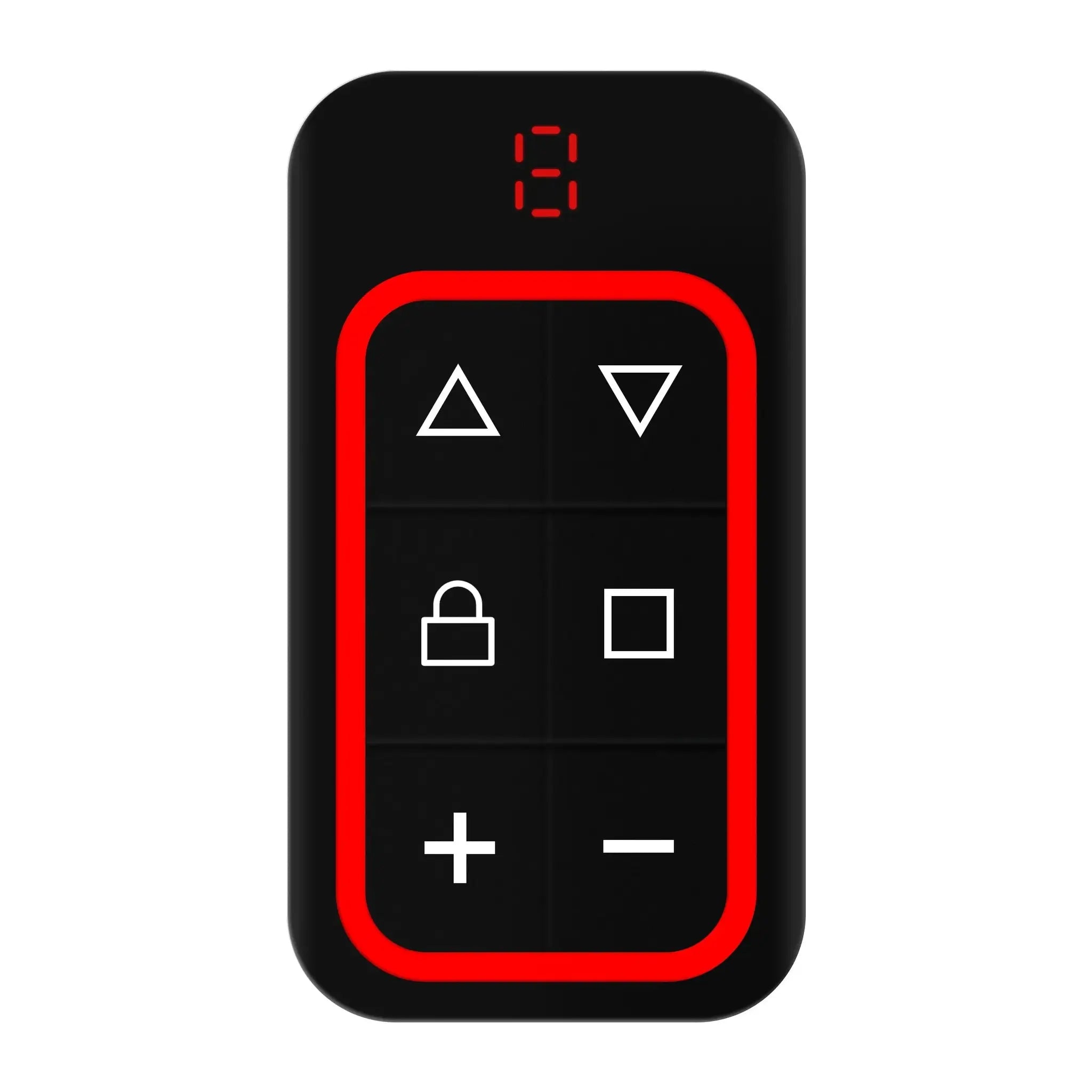

Product name: Multi-frequency 8 Channels copy remote control

Receiving frequency: 300～915MHZ

Transmit power: 13dBm

Operating current: 30MA

Operating voltage: 3.7V

Remote control distance: 30-50m

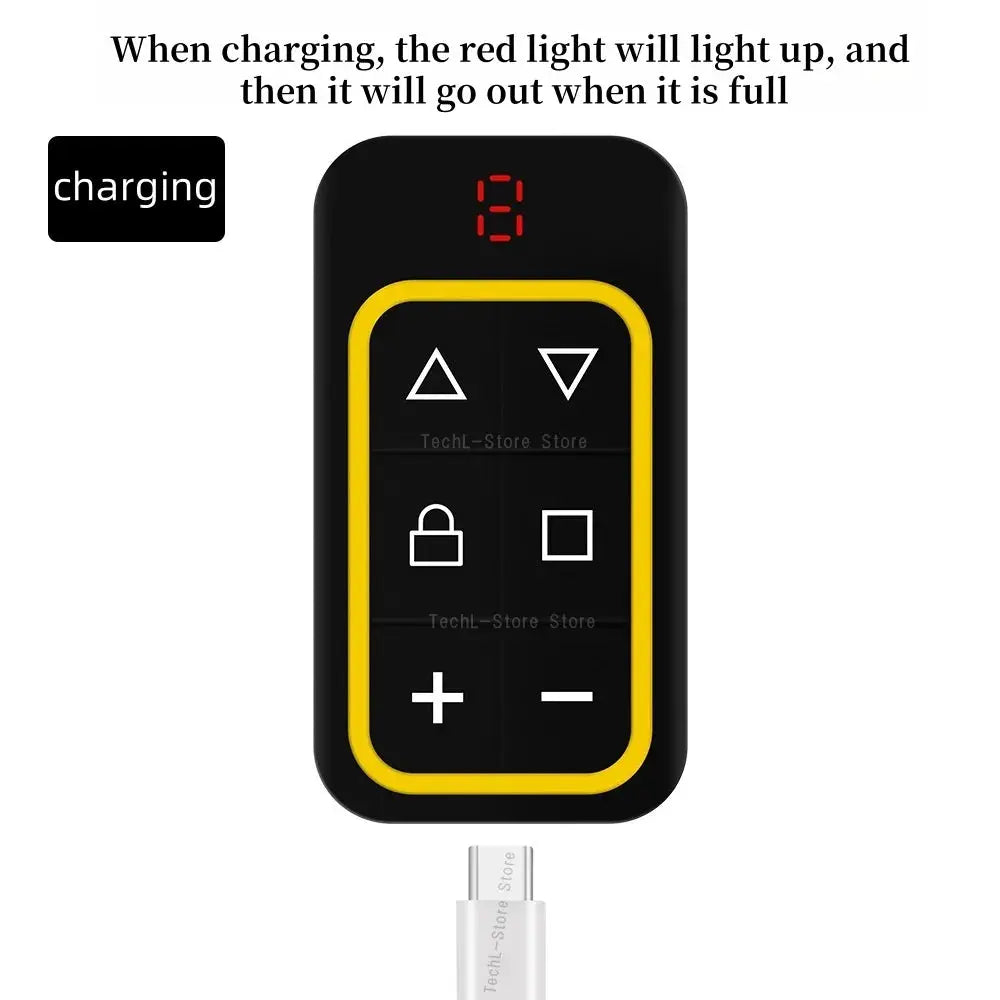

Charging interface: 5V TPC-C

Product size: 73*37.6*13mm

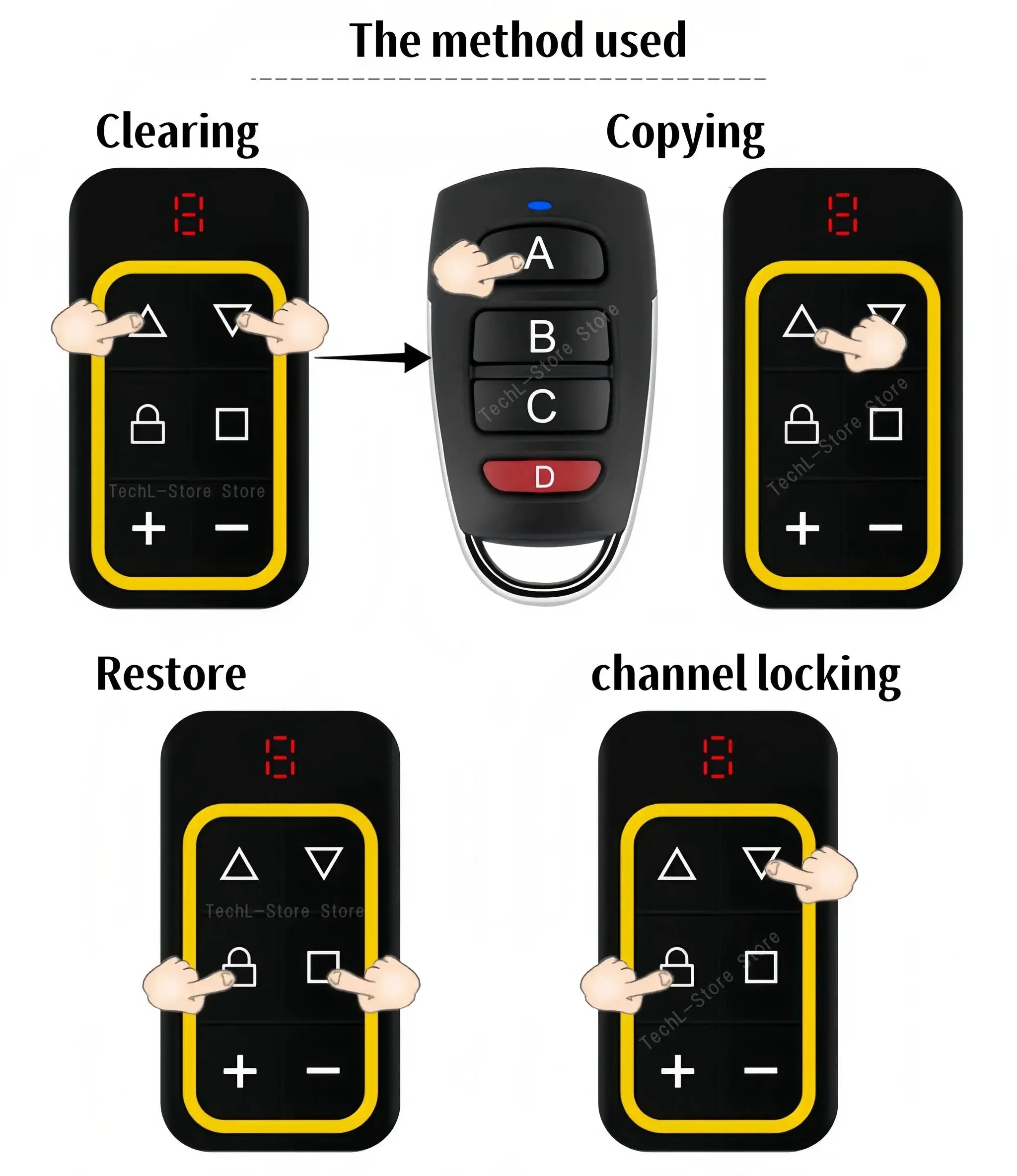

The method used

Clearing method:

Press button 1 and 2 simultaneous wait for 2 seconds until LED flashes

Note:

1. The indicator light must keep flashing before you can release your hand

2. If it doesn't flash for a long time, it means that the two buttons are not pressed at the same time. Repeat the operation once. After clearing the code, press any key of the remote controller, and the indicator light flashes and goes out, which means that the code clearing is successful.

Copying:

The corresponding button(you can decide which) of old remote and the our remote control is both pressed, Seeing that the channel number on the display tube is always on indicates that the copy is successful, and then the remaining keys are copied in turn in the same way.

Note: During the copying process, do not loosen the copying buttons of both remote controllers until the display tube number on the multi-frequency multi-channel copying remote controller is always on.

Restore:

When you accidentally clear the copy of the remote control code, you can simultaneously press the copy of the remote control of the bottom two keys, wait for 2 seconds, LED lights will flash quickly, you can release your hand, Press the remote control after recovery, and the keys are always on.

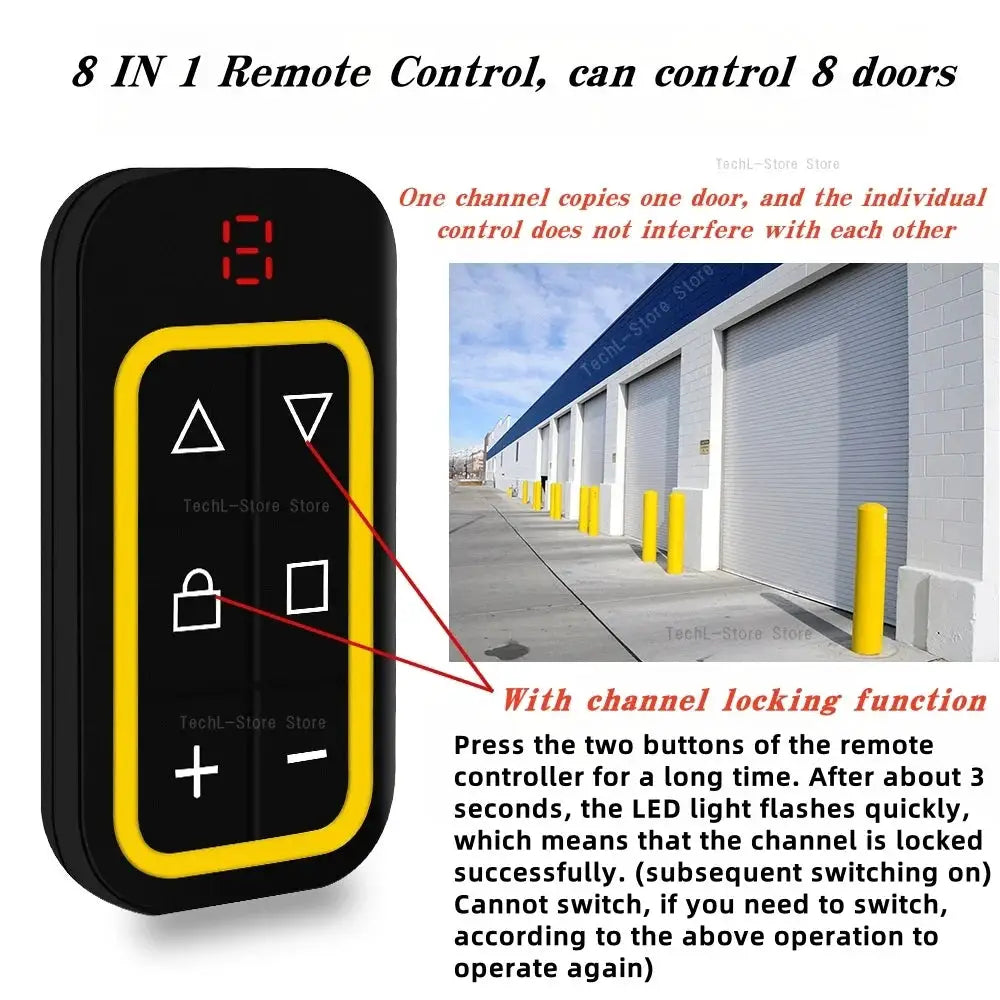

Tip: channel locking:

If channel locking is required, press the second button in the first row and the first button in the middle row at the same time. If the LED light flashes quickly, the channel is locked successfully. After the channel is locked successfully, it is not allowed to switch. If you need to cancel the lock, do it once in the same way.

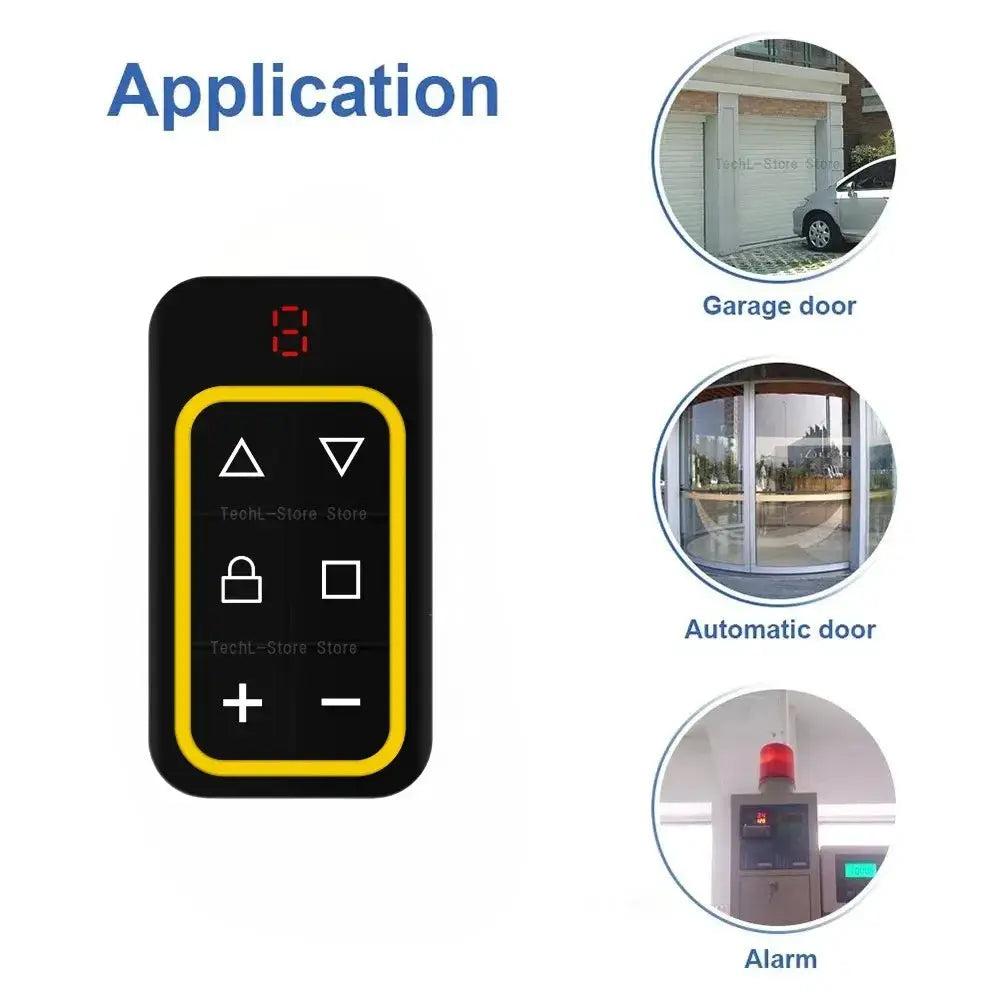

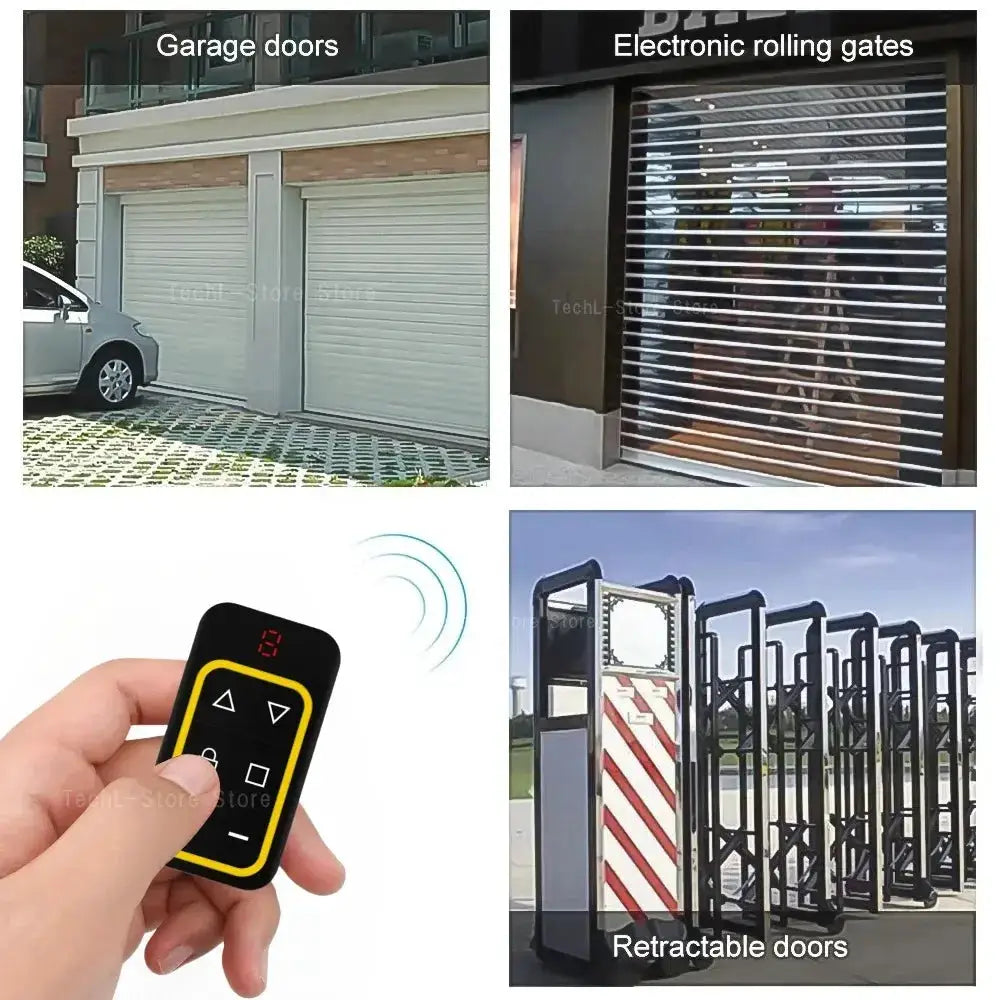

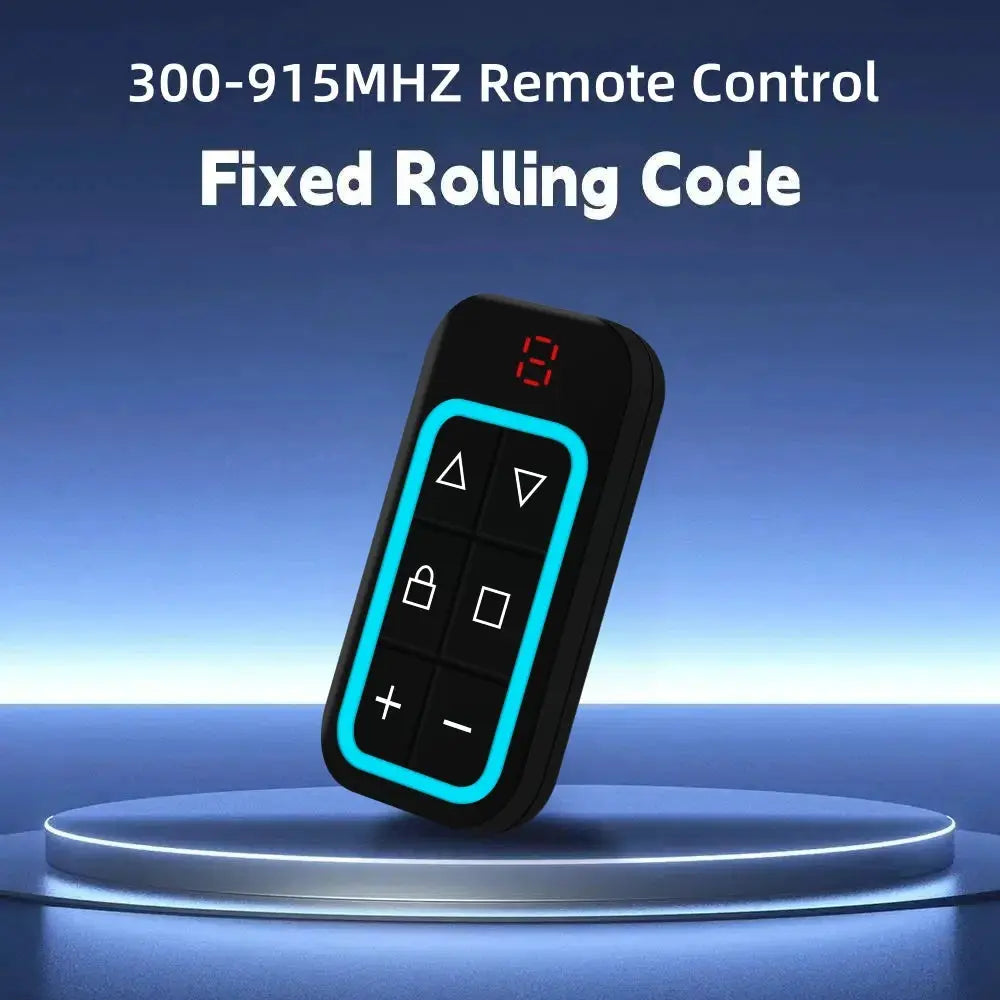

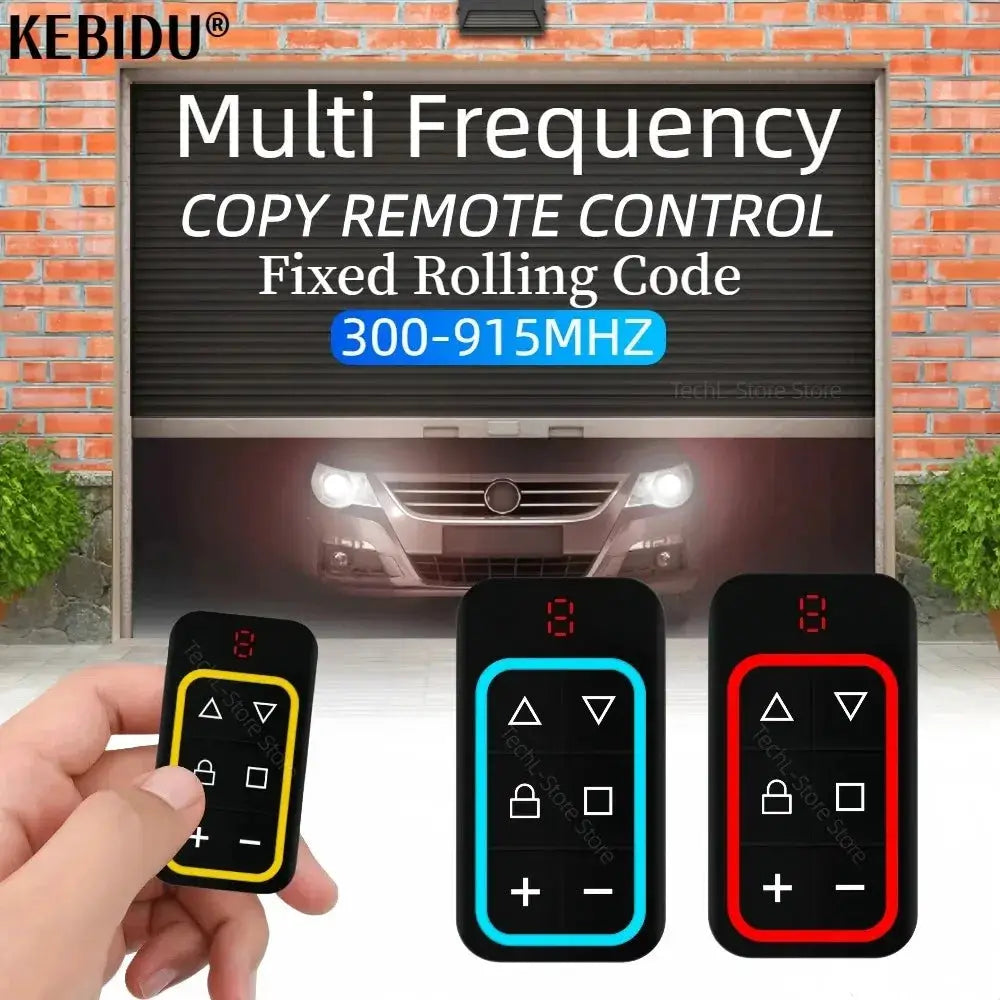

This smart copy remote control is suitable for electric door remote control, telescopic door remote control, garage door remote control.For Fixed Rolling Code Remote Control

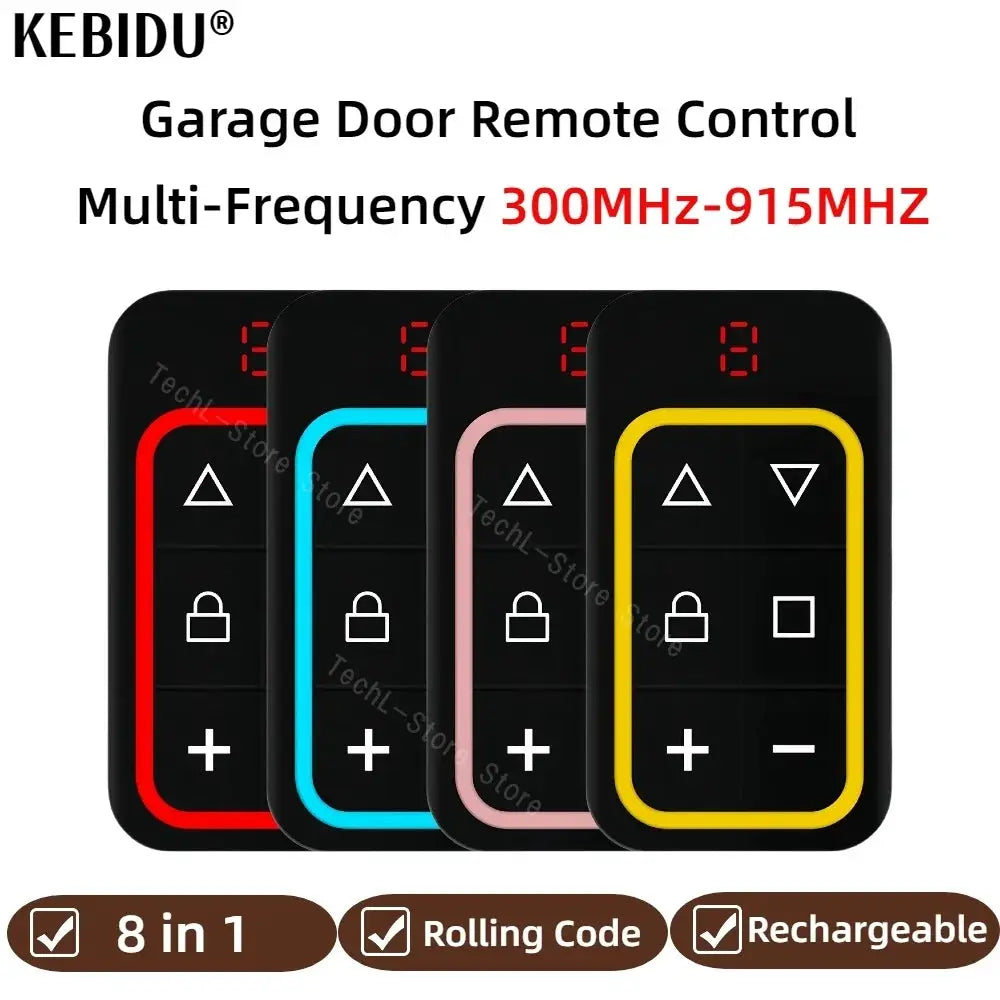

8 IN 1 Remote Control, can control 8 doors , With channel locking functionThe remote control is rechargeable, it charging with TYPE C Port Multi-functional and multi-variable, personalized and user-friendly simple design and fast to use.

Long Remote Control Distance

300-915MHZ Offering a reliable and effective remote control distance up to 50m (open area). The wireless RF signal can pass through walls, floors and doors.
