JMCQ USB Android TPMS Tire Pressure Monitoring System With 5 Sensors

Product Overview

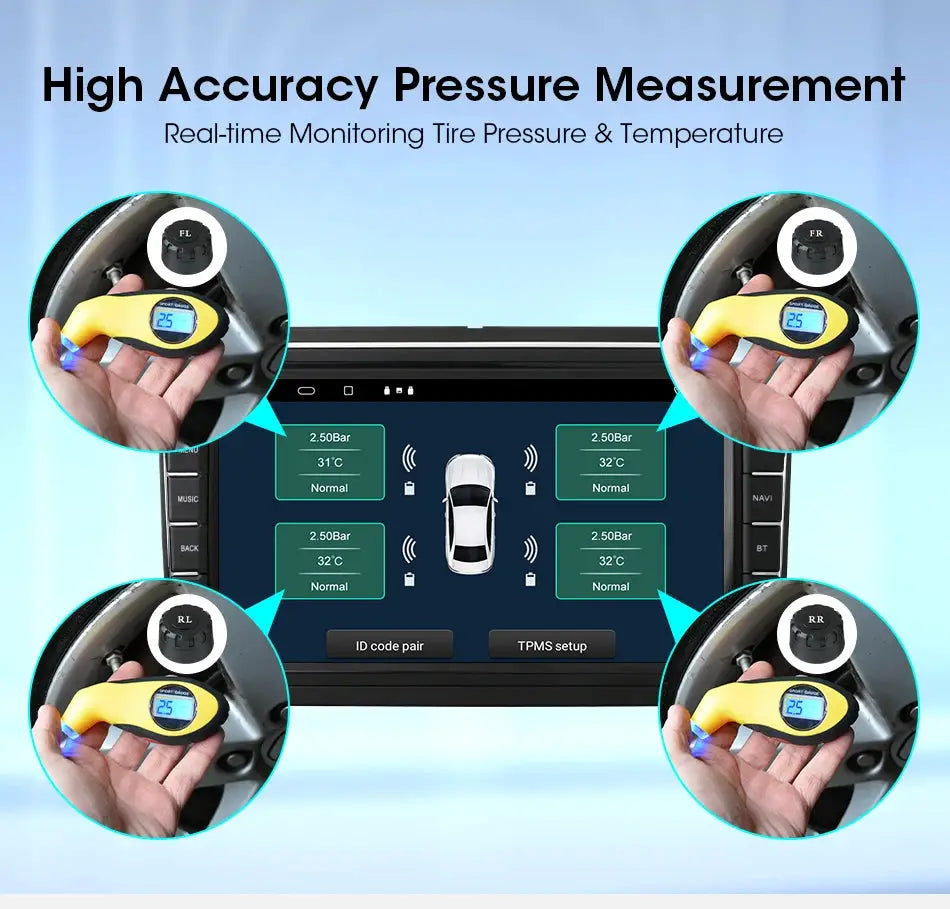

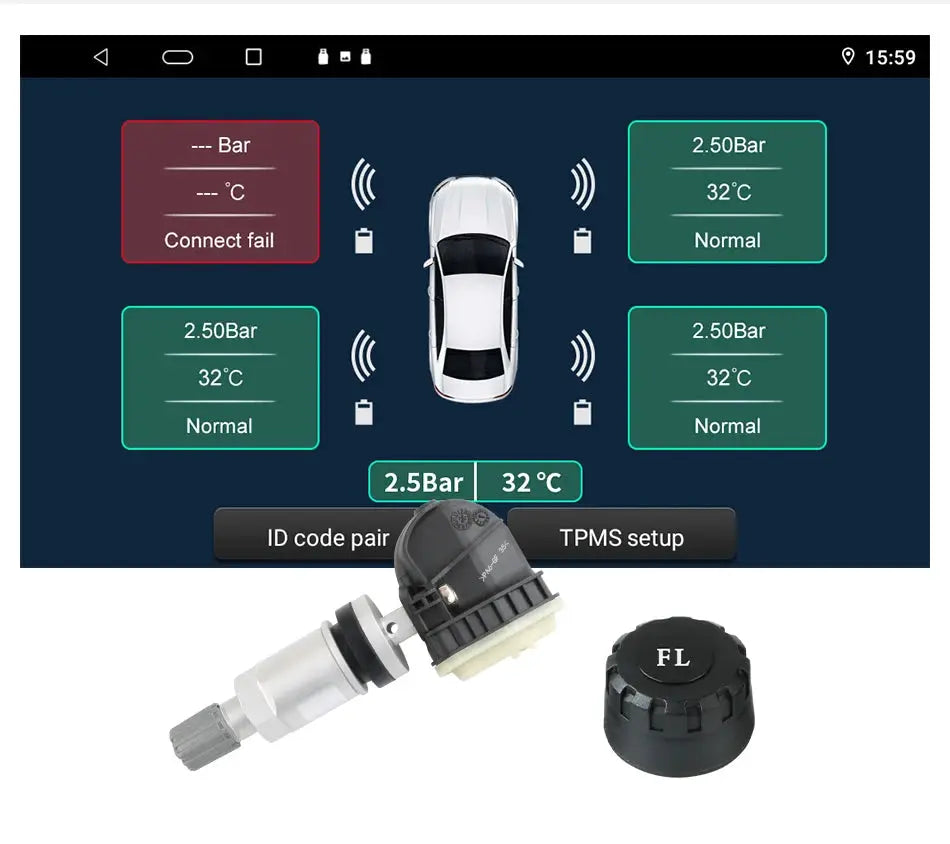

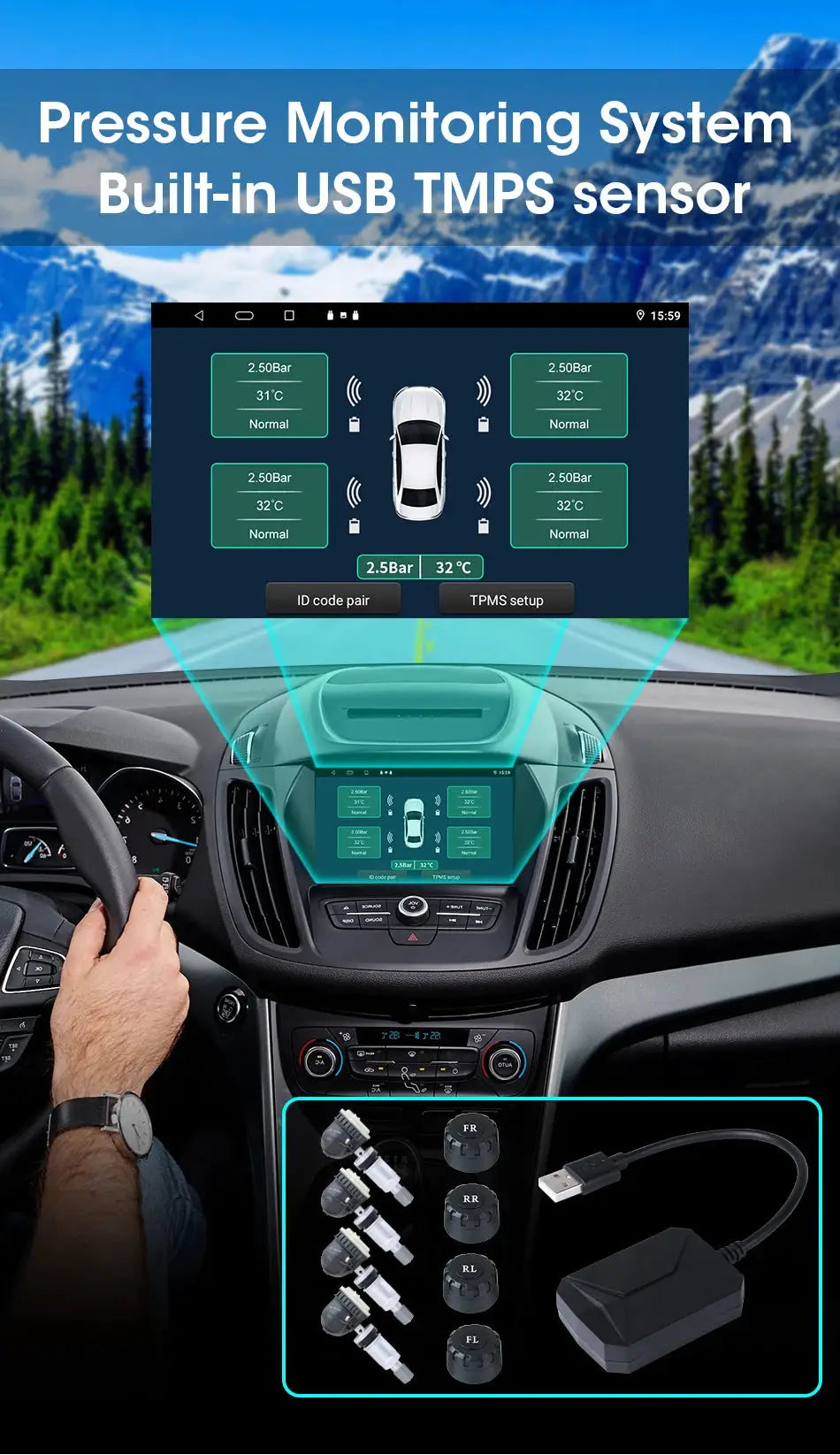

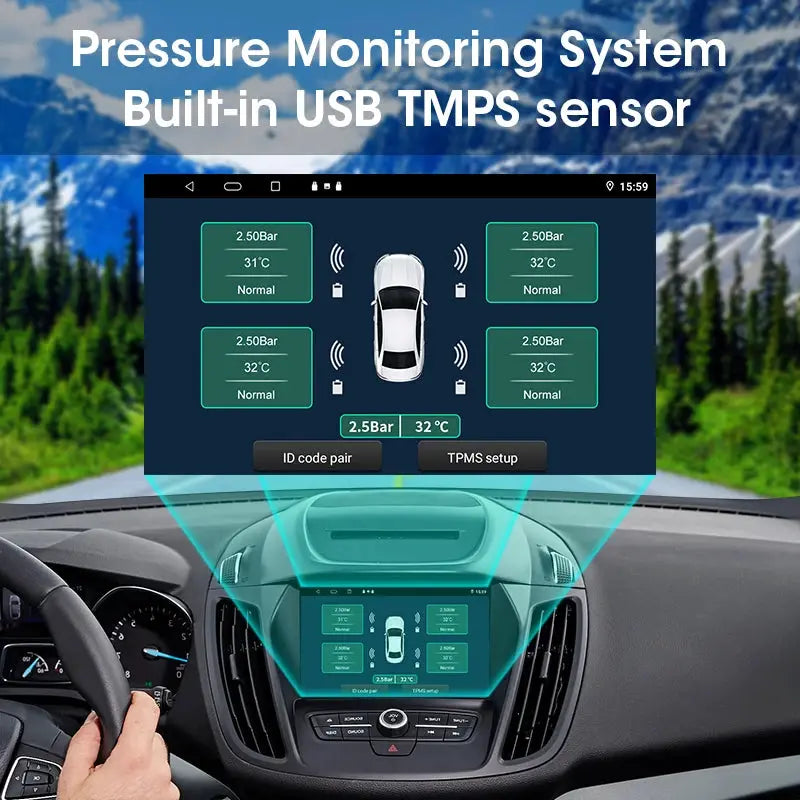

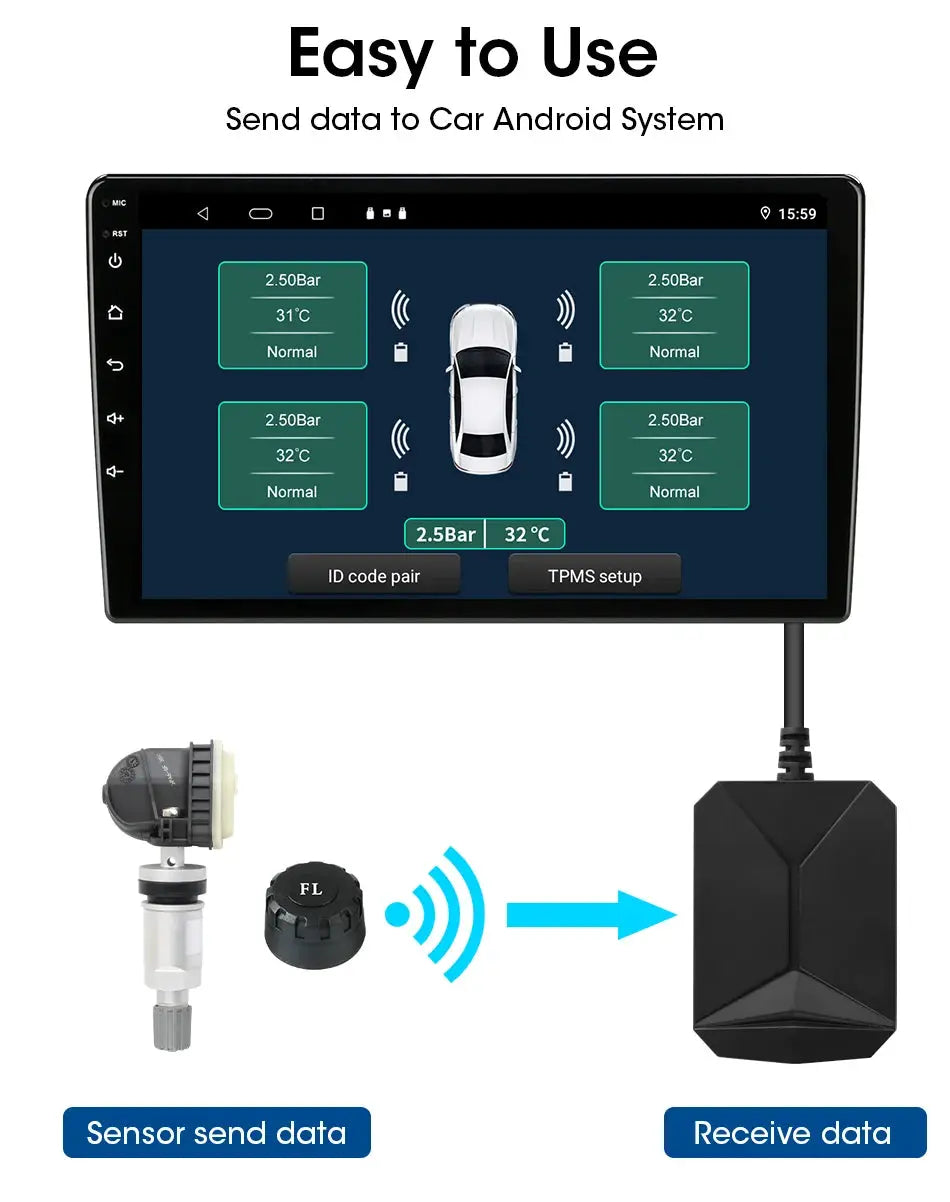

The JMCQ USB Android TPMS Tire Pressure Monitoring System is designed to provide real-time tire pressure and temperature data for up to five tires via a USB connection to your car’s Android navigation radio. It supports both internal and external sensors, enhancing safety by alerting you to abnormal tire conditions promptly.

Specifications

• Brand: JMCQ
• Certification: CE certified for reliability and safety compliance
• Material: Durable plastic casing for long-lasting use
• Voltage: Operates on a 5V power supply
• Weight: 0.35 kg (12.3 oz)
• Dimensions: 150 mm (5.91 in) length × 150 mm (5.91 in) width × 45 mm (1.77 in) height
• Compatibility: Supports Android 5.0 or above in-car DVD systems
• Sensor Count: Supports monitoring of 5 sensors simultaneously

Features

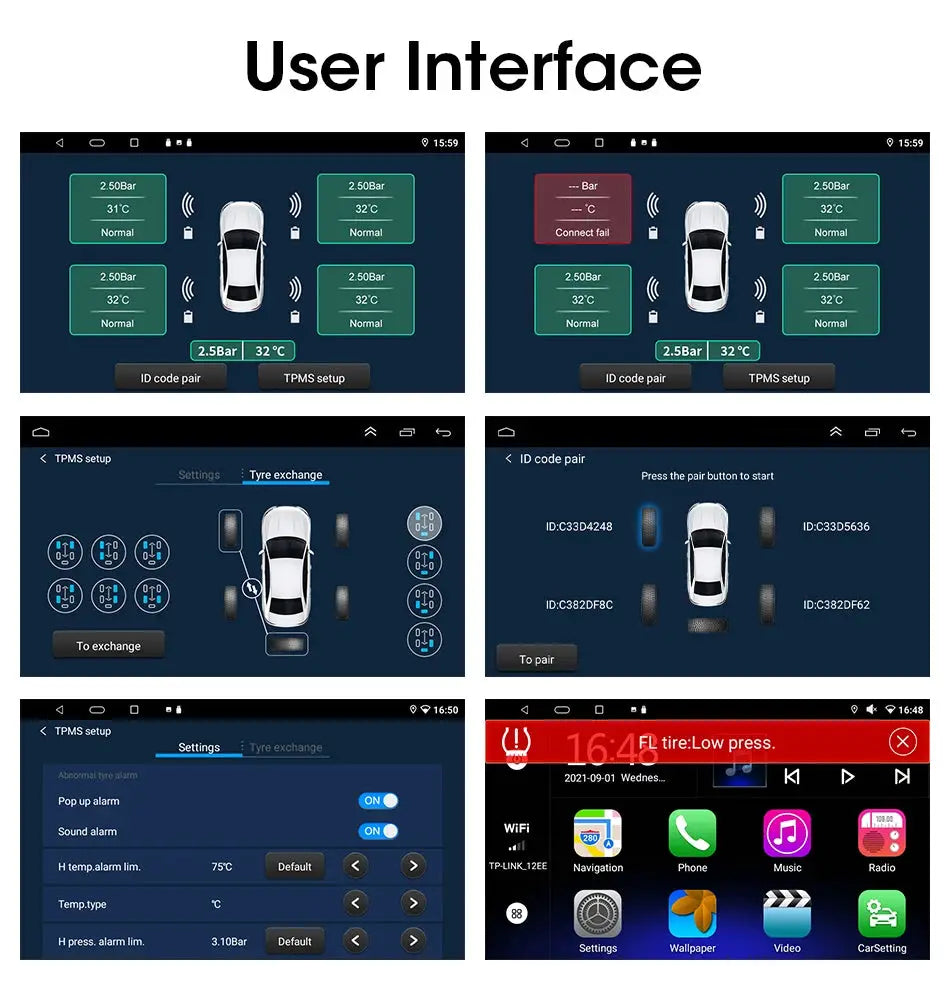

• Switchable pressure units between bar, psi, and kPa for user convenience

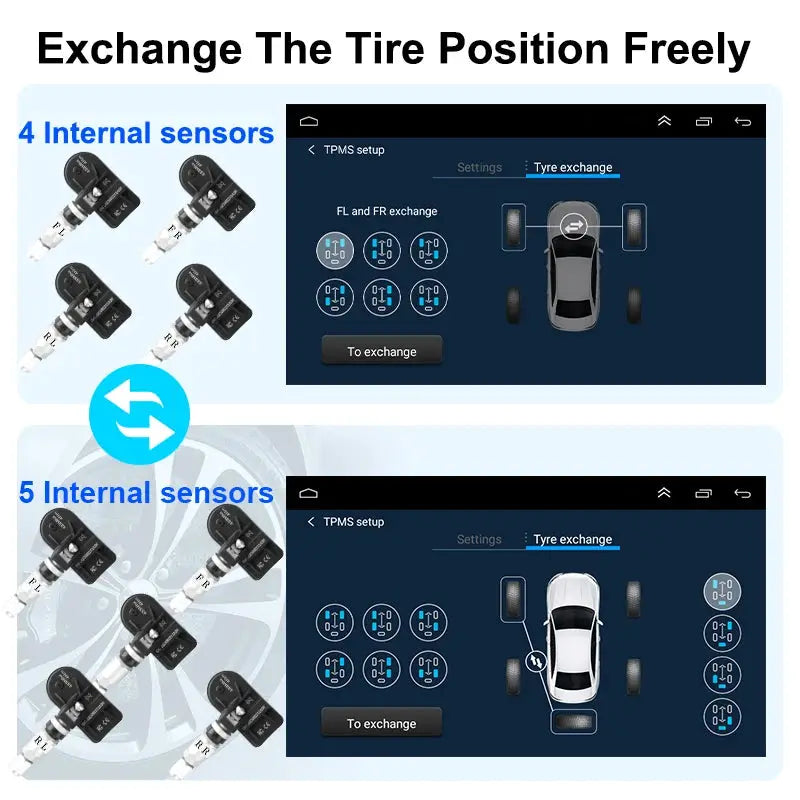

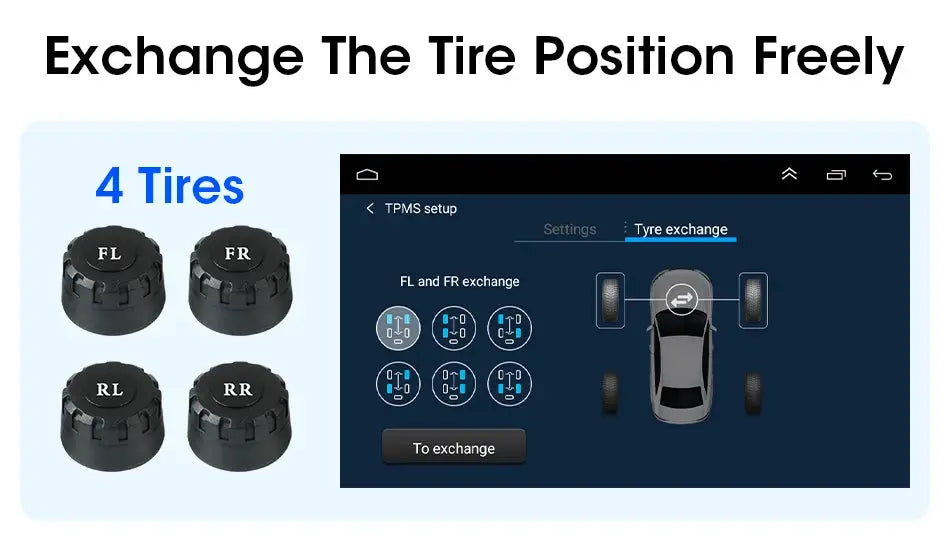

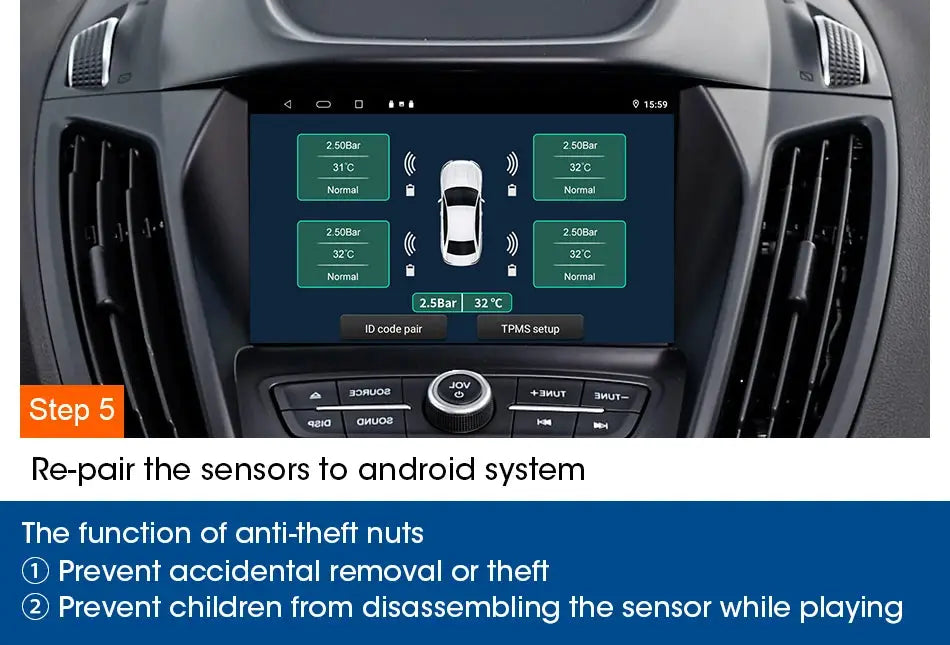

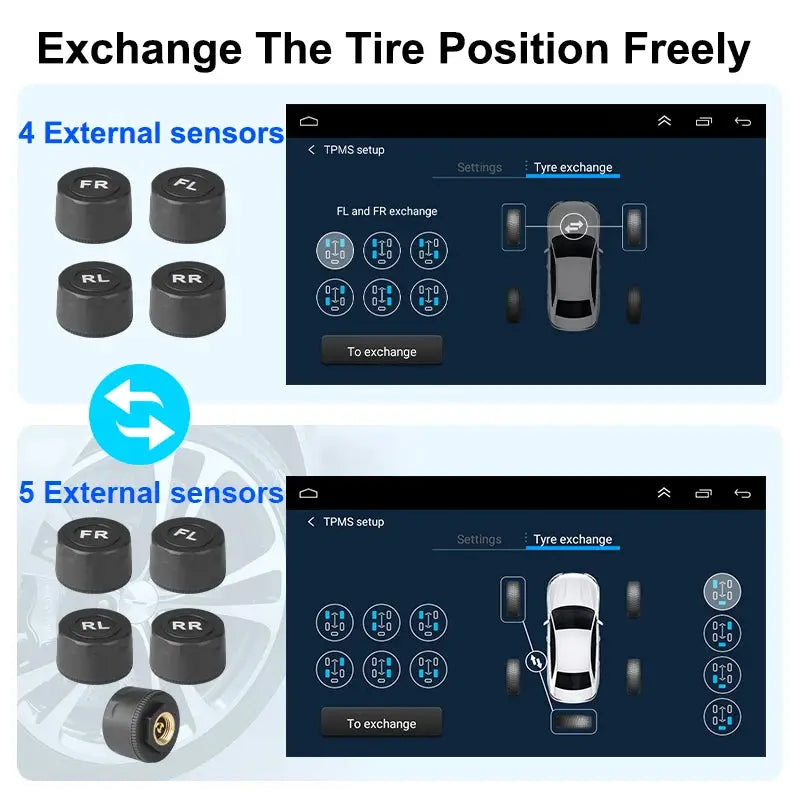

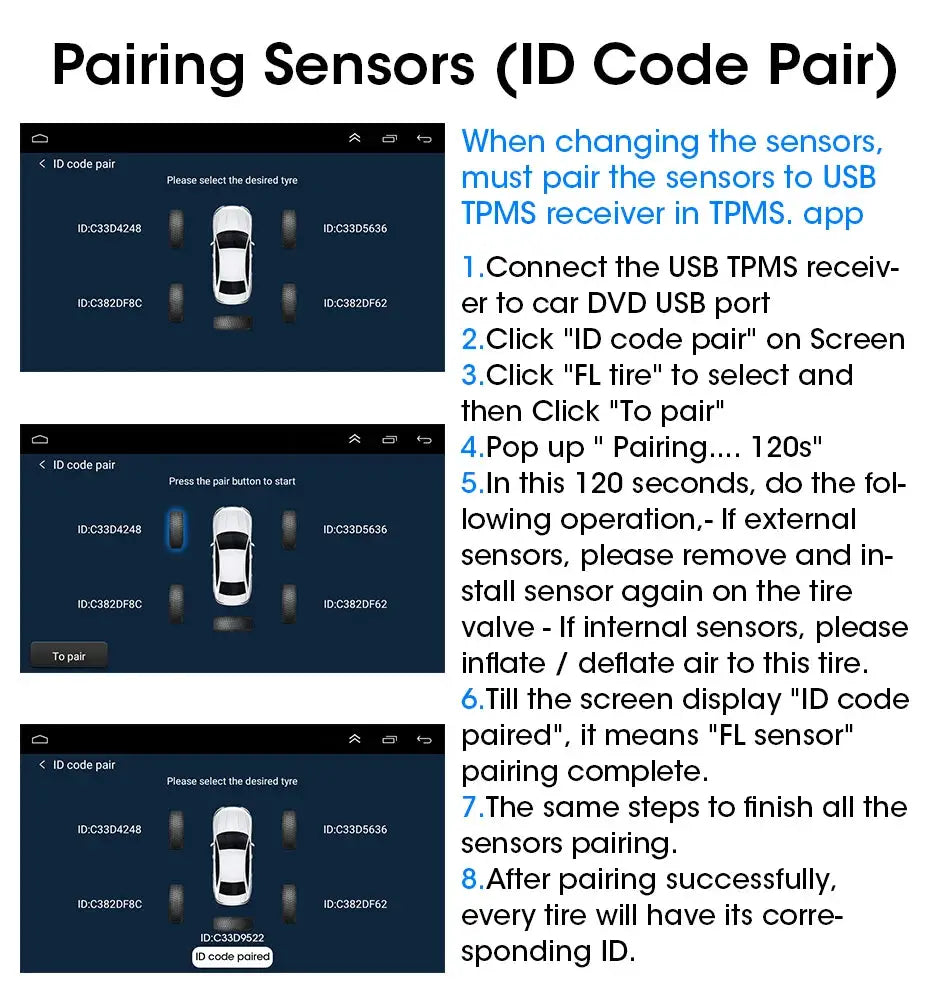

• Ability to pair and exchange sensor positions to adapt to tire changes
• Supports two tire sets (summer and winter tires) with easy switching

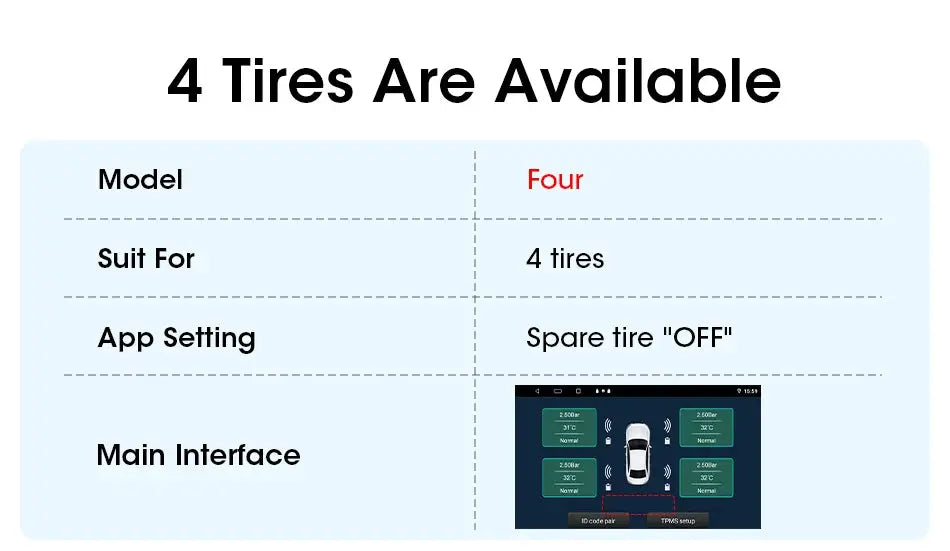

• Displays spare tire data with the option to toggle between 4 or 5 tires

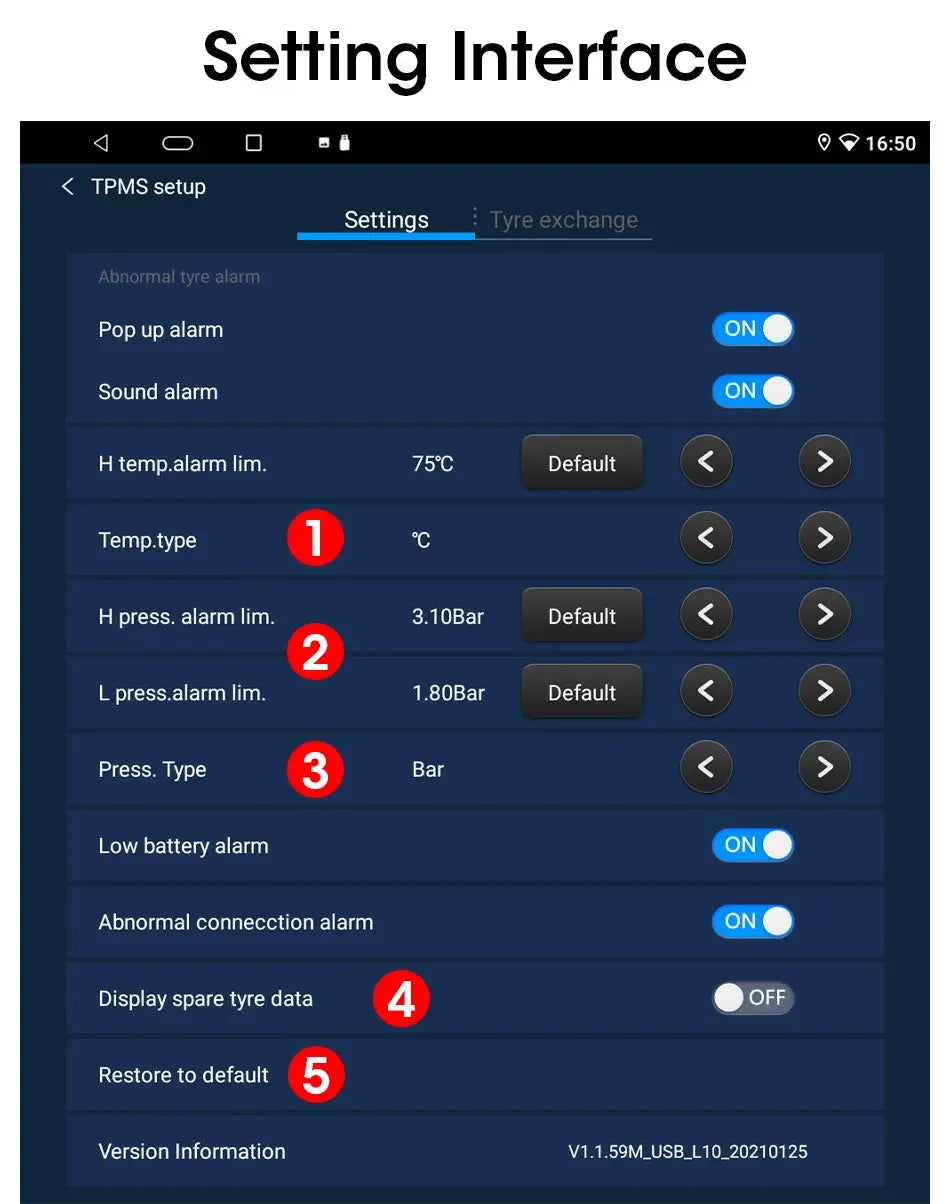

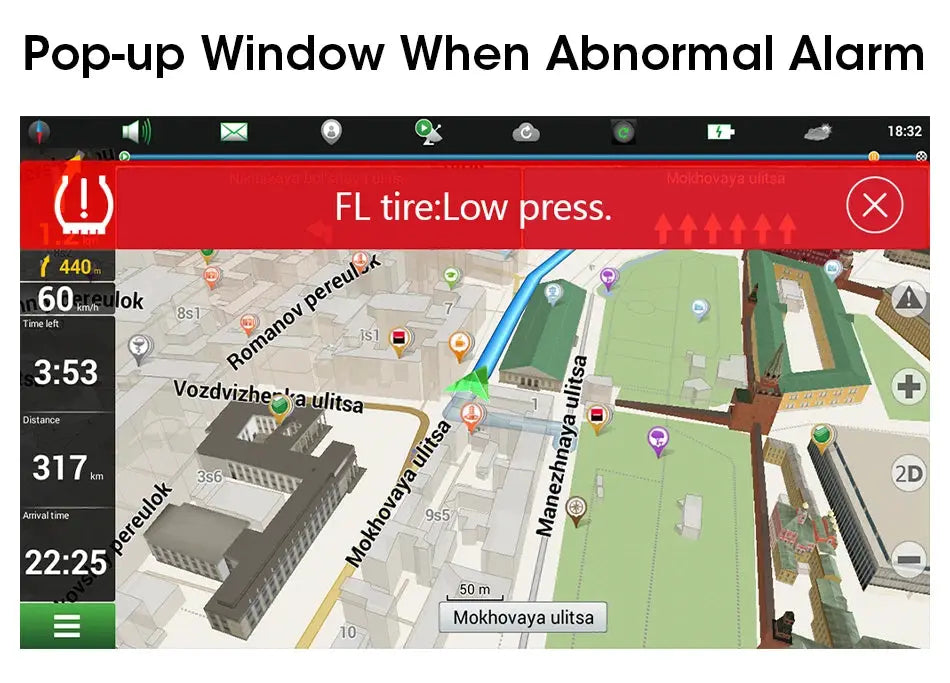

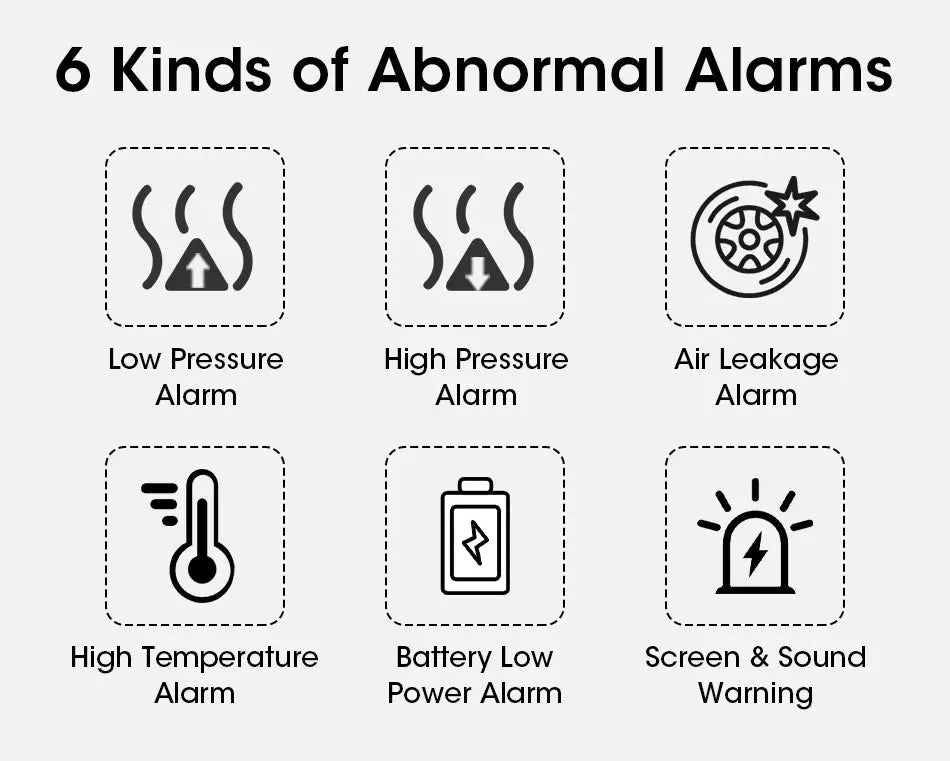

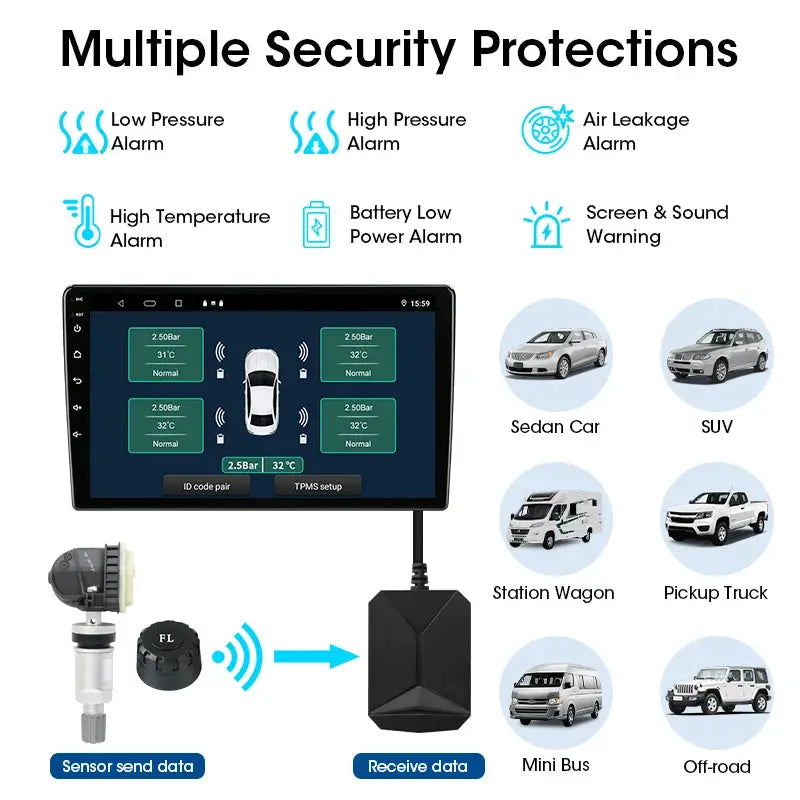

• Warning alerts configurable for high/low pressure and high temperature

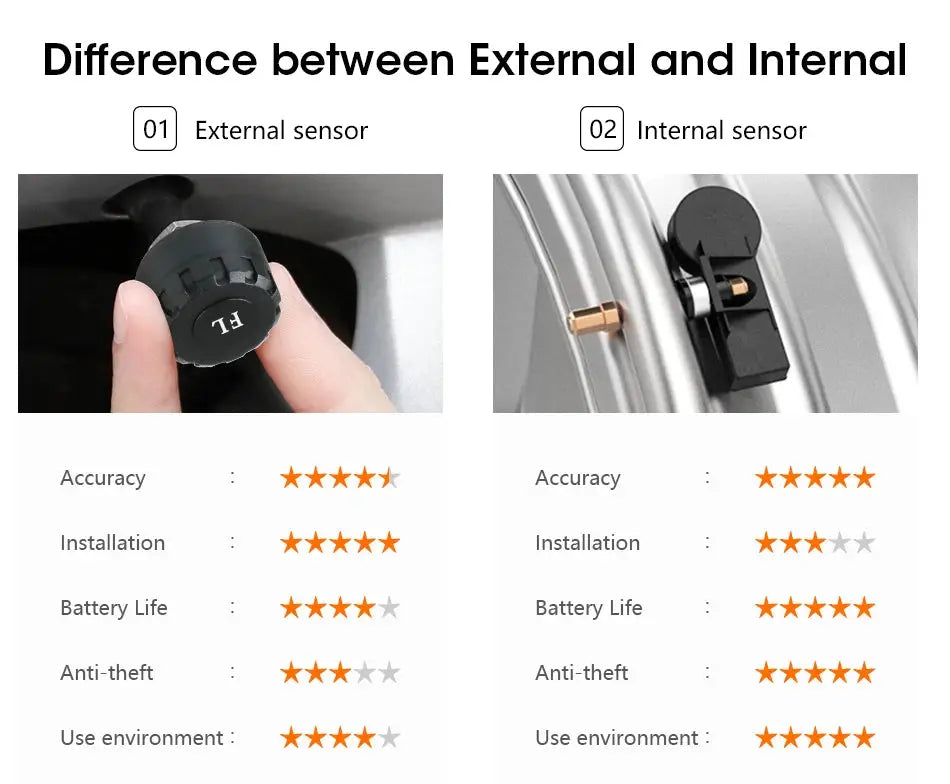

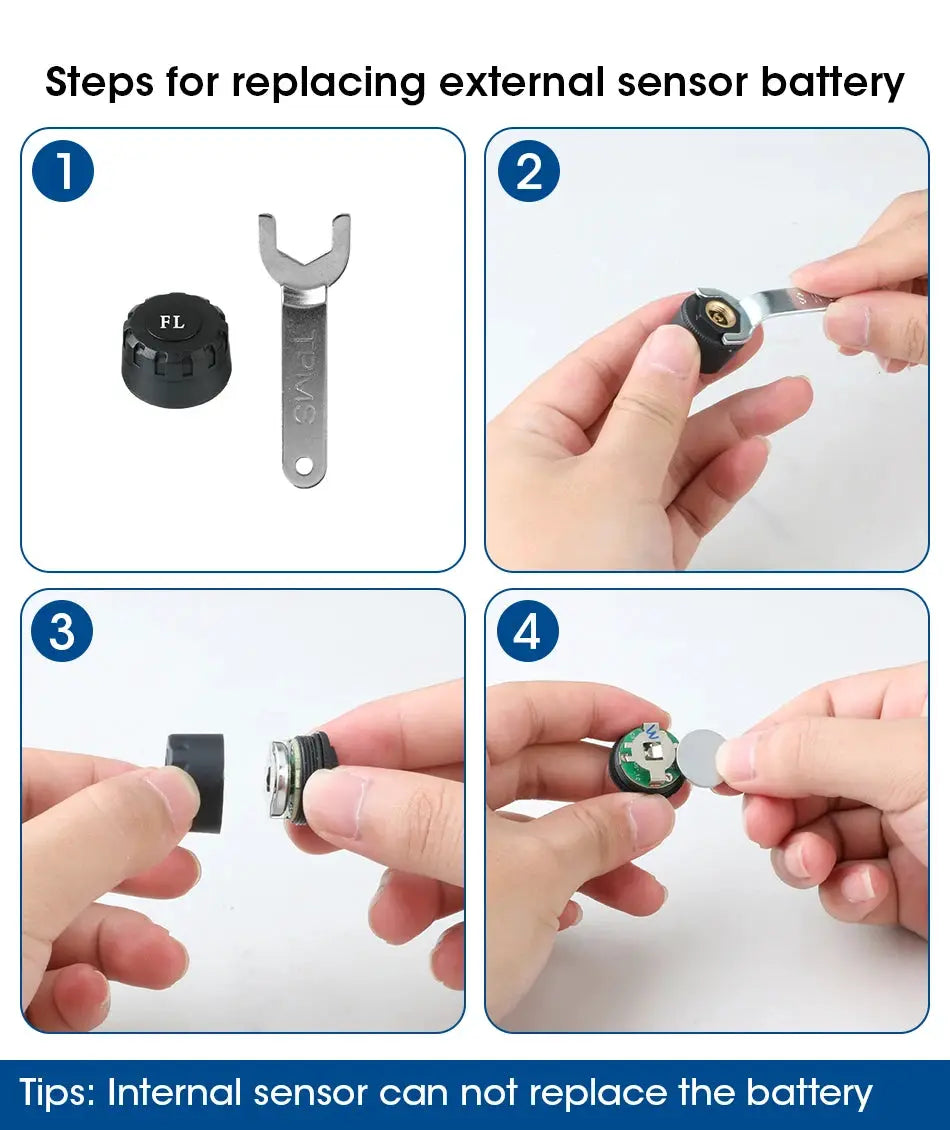

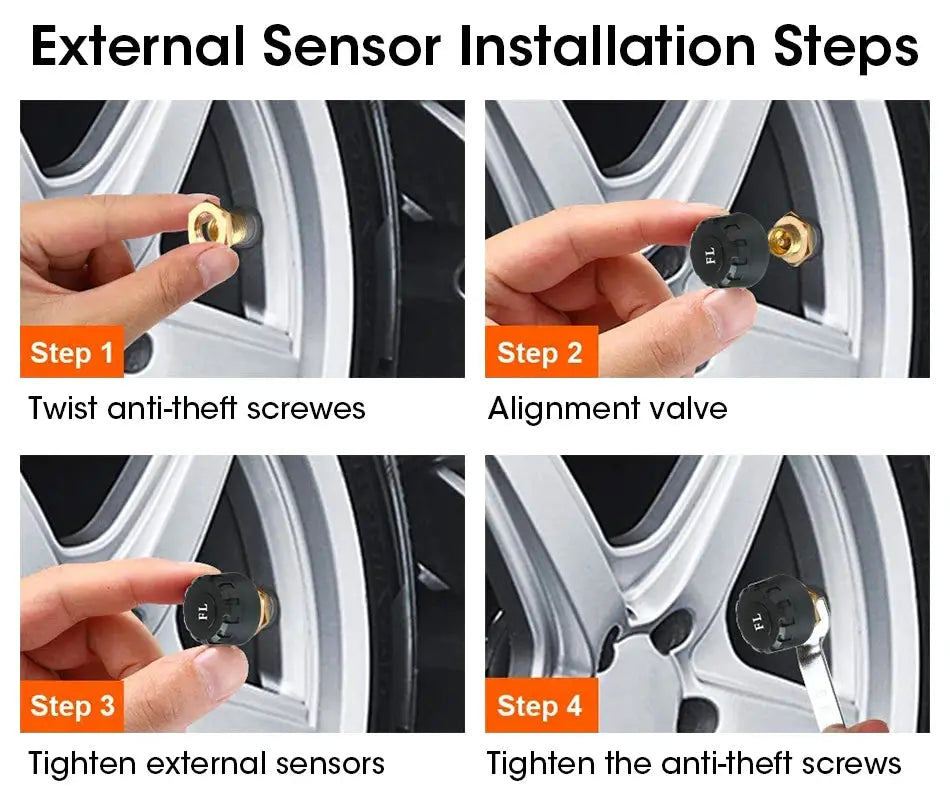

• External sensors allow battery replacement; internal sensors come pre-charged and sealed
• Connects exclusively via USB, ensuring stable data transmission without WiFi or Bluetooth interference

Measurements

• Item Length: 150 mm (5.91 in)
• Item Width: 150 mm (5.91 in)
• Item Height: 45 mm (1.77 in)
• Item Weight: 0.35 kg (12.3 oz)

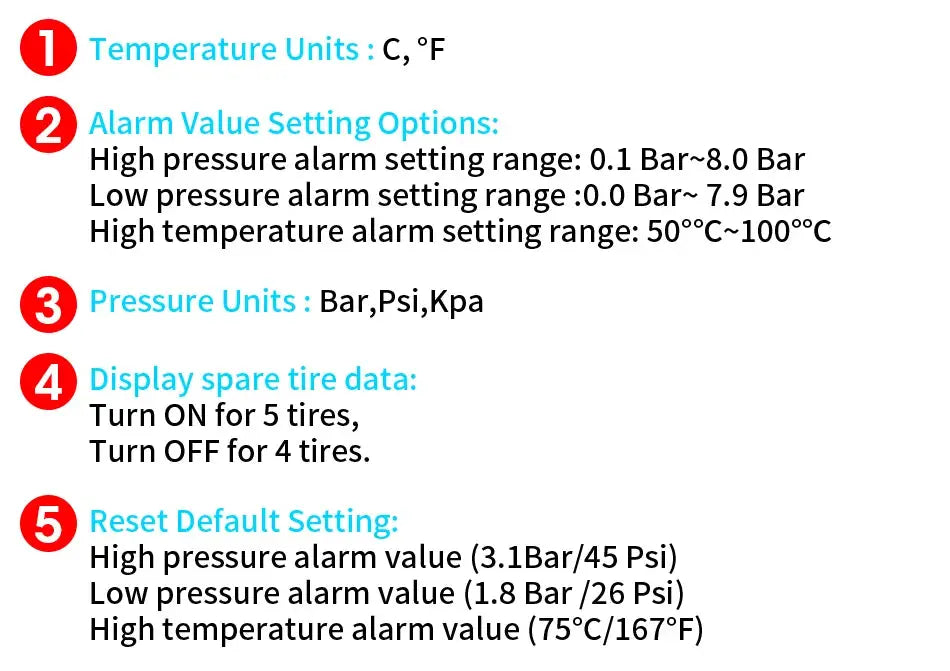

• High Voltage Alarm Range: 0.1 Bar to 8.0 Bar (1.45 to 116 psi)
• Low Voltage Alarm Range: 0.0 Bar to 7.9 Bar (0 to 114.6 psi)
• High Temperature Alarm Range: 50 °C to 100 °C (122 °F to 212 °F)
• Default Alert Levels: High Pressure at 3.1 Bar (45 psi), Low Pressure at 1.8 Bar (26 psi), High Temperature at 75 °C (167 °F)

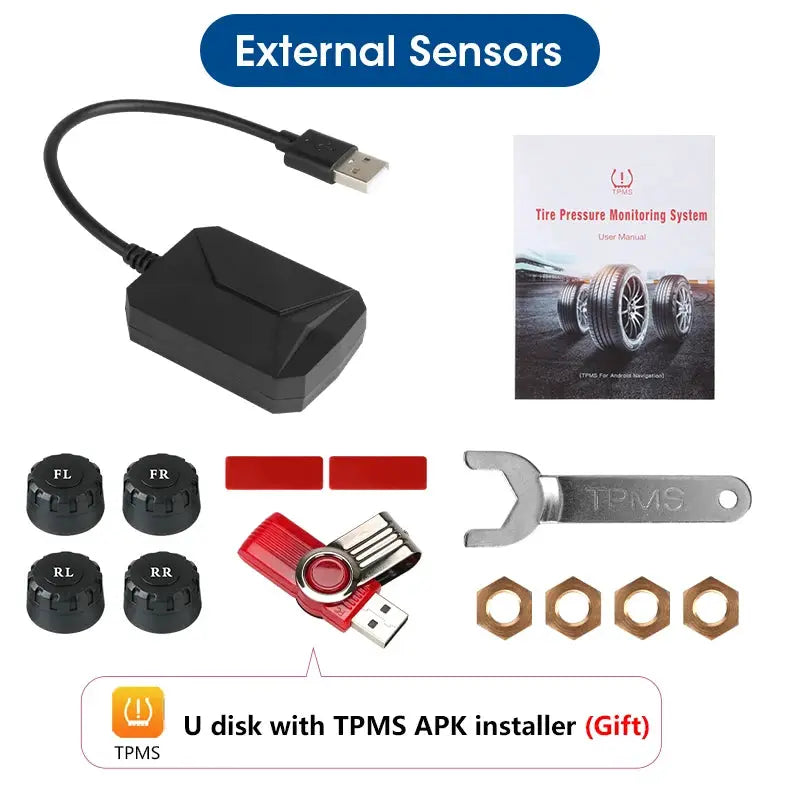

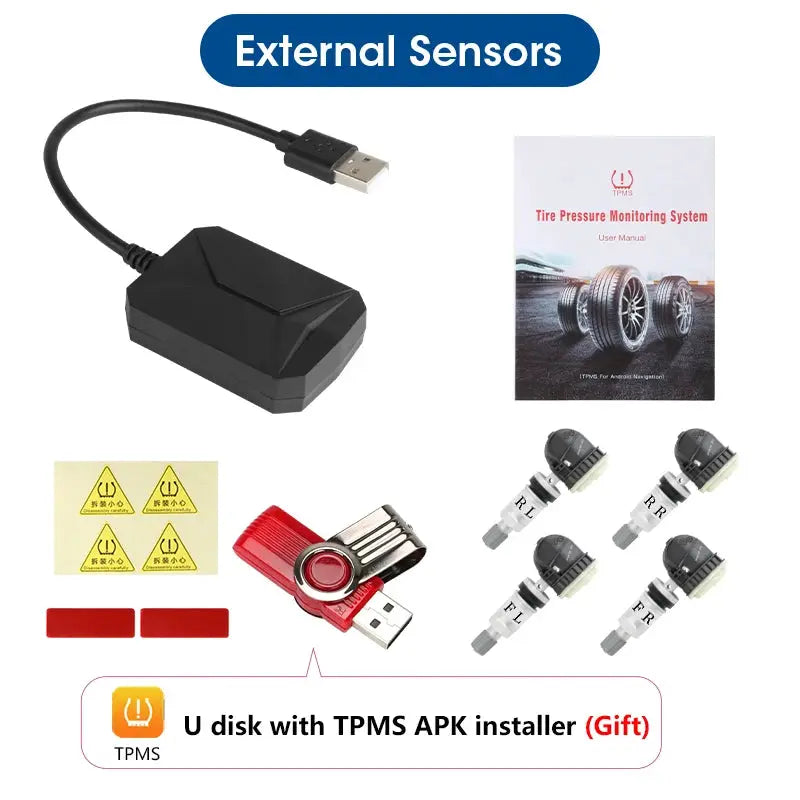

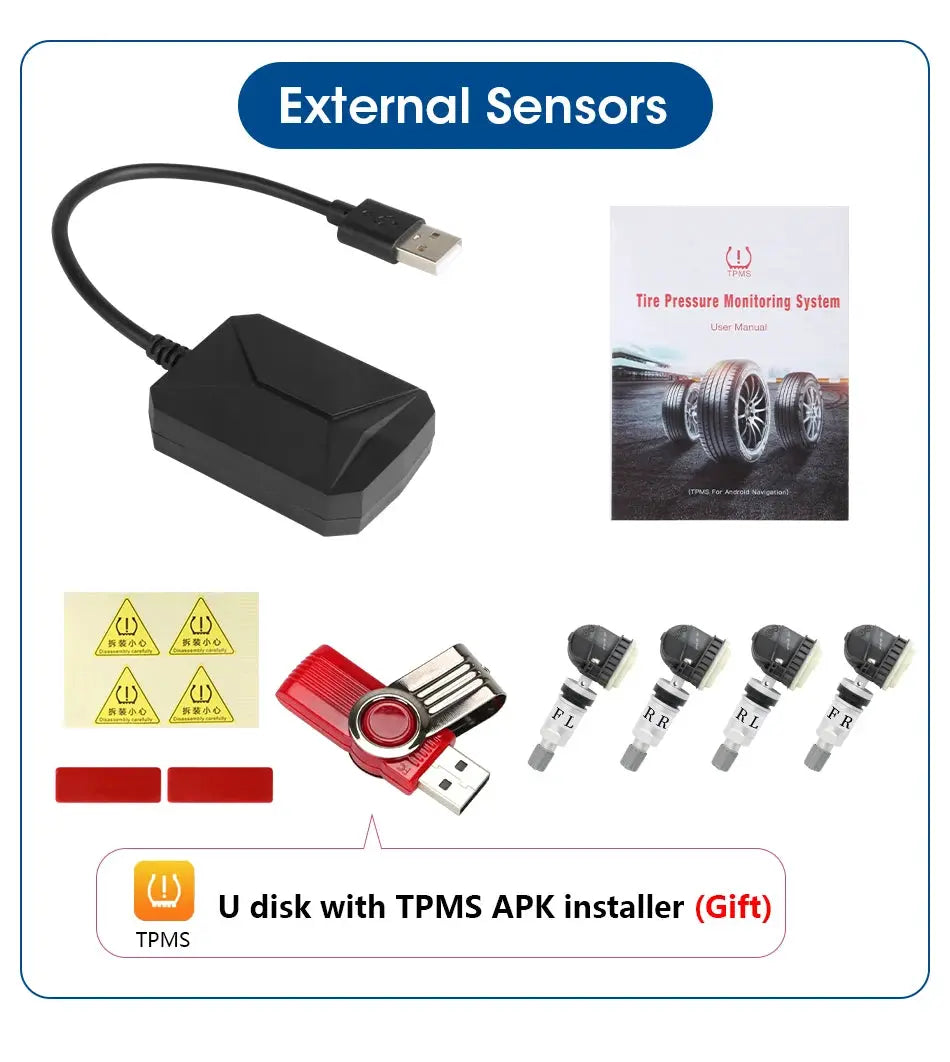

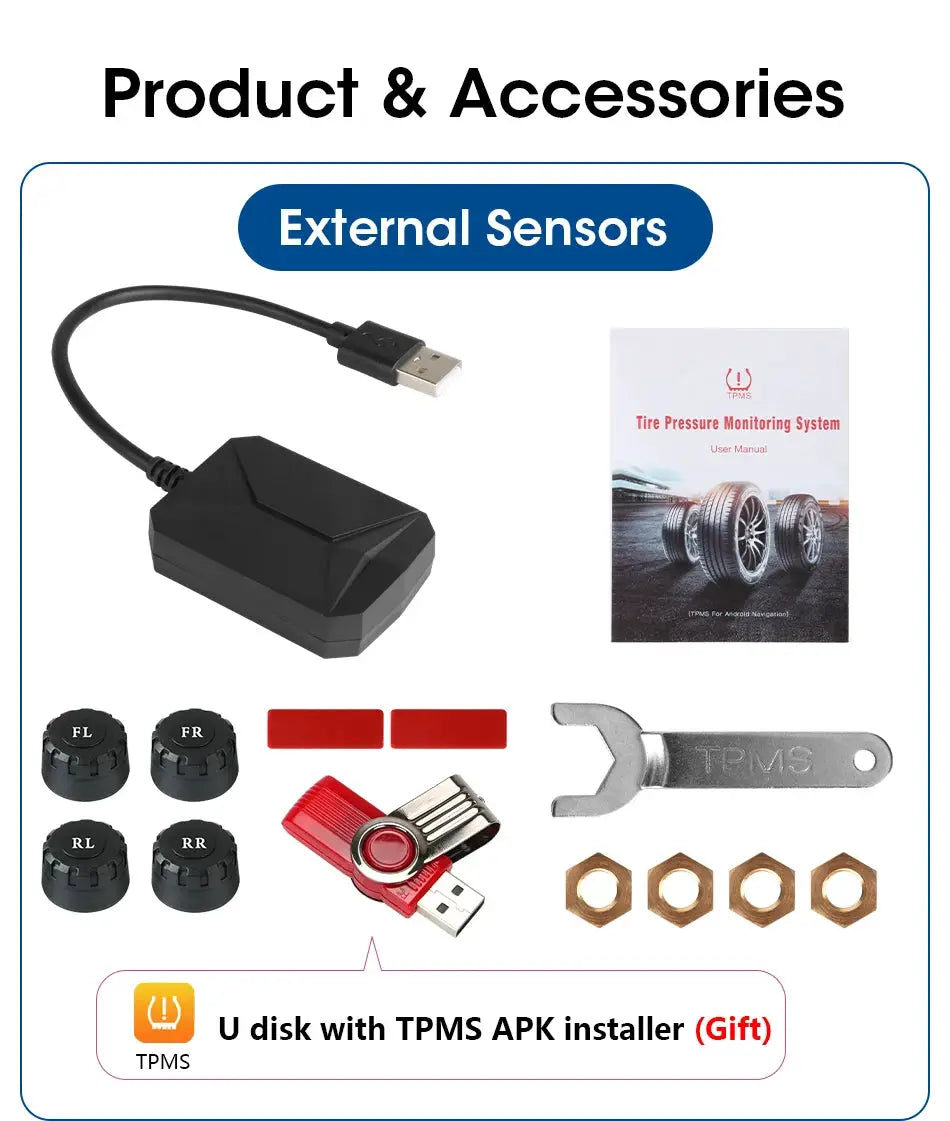

Packing List

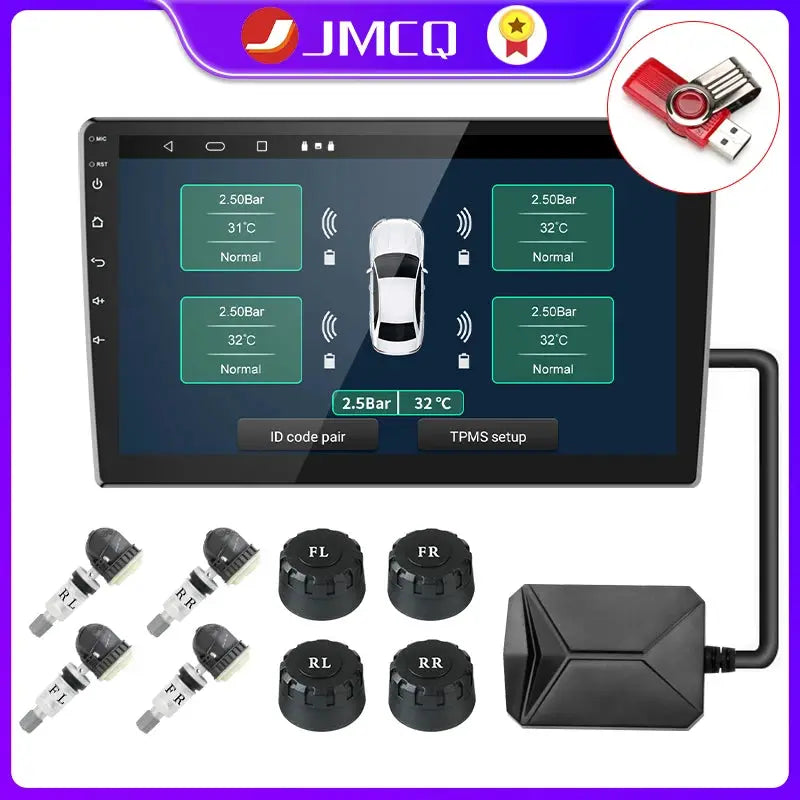

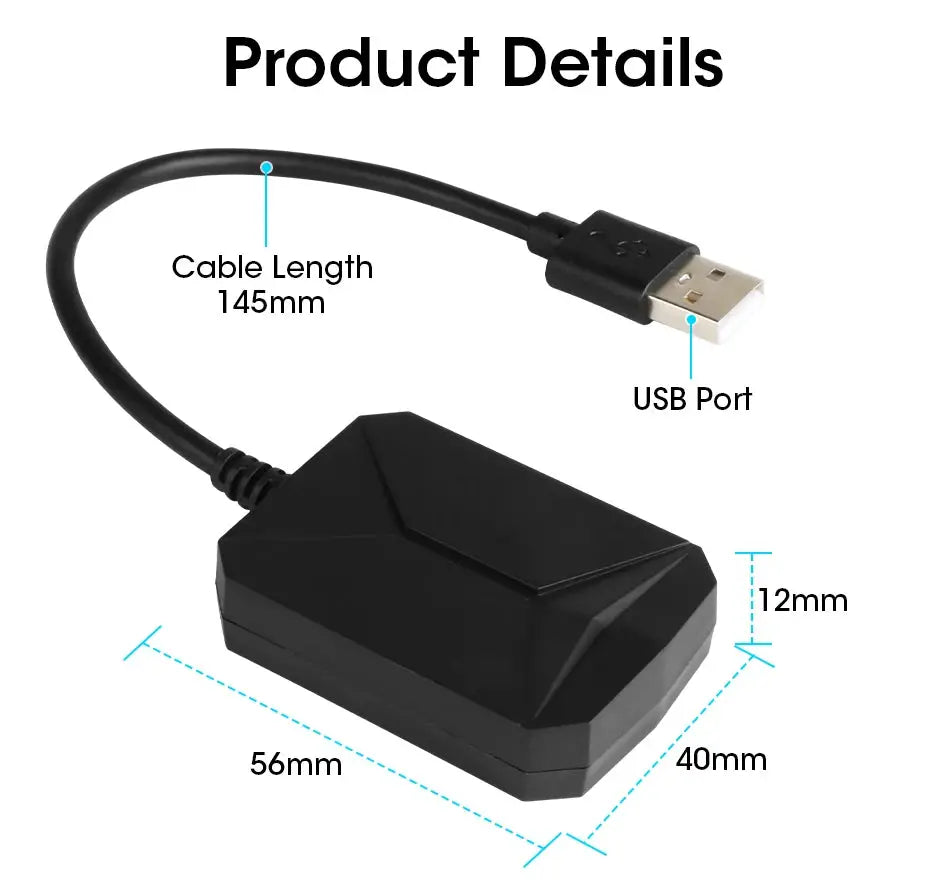

• USB TPMS Display Unit
• Five Tire Pressure Sensors (internal and/or external as specified)

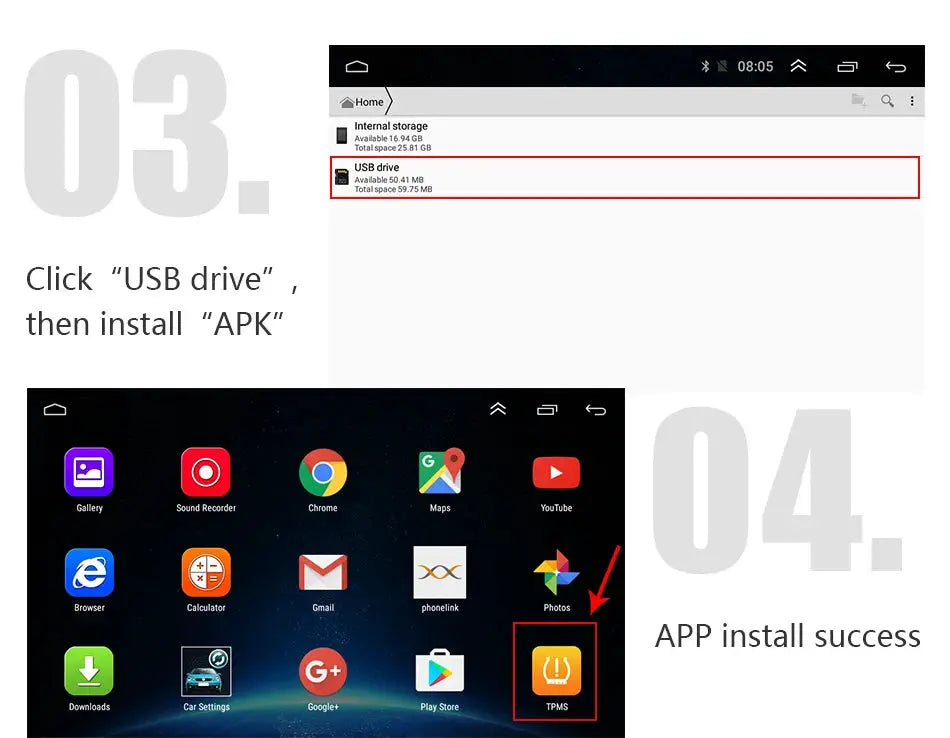

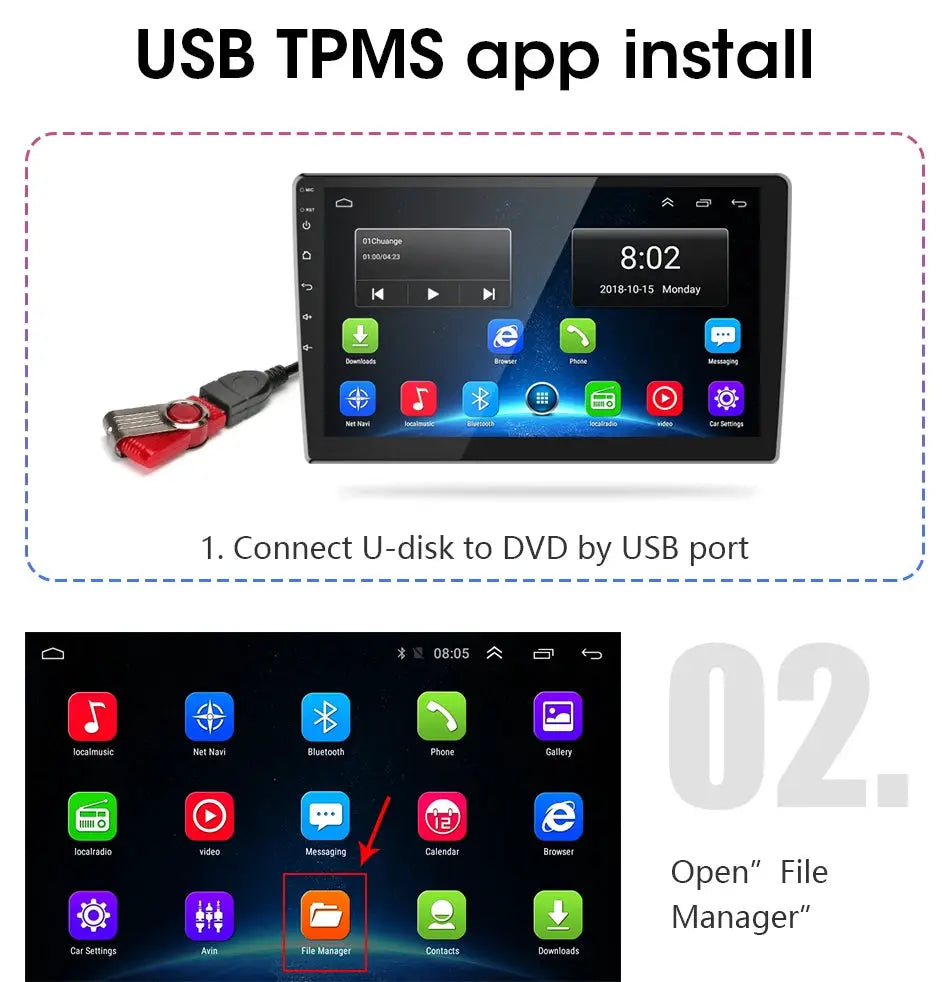

• Installation Manual and Software Packages on USB Flash Drive
• Sensor Installation Video Access Link
• USB Connection Cable

Notes

• Only compatible with Android car DVD systems version 5.0 or higher
• Requires a dedicated USB port; cannot share USB port with other devices
• Battery replacement possible only for external sensors; internal sensors are sealed and pre-charged
• Provides two temperature unit options: Celsius and Fahrenheit
• Supports manual setting of warning thresholds for pressure and temperature

Product Type

• Car Tire Pressure Monitoring System (TPMS) with Alarm and Display
• Compatible with Android navigation radios via USB
• Includes internal and external sensor options for flexible installation
• Designed to enhance vehicle safety through proactive tire condition monitoring

Disclaimer

• Design Specifics: The visible gap is a deliberate functional feature of engineering and does not indicate a defect or damage.
• Visual Variations: Actual product colors may vary slightly from online images due to differences in lighting conditions and monitor display settings.
• Measurement Tolerance: Please allow for minor dimensional deviations resulting from manual measurement and manufacturing processes.
• Policy Information: Consult our FAQ, Privacy Policy, and Terms & Conditions for comprehensive details regarding returns and exchanges.
