FirstSafe CVBS AHD Parking Sensor System 4 Sensor Rear Radar Monitor
Hurry up, only 8 items left in stock.
Product Overview
The FirstSafe Factory CVBS AHD Video Parking system combines four ultrasonic sensors with a buzzer radar monitor to enhance rear visibility and parking precision. Designed for 12V fuel vehicles, it supports Android systems and offers clear distance detection up to 2.5 meters.
Specifications
- Alarm distance ranges from 0.3 to 1.5 meters (1 to 4.9 feet) to alert drivers effectively.
- Detection distance extends between 0.3 and 2.5 meters (1 to 8.2 feet) for comprehensive obstacle recognition.
- Operates within a voltage range of 9 to 16 volts DC, with a rated voltage of 12V.

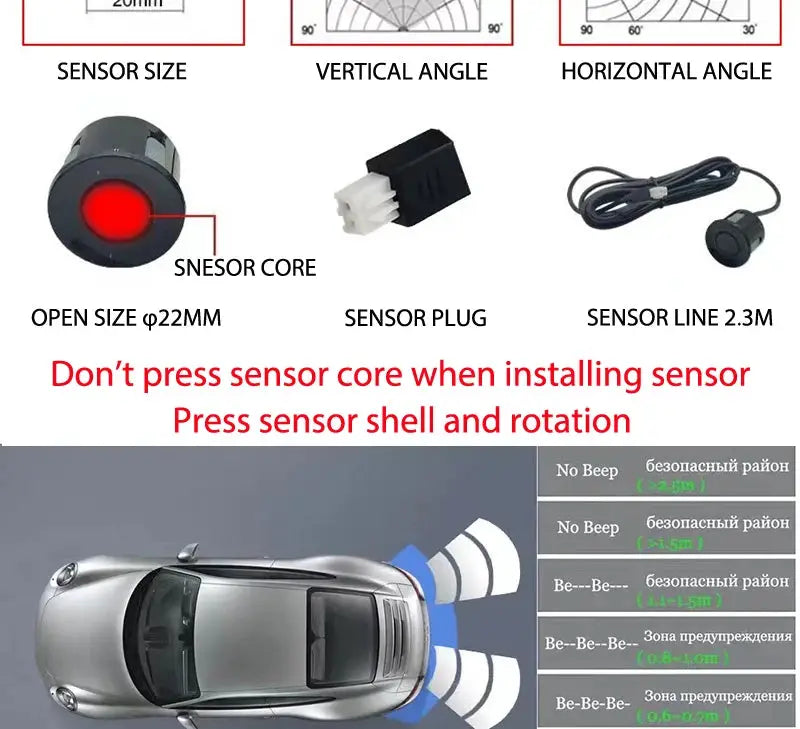

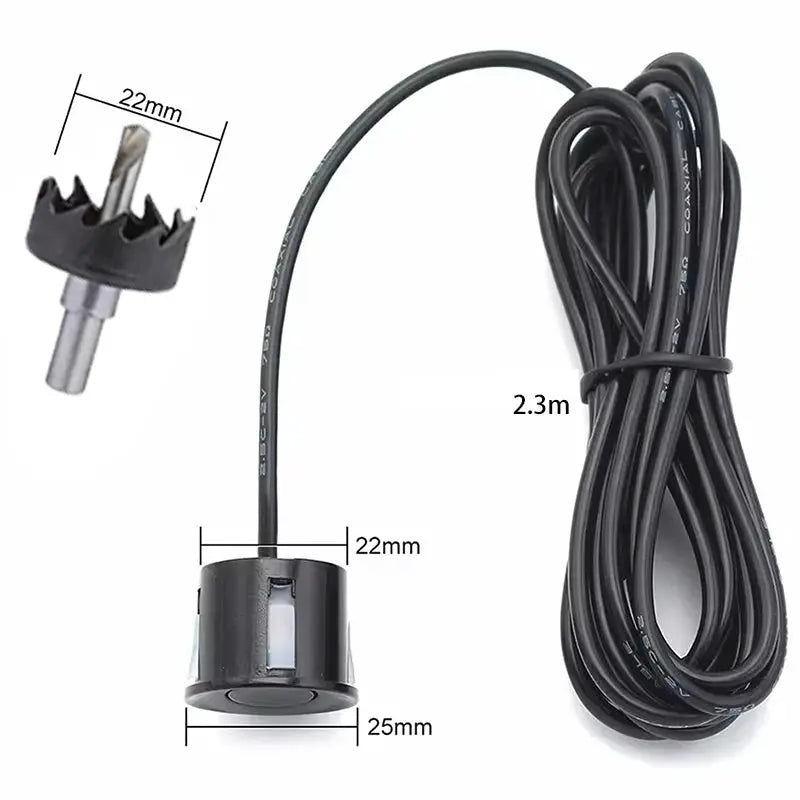

- Sensor diameter is a compact 22mm (0.87 inches), facilitating easy installation on plastic housings.
- Power cable length measures approximately 0.8 meters (2.6 feet), and sensor cable length is about 2.3 meters (7.5 feet).
Features
- Utilizes dual-CPU technology for digital image processing, delivering crisp visuals and precise distance information on compatible monitors.
- The high-precision ultrasonic sensors provide accurate feedback perfect for parallel parking and tight spaces.
- Alarm volume adjusts dynamically, increasing urgency as obstacles get closer to the vehicle.
- Fully waterproof with multilayer design to withstand high-pressure washing and immersion, ensuring durability in harsh conditions.

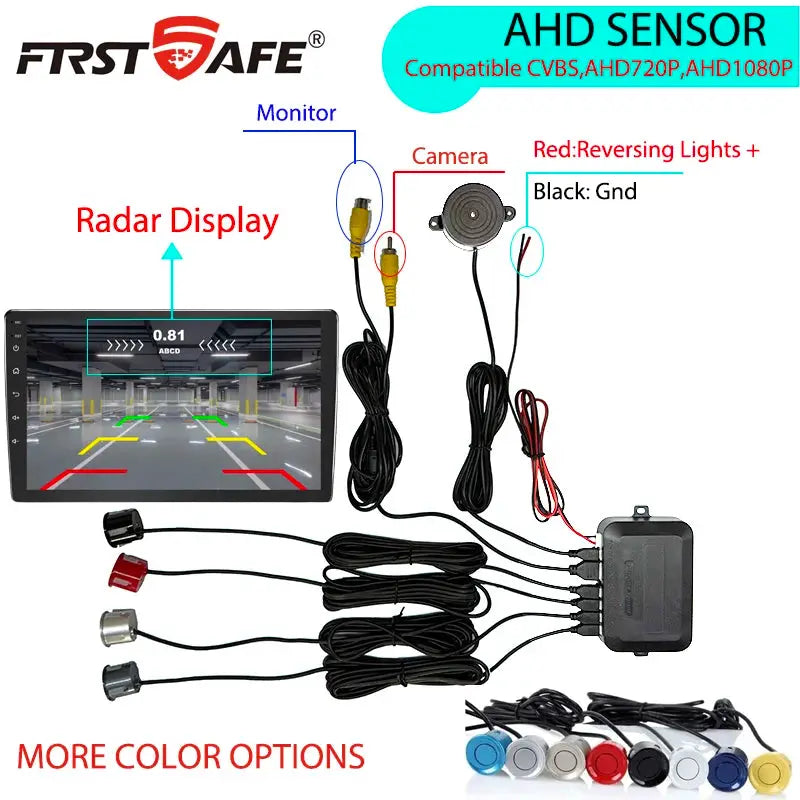

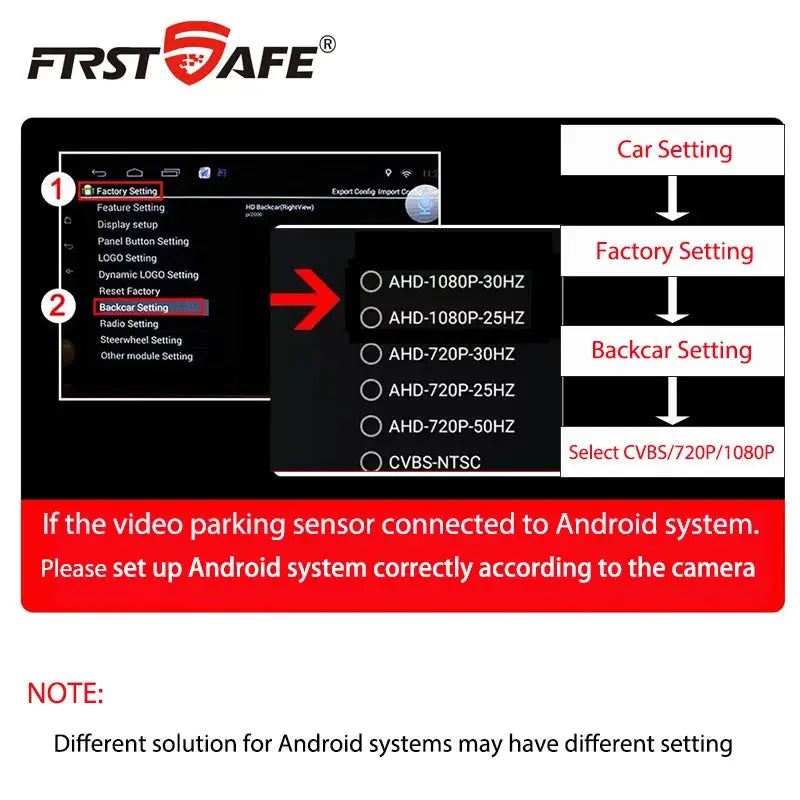

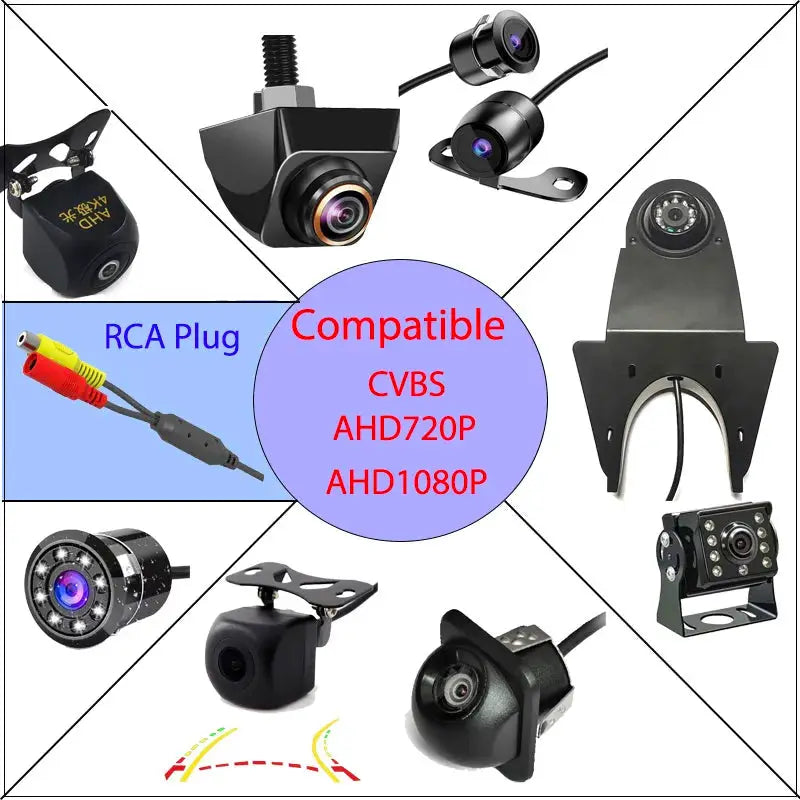

- Compatible with CVBS, AHD 720P, and AHD 1080P camera formats for versatile integration.
- Supports AHD signal for enhanced video clarity, improving rearview visibility.
- Easy to install with included drill and video adapter cable; activates automatically when vehicle is in reverse.
- Operates reliably within a temperature range of -30°C to +60°C (-22°F to 140°F), tested for electrical aging and water resistance.
Measurements
- Detection distance: 0.3–2.5 meters (1–8.2 feet), covering most parking scenarios.
- Alarm distance: 0.3–1.5 meters (1–4.9 feet), finely tuned to alert drivers promptly.
- Sensor diameter: 22 mm (0.87 inches), compact for seamless integration on vehicle bumpers.
- Power cable length: approximately 0.8 meters (2.6 feet), ensuring easy connection to the power source.
- Sensor cable length: approximately 2.3 meters (7.5 feet), offering flexible placement options on the rear bumper.
- Video adapter cable: approximately 2.2 meters (7.2 feet), compatible with various TFT-LCD screens.

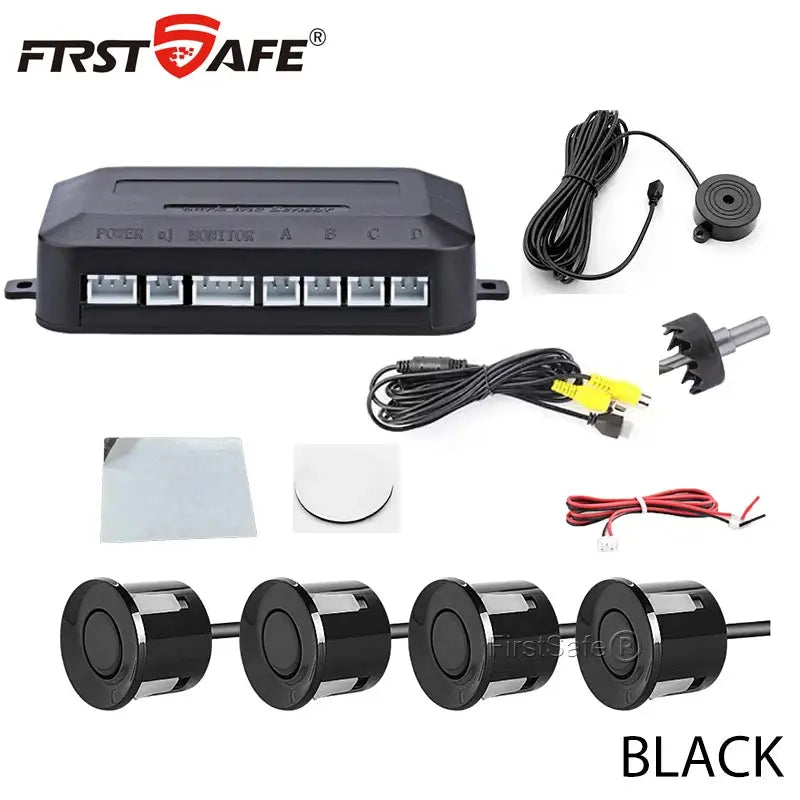

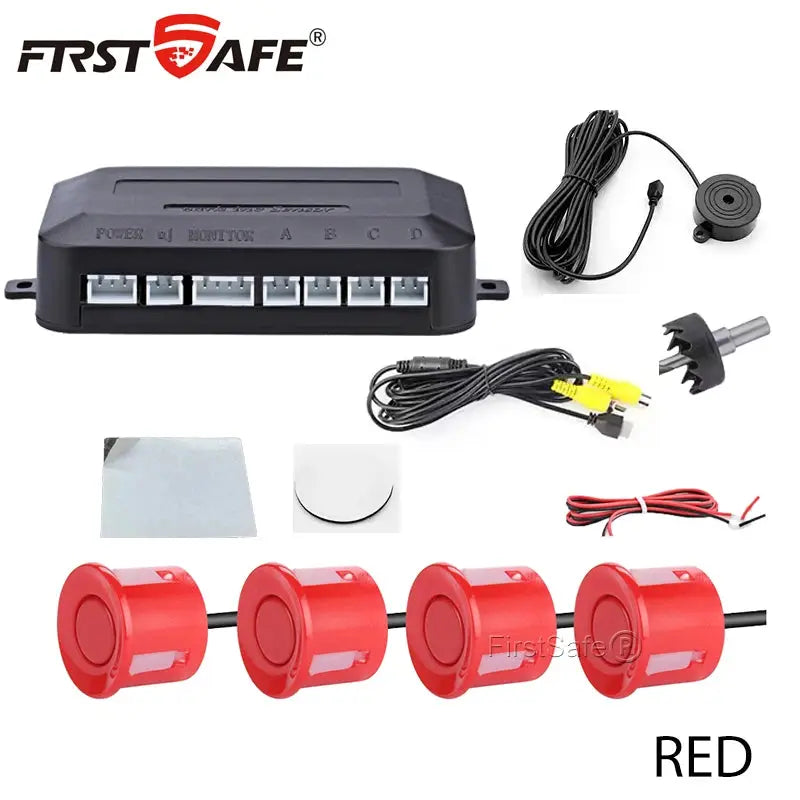

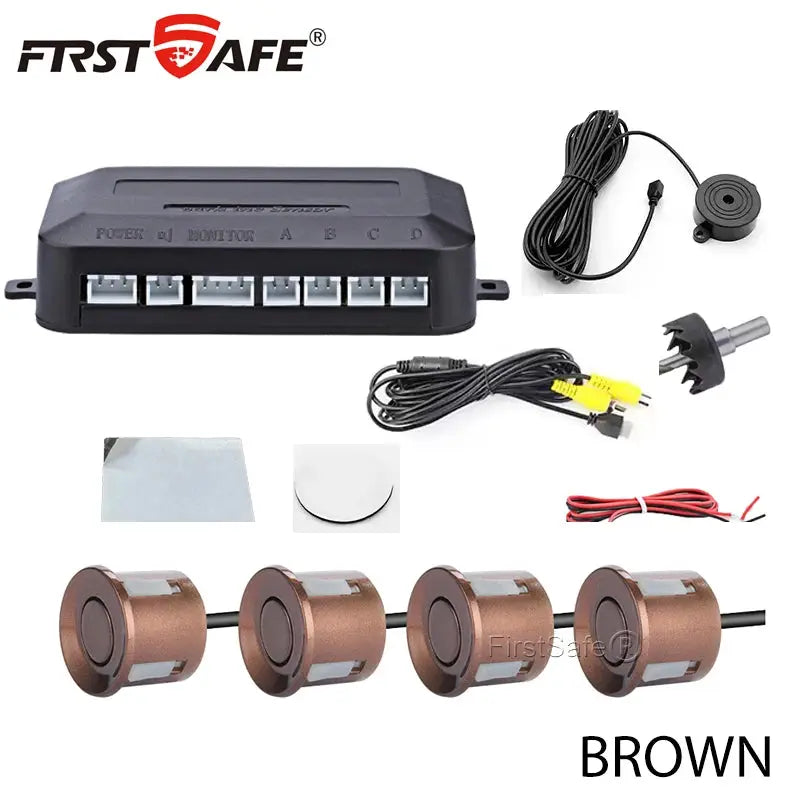

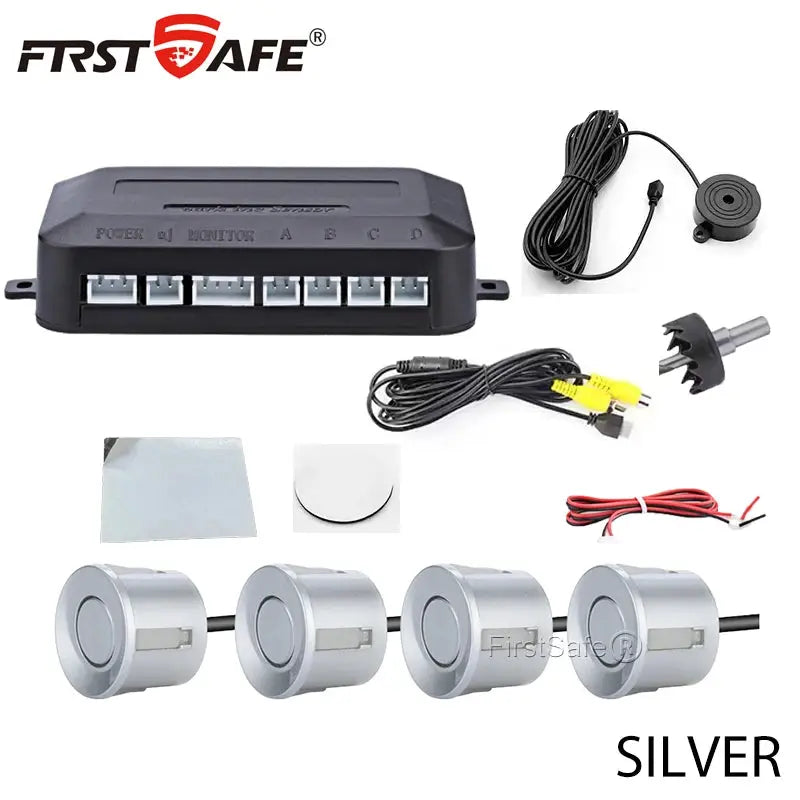

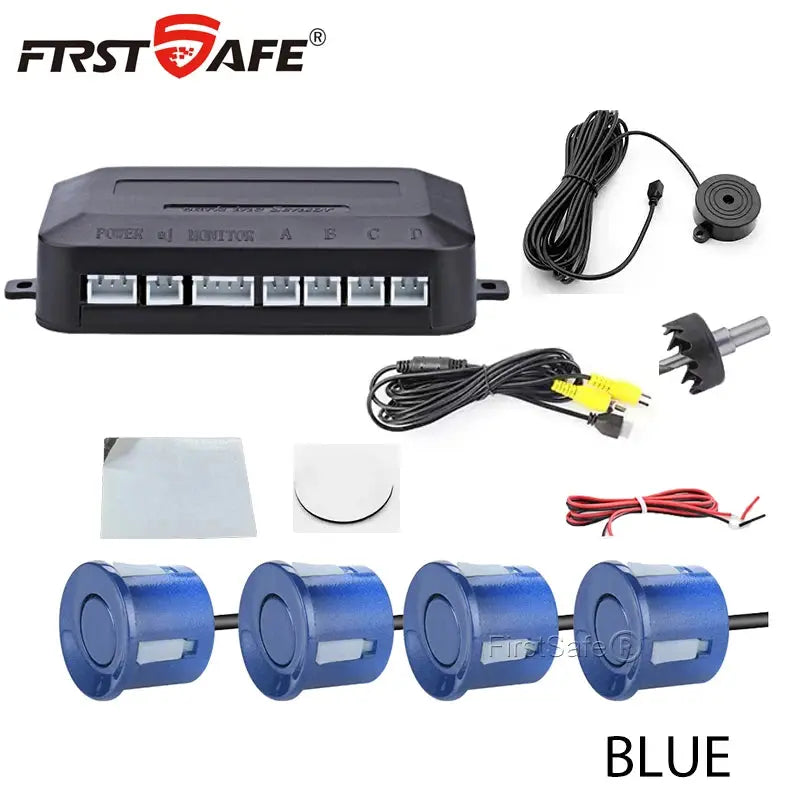

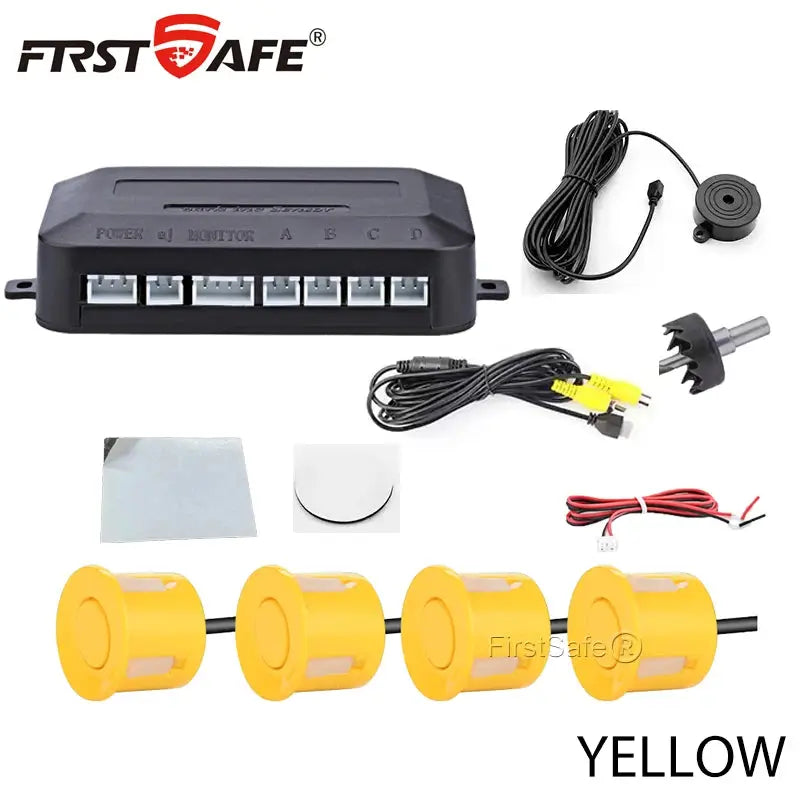

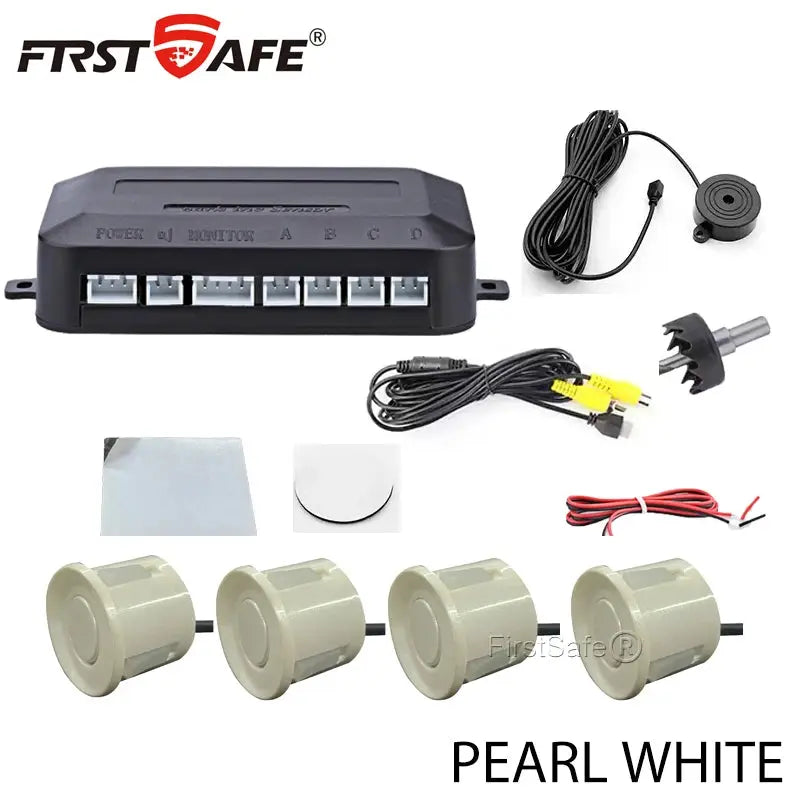

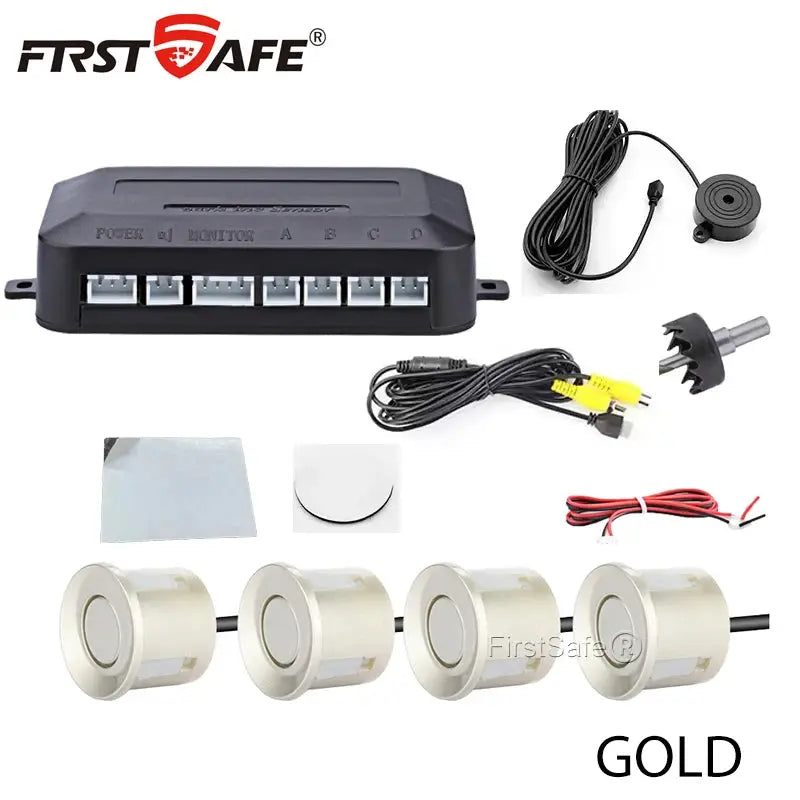

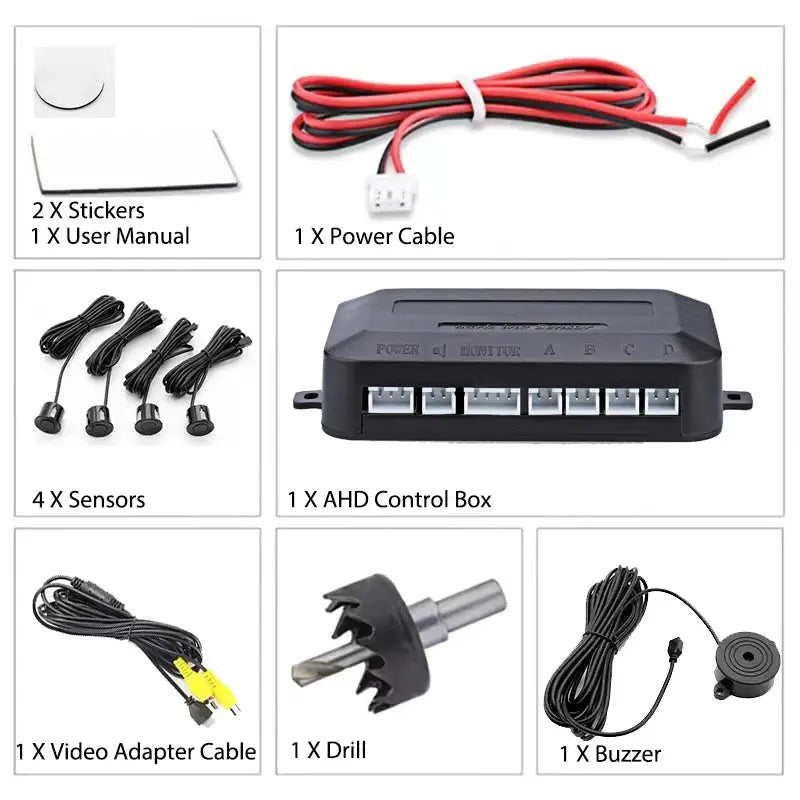

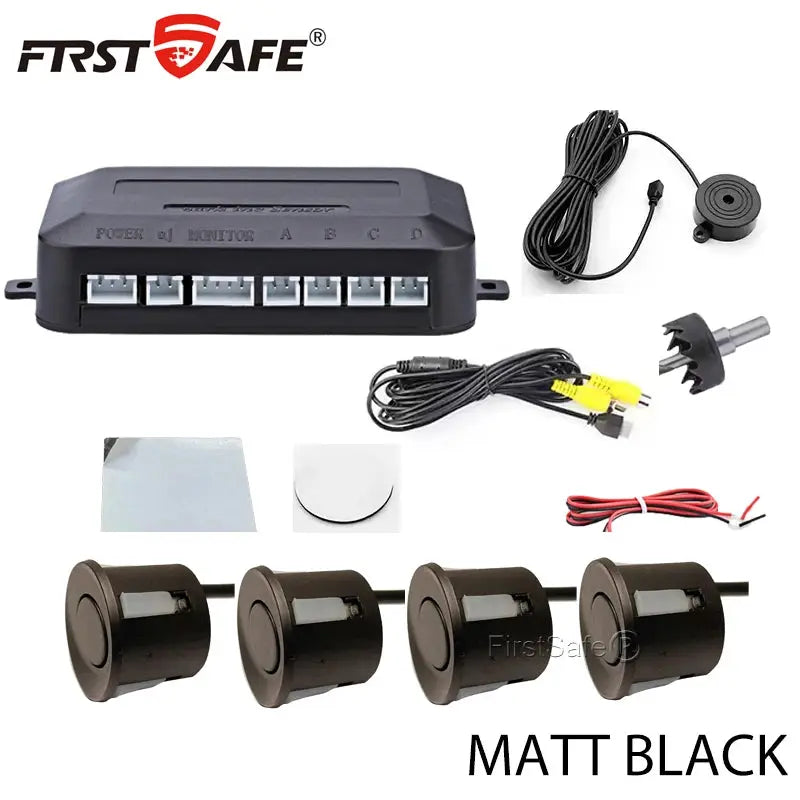

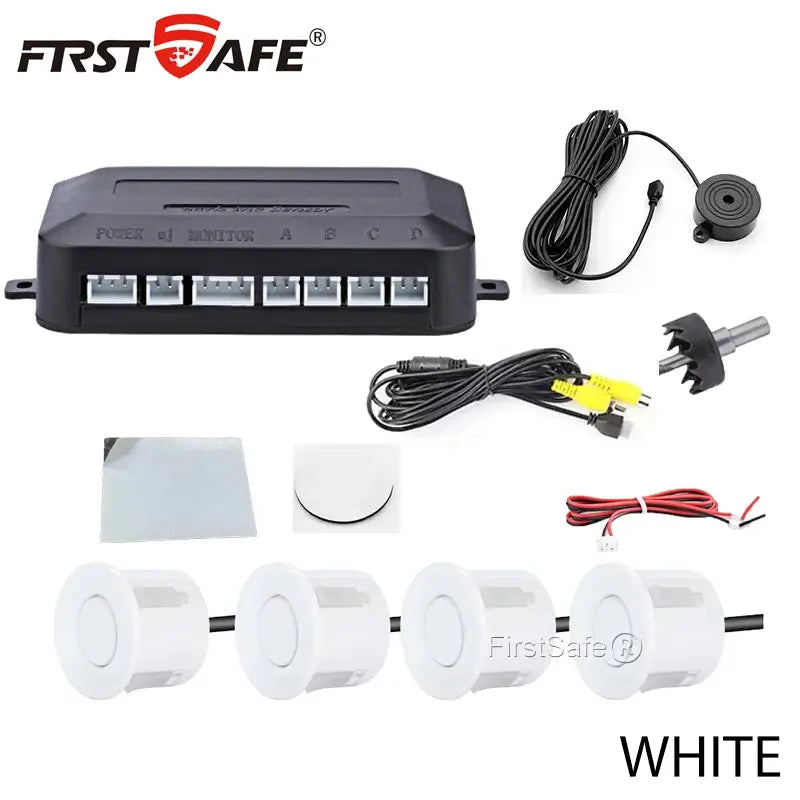

Packing List
- Control Box for system management and signal processing.
- Buzzer with a 3-meter (9.8 feet) line for audible obstacle alerts.
- Four parking sensors, each with 2.5-meter (8.2 feet) cables for installation flexibility.
- Video adapter cable measuring 2.2 meters (7.2 feet) for seamless monitor connection.
- Power cable approximately 0.8 meters (2.6 feet) for easy integration with vehicle power supply.
- Drill provided for precise sensor mounting.
- Two adhesive stickers for secure sensor placement.
- Comprehensive user manual for installation guidance and system operation.
Notes

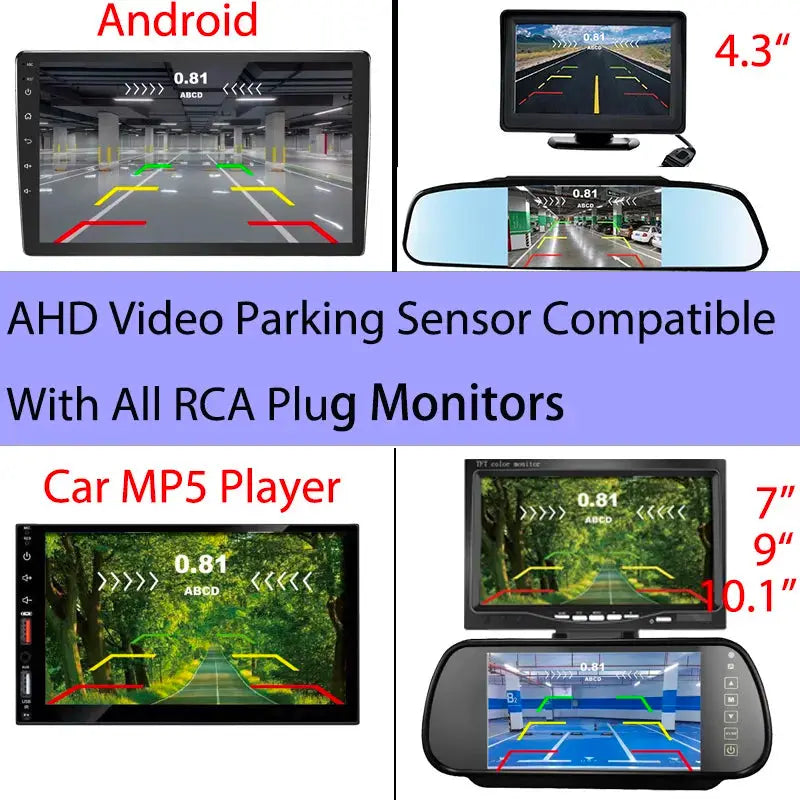

- This package does not include a TFT monitor or rearview camera; ensure your monitor features an RCA interface for compatibility.

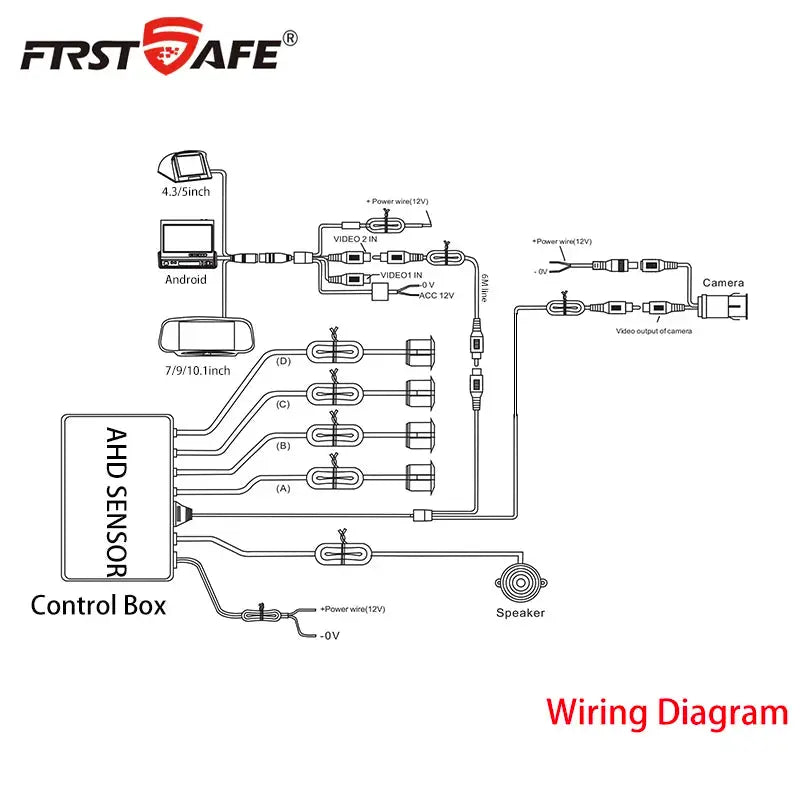

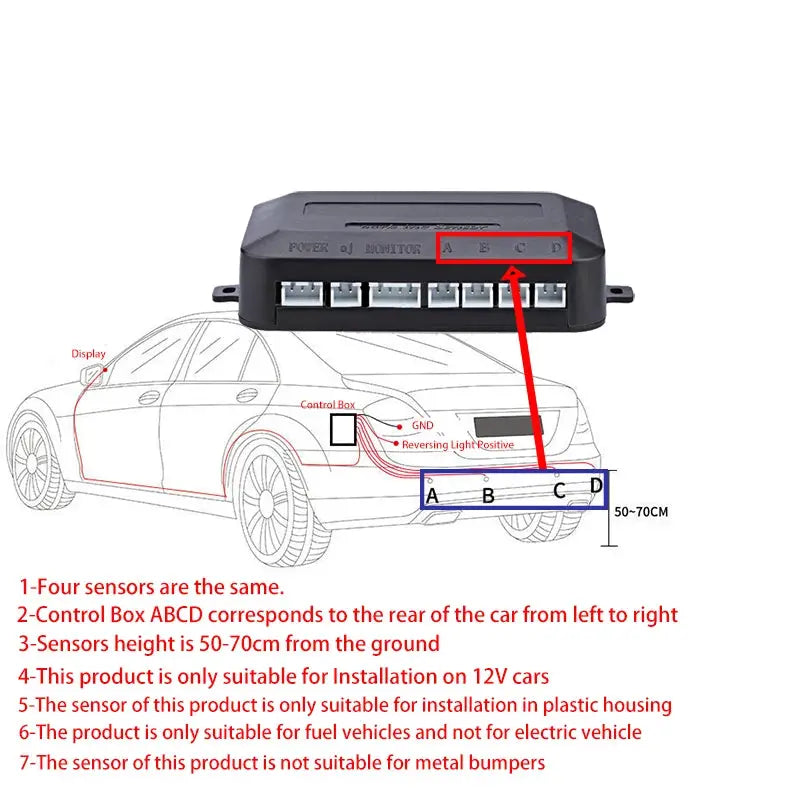

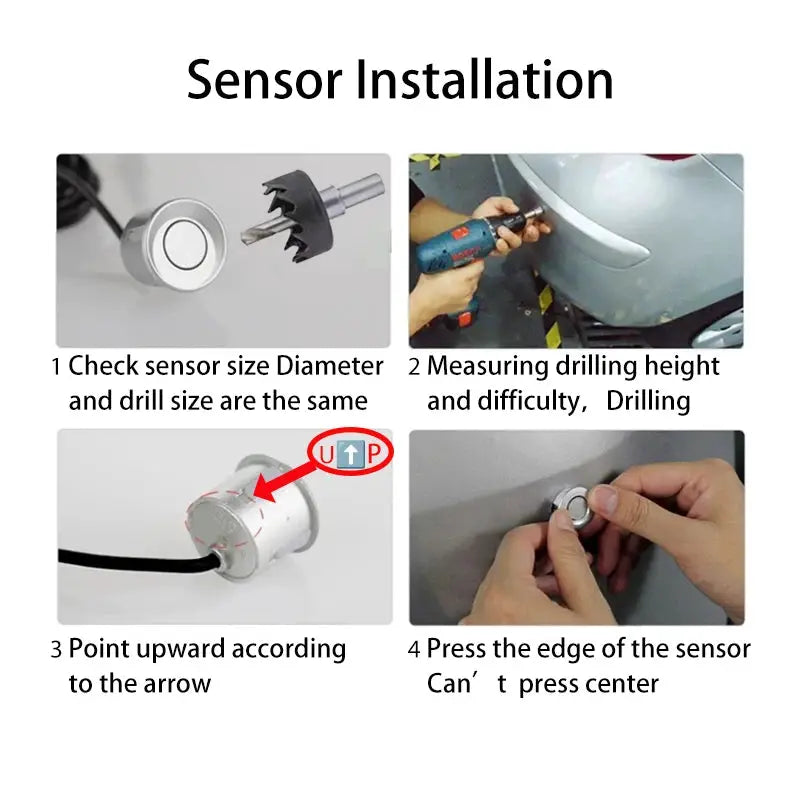

- All four sensors are identical; proper installation orientation is critical, with control box connectors ABCD corresponding left to right at the vehicle's rear.

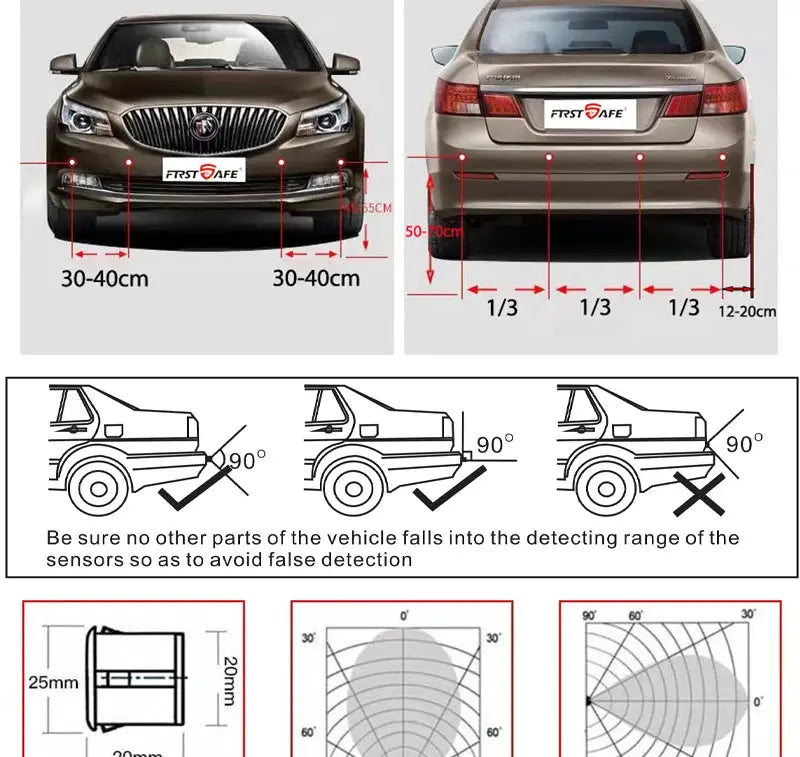

- Recommended sensor height ranges between 50 and 70 cm (19.7 to 27.6 inches) above ground level for optimal performance.
- Designed exclusively for 12V fuel-powered vehicles; not suitable for electric vehicles or metal bumper installations.
- Sensors must be installed within plastic bumper housings due to material compatibility constraints.
Product Type
- Visible ultrasonic parking sensor system with integrated buzzer and video output.
- Compatible with CVBS and AHD standards ensuring clear rearview imaging for safer parking.

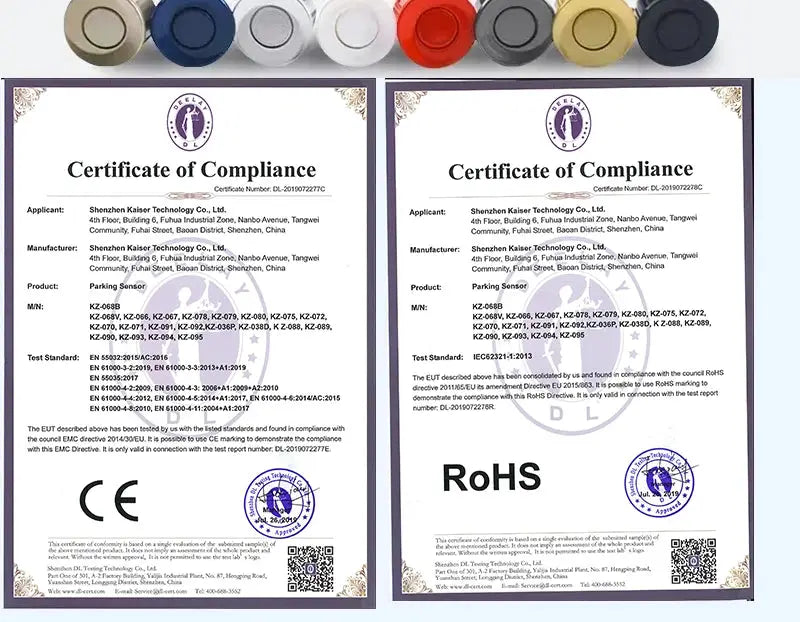

- Factory model KZ-033 manufactured under CE and RoHS certified standards.
Disclaimer
- Design Specifics: The visible gap is a deliberate functional feature of engineering and does not indicate a defect or damage.
- Visual Variations: Actual product colors may vary slightly from online images due to differences in lighting conditions and monitor display settings.
- Measurement Tolerance: Please allow for minor dimensional deviations resulting from manual measurement and manufacturing processes.
- Policy Information: Consult our FAQ, Privacy Policy, and Terms & Conditions for comprehensive details regarding returns and exchanges.
