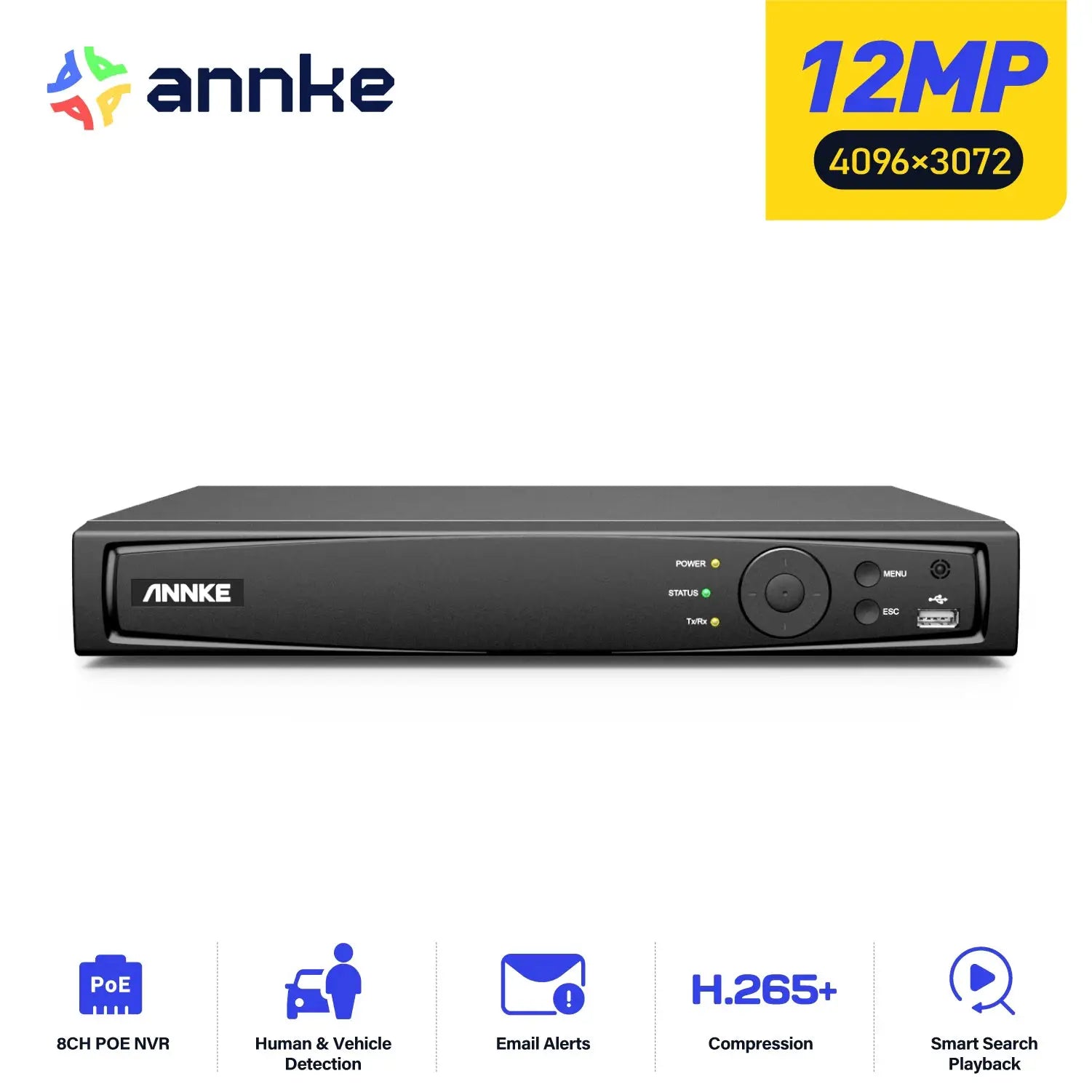

ANNKE NVR POE Video Recorder H265 Plus 8 To 16 Channel 2MP 12MP

Product Overview

This ANNKE H.265 Plus NVR is a sophisticated video recording solution designed for comprehensive surveillance, supporting 8 to 16 channels with capabilities for 2MP to 12MP cameras. It optimizes storage and bandwidth through advanced H.265+ compression, offering crystal-clear live viewing and playback. Equipped with built-in PoE ports for simplified camera connection and remote access via mobile devices, it provides robust security monitoring for various environments.

Specifications

• Decoding Format: Supports H.264, H.264+, H.265, and H.265+ for efficient video compression.
• IP Video Input: Features 8 PoE ports for direct camera connection, supporting up to 8 channels.
• Video Output: Offers HDMI output up to 4K (4096 × 2160) and VGA output up to 1080p (1920 × 1080) for versatile display options.
• Audio Input/Output: Equipped with 1/1 RCA interfaces for audio connectivity.
• Bandwidth: Provides 80 Mbps incoming and 80 Mbps outgoing bandwidth for smooth data flow.
• Max Recording Resolution: Capable of recording at resolutions up to 12MP (4096 x 3072) at 30fps, dependent on camera capabilities.
• Max Playback Resolution: Supports playback at resolutions up to 12MP (4096 x 3072) at 30fps.
• Max Playback Channel: Accommodates up to 8 channels for simultaneous playback.
• Max Playback Capacity: Supports 1-channel playback at 12MP (30 fps), 3-channels at 4MP (30 fps), or 6-channels at 1080p (30 fps).

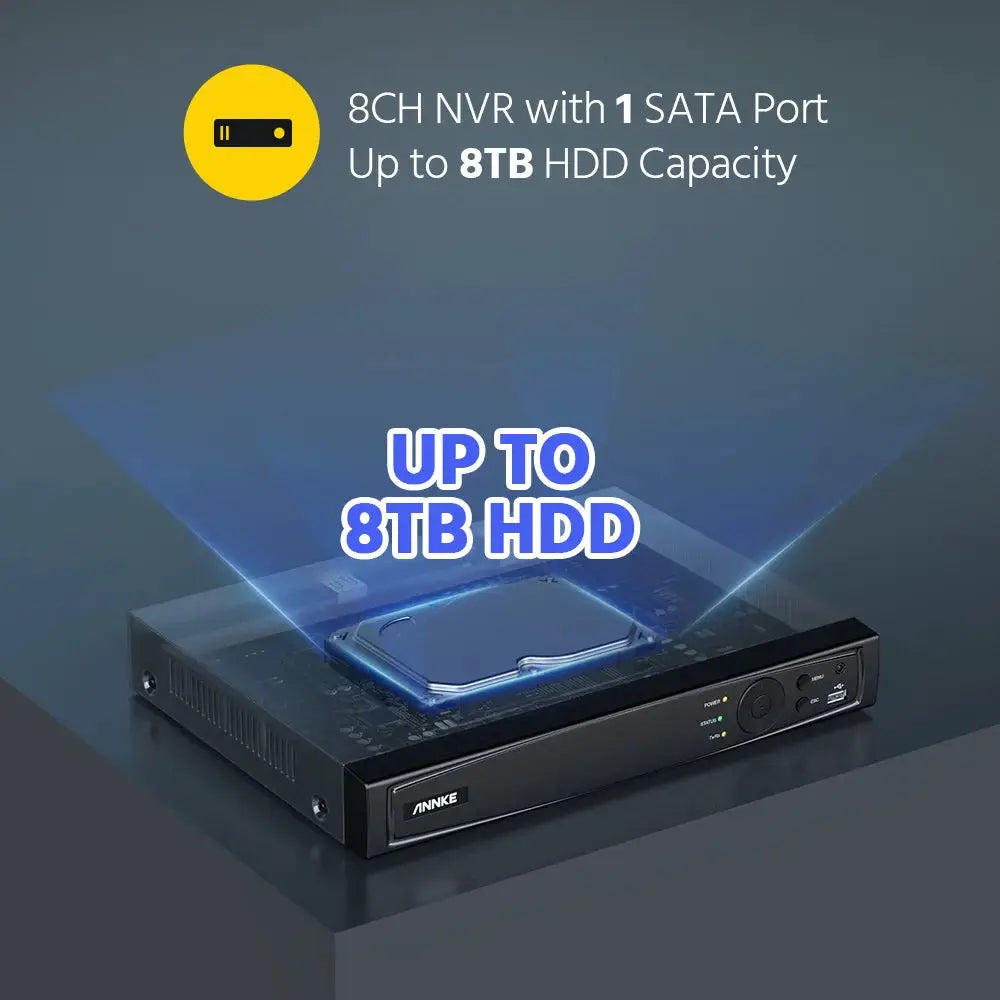

• Hard Drive Interface: Includes 1 SATA interface with support for hard drives up to 8TB capacity.
• Network Interface: Features 1 RJ-45 10/100Mbps self-adaptive Ethernet interface.
• PoE Ports: Equipped with 8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces supporting IEEE 802.3af/at standards.
• USB Interface: Two USB 2.0 ports available for data transfer and accessory connection.
• Deep Learning Functionality: Supports 8-channel human and vehicle target detection (requires compatible IP cameras) and 4-channel detection for standard cameras (up to 4MP).
• Smart Event Detection: Includes line crossing, intrusion, region entrance, and region exiting detection (requires compatible IP cameras).
• Operating Power: Requires DC 48V power supply.
• Power Consumption: Less than 10W (excluding HDD and PoE), with PoE providing up to 25.5W per port.
• Working Temperature Range: Operates effectively between 14°F to 131°F (-10°C to +55°C).
• Dimensions: Measures 12.4” x 9.4” x 1.9” (315 x 240 x 48 mm).
• Weight: Approximately 2.2 lbs (1 kg) without a hard disk installed.

Features

• Advanced H.265+ video compression significantly reduces bandwidth and storage requirements while maintaining high video quality.
• Live view, recording, and playback up to 12MP resolution offers exceptional detail for critical footage.
• Built-in 8-channel PoE (Power over Ethernet) simplifies installation by providing power and data over a single network cable.
• Remote monitoring is easily accessible through iPhone, iPad, and Android mobile devices via the Annke Vision app.
• Connectable to third-party network cameras, offering flexibility in system design and expansion.
• HDMI video output supports up to 4K resolution, ensuring compatibility with modern high-definition displays.
• Smart video analytics include human and vehicle detection, enhancing security by focusing on relevant events.
• Supports various smart event triggers such as line crossing, intrusion detection, and region-based monitoring for proactive surveillance.

Measurements

• Dimensions: 12.4 inches x 9.4 inches x 1.9 inches (315 mm x 240 mm x 48 mm).
• Weight: 2.2 pounds (1 kg) without hard disk.
• Working Temperature: 14°F (-10°C) to 131°F (55°C).
• PoE Output per Port: Maximum 25.5 Watts.
• Max Recording/Playback Resolution: Up to 12MP (4096 x 3072).
• HDMI Video Output: Up to 4K (40960 x 2160).
• VGA Video Output: Up to 1080p (1920 x 1080).
• HDD Capacity Support: Up to 8 TB.

Packing List

• ANNKE NVR POE Video Recorder
• Power Adapter
• USB Mouse
• Network Cable
• User Manual
• Hard Drive Screws (if applicable)

Notes

• The frame rate for recording and playback may depend on the connected IP camera's specifications.
• Human and vehicle detection features require specific IP camera support or have resolution limitations (up to 4MP).
• Smart event detection features like line crossing and intrusion detection also require compatible IP cameras.
• This NVR supports up to 8TB HDD capacity, which must be purchased separately.
• Network cameras from third-party manufacturers may be compatible, but compatibility should be verified.

Product Type

• Network Video Recorder (NVR)
• PoE NVR
• Security System Component
• Video Surveillance Recorder

Disclaimer

• Design Specifics: The visible gap is a deliberate functional feature of engineering and does not indicate a defect or damage.
• Visual Variations: Actual product colors may vary slightly from online images due to differences in lighting conditions and monitor display settings.
• Measurement Tolerance: Please allow for minor dimensional deviations resulting from manual measurement and manufacturing processes.
