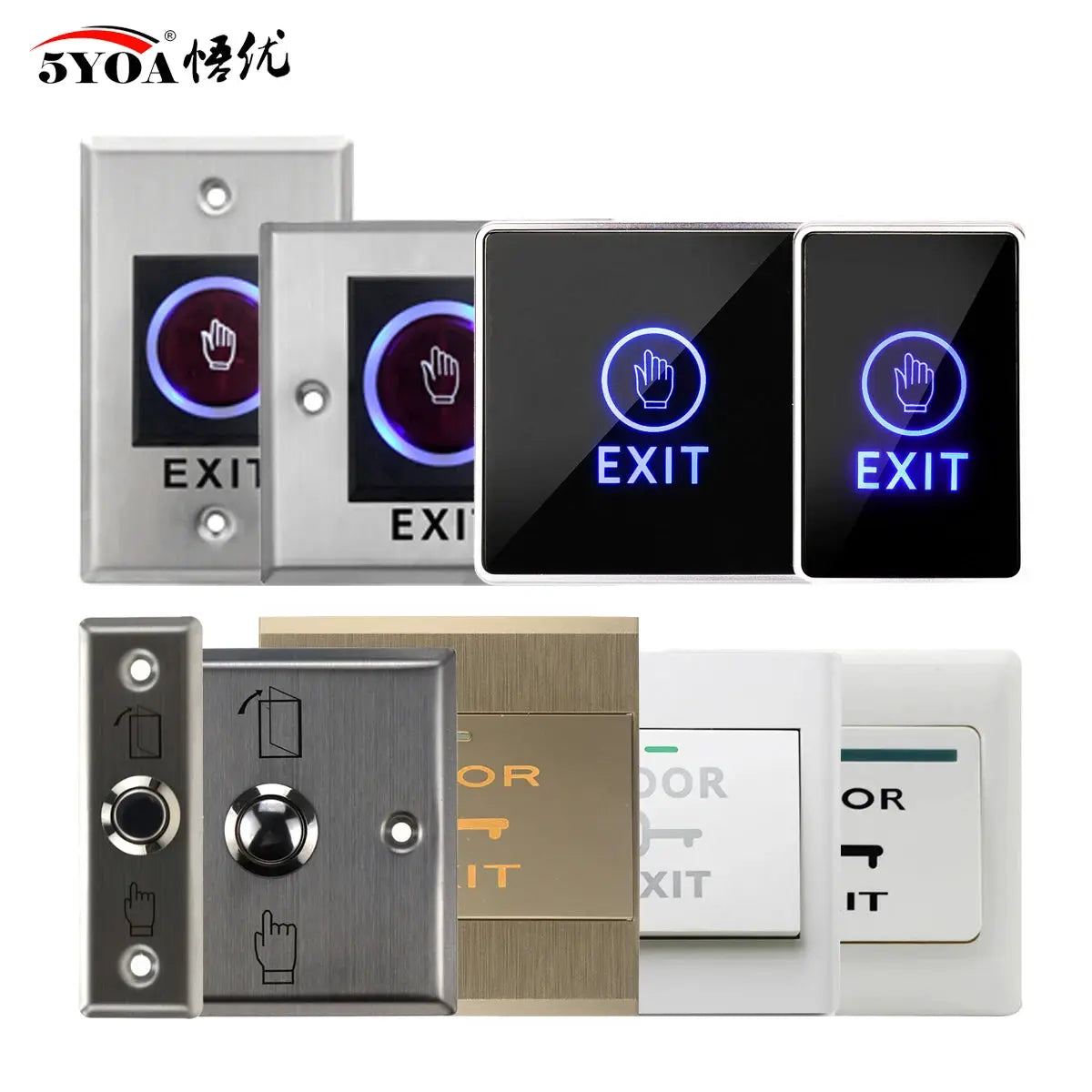

Gate Non Contact Door Exit Push Button Switch For Access Controller

Vendor: Retail

$9.41

~~$0.00~~

Shipping calculated at checkout.

Hurry up, only 5 items left in stock.

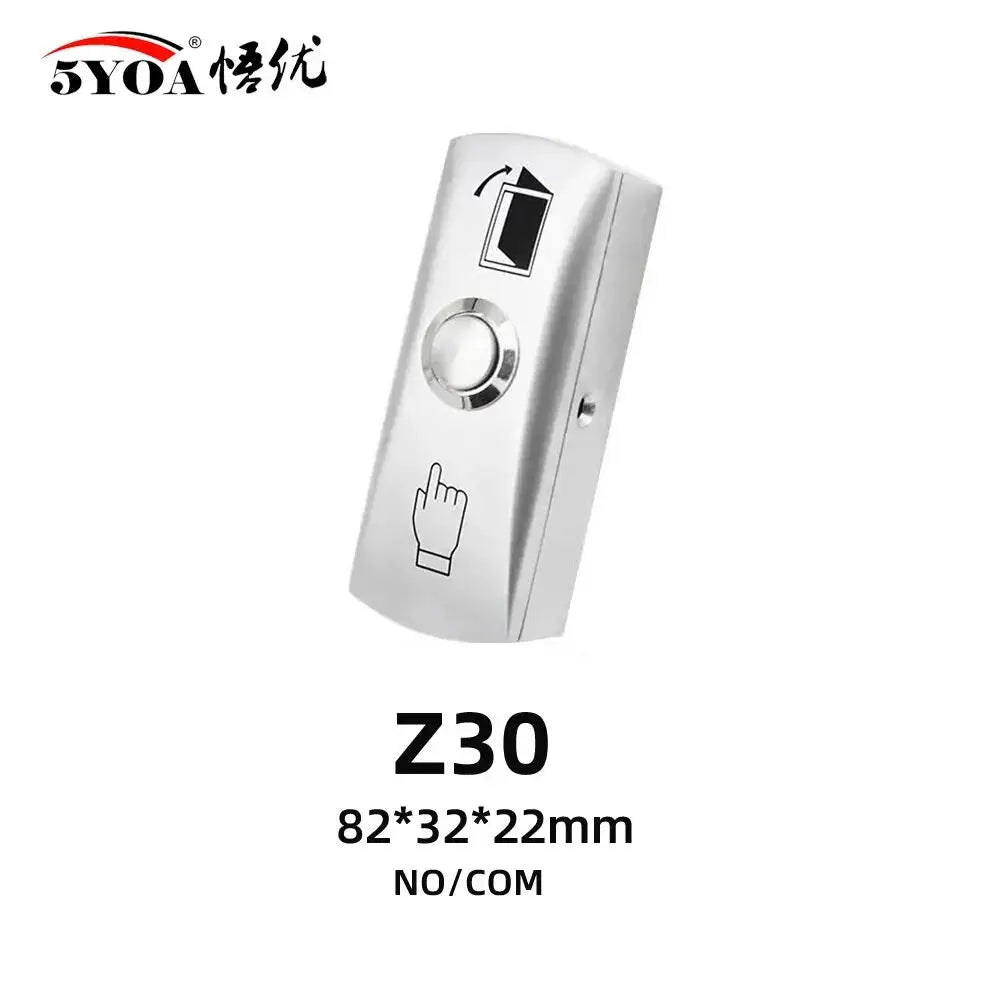

Color: Z30

Z30 S-TB01 R-TB01 K2Button PM6Button K1Button Button01 R-Button02 S-Button02

Free shipping to the U.S. & Europe, plus 12-day returns on approved unused items.

SPECIFICATIONS

Brand Name: 5YOA

Choice: yes

High-concerned chemical: None

Origin: Mainland China

Smart home platform: Other

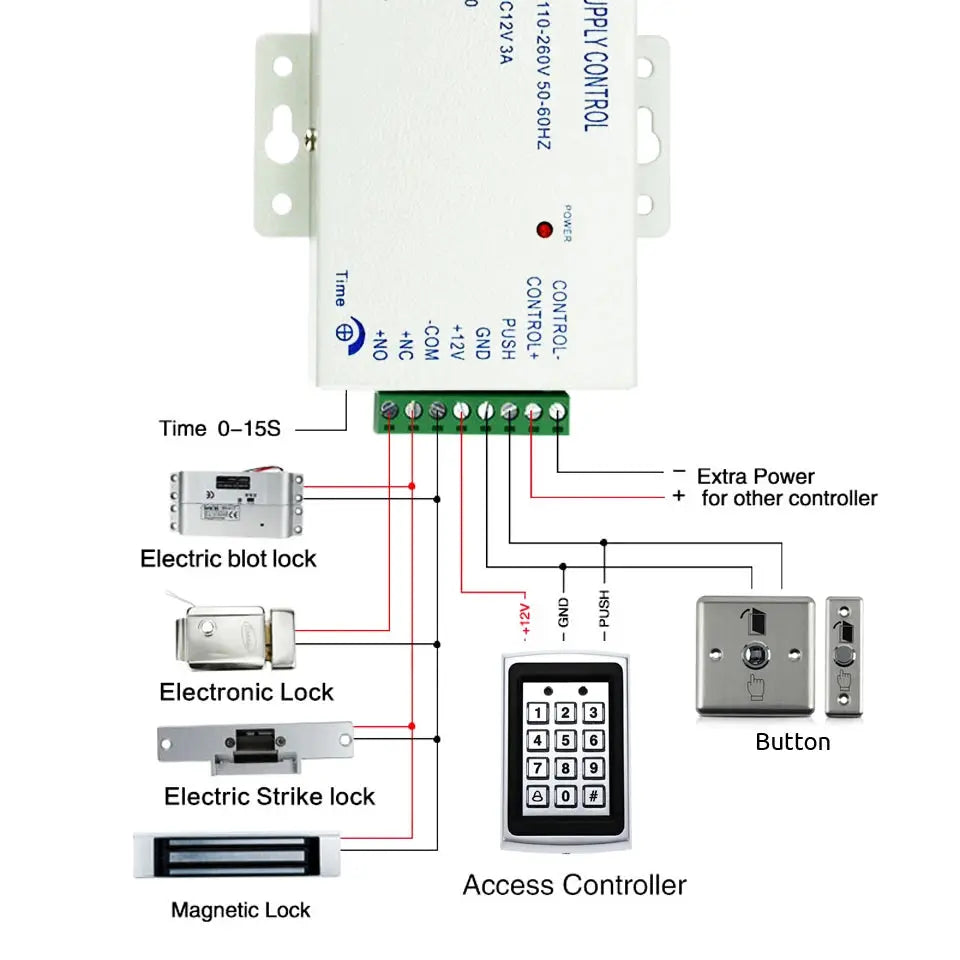

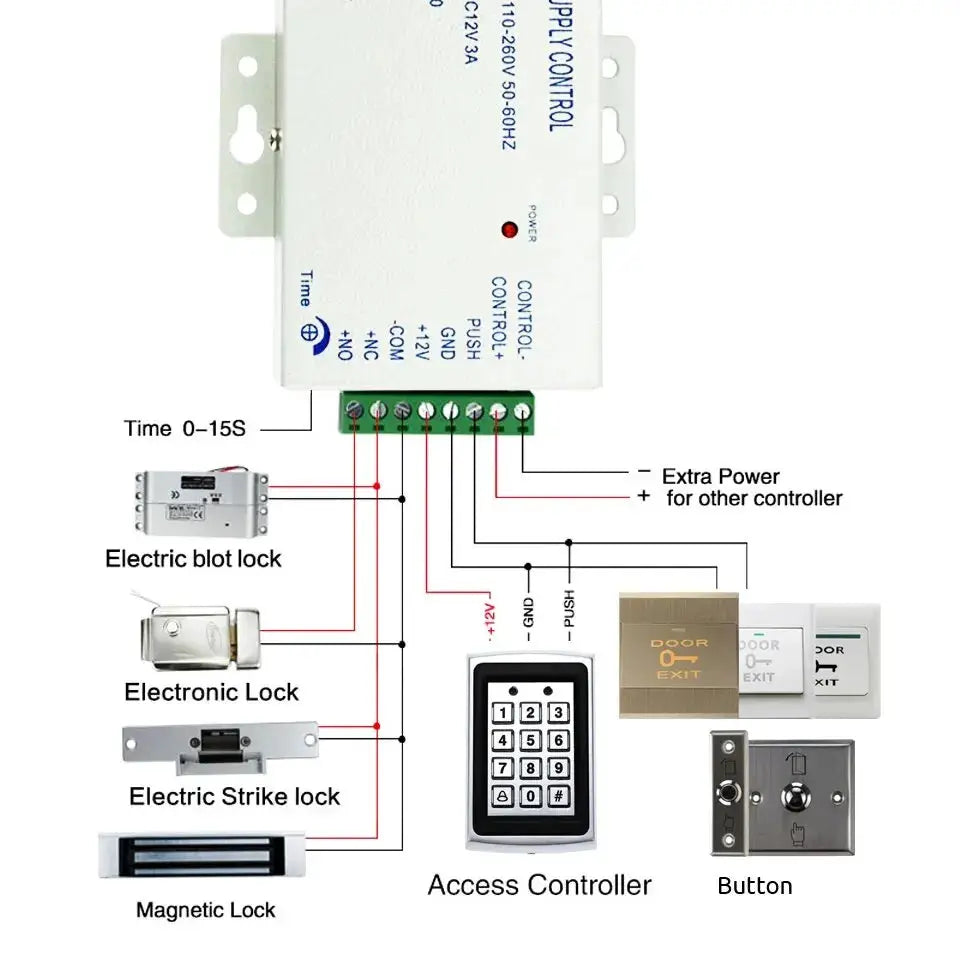

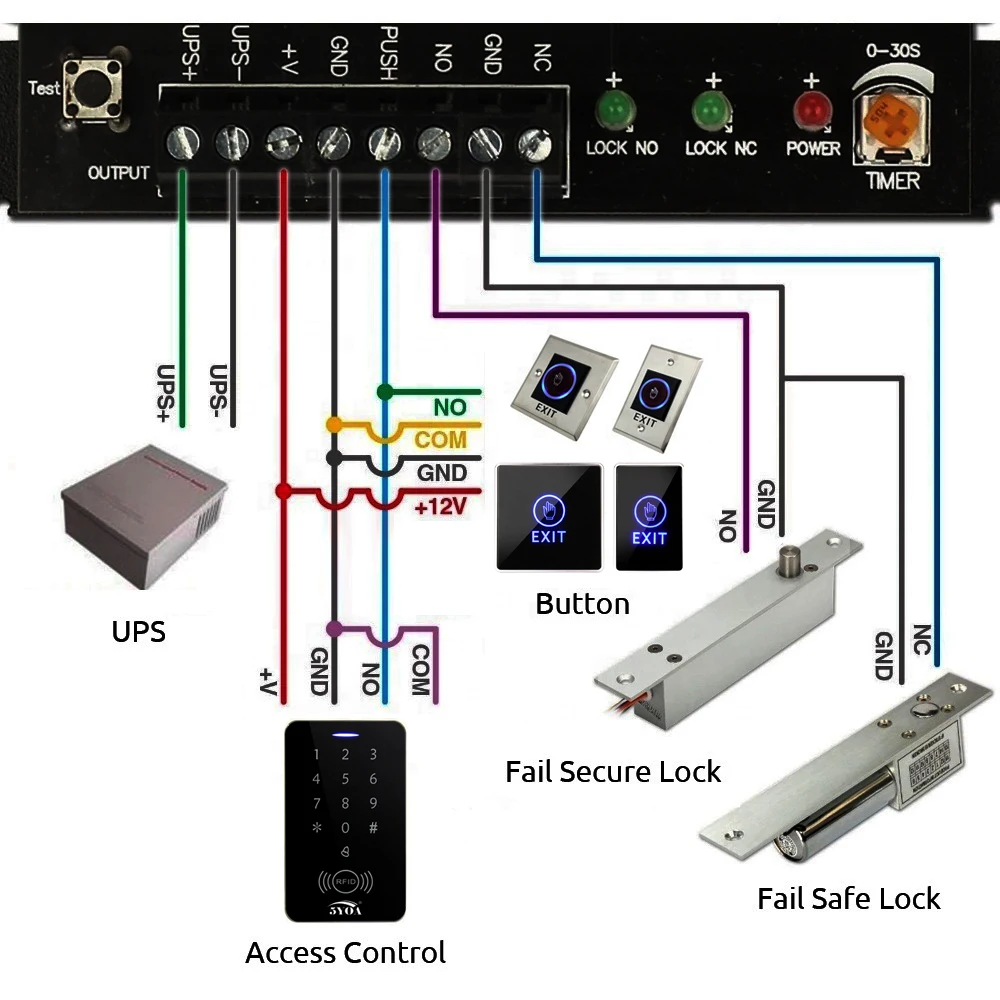

How the Exit Push button works?

When the button is pressed,the inner contactes are combined,forming circuirt connected,causing the power controller to be short-circuited,thereby driving the electric lock to unlock.
after releasing the button,the power supply is energized during the set time to achieve the entire door opening and closing process

K1 K2 LED Light Infrared Touch Exit Button

LED Light Infrared Touch Exit Button NO/NC/CM Push Button Switch For Access Control
This Exit Button is made of durable and high material. An alternative to traditional switch, these switches are suitable for doors where access control is essential, and to help simplify key control. You can install it by yourself without any difficulties. Do not hesitate, this device will never let you down.

Specification of this switch
No touch / Touch free Exit Sensor (Diffused Detection)
Optical / Infrared Technology
IP-55 Ingress Protection / SUS 304 Stainless steel Plate
User friendly (Healthy protection)
Free from contagious diseases spread
Detection range: 0.1 ~ 10 cm
Application: Gate/Door/Exit/Automation control
High capacity of relay dry contact (3A/AC120V,DC30V)
Normally open/Normally close/Common relay output

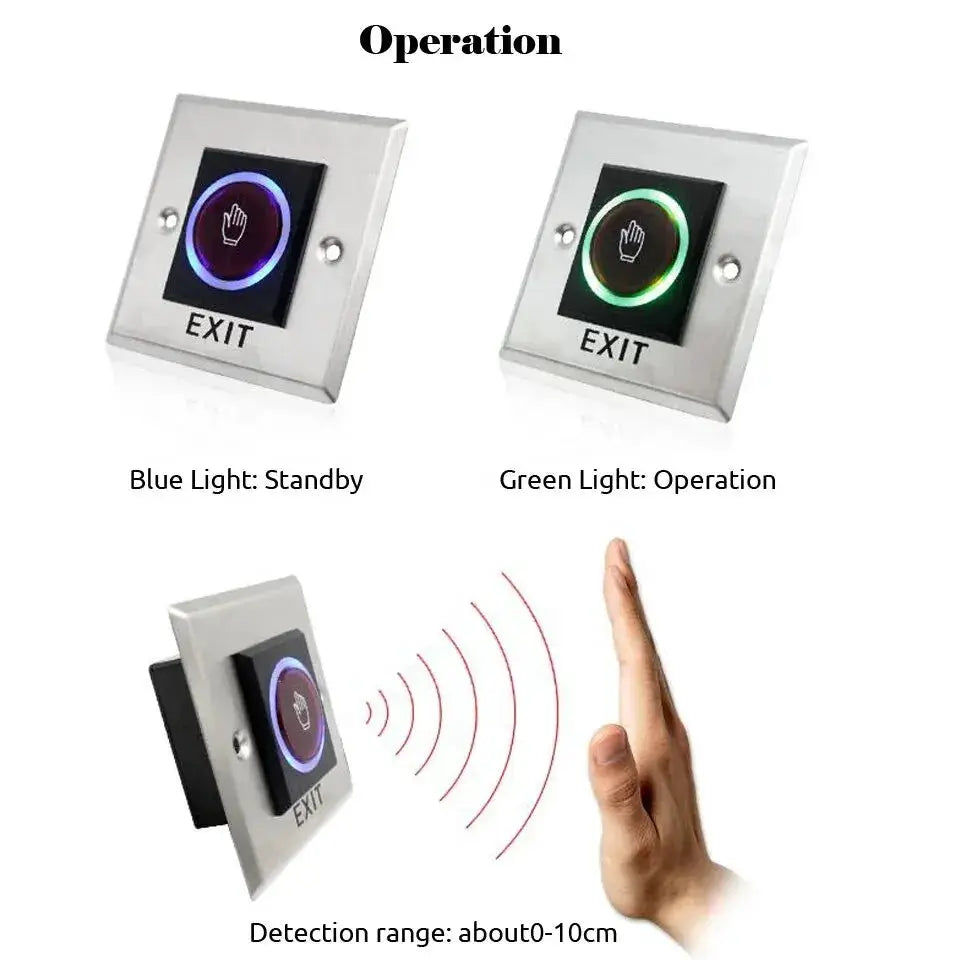

Twin led indicators for sensor standby or approached :
(1) Sensor Standby: BLUE LED ON
(2) Visitors whom approached to the sensor in 10 cm : RED LED ON

Input: DC12V
Contact Rating: 12-30V,3A
Output Contact: NO/NC/COM
Mechanical Life: 500000 tests
Operating temp: -20℃~+55℃(14-131F)
Suitable Humidity: 0-95% (relative humidity)
LED Indicator: White LED indicator: Power OFF Blue LED indicator: Power ON(standby) Red LED indicator: Power ON(sensation)
Weight: 108g / 120g

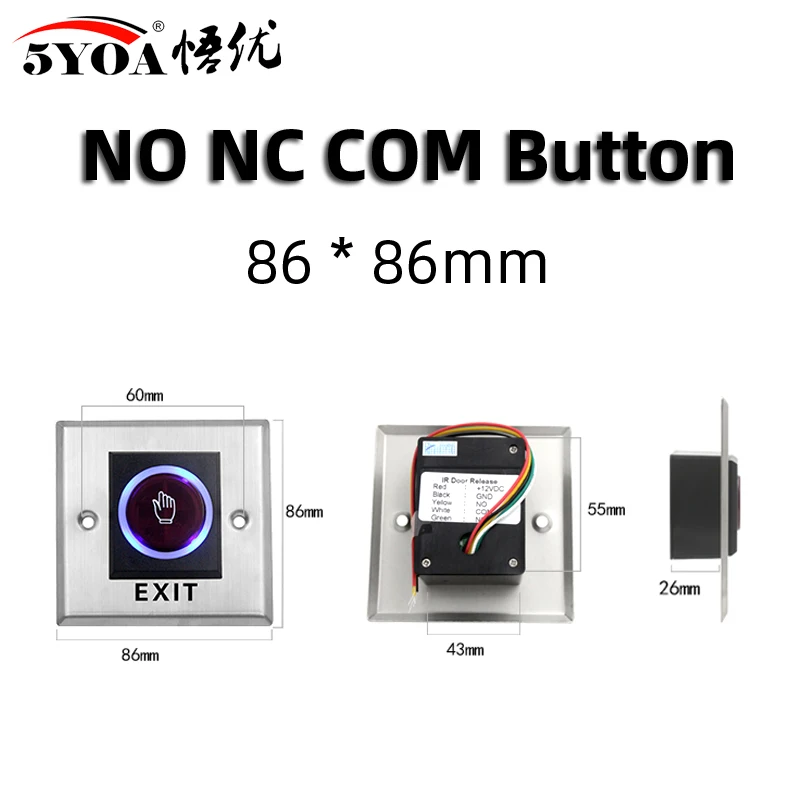

Square Type: 86x86x29mm

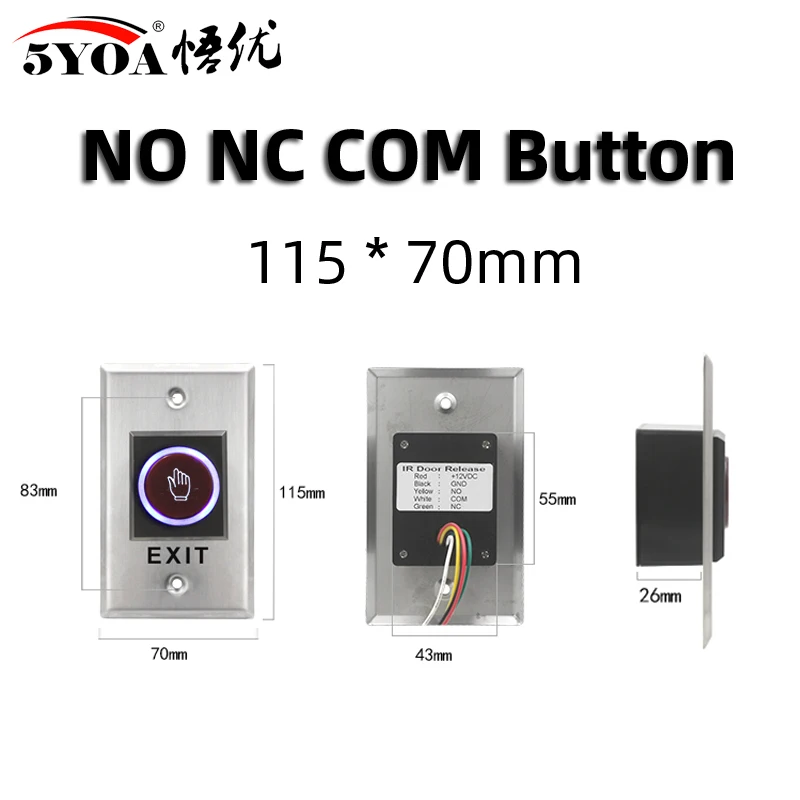

Rectangle Type: 115x70x29mm

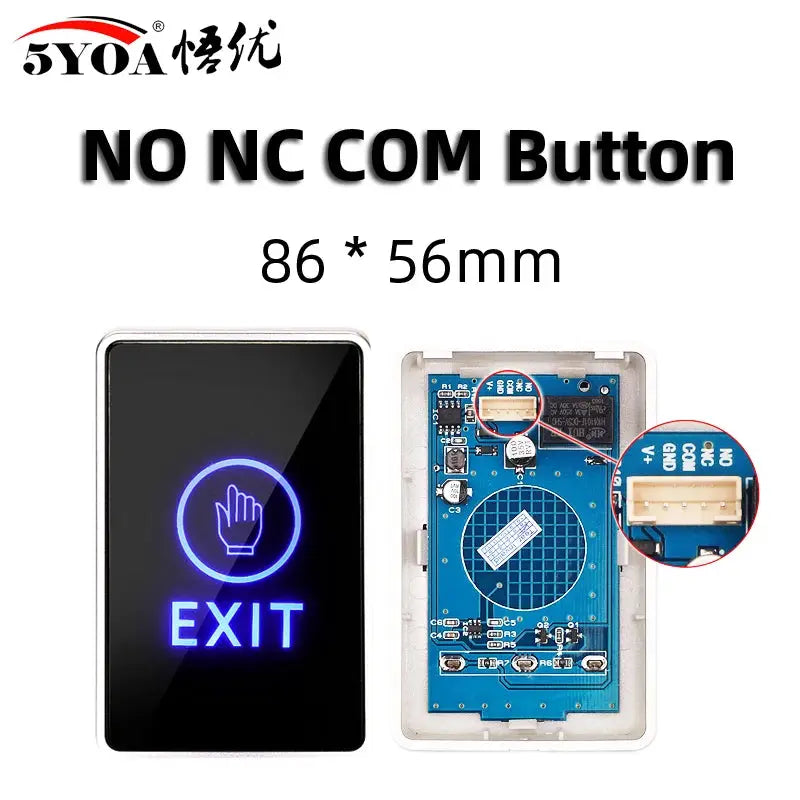

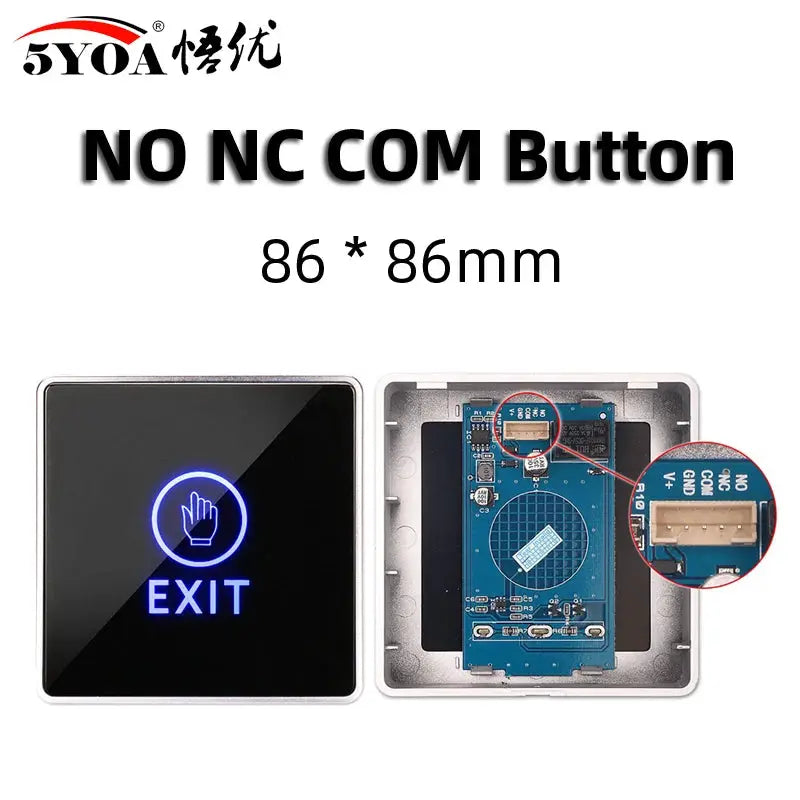

TB01 Touch High End Button

Single Contact to exit
Long mechanical life more than 500000 times
Square brevity design
Product Reference: ACA-EB-TB1-SQ
Power Input : DC 12V
Suitable Humidity : Less than 95%
Output Contact : NO / NC / COM
Operating Temperature : -20°C ~ 55°C
LED Indicator :
Blue : Standby
Green : Triggered
Dimensions :
Square Type: approx. 86 (W) x 86 (H) x 21 (D) mm approx. 3.4 (W) x 3.4 (H) x 0.8 (D) inch
Rectangle Type: approx. 86 (W) x 56 (H) x 21 (D) mm approx. 3.4 (W) x 2.2 (H) x 0.8 (D) inch

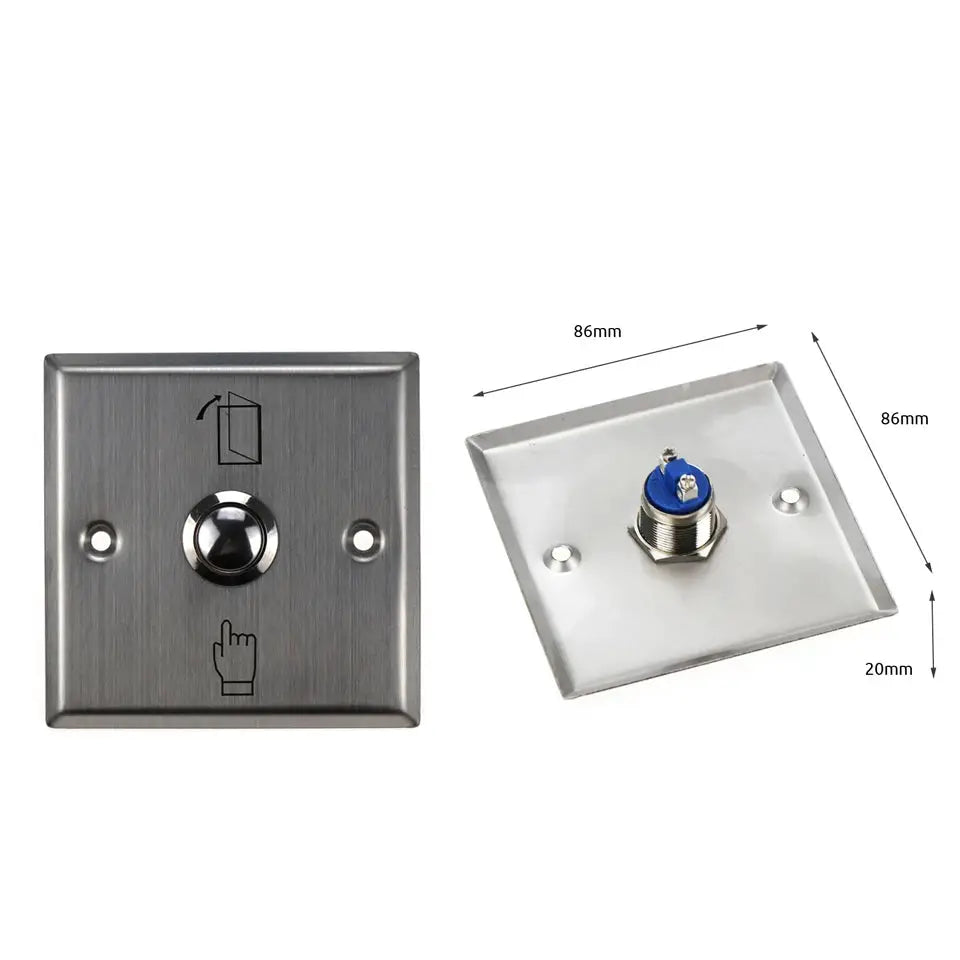

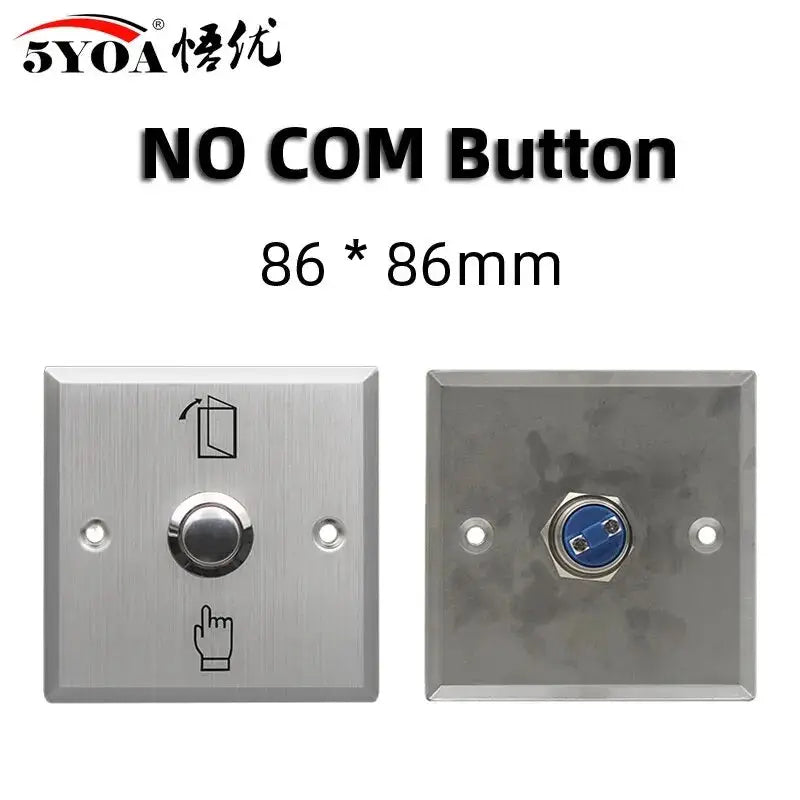

Button02 Stainless Steel Door Exit Push Release Button

Features:
Silver stainless steel shell, safe and durable.
Looks simple, comfortable and beautiful.
Undergoing 100,000 times continuous clicking test, very durable.
Good to touch, easy to operate and use.
Activates electric strike, magnetic lock or other elctric lock via access control.
Works with most electronics access control , door phones with access control.
Flush mounting.

Specifications:
Contact output: NO COM
Applied temperature: -10~+55 Degree14-131F)
Applied humidity: 0~95% (relative humidity)
Material: Stainless steel

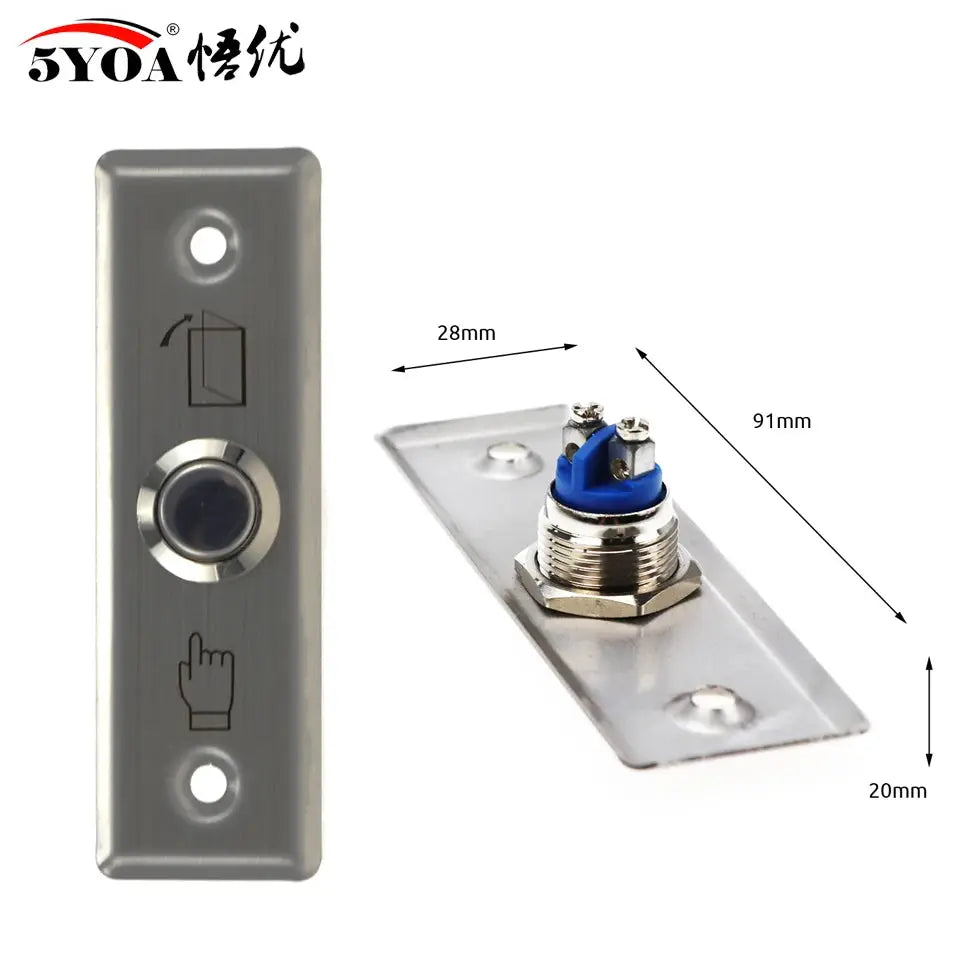

Square Type: Dimension: 91*28*25mm(Approx.) Weight: 38g
Rectangle Type: Dimension: 86*86*25mm(Approx.) Weight: 85g

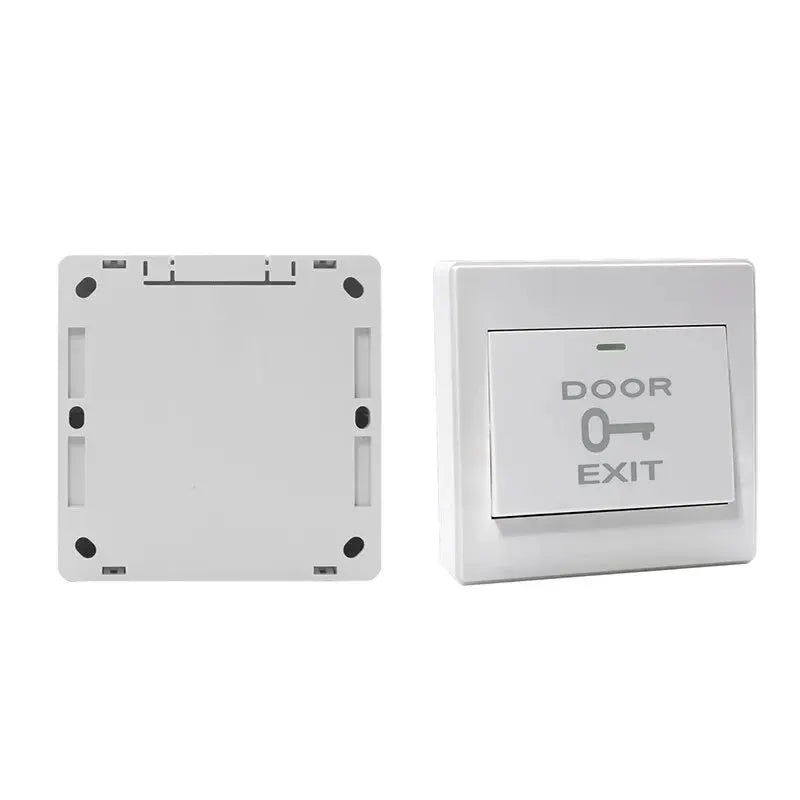

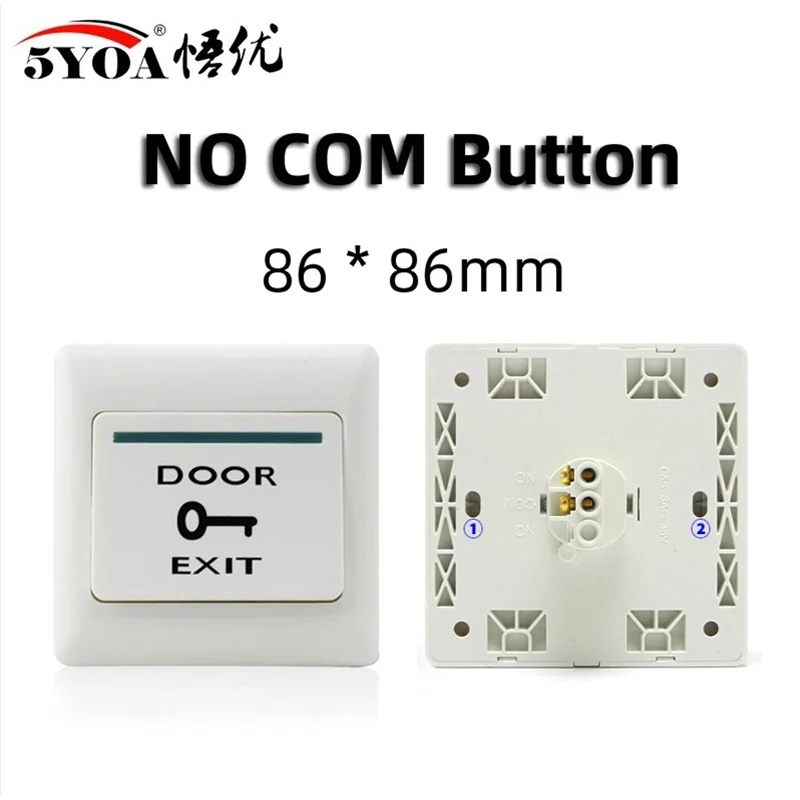

Button01 Plastic Classical Button

Output Contact: NO COM
Current Rating: DC 12-36V / 3A
Mechanical Life: 500000 tested
Panel Material: Hard Plastic
Size: 86*86mm(Approx.)
Weight: 53g
