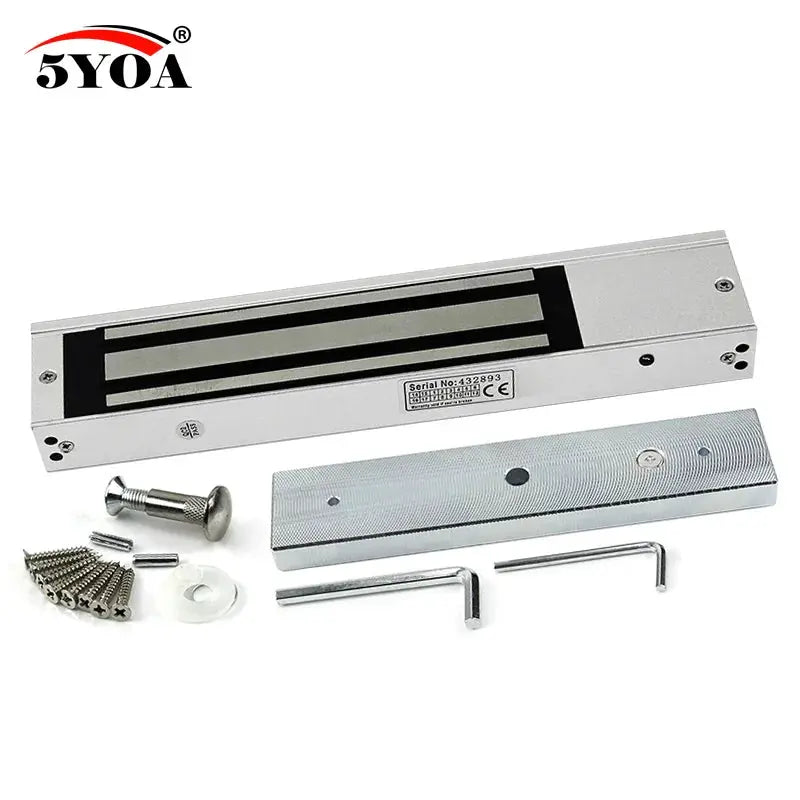

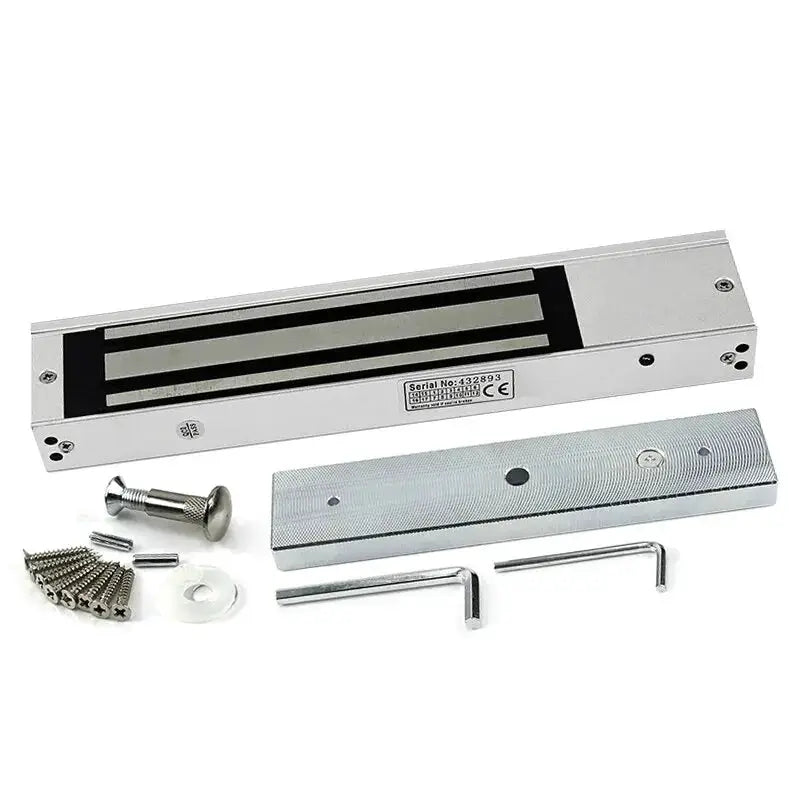

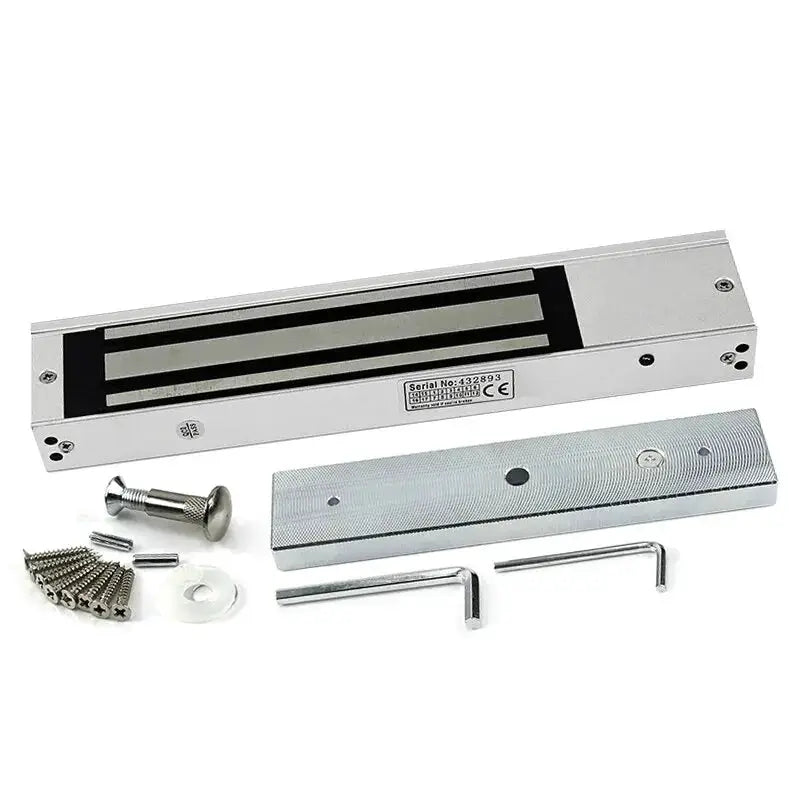

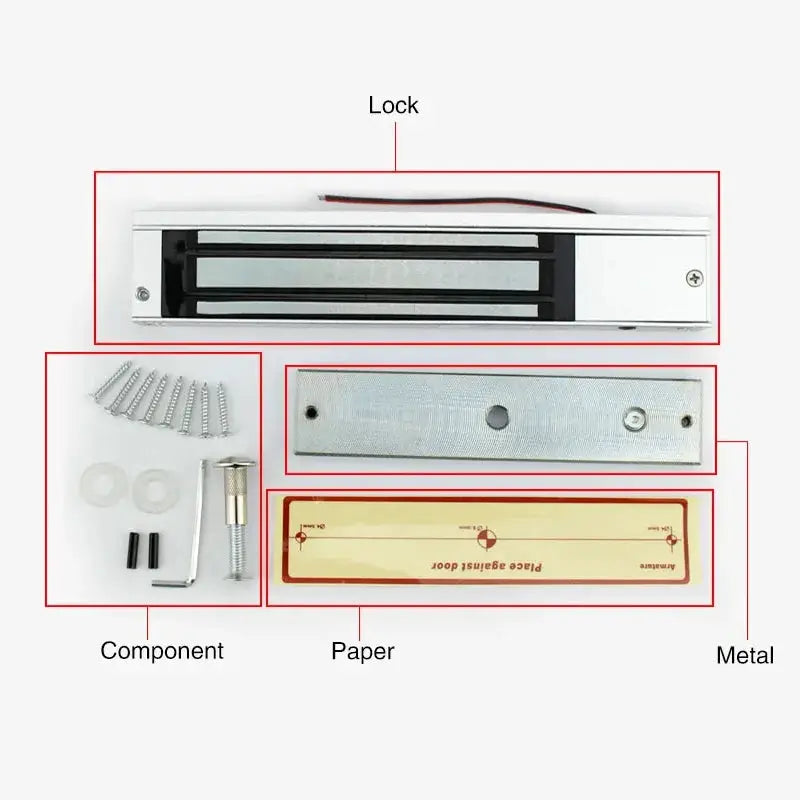

5YOA DC12V Electromagnetic Lock 350Lbs Electronic Door Control
Hurry up, only 6 items left in stock.
SPECIFICATIONS
Brand Name: 5YOA
Certification: CE
Choice: yes
High-concerned chemical: None
Model Number: MLock
Origin: Mainland China
Magnetic Lock
Features
1. Brand new and high quality
2. Secure mode: NC model (Locked when power on, unlocked when power off)

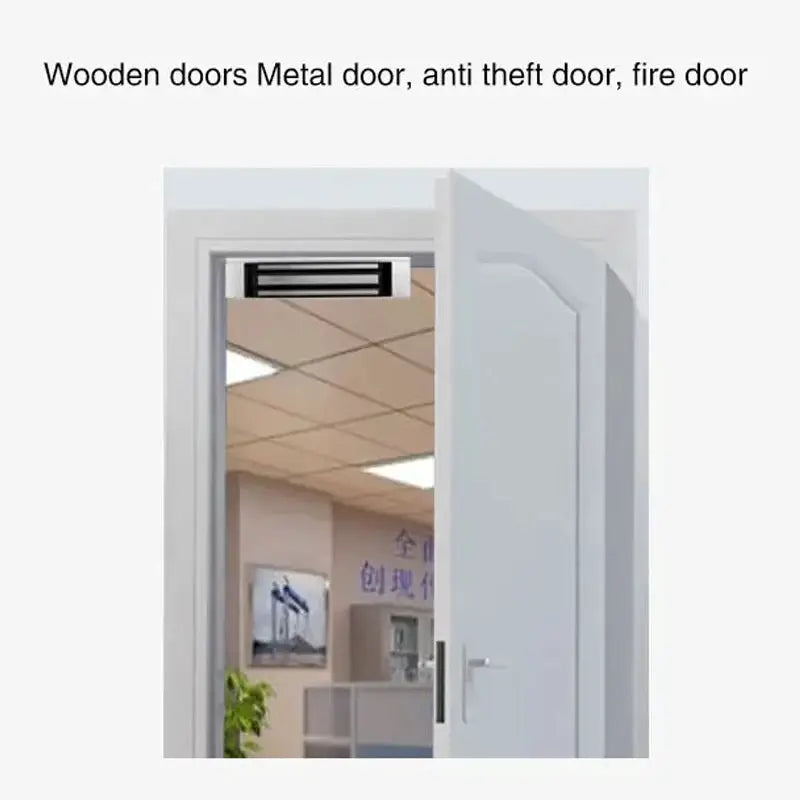

3. Especially suitable for wooden/ glass/ metal/ security doors.
4. It is made from durable and high aluminum alloy material, durable for use
5. Can be opened by push button, remote controller, etc.
6. Built-in reverse current protection device (MOV).
7. Waterproof, can be install outside. Suitable for wooden, glass, metal, secuirty door.

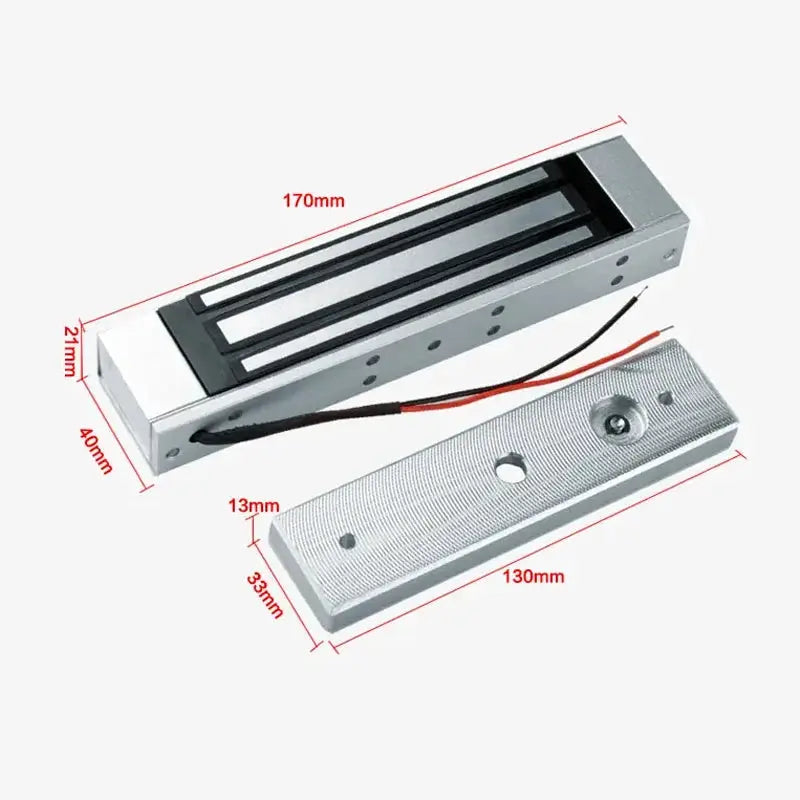

Product Specifications
Type: Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outdoor

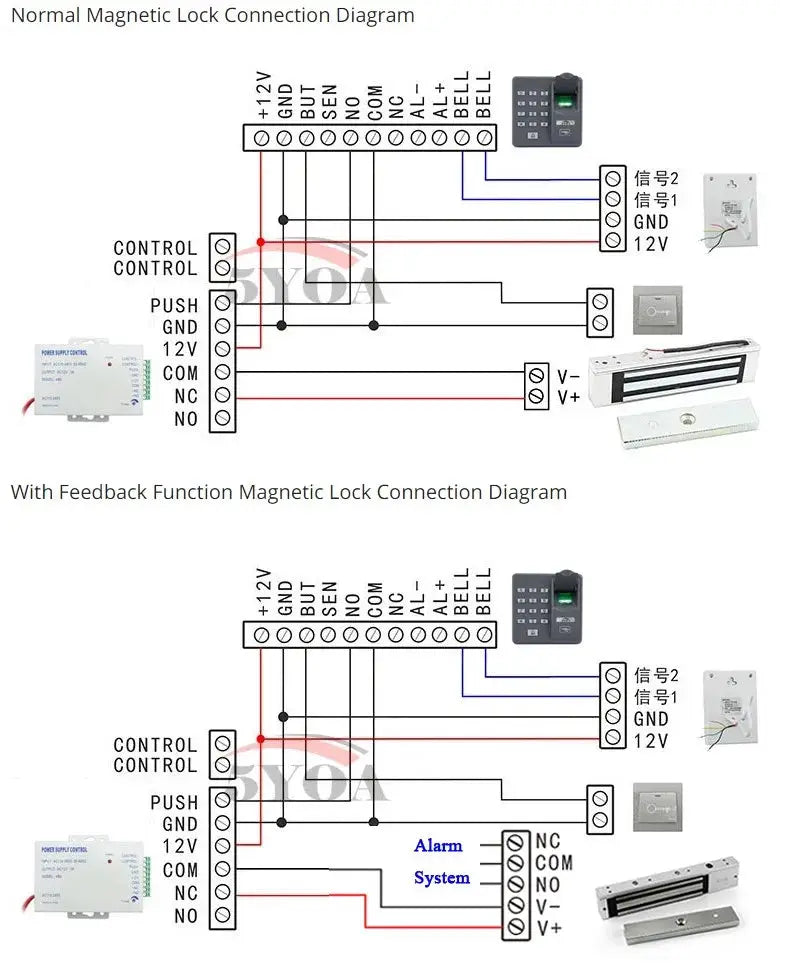

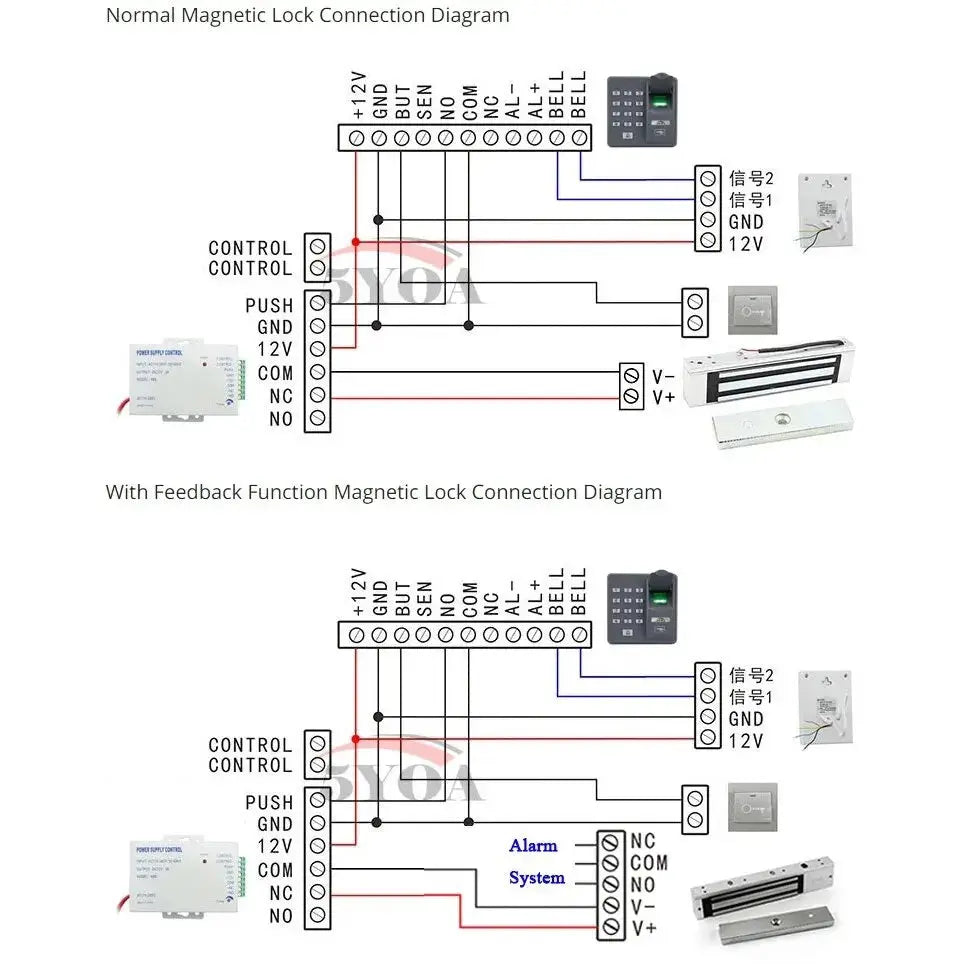

Wiring Diagram
Red Wire: +12VDC
Black Wire: -GND
If you want to test the lock, please connect the red cable to "+12v", and black cable to "GND" of the 12VDC power supply.
When you install completed access control system kit set, please connect red cable to "NC", black cable to "COM" of the power supply.
