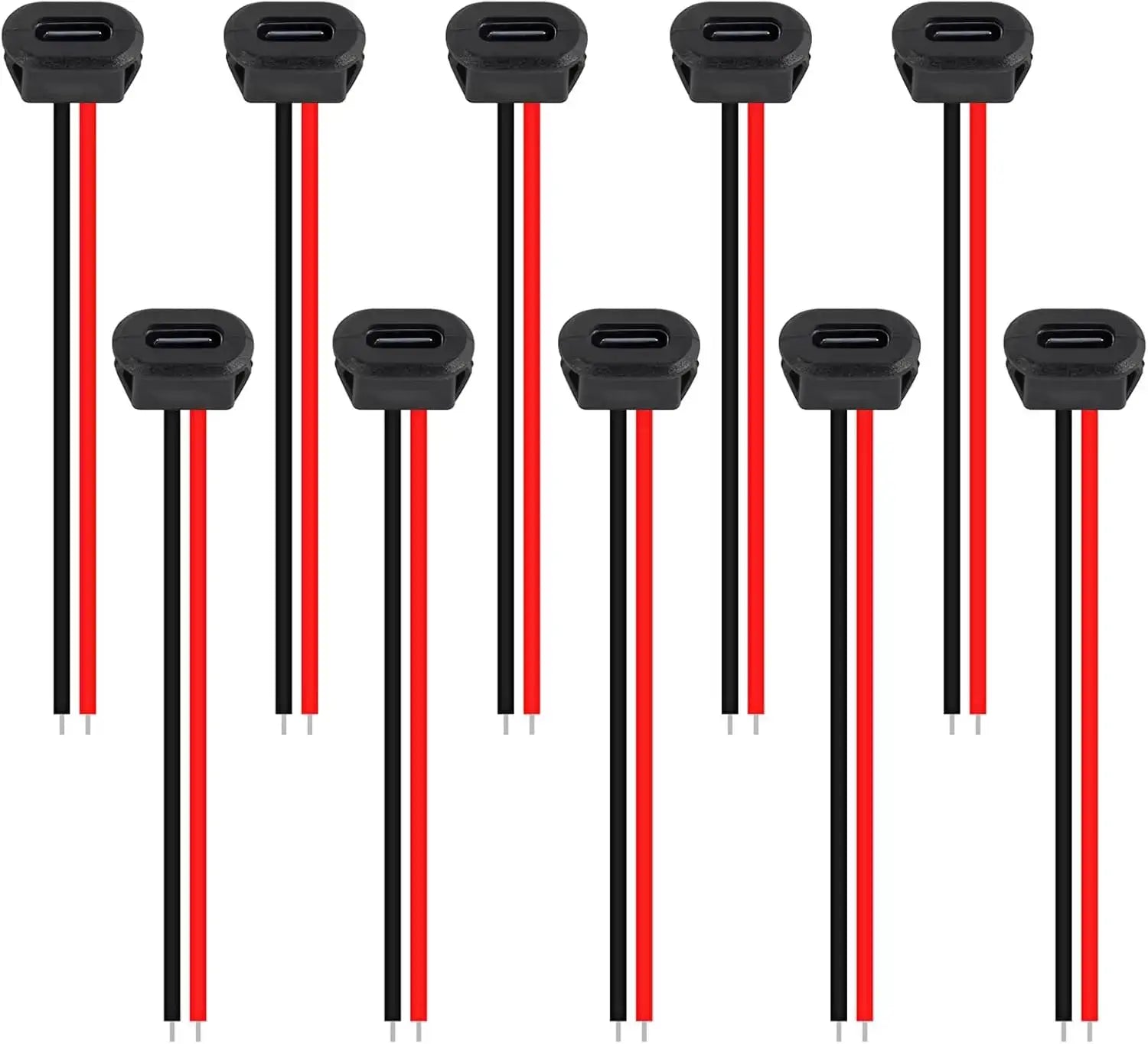

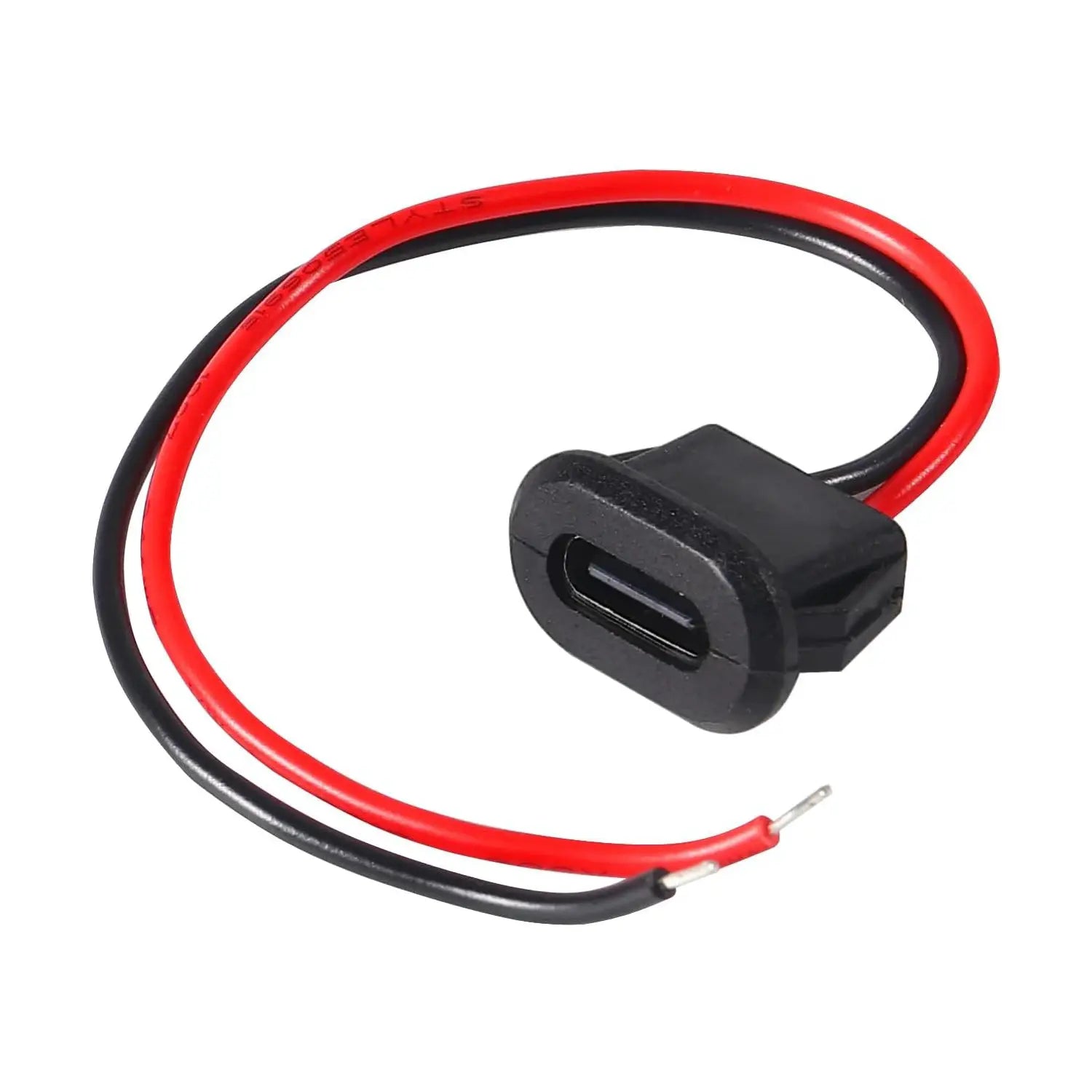

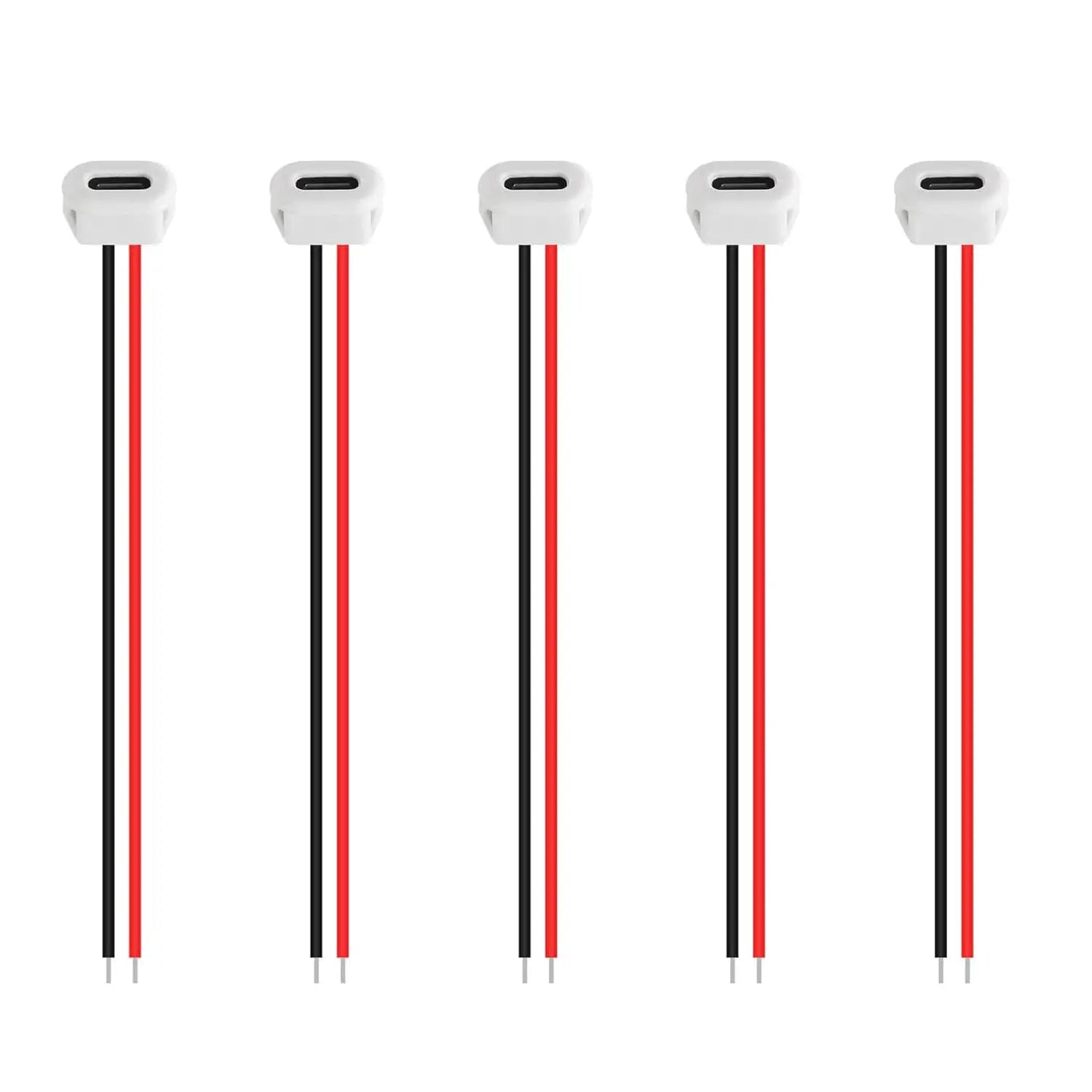

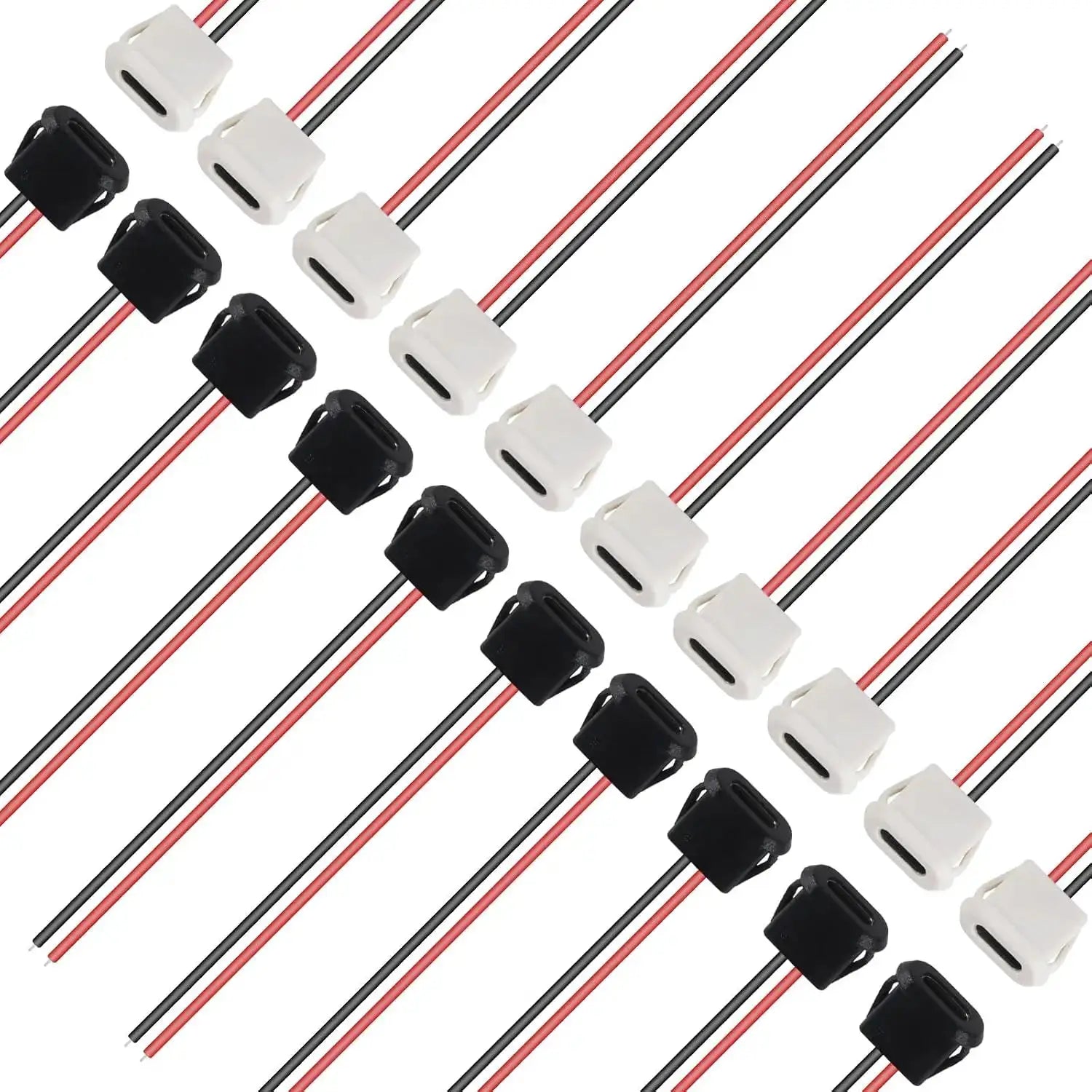

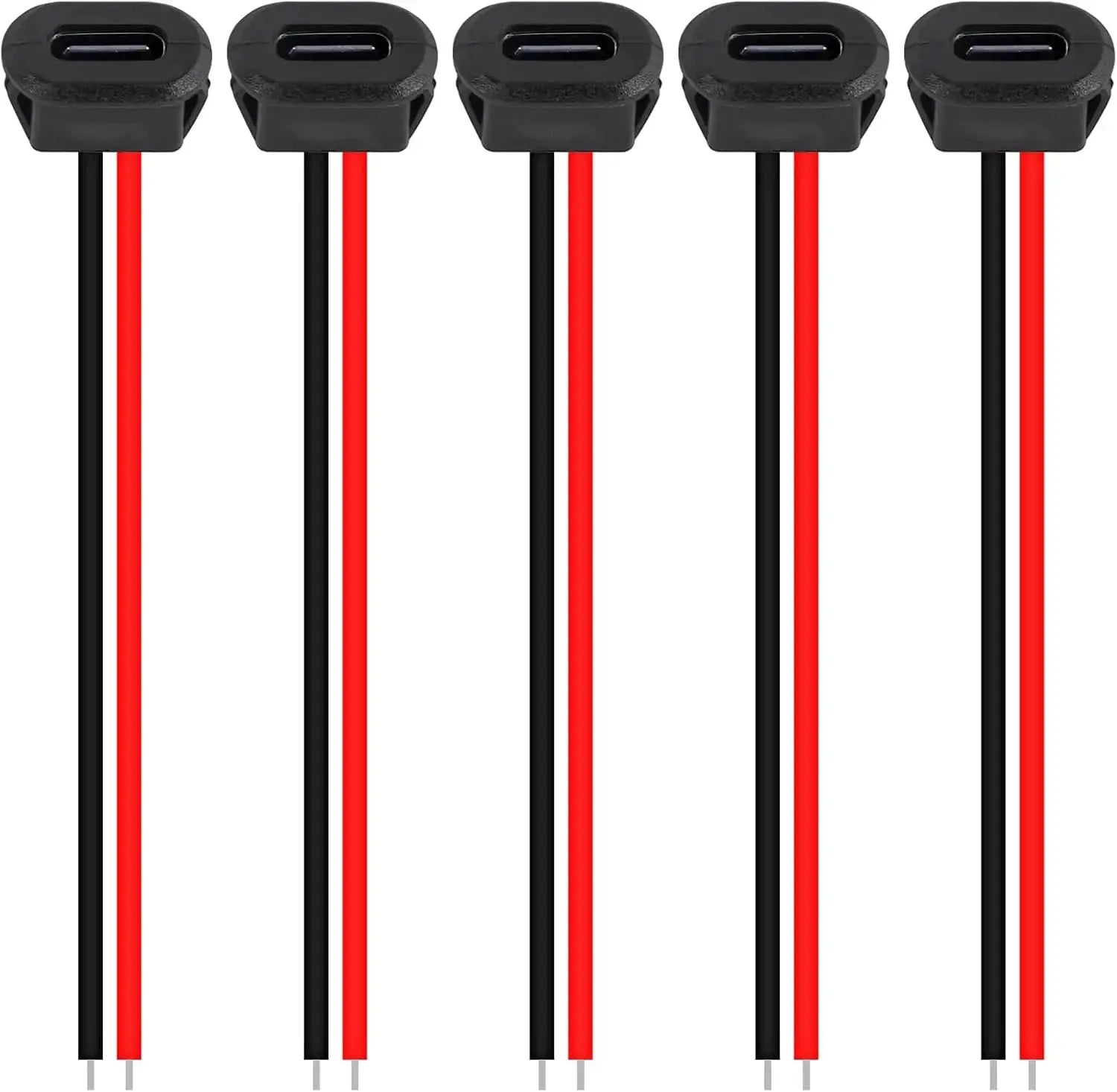

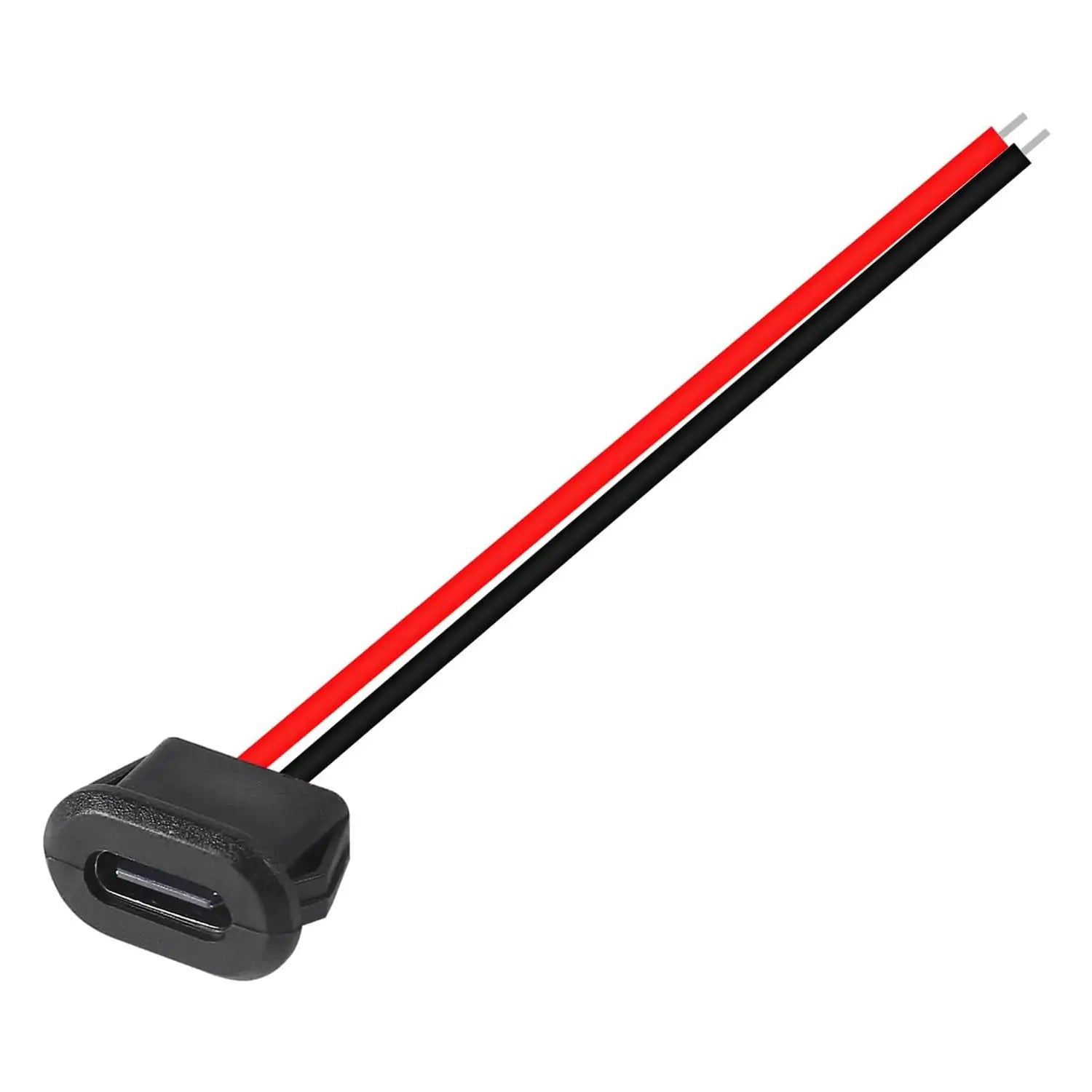

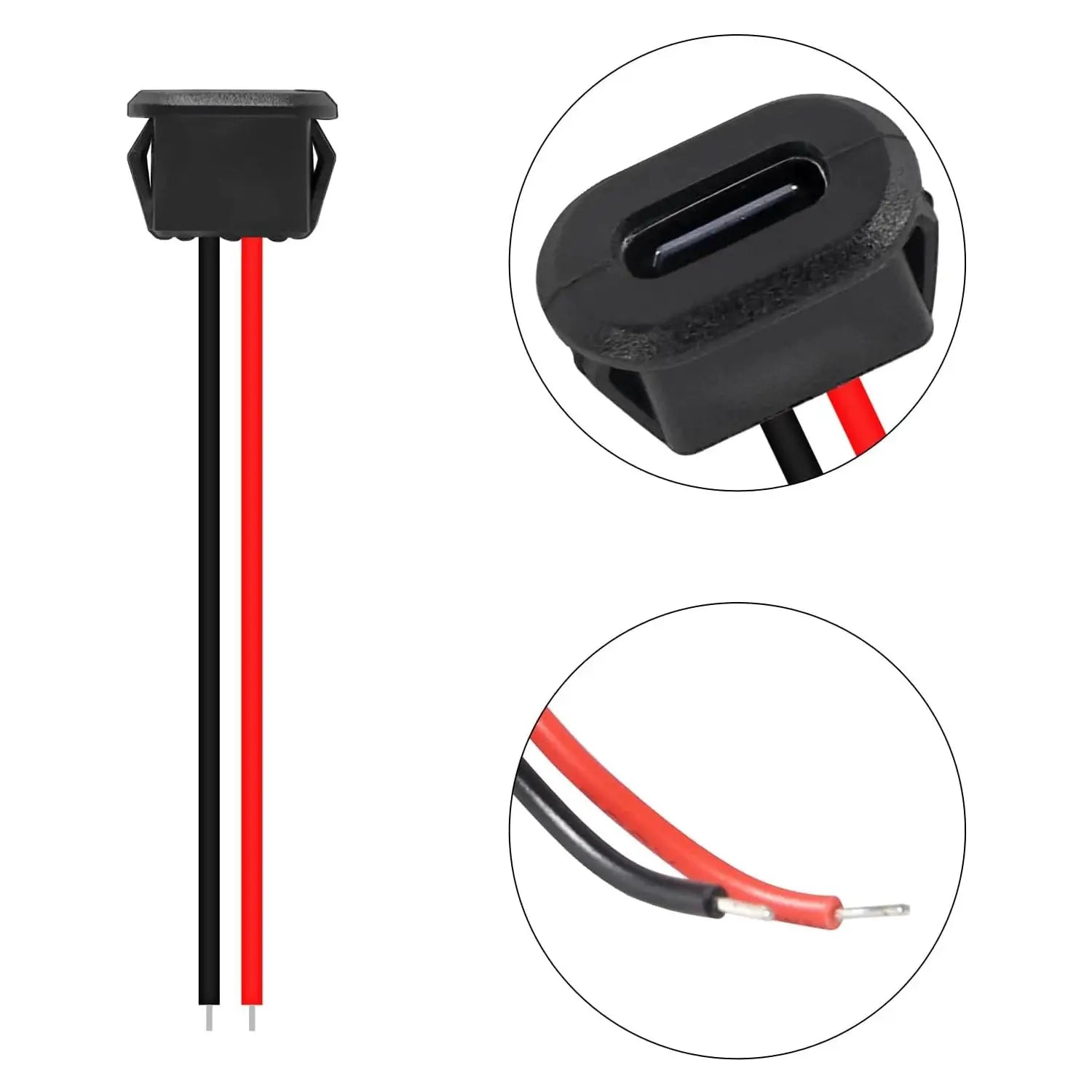

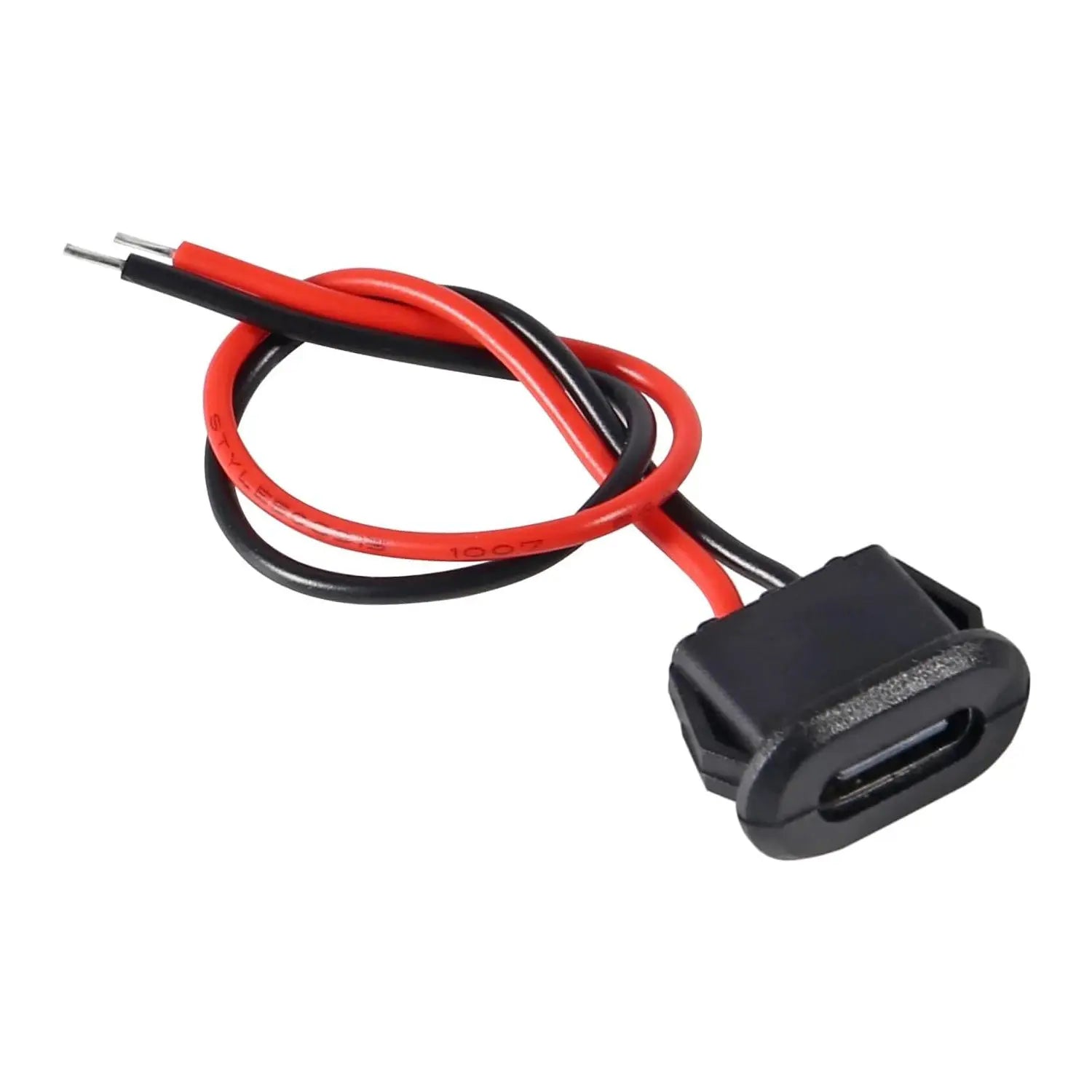

Type C Female Chassis Connector USB C Direct Crimp Jack Gold Plated Contacts Silica Gel Ring 5Pcs 10Pcs Power Cable
Hurry up, only 6 items left in stock.
Product Overview
This listing offers a pack of Type-C female chassis connectors designed for robust and reliable power and data extension. Featuring a durable plastic construction with gold-plated contacts and a silica gel waterproof ring, these connectors ensure stable performance and protection against environmental factors. Ideal for a wide range of electronic devices and industrial applications, they provide a secure and long-lasting connection solution.
Specifications
- Brand Name: AOKIN
- Material: Plastic
- Waterproof Grade: IP67
- Rubber Core Material: PA9T
- Contacts: Minimum copper alloy gold plating on contact area, minimum tin plating on soldering area (100uMin, lead-free)
- Rated Current: 3A / 5A
- Operating Temperature: -25℃ to +85℃ (-13°F to 185°F)
- Voltage: 220 V
Features
- Waterproof Design: Equipped with a silica gel waterproof ring for enhanced protection against moisture and dust ingress.
- Durable Construction: Made from high-quality plastic with a PA9T rubber core for longevity and resilience.
- High-Quality Contacts: Features gold plating on contact areas for superior conductivity and tin plating on soldering areas for reliable connections.
- Extended Durability: Guaranteed contact performance for over 1000 insertion and pull-out cycles.
- Polarity Indicators: Clearly marked red for positive and green for negative connections.
Measurements
- Contact Resistance: Less than 30 milliohms
- Insulation Resistance: Greater than 1M ohms
- Insertion Force: 5-20 N (approx. 1.12-4.49 lbs)
- Pull-out Force: 5-20 N (approx. 1.12-4.49 lbs)
Packing List
- 5 or 10 x Type-C Female Chassis Connectors (depending on selection)
Notes
- This product is designed for chassis mounting and extension purposes.
- Ensure correct polarity (red for positive, green for negative) during installation to prevent damage.
- The connector is rated for 220V, but actual usage should comply with specific device requirements and safety standards.
Product Tags
- USB C Connector
- Type-C Female
- Chassis Mount
- Power Port
- Extension Cable
- Waterproof Connector
- IP67
- Gold Plated
- DIY Electronics
- Industrial Equipment
Product Type
- Connectors
- Electronic Components
- Power Adapters
Disclaimer
- Design Specifics: The visible gap is a deliberate functional feature of engineering and does not indicate a defect or damage.
- Visual Variations: Actual product colors may vary slightly from online images due to differences in lighting conditions and monitor display settings.
- Measurement Tolerance: Please allow for minor dimensional deviations resulting from manual measurement and manufacturing processes.
