4 Sensor Car Parking Sensor Kit With Buzzer 22mm 12V Reverse Radar

Product Overview

This 1 Set 4 Sensors Buzzer Car Parking Sensor Kit features a 22mm size and operates on a 12V system, providing reliable reverse backup radar sound alerts. Designed to improve parking safety, it detects obstacles up to 2.5 meters away with ultrasonic precision.

Specifications

• Operating voltage range spans from 9 to 16 volts, supporting most standard vehicle electrical systems.
• The kit draws a rated current between 20 and 200 milliamps, ensuring energy-efficient performance.
• Detection distance reaches up to 2.5 meters (approximately 8.2 feet), offering ample warning space.
• Ultrasonic frequency is set at 40 kHz, enabling accurate obstacle sensing in various environments.
• Functions optimally within a working temperature range of -30°C to 80°C (-22°F to 176°F), suitable for diverse climates.

Features

• Includes four sensors designed to sense even small objects and barriers, enhancing parking precision.
• Equipped with an advanced chipset that improves coverage area and detection accuracy compared to previous models.

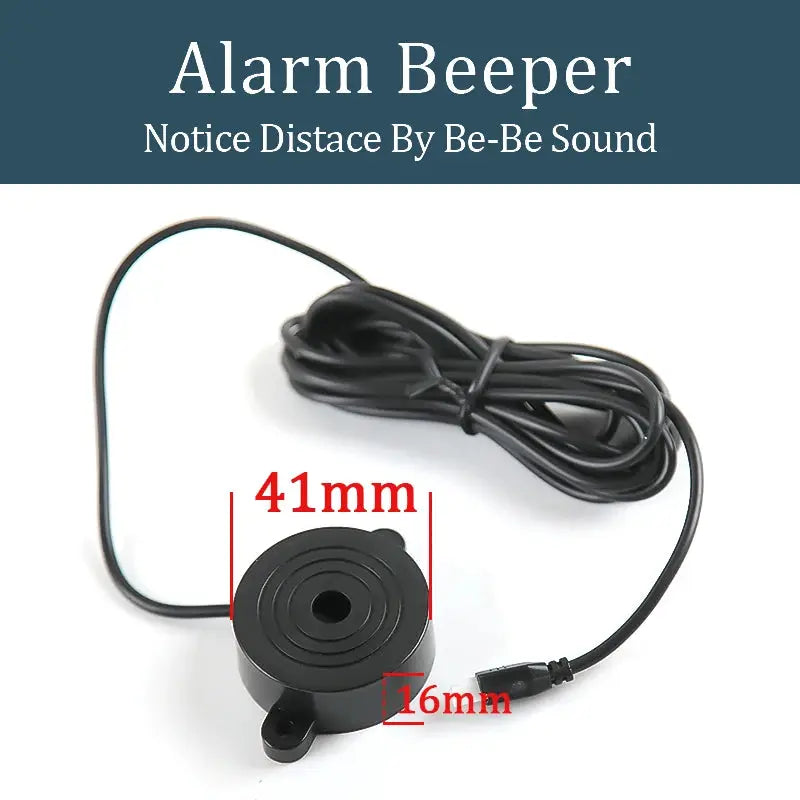

• The buzzer sound alert indicator has a diameter of 4.1 cm (1.61 inches) and a cable length of 2.5 meters (8.2 feet).
• The main control box measures 8.9 cm by 6 cm by 2.2 cm (3.5 x 2.36 x 0.87 inches), compact for convenient installation.
• Lightweight design with total kit weight around 0.33 kg (11.6 oz), making it easy to handle and mount.

Measurements

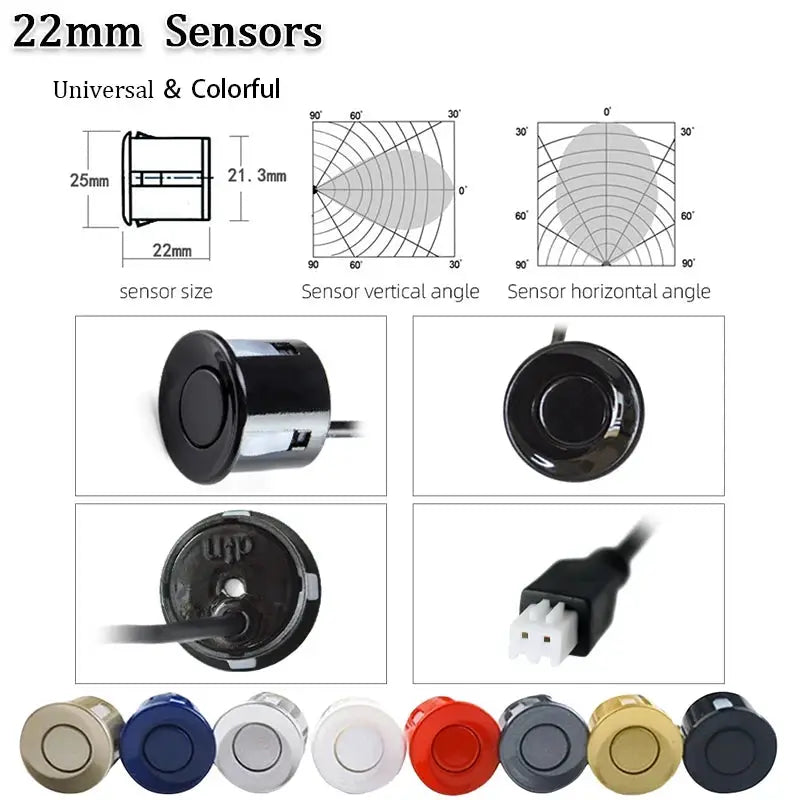

• Sensor diameter: 22 mm (0.87 inches).
• Buzzer indicator size: 4.1 cm x 1.6 cm (1.61 x 0.63 inches).
• Cable length for buzzer indicator: 2.5 meters (8.2 feet).
• Main control box dimensions: 8.9 cm x 6 cm x 2.2 cm (3.5 x 2.36 x 0.87 inches).
• Total kit weight: 0.33 kg (11.6 oz).

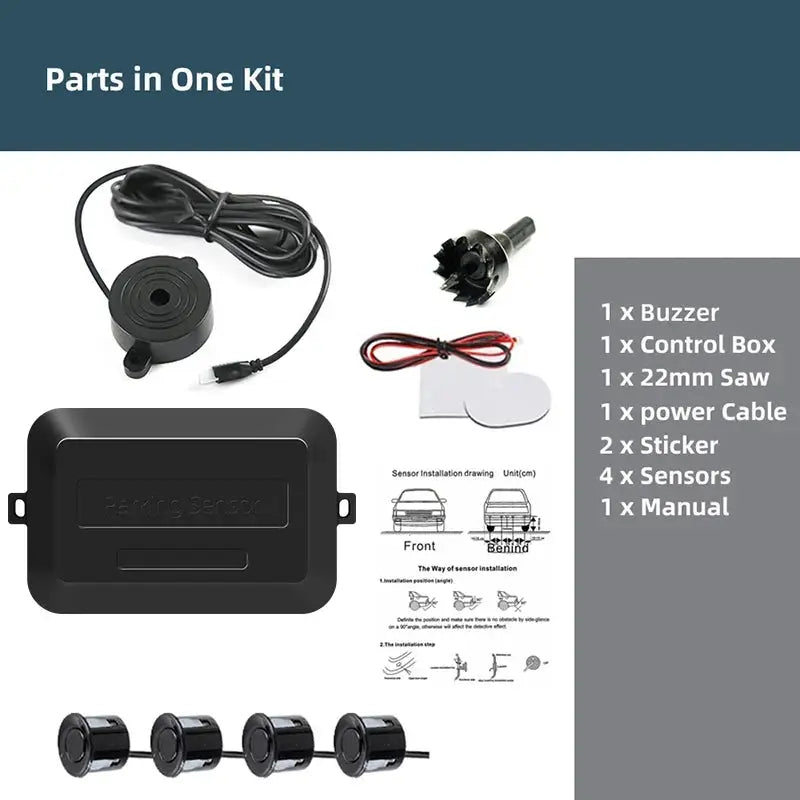

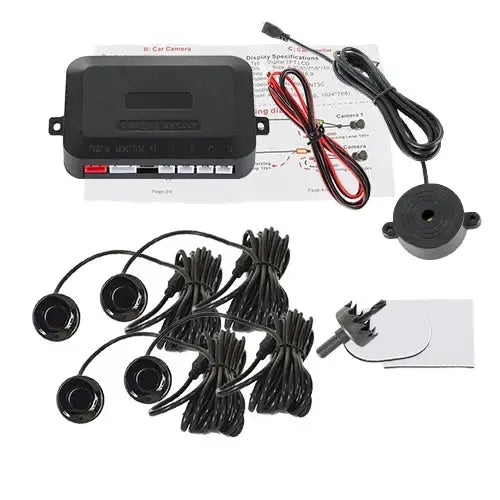

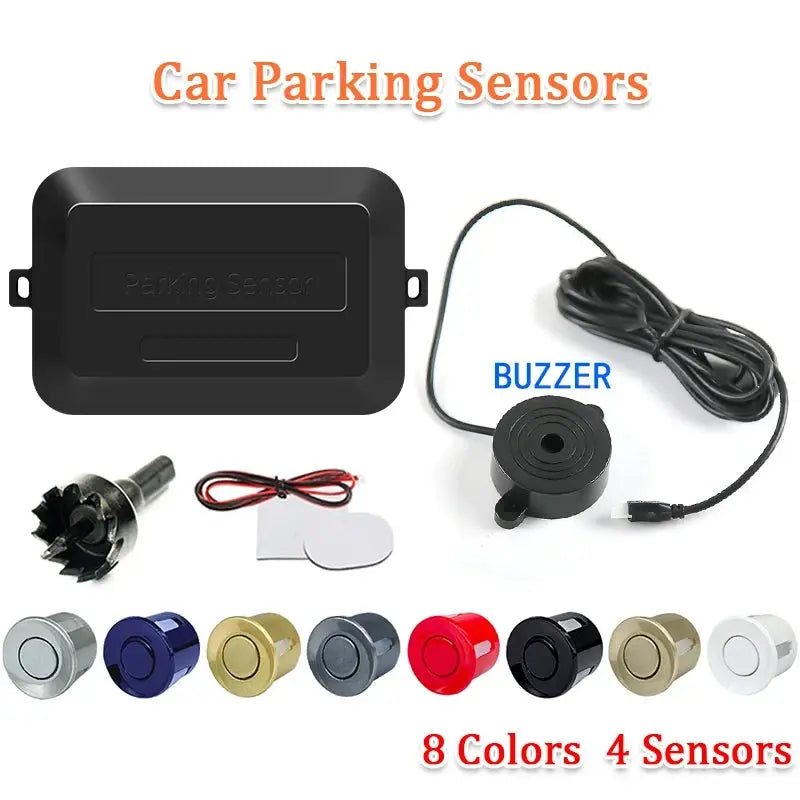

Packing List

• Four ultrasonic sensors sized at 22mm for discreet installation.
• Main control box for managing sensor inputs and alert signals.
• Sound alert indicator buzzer for audible warning during parking.
• Necessary cables to connect sensors and components with a 2.5-meter cable for the buzzer.

Notes

• If shipping to the Russian Federation, please provide the receiver's full name due to customs regulations.
• The parking sensor kit does not include a retail box; contact us if a retail packaging option is required.
• Product images are for reference; slight variations in appearance may occur between the actual product and photos.
• Small differences in product dimensions and colors may be present due to manufacturing and display settings.

Product Type

• This is an invisible-type car parking sensor system designed to blend seamlessly with vehicle surfaces.
• Manufactured by PHONEPACE with origin in Mainland China, ensuring quality and affordability.
• Designed specifically for automotive reverse parking assistance and obstacle detection.

Disclaimer

• Design Specifics: The visible gap is a deliberate functional feature of engineering and does not indicate a defect or damage.
• Visual Variations: Actual product colors may vary slightly from online images due to differences in lighting conditions and monitor display settings.
• Measurement Tolerance: Please allow for minor dimensional deviations resulting from manual measurement and manufacturing processes.
• Policy Information: Consult our FAQ, Privacy Policy, and Terms & Conditions for comprehensive details regarding returns and exchanges.
