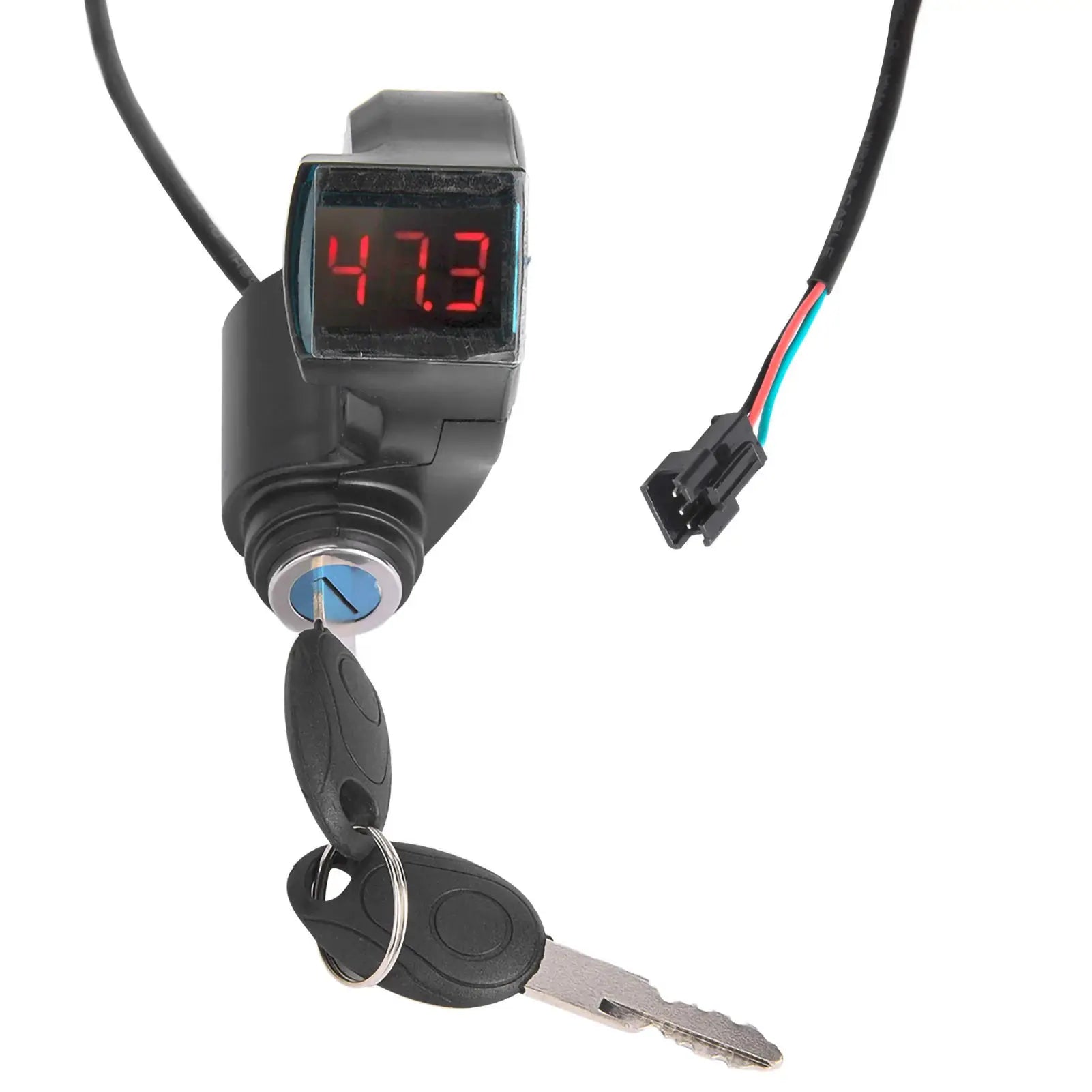

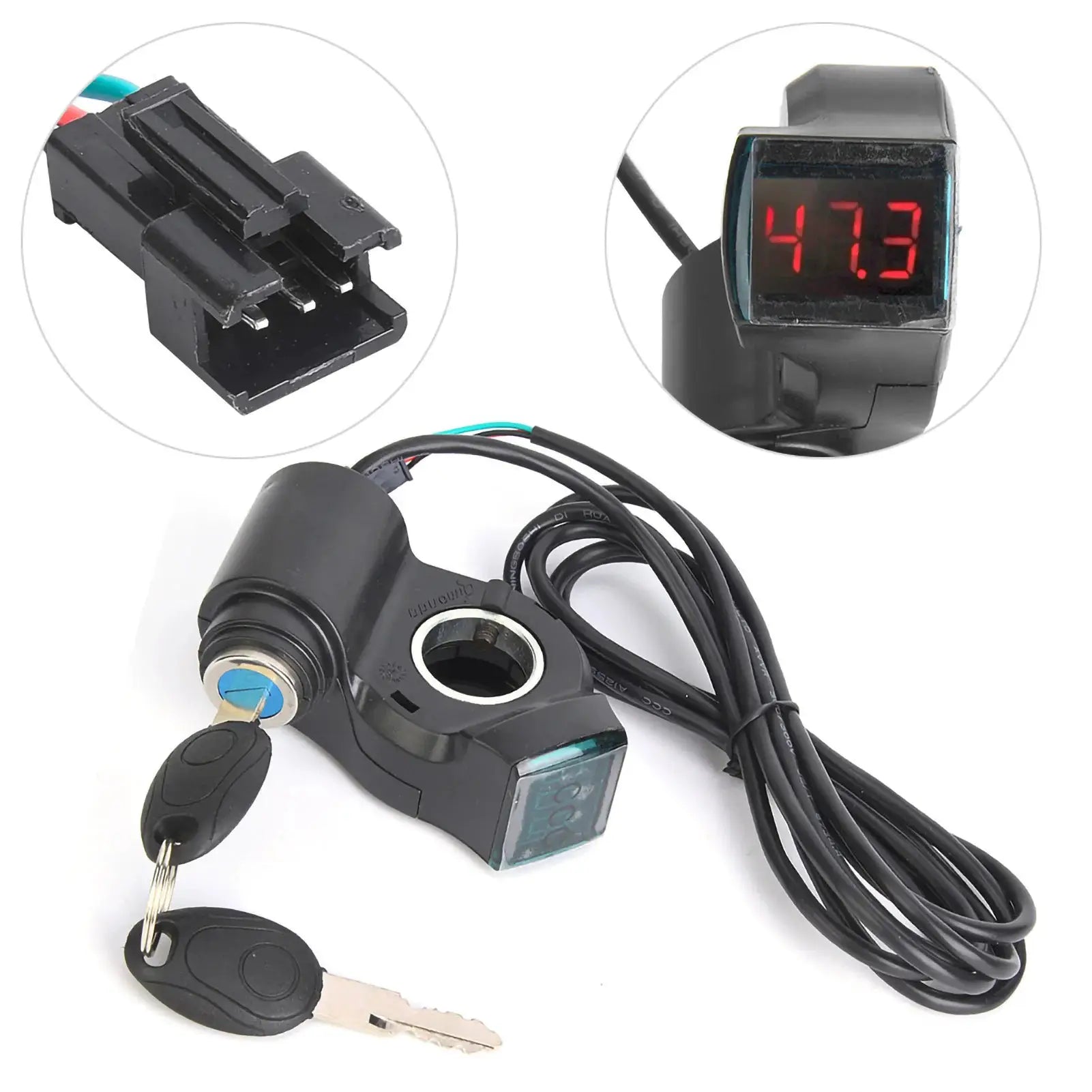

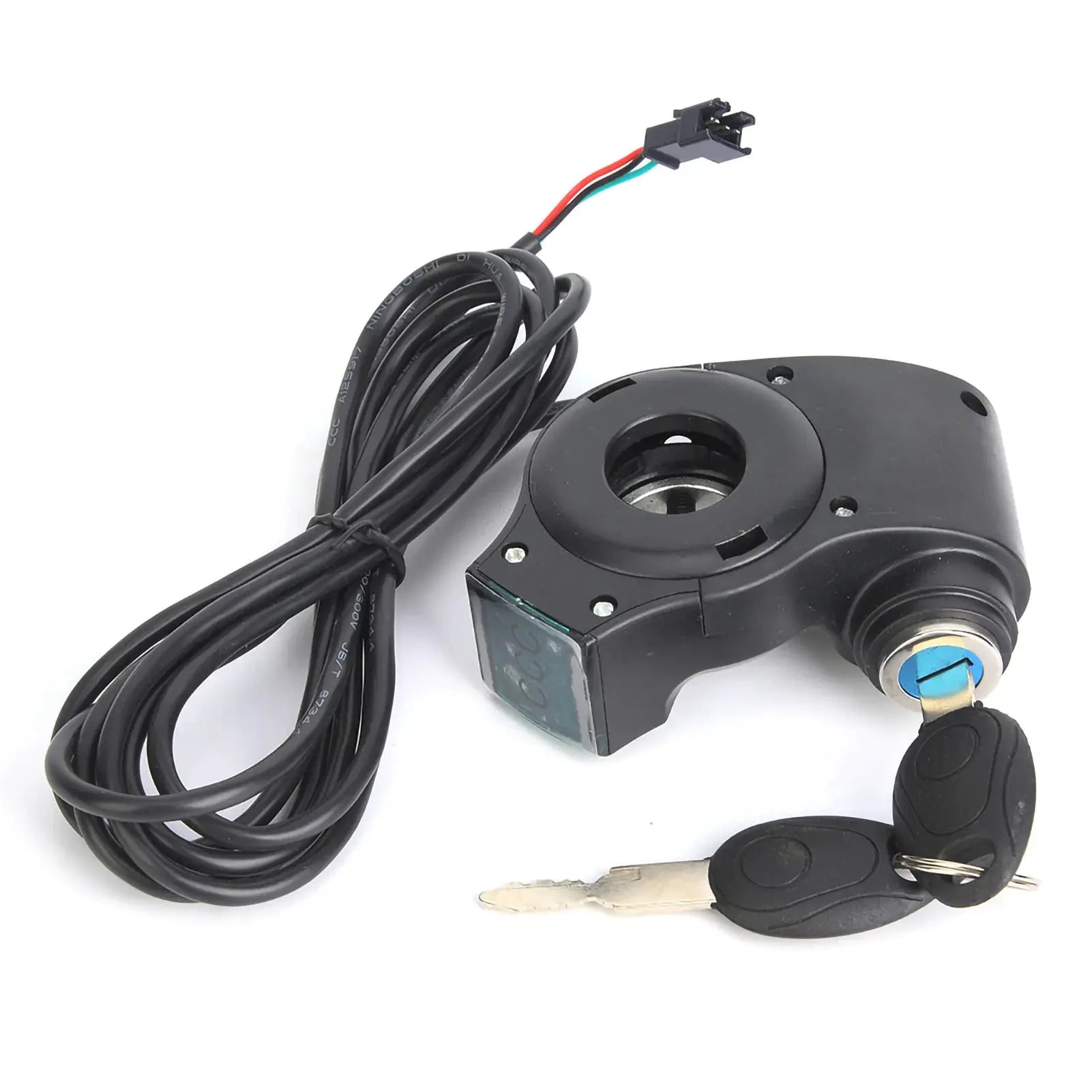

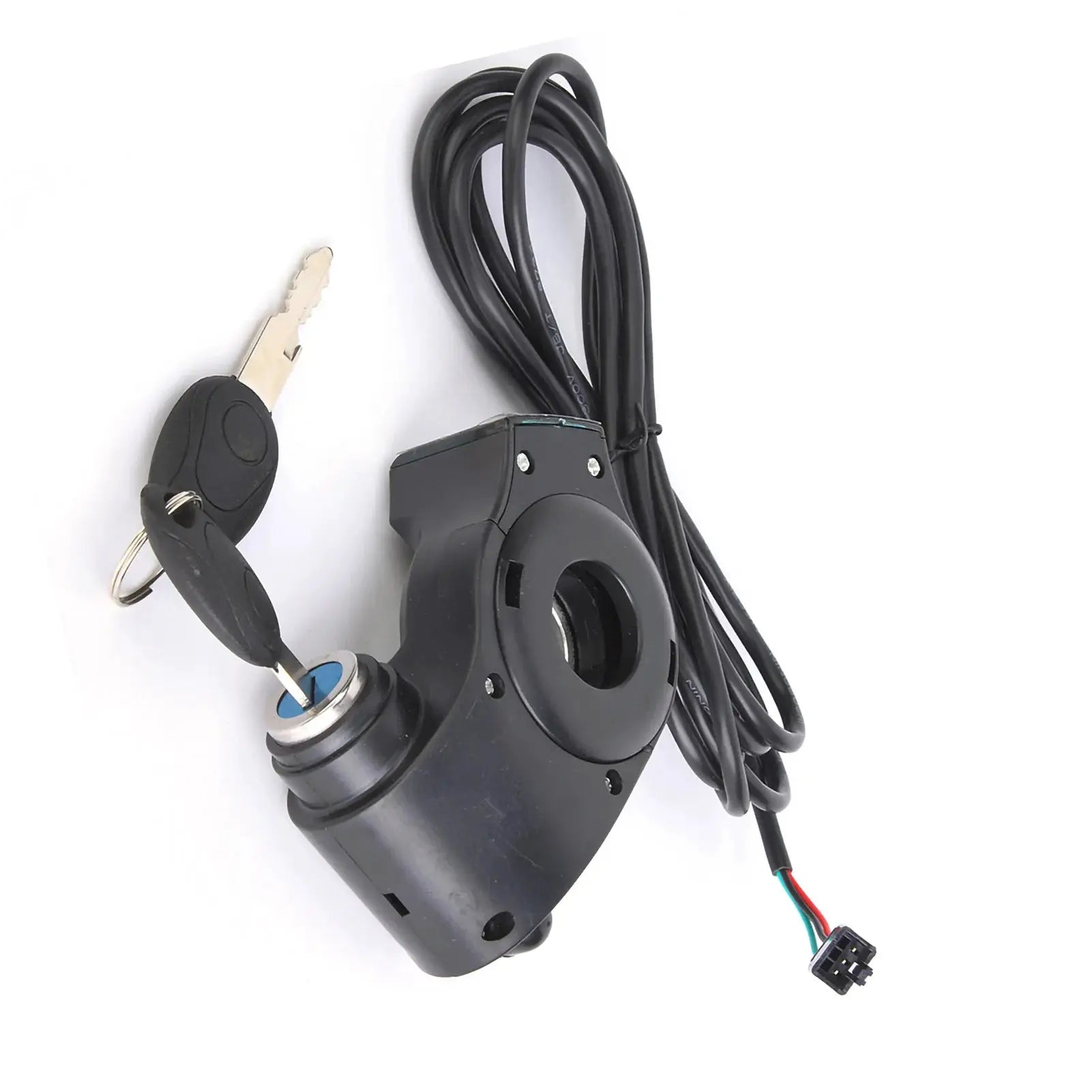

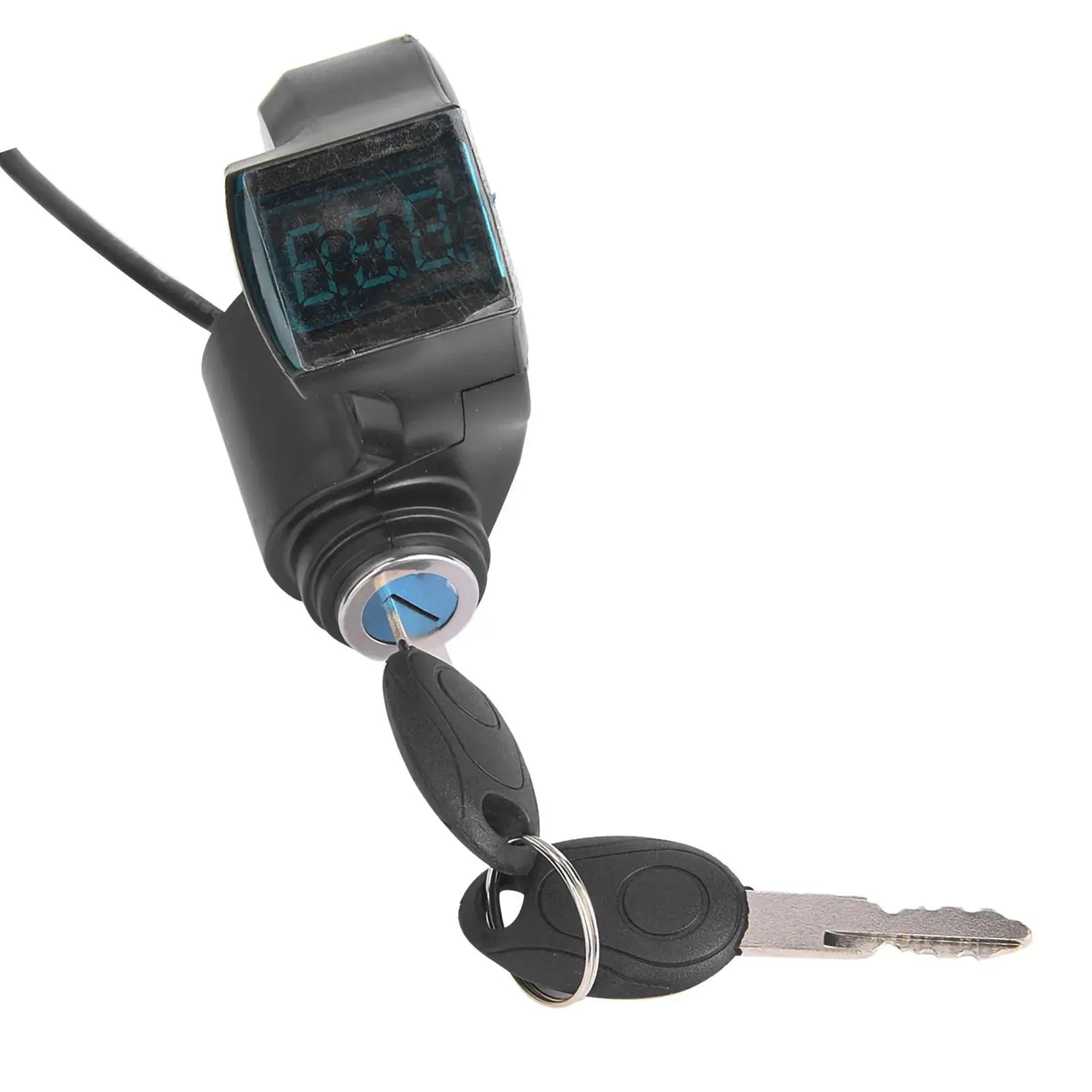

E Bike Thumb Throttle With Digital Battery Voltage Display And Key Lock Switch For E Bike Battery Monitoring
Available in stock (171)
Product Overview
Enhance your electric vehicle's functionality with the Qiilu E-Bike Thumb Throttle and Digital Battery Voltage Display. This versatile unit features a key lock switch and provides a real-time digital voltage display, allowing you to intuitively monitor your battery's remaining power and estimate driving distance. It automatically identifies and displays voltage for a wide range of electric vehicles, from 12V to 99V, ensuring broad compatibility.
Specifications
- Brand Name: Qiilu
- Material: Plastic
- Origin: Mainland China
- Efficiency: 98% or higher
- Hall Grade: Linear hall, high-quality rubber, imported LED digital display lamp
Features
- Compatible with Lead-acid, lithium, water, and dry batteries.
- Automatically identifies and displays real-time voltage for all electric vehicles (12V to 99V).
- Intuitive digital voltage display for accurate judgment of remaining electricity and driving distance.
- Helps accurately determine remaining power levels for convenient driving.
- Can accurately assess lithium battery health and detect damage.
- Includes a key lock switch for added security.
Measurements

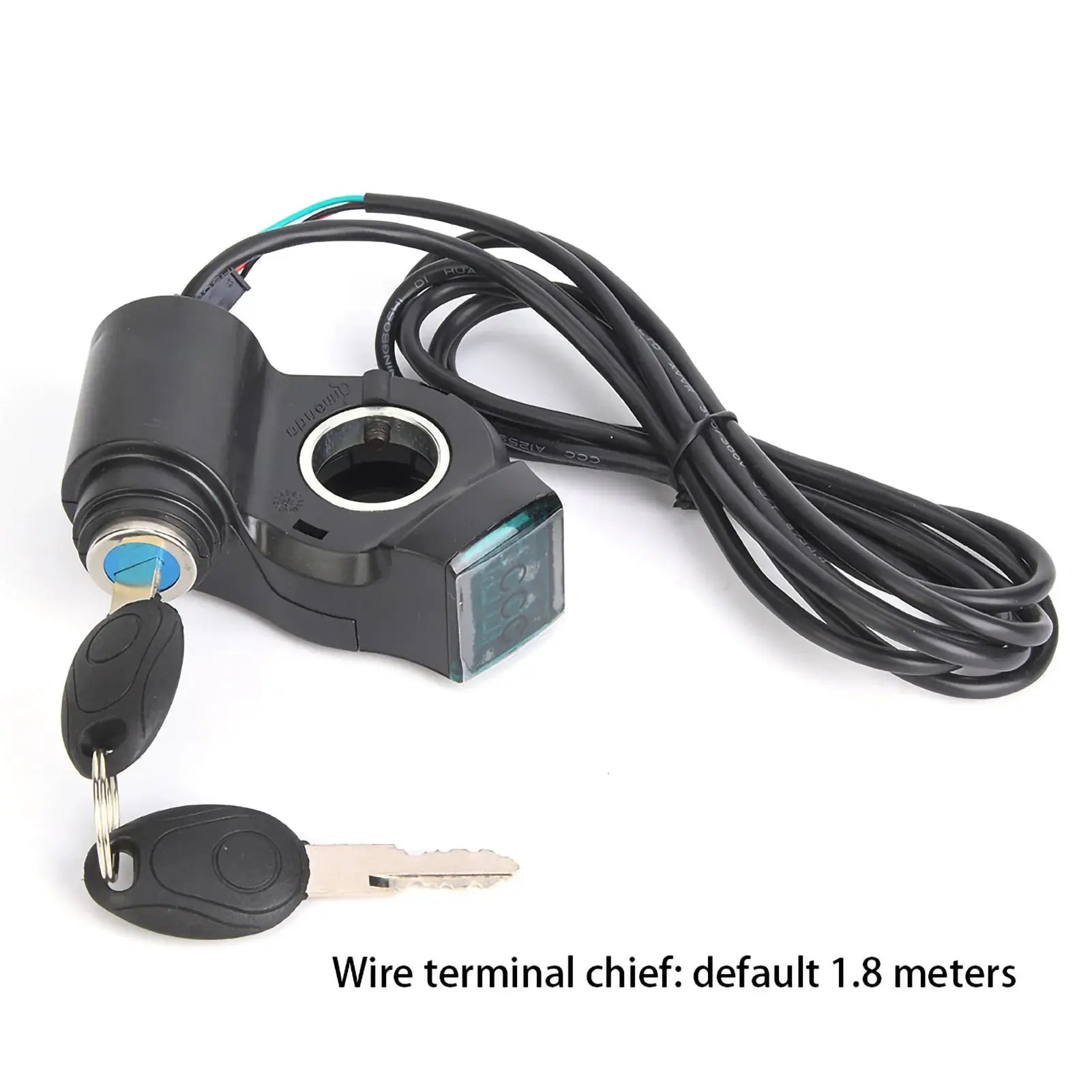

- Terminal Length: 1.8 meters (default)
- Voltage Compatibility: 12V to 99V
- Example Voltage Range (48V E-bike): Approximately 40V (minimum) to 58.8V (maximum)
Packing List
- 1 x E-Bike Voltage Display
- 2 x Keys
Notes
- Wiring: Connect according to controller function wires; incorrect connections can damage the controller and throttle. (Green: throttle hall signal, Red: throttle +5V, Black: negative).
- 5-Wire Configuration: Blue wire connects to controller power lock output; Yellow wire connects to controller electric switch input (power positive).
- 6-Wire Configuration: Yellow connects to power positive; Blue and White wires are function wires (can be used for reverse switch, horn, cruise control, power lock, etc.).
- 7-Wire Configuration: Yellow connects to power positive; Blue is a shared wire; White is high gear; Brown is low gear.
- Non-professional installation requires careful attention to line sequence to prevent damage to hall sensors and LED tubes.
- Battery voltage readings may vary based on battery material, age, and batch; testing may be required to determine specific parameters.
Product Tags
- E-Bike Throttle
- Voltage Display
- Battery Monitor
- Electric Scooter Part
- Key Lock Switch
- Qiilu E-Bike Accessory
- 12V-99V E-Bike
Product Type
- E-Bike Parts & Accessories
- Throttle Controls
- Battery Indicators
Disclaimer
- Design Specifics: The visible gap is a deliberate functional feature of engineering and does not indicate a defect or damage.
- Visual Variations: Actual product colors may vary slightly from online images due to differences in lighting conditions and monitor display settings.
- Measurement Tolerance: Please allow for minor dimensional deviations resulting from manual measurement and manufacturing processes.
